Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 20, 2017.
As of Monday, October 21st, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-231-49
  • Executive Order 231-49 / D231-49
  • ARB # D-231-49
  • Executive Order No: D-231-49
  • C.A.R.B. No. D-231-49
  • Resolution D-231-49
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-231-49 PDF

D-231-49 Document:

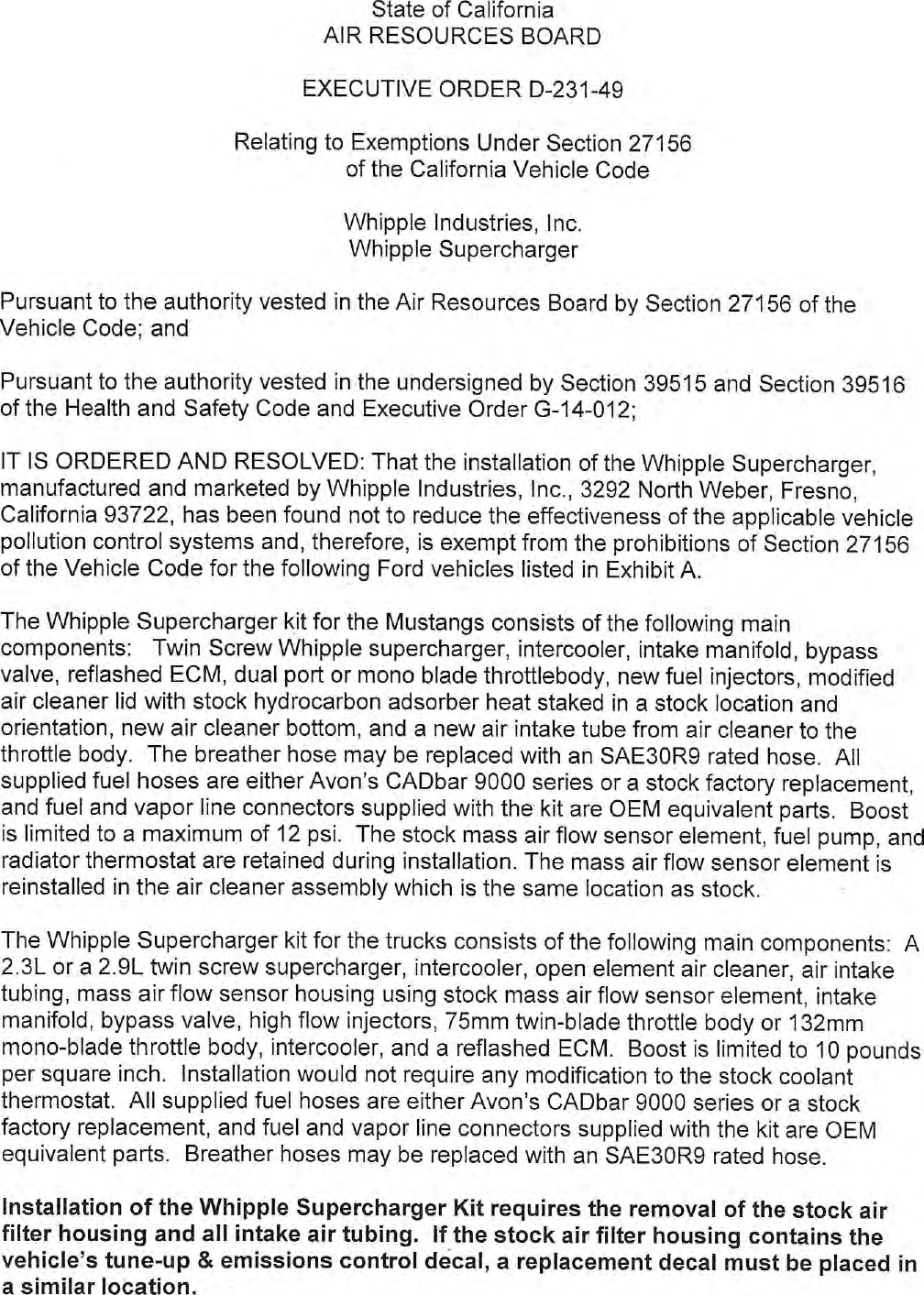

                                   State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—231—49

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                  Whipple Industries, Inc.
                                  Whipple Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Whipple Supercharger,
manufactured and marketed by Whipple Industries, Inc., 3292 North Weber, Fresno,
California 93722, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for the following Ford vehicles listed in Exhibit A.

The Whipple Supercharger kit for the Mustangs consists of the following main
components: Twin Screw Whipple supercharger, intercooler, intake manifold, bypass
valve, reflashed ECM, dual port or mono blade throttlebody, new fuel injectors, modified
air cleaner lid with stock hydrocarbon adsorber heat staked in a stock location and
orientation, new air cleaner bottom, and a new air intake tube from air cleaner to the
throttle body. The breather hose may be replaced with an SAE30R9 rated hose. All
supplied fuel hoses are either Avon‘s CADbar 9000 series or a stock factory replacement,
and fuel and vapor line connectors supplied with the kit are OEM equivalent parts. Boost
is limited to a maximum of 12 psi. The stock mass air flow sensor element, fuel pump, and
radiator thermostat are retained during installation. The mass air flow sensor element is
reinstalled in the air cleaner assembly which is the same location as stock.

The Whipple Supercharger kit for the trucks consists of the following main components: A
2.3L or a 2.9L twin screw supercharger, intercooler, open element air cleaner, air intake
tubing, mass air flow sensor housing using stock mass air flow sensor element, intake
manifold, bypass valve, high flow injectors, 75mm twin—blade throttle body or 132mm
mono—blade throttle body, intercooler, and a reflashed ECM. Boost is limited to 10 pounds
per square inch. Installation would not require any modification to the stock coolant
thermostat. All supplied fuel hoses are either Avon‘s CADbar 9000 series or a stock
factory replacement, and fuel and vapor line connectors supplied with the kit are OEM
equivalent parts. Breather hoses may be replaced with an SAE30RY rated hose.

Installation of the Whipple Supercharger Kit requires the removal of the stock air
filter housing and all intake air tubing. If the stock air filter housing contains the
vehicle‘s tune—up & emissions control decal, a replacement decal must be placed in
a similar location.


This Executive Order is valid provided that the installation instructions for the Whipple
Supercharger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the Whipple Supercharger, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Whipple Supercharger advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the Whipple Supercharger using any identification other than that shown in
this Executive Order or marketing of the Whipple Supercharger for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the
Whipple Supercharger may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on previously submitted emissions and OBD II test
data that was generated in support of prior Executive Orders. The test vehicles were a
2008 model year 5.4L Ford Mustang certified to the Low Emission Vehicle II Low Emission
Vehicle emission standards, a 2012 model year 5.0L Ford Mustang certified to the Low
Emission Vehicle II Ultra Low Emission Vehicle emission standards, 2011 model year 6.2L
Ford F—150 certified to the Low Emission Vehicle II Ultra Low Emission Vehicle emission
standards and on a 2015 model year Ford Mustang, certified to the Low Emission Vehicle
III Ultra Low Emission Vehicle (LEV III ULEV) standards.

2015 Mustang

Useful Life FTP      NMOG+NOx                Cco         HCHO
Emission Level         0.095                 0.8         0.003       Test 1
(w/ df applied)         0.085                0.8         0.003      Test 2

     Standards          0.125                2.1         0.004

Useful Life SFTP            NMHC+NOx               cCO
Emission Level                 0.07                0.5
(Composite w/ df)

     Standards                   0.11(BIN)         4.2

Test results showed that the Whipple Supercharger when installed on the vehicle did not
cause exhaust emissions to exceed the applicable emission standards during the Cold
Start Federal Test Procedure and the Supplemental Federal Test Procedure. This
Executive Order is also based on the On—Board Diagnostic II (OBD II) testing conducted
on the same test vehicle. The Whipple Supercharger when installed on the test vehicle
did not affect the vehicle‘s ability to perform its OBD II monitoring.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part


continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE WHIPPLE
SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist

Executed at El Monte, California, this
                                    dayof January 2017.




                  Annette Hebert, Chief
                  Emissions Compliance, Automotive Regulations and Science Division




         WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—49


                                                Exhibit A
                                                             MAX                  CRANK
                                                  ENGINE             COMPRESSOR                    SC
 YEARS             MAKE        WHIPPLE KIT #      (LTER)    BOPgST      SsIZE     PLSJ|I.IZ.EY   PULLEY

2005—2007    |Ford GT         WK—2000 Series       5.4L       15        3AL        Stock         3.500
2005—2007    |Ford GT         WK—2000 Series       5.4L       15        3 AL       Stock         3.750
2005—2007    |Ford GT         WK—2000 Series       5AL        15        4.0L       Stock         3.250
2005—2007    |Ford GT         WK—2000 Series       5.4L       15        4.0L       Stock         3.375
2005—2007    |Ford GT         WK—2000 Series       5.AL       15        4.0L       Stock         3.500
2005—2007    |Ford GT.        WK—2000 Series       5AL        15        4.0L       Stock         3.625
2005—2007    |Ford GT.        WK—2000 Series       5AL        15        4.0L       Stock         3.750
2005—2007    |Ford GT         WK—2000 Series       5.4L       15        4.0L       Stock         3.875
2005—2007    |Ford GT.        WK—2000 Series       5.AL       15        4.0L       Stock         4.000
2005—2007    |Ford GT         WK—2000 Series       5AL        15        4.5L       Stock         4.000
2005—2007    |Ford GT         WK—2000 Series       5.4L       15        4.5L       Stock         4.250
2005—2007    |Ford GT         WK—2000 Series       5.4L       15        4.5L       Stock         4.500
2005—2007    |Ford GT         WK—2000 Series       5AL        15        4.5L       Stock         4.750
2005—2007    |Ford GT         WK—2000 Series       5AL        15        4.5L       Stock         5.000
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        2.9L       Stock         2.750
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        2.9L       Stock         2.875
2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        2.9L       Stock         3.000
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        2.9L       Stock         3.125
2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        2.9L       Stock         3.250
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        2.9L       Stock         3.375
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        2.9L       Stock         3.500
2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        2.9L       Stock          3.625
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        34L        Stock          3.000
2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        3 AL        Stock         3.125
2007—2012    |Shelby GT500    WK—2000 Series       5.AL       22         34L        Stock         3.250
2007—2012    |Shelby GT500    WK—2000 Series       5AL        22         34L        Stock         3.375
2007—2012    |Shelby GT500    WK—2000 Series        5.4L      22         3 AL       Stock         3.500
2007—2012    |Shelby GT500    WK—2000 Series        5.AL      22         3 AL       Stock         3.625
2007—2012    |Shelby GT500    WK—2000 Series        5.AL      22         34L        Stock         3.750
 2007—2012    |Shelby GT500   WK—2000 Series        5AL       22         3 AL       Stock         3.875
 2007—2012    |Shelby GT500   WK—2000 Series        5AL       22         3 AL       Stock         4.000
 2007—2012    |Shelby GT500   WK—2000 Series        5.4L       22        4.0L       Stock         3.000
 2007—2012    |Shelby GT500   WK—2000 Series        5AL        22        4.0L       Stock         3.125
 2007—2012    |Shelby GT500   WK—2000 Series        5AL        22        4.0L       Stock         3.250
 2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        4.0L       Stock         3.375
 2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        4.0L       Stock         3.500
 2007—2012    |Shelby GT500    WK—2000 Series       54L        22        4.0L       Stock         3.625
 2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        4.0L       Stock         3.750
 2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        4.0L       Stock         3.875
 2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        4.0L       Stock         4.000
 2007—2012    |Shelby GT500    WK—2000 Series       5.AL       22        4.5L       Stock         4.000
 2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        4.5L       Stock         4.250
 2007—2012    |Shelby GT500    WK—2000 Series       5AL        22        4.5L       Stock         4.500
 2007—2012    |Shelby GT500    WK—2000 Series       5.AL       22        4.5L       Stock         4.750
 2007—2012    |Shelby GT500    WK—2000 Series       5.4L       22        4.5L       Stock         5.000
 2013—2014    |Shelby GT500    WK—2000 Series       5.8L       22        2.9L       Stock         2.750
 2013—2014    |Shelby GT500    WK—2000 Series       5.8L       22        2.9L       Stock         2.875
 2013—2014    |Shelby GT500    WK—2000 Series       5.8L       22        2.9L       Stock         3.000
 2013—2014    |Shelby GT500    WK—2000 Series       5.8L       22        2.9L       Stock         3.125
 2013—2014    |Shelby GT500    WK—2000 Series       5.8L       22        2.9L       Stock          3.250


    WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—49
                                  1


                                                     Exhibit A
                                                                  MAX                   CRANK
                                                       ENGINE              COMPRESSOR                     SC
  YEARS           MAKE            WHIPPLE KIT #        (LITeR)   B?JSIST      sizE      PlélLlZ_IISEY   PULLEY

2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         2.9L       Stock          3.375
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         2.9L       Stock          3.500
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         2.9L       Stock          3.625
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         34L        Stock          3.000
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         34L        Stock          3.125
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         34L        Stock          3.250
2013—2014   |Shelby GT500        WK—2000 Series         5.8L.      22         34L        Stock          3.375
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         34L        Stock          3.500
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         3AL        Stock          3.625
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         34L        Stock          3.750
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         3AL        Stock          3.875
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         3AL        Stock          4.000
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.000
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.125
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.250
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.375
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.500
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.625
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.750
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          3.875
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.0L       Stock          4.000
2013—2014   |Shelby GT500        WK—2000 Series         5.81       22         .51        Stock          4.000
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.5L       Stock          4.250
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.5L       Stock          4.500
2013—2014   |Shelby GT500        WK—2000 Series         5.8L       22         4.5L       Stock          4.750
2013—2014   |Shelby GT500        WK—2000 Series         5.8L.      22         45L        Stock          5.000
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.3L       6.500          3.000
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.3L       6.500          3.125
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.3L       6.500          3.250
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.3L       6.500          3.375
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.9L       6.500          3.500
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.9L       6.500          3.625
2012—2013   |Ford Boss Mustang   |WK—2000 Series        5.0L       12         2.9L       6.500          3.750
2012—2013 |Ford Boss Mustang |WK—2000 Series            5.0L       12         2.9L       6.500          3.875
2012—2013   |Ford Boss Mustang   |WK—2000   Series      5.0L      12          2.9L      6.500           4.000
2012—2013   |Ford Boss Mustang   |WK—2000   Series      5.0L      12          2.9L      6.500           4.125
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.3L      6.500           3.000
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.3L      6.500           3.125
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.3L      6.500           3.250
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.3L      6.500           3.375
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.9L      6.500           3.500
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.9L      6.500           3.625
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.9L      6.500           3.750
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.9L      6.500           3.875
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.9L      6.500           4.000
2011—2017   |Ford Mustang        WK—2000    Series      5.0L      12          2.9L      6.500           4.125
2010—2017   |F150                WK—2000    Series      5.0L      10          2.3L      6.555           3.250
2010—2017   |F150                WK—2000    Series      5.0L      10          2.3L      6.555           3.375
2010—2017   |F150                WK—2000    Series      5.0L      10          2.3L      6.555           3.500
2010—2017   |F150                WK—2000    Series      5.0L      10          2.3L      6.555           3.625


   WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—49
                                 2


                                                    Exhibit A
                                                                 MAX                    CRANK
                                                      ENGINE               COMPRESSOR                  SC
 YEARS              MAKE         WHIPPLE KIT #        (LITER)   BC;(;IST      sIzE      PgII_IZ.EY   PULLEY

2010—2017   |F150                WK—2000   Series      5.0L       10          2.3L       6.555       3.750
2010—2017   |F150                WK—2000   Series      5.0L       10          2.9L       6.555       3.500
2010—2017   F150                 WK—2000   Series      5.0L       10          2.9L       6.555       3.625
2010—2017   |F150                WK—2000   Series      5.0L       10          2.9L       6.555       3,750
2010—2017   |F150                WK—2000   Series      5.0L       10          2.9L       6.555       3.875
2010—2017   |F150                WK—2000   Series      5.0L       10          2.9L       6.555       4.000
2010—2017   |F150                WK—2000   Series      5.0L       10          2.9L       6.555       4.125
2010—2017   |F150                WK—2000   Series      5.0L       10          2.9L       6.555       4.250
          Ford Raptor, F150,            ;
2010—2015 |F250, F350        WK—2000 Series            62L         10         2.9L       6.555       3.000
          Ford Raptor, F150,    $       7
2010—2015 |F250, F350        WK—2000 Series            62L         10         2.9L       6.555       3.125
            Ford Raptor, F150,      o.        ;
2010—2015 |F250, F350            WK—2000 Series        62L         10         2.9L       6.555        3.250
            Ford Raptor, F150,      y         ;
2010—2015 |F250, F350            Wheode series®        sop         10         2.9L       gssg         2508
            Ford Raptor, F150,      y         ;
2010—2015 |F250, F350            WK—2000 Series        62L         10         2.9L       6.555        3.625
            Ford Raptor, F150,      y         4
2010—2015 |F250, F350            (Wwepod Sees           eoy        10         2.9L       ga5e._       39
            Ford Raptor, F150,      .         ;
2010—2015 |F250, F350            WK—2000 Series         62L        10         2.9L        6.555       3.875
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.000
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.125
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.250
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.500
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.625
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.750
2010—2017 |F250, F350            WK—2000 Series         6.2L       10         2.9L        6.555       3.875




    WHIPPLE INDUSTRIES, INC. — WHIPPLE SUPERCHARGER — D—231—49
                                  3



Document Created: 2017-02-02 10:20:32
Document Modified: 2017-02-02 10:20:32

Previous E.O. D-231-48 | Previous E.O. D-230 | Next E.O. D-231-50 | Next E.O. D-232
