Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 16, 2001.
As of Monday, September 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
49.10.931998-2000 Beetle, 2.0L, 8-valve, w/ air pumpSame as above

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-236-9
  • Executive Order 236-9 / D236-9
  • ARB # D-236-9
  • Executive Order No: D-236-9
  • C.A.R.B. No. D-236-9
  • Resolution D-236-9
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-236-9 PDF

D-236-9 Document:

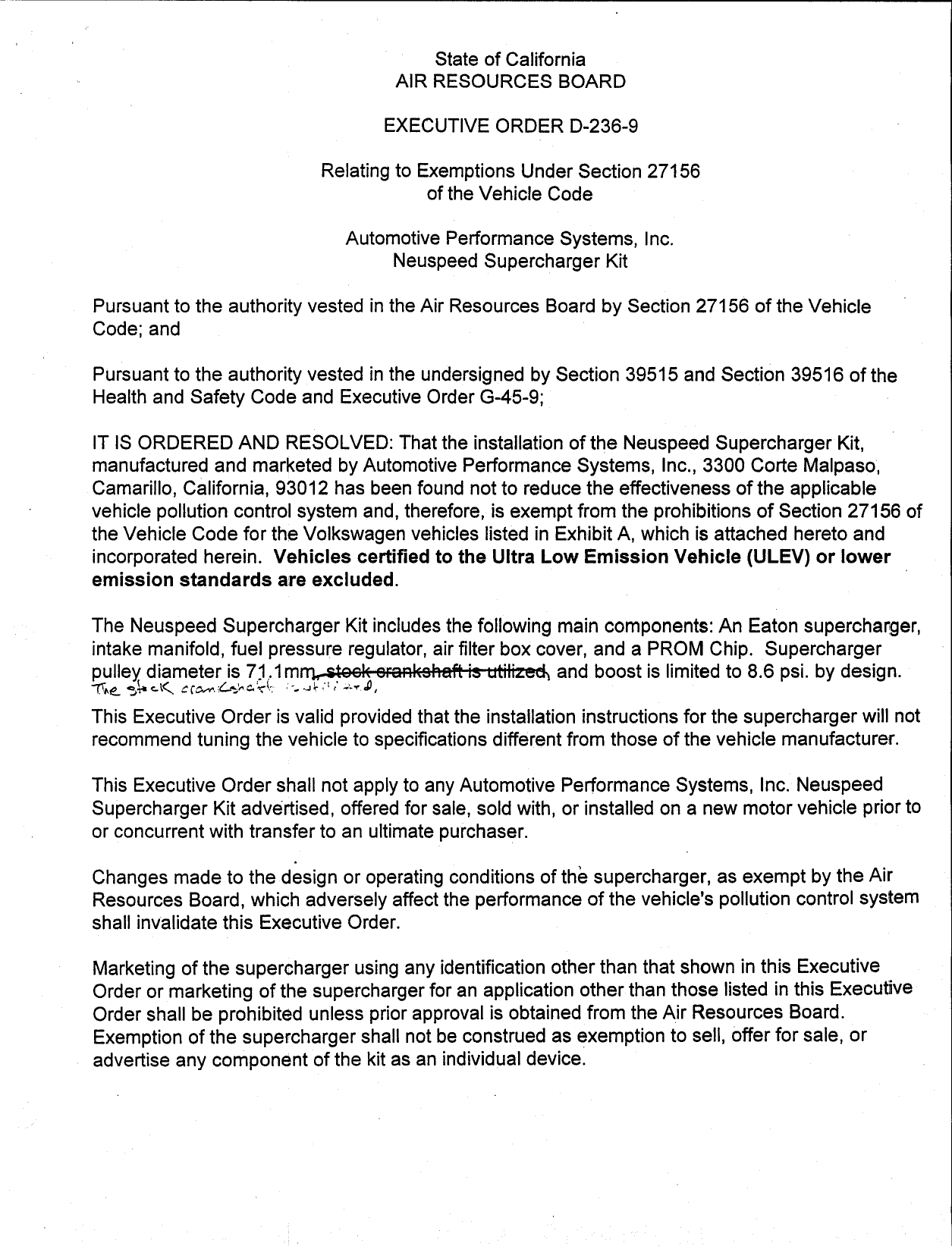

                                             State of California
                                         AIR RESOURCES BOARD

                                         EXECUTIVE ORDER D—236—9

                             Relating to Exemptions Under Section 27156
                                          of the Vehicle Code

                                 Automaotive Performance Systems, Inc.
                                         Neuspeed Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Neuspeed Supercharger Kit,
manufactured and marketed by Automotive Performance Systems, Inc., 3300 Corte Malpaso,
Camarillo, California, 93012 has been found not to reduce the effectiveness of the applicable
vehicle pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of
the Vehicle Code for the Volkswagen vehicles listed in Exhibit A, which is attached hereto and
incorporated herein. Vehicles certified to the Ultra Low Emission Vehicle (ULEV) or lower
emission standards are excluded.                                                                  '

The Neuspeed Supercharger Kit includes the following main components: An Eatbn supercharger,
intake manifold, fuel pressure regulator, air filter box cover, and a PROM Chip. Supercharger
pulley diameter is 71. 1mm(s¢eek—e|=apfkehafi-rsuhhzed\ and boost is limited to 8.6 psi. by design.
TTAQ
   Jsrlt\< &( L‘-flufl"   Co uk S + se $


This Executive Order is valid provided that the instailation instructions for the supercharger will not
recommend tuning the vehicle to specifications different from those of the vehicle manufacturer.

This Executive Order shall not apply to any Automotive Performance Systems, Inc. Neuspeed
Supercharger Kit advertised, offered for sale, sold with, or installed on a new motor vehicle prior to
or concurrent with transfer to an ultimate purchaser.

Changes made to the désign or operating conditions of the supercharger, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution control system
shall invalidate this Executive Order.

Marketing of the supercharger using any identification other than that shown in this Executive
Order or marketing of the supercharger for an application other than those listed in this Executive
Order shall be prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of the supercharger shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.


                                                  3.


This Executive Order does not constitute any opinion as to the effect the use of the supercharger
may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on submitted emissions test data on a 2000 2.OL
Volkswagen Golf certified to the Low Emission Vehicle (LEV) emission standards. The vehicle in
the modified configuration met the applicable emission standards. Testing consisted of one Cold
Start CVS—75 Federal Test Procedures in the modified configuration. The following test results are
in grams per mile with deterioration factors applied:

                  NMOG CO         NOX     HCHO
Standard          0.075 3.4       0.2     0.015
Device            0.032 0.7       01      0.001

This Executive Order is also based on an On Board Diagnostic II (OBD I1!) testing conducted on
the same vehicle. Test data showed that the supercharger when installed on the vehicle did not
affect the vehicle‘s ability to perform its OBD II monitoring.

However, the ARB finds that reasonable grounds exist to believe that use of the Automotive
Performance Systems supercharger may adversely affect emissions of motor vehicles when
operating under conditions outside the parameters of the previously prescribed test procedures.
Accordingly, the ARB reserves the right to conduct additional emission tests, in the future, as such
tests are developed, that will more adequately measure emissions from all cycle phases. If such         _
test results demonstrate that the supercharger adversely affects emissions during off—cycle
conditions (defined as those conditions which are beyond the parameters of the Cold—Start
CVS—75 Federal Test Procedure), this Executive Order shall be effectively rescinded as of the
date the test results are validated. Further, if such test results or other evidence provides the ARB
with reason to suspect that the supercharger will affect the durability of the emission control
systems, Automotive Performance Systems, Inc. shall be required to submit durability data to
show that the durability of the vehicle emission control system is not, in fact, affected and/or that
the add—on or modified part demonstrates adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF AUTOMOTIVE PERFORMANCE SYSTEMS, INC.‘S
SUPERCHARGER.                                     '

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.



AUTOMOTIVE PERFORMANCE SYSTEMS, INC.—NEUSPEED SUPERCHARGER KIT—D—236—9


                                                   _3_




 Violation of any of the above conditions shall be grounds for revocation of this order. The order
  may be revoked only after a ten—day written notice of intention to revoke the order, in which period
 the holder of the order may request in writing a hearing to contest the proposed revocation. If a
  hearing is requested, it shall be held within ten days of receipt of the request and the order may
  not be revoked until a determination is made after the hearing that grounds for revocation exist.

_ Executed at El Monte, California, this /é "Lday f July 2001.




                                    . B. Sytnmerfield, Chief
                                  Mobile Source Operations Division




  AUTOMOTIVE PERFORMANCE SYSTEMS, INC.-NEUSPEED SUPERCHARGER KIT—D—236—9


                           Exhibit A



Model—Year   ‘Model         Engine                              Part #



1998—2000    Beetle         2.0L, 8—valve, w/ air pump          49.10.93
1999—2000    Golf, Jetta    2.0L, 8—valve, w/ air pump          49.10.93
1998—2000    Beetle         2.0L, 8—valve, w/io air pump        49.10.94
1999—2000    Golf, Jetta    2.0L, 8—valve, w/o air pump         49.10.94
1993—1995    Golf, Jetta    2.0L, 8—vailve, w/o AC w/ EGR       49.10.80
1993—1995    Golf, Jetta    2.0L, 8—valve, w/ AC w/ EGR         49.10.81
1996—1999    Golf, Jetta    2.0L, 8—valve, w/ AC w/o air pump   49.10.84
1996—1999    Golf, Jetta    2.0L, 8—valve, w/ AC w/ air pump    49.10.85
