Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 7, 2002.
As of Sunday, November 3rd, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
DCM6000, DCM61001991 through 2002 model year turbocharged diesel engines between 150 and 600 horsepower rating and certified to the 0.25 g/bhp-hr particulate standard or less.Series 6000 diesel fuel up to 500 ppm sulfur/Series 6100 Ultra low sulfur diesel fuel (<15ppm)

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-249-1
  • Executive Order 249-1 / D249-1
  • ARB # D-249-1
  • Executive Order No: D-249-1
  • C.A.R.B. No. D-249-1
  • Resolution D-249-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-249-1 PDF

D-249-1 Document:


CARB_D-249-1

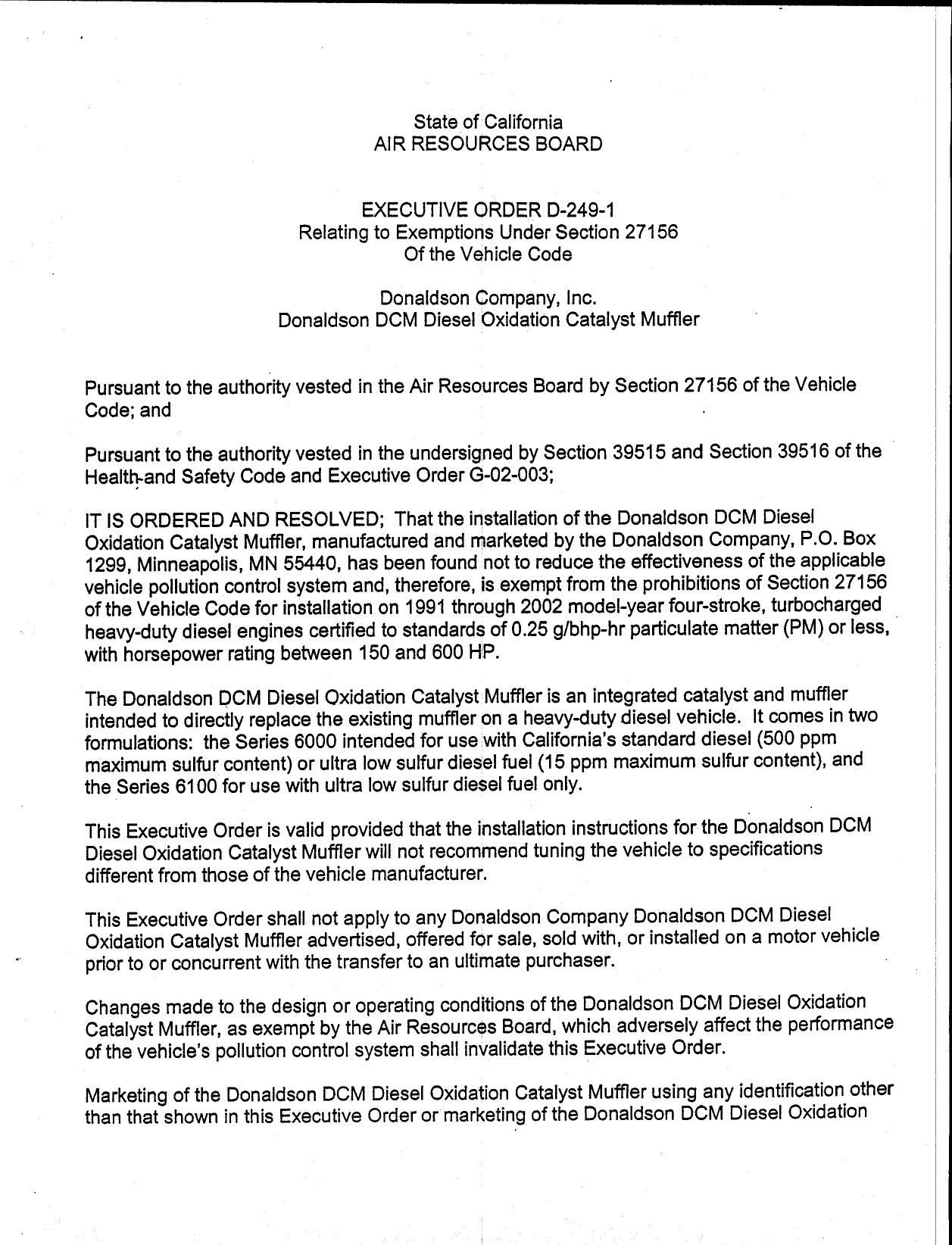

                                          State ofCalifornia
                                     AIR RESOURCES BOARD


                                  EXECUTIVE ORDER D—249—1
                           Relating to Exemptions Under Section 27156
                                        Of the Vehicle Code

                                   Donaldson Company, Inc.
                         Donaldson DCM Diesel Oxidation Catalyst Muffler


Pursuant to the authofity vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and                                                                .

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the —
Health—and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED:; That the installation of the Donaldson DCM Diesel
Oxidation Catalyst Muffler, manufactured and marketed by the Donaldson Company, P.O. Box
1299, Minneapolis, MN 55440, has been found not to reduce the effectiveness of the applicable
vehicle pollution control system and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for installation on 1991 through 2002 model—year four—stroke, turbocharged
heavy—duty diese! engines certified to standards of 0.25 g/ibhp—hr particulate matter (PM) or less,
with horsepower rating between 150 and 600 HP.

The Donaldson DCM Diesel Oxidation Catalyst:Muffler is an integrated catalyst and muffler
intended to directly replace the existing muffler on a heavy—duty diesel vehicle. It comes in two
formulations: the Series 6000 intended for use with California‘s standard diesel (500 ppm
maximum sulfur content) or ultra low sulfur diesel fuel (15 ppm maximum sulfur content), and
the Series 6100 for use with ultra low sulfur diesel fuel only.

This Executive Order is valid provided that the installation instructions for the Donaldson DCM
Diesel Oxidation Catalyst Muffler will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

This Executive Order shall not apply to any Donaldson Company Donaldson DCM Diesel!
Oxidation Catalyst Muffier advertised, offered for sale, sold with, or installed on a motor vehicle
prior to or concurrent with the transfer to an ultimate purchaser.                                  —

Changes made to the design or operating conditions of the Donaldson DCM Diesel Oxidation
Catalyst Muffler, as exempt by the Air Resources Board, which adversely affect the performance
of the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Donaldson DCM Diesel Oxidation Catalyst Muffler using any identification other
than that shown in this Executive Order or marketing of the Donaldson DCM Diesel Oxidation


Catalyst Muffler for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the
system shall not be construed as exemption to gell, offer for sale, or advertise any component of
the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect that the use of the
Donaldson DCM Diesel Oxidation Catalyst Muffler may have on any warranty either expressed
or implied by the vehicle manufacturer.

This Executive Order is granted based on test results submitted by Donaldson Company which
demonstrated that the Donaldson DCM Diesel Oxidation Catalyst Muffler has no adverse impact
on exhaust emissions when tested using the transient federal test procedure for on—road heavy—
duty engines. Results from testing a 1991 model year Detroit Diesel Series 60 engine and a
2000 model year Caterpillar 3126 engine are summarized below:


    . "7     Uitra Low Sulfur Diesel Fuel (<15ppm)
                                       TEST        NOx            CO      HC     PM
             2000 Caterpillar 3126     Baseline    3.22          1.49    0.69   O0.11
                                       DCM 6100    3.15          0.25    0.08   0.09
             1991 DDC Series 60        Baseline    4.81          2.22    0.07   016
                               .       DCM 6100 > 4.75           1.02    0.02   014
             1991 DDC Series 60        Baseline    4.77          211     0.05   016
                                         DCM 6000         4.76   —1.56   0.01   0.14

            Standard Diesel Fuel
            (<500ppm)
                                         TEST             NOx    CO       HC     PM
            2000 Caterpillar 3126        Baseline         2.85   149     0.61   012
                                         DCM 6000         2.82   0.96    016    0.11
            1991 DDC Series 60           Baseline         4.82   2.23    0.05   0.18
                                         DCM 6000         4.78   1.72    0.01   015

In addition to the foregoing, the ARB reserves the right in the future to review this Ekecutive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF DONALDSON COMPANY‘S DONALDSON DCM DIESEL
OXIDATION CATALYST MUFFLER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising of other oral or written communication.


    DONALDSON COMPANY — DONALODSON DCM DIESEL OXIDATION CATALYST MUFFLER — D—249—1


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made, after the hearing, that grounds
for revocation exist.


Executed at El Monte, California, this 7
                                         eR day of October 2002.

                                  fi“U*L%a
                                      n Lyons, Chief
                                  Mobile Source Operations Division




    DONALDSON COMPANY — DONALDSON DCM DIESEL OXIDATION CATALYST MUFFLER — D—249.—1



Document Created: 2005-09-01 12:44:12
Document Modified: 2005-09-01 12:44:12
