Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 29, 2004.
As of Monday, June 24th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1988-1990 four-stroke, turbocharged heavy-duty diesel engines originally certified to standards of 0.60 g/bhp-hr particulate matter or less, with horsepower ratings between 150 and 600This exemption applies to Series 6000 formulation DCM catalyst for use with California's standard diesel (500 ppm maximum sulfur content) or ultra low sulfur diesel (15 ppm maximum sulfur content).

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-249-6
  • Executive Order 249-6 / D249-6
  • ARB # D-249-6
  • Executive Order No: D-249-6
  • C.A.R.B. No. D-249-6
  • Resolution D-249-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-249-6 PDF

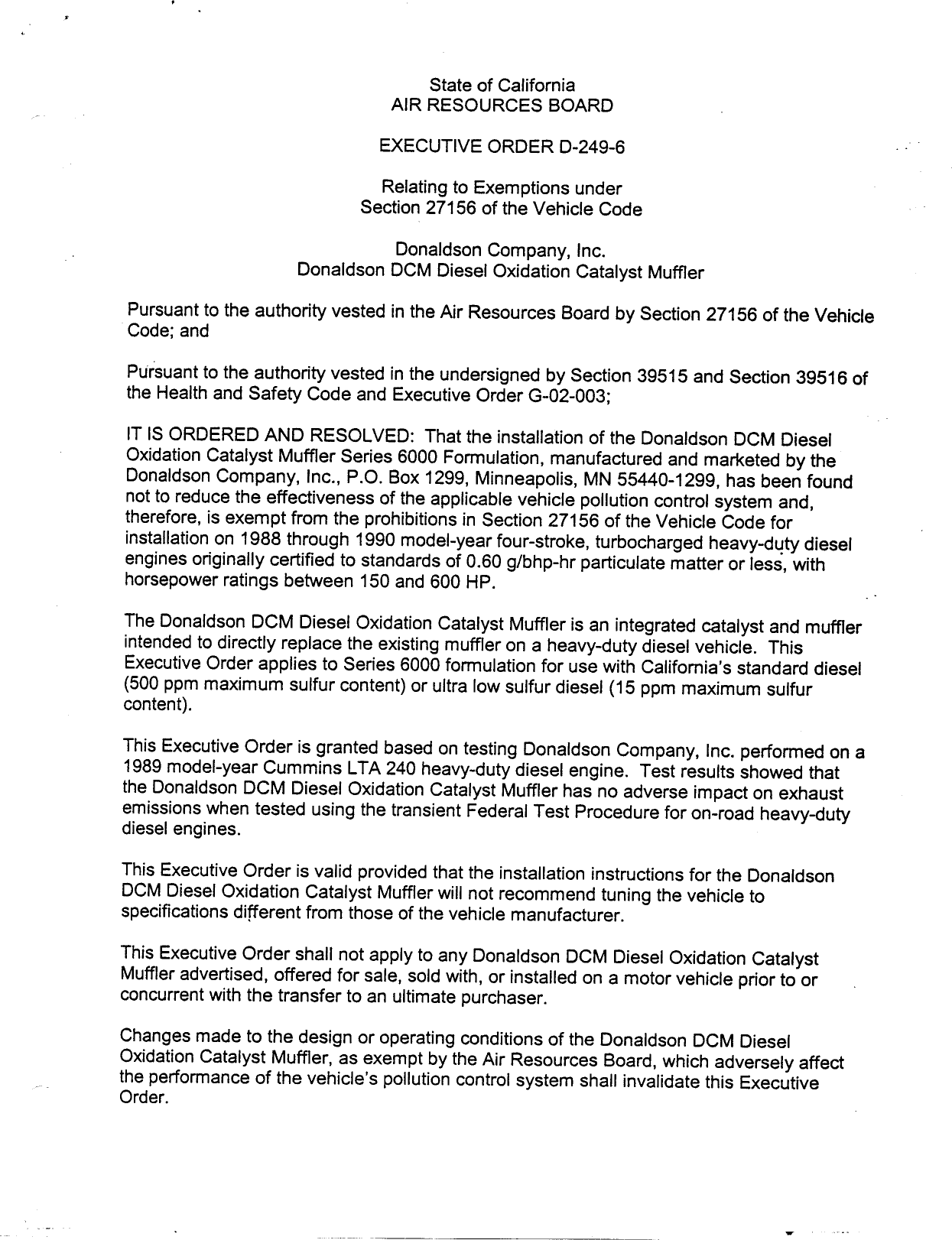

D-249-6 Document:



                                      State of California
                                  AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—249—6

                                 Relating to Exemptions under
                              Section 27156 of the Vehicle Code

                                Donaldson Company, Inc.
                      Donaldson DCM Diesel Oxidation Catalyst Muffler

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Donaldson DCM Diesel
Oxidation Catalyst Muffler Series 6000 Formulation, manufactured and marketed by the
Donaldson Company, Inc., P.O. Box 1299, Minneapolis, MN 55440—1299, has been found
not to reduce the effectiveness of the applicable vehicle pollution control system and,
therefore, is exempt from the prohibitions in Section 27156 of the Vehicle Code for
installation on 1988 through 1990 model—year four—stroke, turbocharged heavy—duty diesel
engines originally certified to standards of 0.60 g/bhp—hr particulate matter or less, with
horsepower ratings between 150 and 600 HP.

The Donaldson DCM Diese!l Oxidation Catalyst Muffler is an integrated catalyst and muiffler
intended to directly replace the existing muffler on a heavy—duty diesel vehicle. This
Executive Order applies to Series 6000 formulation for use with California‘s standard diesel
{(500 ppm maximum sulfur content) or ultra low sulfur diesel (15 ppm maximum sulfur
content).

This Executive Order is granted based on testing Donaldson Company, Inc. performed on a
1989 modelt—year Cummins LTA 240 heavy—duty diesel engine. Test results showed that
the Donaldson DCM Diesel Oxidation Catalyst Muffler has no adverse impact on exhaust
emissions when tested using the transient Federal Test Procedure for on—road heavy—duty
diesel engines.

This Executive Order is valid provided that the installation instructions for the Donaldson
DCM Diesel Oxidation Catalyst Muffler will not recommend tuning the vehicle to
specifications different from those of the vehicle manufacturer.

This Executive Order shall not apply to any Donaldson DCM Diesel Oxidation Catalyst
Muffler advertised, offered for sale, sold with, or installed on a motor vehicle prior to or
concurrent with the transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Donaldson DCM Diesel
Oxidation Catalyst Muffler, as exempt by the Air Resources Board, which adversely affect
the performance of the vehicle‘s pollution control system shall invalidate this Executive
Order.


                                              3.

Marketing of the Donaldson DCM Diesel Oxidation Catalyst Muffler using any identification
other than that shown in this Executive Order or for an application other than those listed in
this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

Exemption of the Donaldson DCM Diesel Oxidation Catalyst Muffler shall not be construed
as exemption to sell, offer for sale, or advertise any component of the kit as an individual
device.

This Executive Order does not constitute any opinion as to the effect that the use of the
Donaldson DCM Diesel Oxidation Catalyst Muffiler may have on any warranty either
expressed or implied by the vehicle manufacturer.

in addition to the foregoing, the ARB reserves the rightin the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.            |

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—
POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF DONALDSON COMPANY,
INC.‘S DONALDSON DCM DIESEL OXIDATION CATALYST MUFFLER.       .

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising of other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of intention
to revoke the Executive Order, in which period the holder of the Executive Order may
request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request and the Executive Order may not be
revoked until a determination is made, after the hearing, that grounds for revocation exist.

Executed at El Monte, California, this _2"~*"__    day of June 2004.


                                      AIIenJ:/;ons, Chief
                                      Mobile Source Operations Division




                       DONALDSON COMPANY, INC.
        DONALDSON DCM DIESEL OXIDATION CATALYST MUFFLER — D—249—6



Document Created: 2005-09-01 12:14:51
Document Modified: 2005-09-01 12:14:51
