Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 20, 1992.
As of Wednesday, December 19th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
Cyclone KI-501991 Toyota Tercel, 1.5L, 4 CYL50 mm dia.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-267
  • Executive Order 267 / D267
  • ARB # D-267
  • Executive Order No: D-267
  • C.A.R.B. No. D-267
  • Resolution D-267
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-267 PDF

D-267 Document:

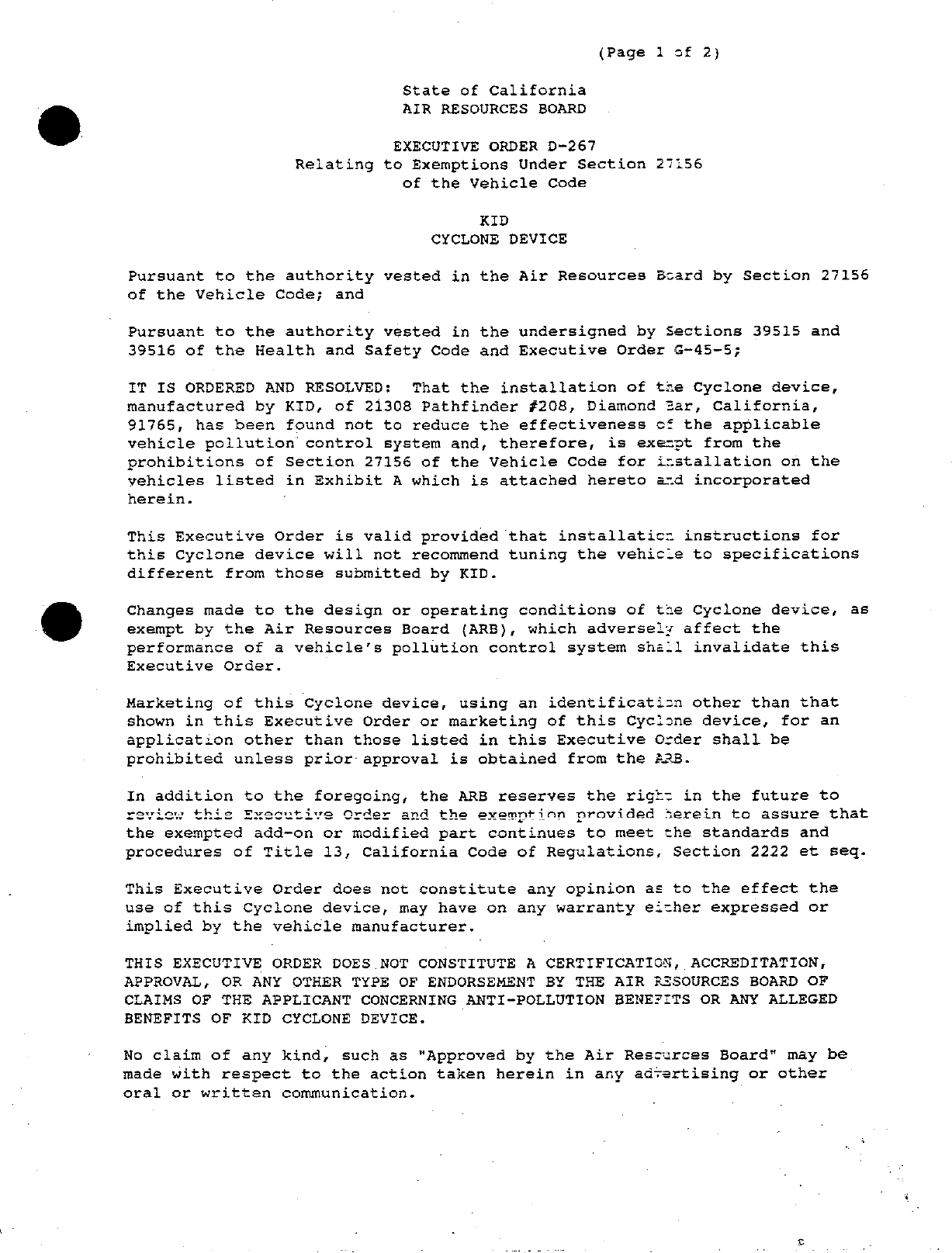

                                                     (Page 1 of 2)

                              State of California
                              AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—267
                   Relating to Exemptions Under Section 27156
                              of the Vehicle Code

                                      KID
                                 CYCLONE DEVICE

Pursuant to the authority vested in the Air Resources Bcard by Section 27156
of the Vehicle Code;   and

Pursuant to the authority vested in the undersigned by Sections 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:  That the installation of the Cyclone device,
manufactured by KID, of 21308 Pathfinder #£208, Diamond Zar, California,
91765, has been found not to reduce the effectiveness of the applicable
vehicle pollution control system and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for izstallation on the
vehicles listed in Exhibit A which is attached hereto ard incorporated
herein.

This Executive Order is valid provided that installatics: instructions for
this Cyclone device will not recommend tuning the vehicle to specifications
different from those submitted by KID.

Changes made to the design or operating conditions of the Cyclone device, as
exempt by the Air Resources Board (ARB), which adversely affect the
performance of a vehicle‘s pollution control system shall invalidate this
Executive Order.

Marketing of this Cyclone device, using an identificatisn other than that
shown in this Executive Order or marketing of this Cycione device, for an
application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the 228.

In addition to the foregoing, the ARB reserves the righ: in the future to
reviey this Executive Order and the exemption provided Serein to assure that
the exempted add—on or modified part continues to meet the standards and
procedures of Title 13, California Code of Regulations, Section 2222 et seq.

This Executive Order does not constitute any opinion as to the effect the
use of this Cyclone device, may have on any warranty either expressed or
implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES.NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RZSOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFZITS OR ANY ALLEGED
BENEFITS OF KID CYCLONE DEVICE.

No claim of any kind, such as "Approved by the Air Rescsurces Board" may be
made with respect to the action taken herein in any advertising or other
cral or written communication.


KID                                                    EXECUTIVE ORDER D—267
CYCLONE DEVICE                                         (Page 2 of 2)



Violation of any of the above conditions shall be grounds for revocation of
this order.  The order may be revoked only after ten day written notice of
intention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation.  If a
hearing is requested, it shall be held within ten days of receipt of the
request and the order may not be revoked until a determination after the
hearing that grounds for revocation exist.   L

Executed at El Monte, California, this CQ£>      da:     f August, 1992.




                                       R.   B(   Summerfield
                                       Assistant Division Chief
                                       Mobile Source Division


                       State of California
                      AIR RESOURCES BOARD




                EVALUATION OF KID‘S CYCLONE DEVICE
        FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
    SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF
’               THE CALIFORNIA CODE OF REGULATIONS




                          August 1992


                            State of California
                            AIR RESOURCES BOARD




                     EVALUATION OF KID‘S CYCLONE DEVICE
             FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
       SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                       by

                           Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          EL Monte,   CA    91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                    SUMMARY



     KID,   of 21308 Pathfinder #208, Diamond Bar, California,   91765, has

applied for an exemption from the prohibitions in Section 27156 of the

California Vehicle Code (VC)   for their Cyclone device.   The Cyclone device

is designed for installation on vehicles as listed in Appendix A.

     KID has submitted a completed application and all required information

including samples of the individual models.    Based on an engineering

evaluation,   it was determined that the Cyclone device would not have any

significant adverse effects in emissions if tested in accordance with the

Cold—Start CVS—75 Federal Test Procedure.

     The staff recommends that KID be granted exemption as requested and

that Executive Order D—267 be issued for the Cyclone device.


                                     TABLE OF CONTENTS




                                                         Page Number




 SUMMARY

 CONTENTS                                                     ii

—I.        INTRODUCTION

 II.       CONCLUSION

 III.      RECOMMENDATION

 IV.    DEVICE DESCRIPTION

           CYCLONE DEVICE EVALUATION AND DISCUSSION

        APPENDIX

        APPENDIX A:       VEHICLE APPLICATIONS

        APPENDIX B:       DRAWINGS

        APPENDIX C:         INSTALLATION INSTRUCTIONS




                                            i1


                      EVALUATION OF KID‘S CYCLONE DEVICE
              FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
        SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS



I.     INTRODUCTION

       KID, of 21308 Pathfinder #208, Diamond Bar, California, 91765 has

applied for an exemption from the prohibitions in Section 27156 of the

California Vehicle Code (VC) for their Cyclone device.    The Cyclone device is

designed for installation on the vehicles listed in Appendix A.

       KID has submitted a complete application and all the required

information including samples of the individual models.

II.    CONCLUSIONS

       Based on an engineering evaluation of the device, the staff concludes

installation of the KID Cyclone device will not adversely affect exhaust

emissions from vehicles for which an exemption is requested.

III.   RECOMMENDATION

       The staff recommends that KID be granted an exemption as requested and

that Executive Order D—267 be issued for the Cyclone device.

IV.    DEVICE DESCRIPTION

       The Cyclone device is a vehicle—specific component used to increase

turbulence in the air intake passage.   It is cylindrical in shape with six (6)

blades connecting at the cylinder‘s center (see drawing in Appendix B).     It is

constructed using copper sheet, cut to shape, and tack welded together.

       The device is inserted into the air intake passage between the air

filter and the throttle body, upstream of the air metering device.    No

sensors are relocated or altered by the device‘s installation.    The tension of

the device‘s outer surface holds the device in place.


v.     CYCLONE DEVICE EVALUATION AND DISCUSSION

       An engineering evaluation was conducted to evaluate the impact of the

Cyclone device on emissions.

       The manufacturer claims the Cyclone device creates turbulence in the

intake air.   In the staff‘s evaluation, the device is located relatively far

upstream from the air flow metering device, therefore, the induced turbulence

will not affect the air flow measurement.   The manufacturer supplied CVS—75 FTP

test results conducted at the Automobile Club of Southern California using a

1991 Ford Taurus tested with and without the device.

The results are as follows:



       Test                     HC am/mi    co am/mi        Kox am/mi

       Baseline #1              0.324        3.437          0.206

       Baseline #2              0.302        3.201          0.202

       With Device              0.309        3. 224         0.204




These test results support staff‘s opinion that turbulence induced in the

intake tract have no significant effect on the emissions.    Based on engineering

evaluation of the supplied information, staff determined the Cyclone device

will not increase emissions.


APPENDIX


APPENDIX A:


EXHIBIT "A"




MODEL     OUTSIDE DIMENSION     PARTIAL APPLICATION LIST
            OF THE DEVICE     DISPLACEMENT(L )/ # OF CYLINDER

CYCLONE                         TOYOTA TERCEL

CYCLONE                         TOYOTA CAMRY DX         2.0/4
                                      (JAPAN BUILT)
                                PLYMOUTH VOYAGER        3.0/6
                                VW VANAGON: Gi          2.1/4

CYCLONE KI~58     S8mm          MAZDA MPV               3.0/6

CYCLONE KI—60     6Omm          BMW S28E                2.5/6
                                DODGE CARAVAN           3.0/6
                                ISUZU I—MARK            1 .6/4
                                JEEP CHEROKEE           4.0/6
                                MITSU LS WAGON          2 . 4/ 4
                                vVOLVO 740 TURBO        2 .3/4

CYCLONE K1—65     6Smm          BMW 325si               2.5/6
                                NISSAN STANZA 4WD       2 .4/4
                                OLDS DELTA S8           3.5/6
                                TOYOTA CAMRY            2.0/4
                                      (US BUILT}»
                                TOYOTA PREVIA           2 .5/4
                                vOLVvO 740 GL           2 .374

CYCLONE K1—70     7Omm          ACURA LEGEND            3.2/6
                                ChHEV CELEBRITY         2.8/6
                                FORD TAURUS             3.076
                                FORD MUSTANG            2 .374
                                MITSU MONTERO           3.076
                                NISSAN STANZA E         2.4/4
                                OLDS CUTLASS CRUISE     2.8/6

CYCLONE KI~75     7 Smm         HONDA ACCORD EX         2.2/4
                                HYUNDAI ELANTRA GLS     1 .6/4
                                JEEP GRAND WAGONEER     4 .0/6
                                MAZDA MPV               3.07/6

CYCLONE KI~80     SOmm          OLDS DELTA 88           3.8/6


             "a s
ATTACHMENT


MODEL     OUTSIDE DIMENSION        PARTIAL APPLICATION LIST
            OF THE DEVICE        DISPLACEMENT(L )/ # OF CYLINDER

CYCLONE             5omm             TOYOTA TERCEL

CYCLONE             S5Smm     1991 TOYOTA CAMRY DX            2,.0/4
                                         (JAPAN BUILT )
                              1989 PLYMOUTH VOYAGER                        .0/6




                                                           N G
                              1985 VW VANAGON GL                           .1/4

CYCLONE KI—58       58mm      1991 MAZDA MPV                               .0/6




                                                           G
CYCLONE KI~60       6Omm      1984   BMW S28E                              .5/6




                                                           N N BGP 0) N
                              1990   DODGE CARAVAN                         .0/6
                              1989   ISUZU I—MARK                          .6/4
                              1990   JEEP CHEROKEE                         .0/6
                              1987   MITSU LS WAGON                        «4/ 4
                              1988   VOLVO 740 TURBO                       . 3/4

CYCLONE KI—65       65mm      1991   BMW 325i                              5/6




                                                           N G N N
                              1986   NISSAN STANZA 4WD                     «4A/4
                              1987   OLDSs DELTA Sss                       5/6
                              1991   TOYOTA CAMRY                          .0/4
                                           (US BUILT)
                              1991   TOYOTA PREVIA                         .5/4

                                                           N N
                              1990   vOLVvO 740 GL                         .3/4

CYCLONE KI1—70      70mm      1991   ACURA LEGEND                          .2/6
                                                           N N Q N Q N G

                              1988   CHEV CELEBRITY                        .8/6
                              1991   FORD TAURUS                           .0/6
                              1987   FORD MUSTANG                          «3/ 4
                              1992   MITSU MONTERO                         .0/6
                              1989   NISSAN STANZA E                       .4/4
                              1988   OLDS CUTLASS CRUISE                   .8/6

CYCLONE KI—~—76     75mm      1991   HONDA ACCORD EX           2 .2/4
                              1991   HYUNDAI ELANTRA GLS       1 .6/4
                              1990   JEEP GRAND WAGONEER       4 .076
                              1992   MAZDA MPV                 3.076

CYCLONE KI—80       8Omm      1988 OLDS DELTA 88               3.8/6


APPENDIX B:


 ATTACHMENT "B"


 ENGINEERING DRAWING



— SiDe view
  I
  iea       A
                                         TOP VIEW




                                    THICKNESS OF COPPER
 MODEL     A      B      C     D        { RING/BLADE )

 K1—50     50     35     45    20           0.35
 Ki—55     55     35     45    22           0.36
 Ki—58     58     35     45    24           0.35
 KI—60     60     36     45    25           0.35
 K165      65     35 ;   45    27           0.35
 Ki—70     70     40     50    30           0.35
 K1—75     75     40     50    33           0.35
 Ki—80     80     40     50    35           0.35



   *NOTE: (mm)
     A: DIAMETER OF CYLINDER
     B: HEIGHT OF CYLINDER
     C: LENGTH OF BLADE
     D: WiDTH OF BLADE


APPENDIX C:


                                                    N3NW37THIV
            3NIONT




                                    ‘dW¥710 IJHNO3S ONV 3SOH JOV1dIH       °9
               (INION3 3HL SCHYAMOL NY ‘MBNWITO MIV IHL WOMA AVAMV )
‘MO1— MIV 140 NOLOTHIQ IHL NJ SNLLNIOA S MOHMY IHL LVHL IHNS ONIMYW        °S
                                                      ~ 3N070AO, JMISNI    P
                                                        ‘3SOH 4OYVONSSII   °C
                  HINYTTO MIV OL 1S3S070 CN3 LV dWY10 JSOH JAOWIM          °C
                                         "3S80H 13INI MIV INION3 314007    L

                                    SHLNNIW SL 1NO@V ‘FWHL NOLLVTIVLSNI .
                                        MFARNG MIMODS ‘OIMINOTY S7004. .


                                                    WYHSOVIG NOLLYVTIVLSNH


                                                          »O. LNIWHOVLLY



Document Created: 2005-09-01 12:42:12
Document Modified: 2005-09-01 12:42:12

| Previous E.O. D-266 | Next E.O. D-267-1 | Next E.O. D-268
