Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 28, 1999.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
TS1000 Series, Ford 5.0L engines1986-95 Mustang GT & Cobra, 1986 Capri, 1986-91 Lincoln, 1989-93 T-Bird, 1986-99 La ForzaKit includes a twin screw supercharger, new intake manifold and a fuel management unit. 6 psi. kit use a 2.38" diameter supercharger pulley except for the 1994/95 Mustang GT which uses a 2.75" diameter pulley. 8 psi. kit use a 2.16" diameter supercharger pulley except for the 1994/95 Mustang GT which uses a 2.50" diameter pulley.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-271-10
  • Executive Order 271-10 / D271-10
  • ARB # D-271-10
  • Executive Order No: D-271-10
  • C.A.R.B. No. D-271-10
  • Resolution D-271-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-271-10 PDF

D-271-10 Document:

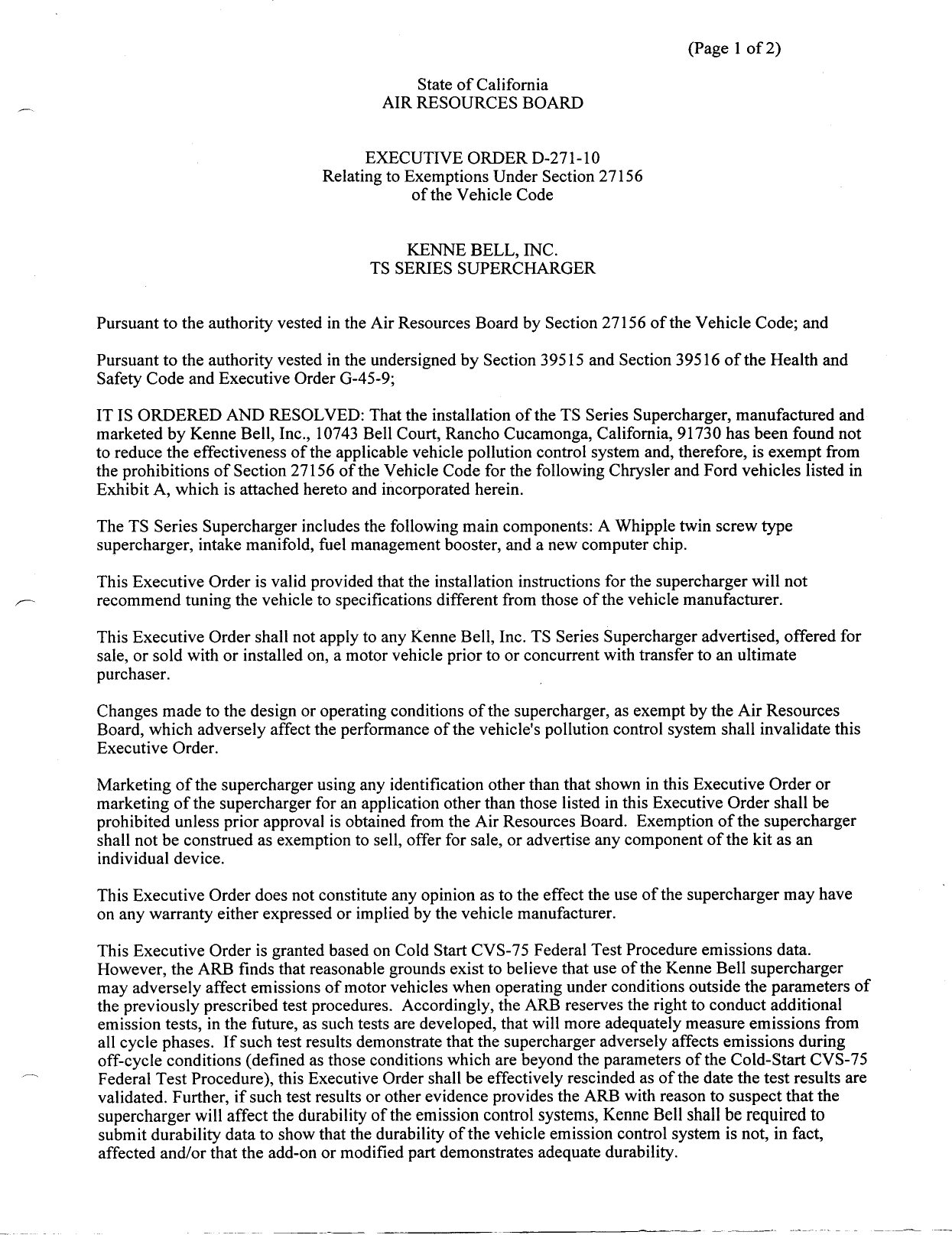

                                                                                      (Page 1 of 2)

                                             State of California
                                         AIR RESOURCES BOARD


                                      EXECUTIVE ORDER D—271—10
                                Relating to Exemptions Under Section 27156
                                             of the Vehicle Code


                                           KENNE BELL, INC.
                                       TS SERIES SUPERCHARGER


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health and
Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the TS Series Supercharger, manufactured and
marketed by Kenne Bell, Inc., 10743 Bell Court, Rancho Cucamonga, California, 91730 has been found not
to reduce the effectiveness of the applicable vehicle pollution control system and, therefore, is exempt from
the prohibitions of Section 27156 of the Vehicle Code for the following Chrysler and Ford vehicles listed in
Exhibit A, which is attached hereto and incorporated herein.

The TS Series Supercharger includes the following main components: A Whipple twin screw type
supercharger, intake manifold, fuel management booster, and a new computer chip.

This Executive Order is valid provided that the installation instructions for the supercharger will not
recommend tuning the vehicle to specifications different from those of the vehicle manufacturer.

This Executive Order shall not apply to any Kenne Bell, Inc. TS Series Supercharger advertised, offered for
sale, or sold with or installed on, a motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Changes made to the design or operating conditions of the supercharger, as exempt by the Air Resources
Board, which adversely affect the performance of the vehicle‘s pollution control system shall invalidate this
Executive Order.

Marketing of the supercharger using any identification other than that shown in this Executive Order or
marketing of the supercharger for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the supercharger
shall not be construed as exemption to sell, offer for sale, or advertise any component of the kit as an
individual device.

This Executive Order does not constitute any opinion as to the effect the use of the supercharger may have
on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on Cold Start CVS—75 Federal Test Procedure emissions data.
However, the ARB finds that reasonable grounds exist to believe that use of the Kenne Bell supercharger
may adversely affect emissions of motor vehicles when operating under conditions outside the parameters of
the previously prescribed test procedures. Accordingly, the ARB reserves the right to conduct additional
emission tests, in the future, as such tests are developed, that will more adequately measure emissions from
all cycle phases. If such test results demonstrate that the supercharger adversely affects emissions during
off—cycle conditions (defined as those conditions which are beyond the parameters of the Cold—Start CVS—75
Federal Test Procedure), this Executive Order shall be effectively rescinded as of the date the test results are
validated. Further, if such test results or other evidence provides the ARB with reason to suspect that the
supercharger will affect the durability of the emission control systems, Kenne Bell shall be required to
submit durability data to show that the durability of the vehicle emission control system is not, in fact,
affected and/or that the add—on or modified part demonstrates adequate durability.


  KENNE BELL, INC.                                                     EXECUTIVE ORDER D—271—10
_ TS SERIES SUPERCHARGER                                               (Page 2 of 2)




In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to meet the
standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

This Executive Order is granted based on the following submitted emissions test data on a 1999 Ford
Expedition and Jeep Grand Cherokee certified to a low emission vehicle standard. The vehicle in the
modified configuration met the applicable emission standards. Testing consisted of one Cold Start CVS—75
Federal Test Procedures in the modified configuration. The following test results are in grams per mile with
deterioration factors applied:

                                5.4L Expedition                       4.7L Grand Cherokee

                     NMOG       CO      NOX          HCHO      NMOG      CO      NOX         HCHO
Standard             0.195      5.0     0.6         0.022      0.100     4.4     0.4         0.018
Device               0.111      1.5     0.1         0.002      0.100     1.6     0.04        0.012

This Executive Order is also based on On Board Diagnostic II (OBD II) testing conducted on the same
vehicles. Test data showed that the supercharger when installed on the vehicles did not affect the vehicle‘s
ability to perform its OBD II monitoring.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF KENNE BELL, INC.‘S SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to the
action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
revoked only after a ten—day written notice of intention to revoke the order, in which period the holder of the
order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it shall
be held within ten days of receipt of the request and the order may not be revoked until a determination after
hearing that grounds for revocation exist.      L
                                             $a
Executed at El Monte, California, this fig         day of J   1 999.




                                       R. B. Surffmerfield, Chief
                                       Mobile Source Operations Division


                                                           Exhibit A


                                            KENNE
                                       6 & 8 PSI SUPERCHARGER KITS
                                                               TS SERIES



                                                        NEW                                                                                    CHIP
                                                       INTAKE           ENGINE      PULLEY SIZE                                                 or                  AUXILIARY
 PART NOS.      YEAR       MODEL                      MANIFOLD       DISPLACEMENT   PSI PSI                                                  QPTIMIZER INJECTORS




                                                                                                                               c
                                                                                                    ,.‘
                                                                                                          ><><><><><><><><><><><><><><! CA
TS1000 SERIES   1986—93   MUSTANG GT                       x               5.0      238     216
TS1000 SERIES   1986      MERCURY CABRIS                   x               5.0      238     216
TS1000 SERIES   1986—93   MUSTANG COBRA                    x               5.0      238     216
TS1000 SERIES   1994—95   MUSTANG GT                       x               5.0      2175    250
TS1000 SERIES   1994—95   MUSTANG COBRA                    x               5.0      2.38    2.16
TS1000 SERIES   1986—91   LINCOLN                          x               5.0      2.38    216
TS1000 SERIES   1989—93   T—BIRD                           x               5.0      238     216
TS1000 SERIES   1986—99   LA FORZA                         x               5.0      238     216
TS1000 SERIES   1994—99   MUSTANG GT                       x               4.6      3       2.625




                                                                                                                                                 >< XK K K y y
TS1000 SERIES   1996—98   MUSTANG COBRA                    x               4.6      3       2.625
TS1000 SERIES   1992—96   LINCOLN                          x               4.6      3       2.625
TS1000 SERIES   1992—96   T—BIRD                           x               4.6      3       2.625
TS1000 SERIES   1992—96   CROWN VICTORIA                   x               46       3       2.625
TS1000 SERIES   1999      COBRA                            x               5.4      2.5     2.25


TS5000 SERIES   1996—99   TRUCKS, suVvs                    x               4.6      3.125
TS5000 SERIES   1996—99   TRUCKS, suVs                     x               5.4      2.75
   100 SERIES   1999      TRUCKS, SUVS (NAVIGATOR          x               5.4 4V   2.75

TS4000 SERIES   1989—96   E&F SERIES TRUCKS & VANS         x               5.0      2.785

TS3000 SERIES   1989—96   E&F SERIES TRUCKS & VAN‘S        x               5.8      2.625

TS2000 SERIES   1989—96   E&F SERIES TRUCKS, VANS &        x               75       2125
                          MOTORKOME
TS2000 SERIES   1996—99   EXPLORER                         x               5.0      2.785
TS2000 SERIES   1991—99   EXPLORER                         x               4.0      2.785
TS2000 SERIES   1991—99   RANGER                           x               4.0      2.785
TS2000 SERIES   1997—99   RANGER                           x               5.0      2.785

CHRYSLER)
TS7000 SERIES   1994—99   DURANGO, DAKOTA, RAM VAN                         3.9      3.2
                                                                                                                                                                        ><
                                                                                                                                                 >




TS7000 SERIES   1999      JEEP GRAND CHEROKEE, DAKOTA _X                   4.7      3.0

TS7000 SERIES   1994—99   DURANGO, DAKOTA, RAM VAN                         5.2      2.8
                                                                                                                                                                        >
                                                                                                                                                 >




TS7000 SERIES   1994—99   DURANGO, DAKOTA, RAM, RAM VAN,                   5.9      2.6
                           GRAND CHEROKEE
TS7000 SERIES   1991—99   viPER                                            8.0      2.2
TS7000 SERIES   1991—99   RAM                                              8.0      2.2




                                                                                                                                                                 22222 22222zl2___
