Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 18, 2001.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
TS1000 Series, Ford 5.0L engines1986-95 Mustang GT & Cobra, 1986 Capri, 1986-91 Lincoln, 1989-93 T-Bird, 1986-99 La ForzaKit includes a twin screw supercharger, new intake manifold and a fuel management unit. 6 psi. kit use a 2.38" diameter supercharger pulley except for the 1994/95 Mustang GT which uses a 2.75" diameter pulley. 8 psi. kit use a 2.16" diameter supercharger pulley except for the 1994/95 Mustang GT which uses a 2.50" diameter pulley.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-271-12
  • Executive Order 271-12 / D271-12
  • ARB # D-271-12
  • Executive Order No: D-271-12
  • C.A.R.B. No. D-271-12
  • Resolution D-271-12
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-271-12 PDF

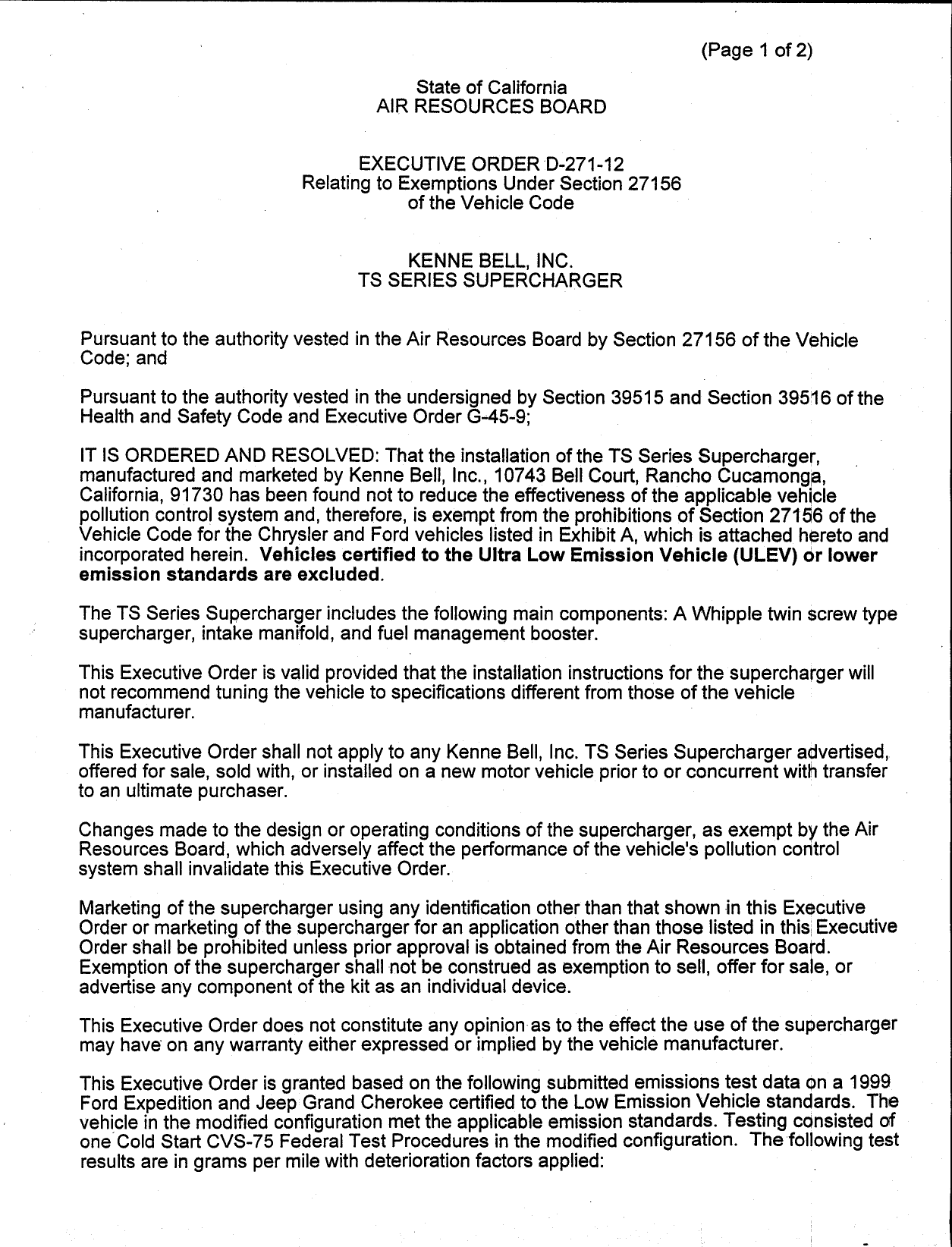

D-271-12 Document:


CARB_D-271-12

                                                                             (Page 1 of 2)
                                          State of California
                                     AIR RESOURCES BOARD


                                   EXECUTIVE ORDER D—271—12
                            Relating to Exemptions Under Section 27156
                                         of the Vehicle Code


                                       KENNE BELL, INC.
                                  TS SERIES SUPERCHARGER

gursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
 ode; and

Pursuant to the authority vested in the undersigned by Section 39515 and'Section 39516 of the
Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the TS Series Supercharger,
manufactured and marketed by Kenne Bell, Inc., 10743 Bell Court, Rancho Cucamonga,
California, 91730 has been found not to reduce the effectiveness of the applicable vehicle
pollution control system and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the Chrysler and Ford vehicles listed in Exhibit A, which is attached hereto and
incorporated herein. Vehicles certified to the Ultra Low Emission Vehicle (ULEV) or lower
emission standards are excluded.                                                     ‘

The TS Series Supercharger includes the following main components: A Whipple twin screw type
supercharger, intake manifold, and fuel management booster.

This Executive Order is valid provided that the installation instructions for the supercharger will
not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.                                                                '

This Executive Order shall not apply to any Kenne Bell, Inc. TS Series Supercharger advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer
to an ultimate purchaser.

Changes made to the design or operating conditions of the supercharger, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

Marketing of the supercharger using any identification other than that shown in this Executive
Order or marketing of the supercharger for an application other than those listed in this Executive
Order shall be prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of the supercharger shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the supercharger
may haveon any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on the following submitted emissions test data on a 1999
Ford Expedition and Jeep Grand Cherokee certified to the Low Emission Vehicle standards. The
vehicle in the modified configuration met the applicable emission standards. Testing cansisted of
one Cold Start CVS—75 Federal Test Procedures in the modified configuration. The following test
results are in grams per mile with deterioration factors applied:


KENNE BELL, INC.                                              EXECUTIVE ORDER D—271—12
TS SERIES SUPERCHARGER                                        (Page 2 of 2)



                          5.4L Expedition      '            4.7L Grand Cherokee
                    NMOG CO      NOX HCHO             NMOG CO       NOX     HCHO
Standard            0.195 5.0    0.6     0.022        0.100 4.4     0.4     0.018
Device              0.111 15     01      0.002        0.100   1.6   0.04    0.012

This Executive Order is also based on an On Board Diagnostic II (OBD I1) testing conducted on
the same vehicles. Test data showed that the supercharger when installed on the vehicles did
not affect the vehicle‘s ability to perform its OBD II monitoring.

However, the ARB finds that reasonable grounds exist to believe that use of the Kenne Bell
supercharger may adversely affect emissions of motor vehicles when operating under conditions
outside the parameters of the previously prescribed test procedures. Accordingly, the ARB            .
reserves the right to conduct additional emission tests, in the future, as such tests are developed,
that will more adequately measure emissions from all cycle phases. If such test results
demonstrate that the supercharger adversely affects emissions during off—cycle conditions
(defined as those conditions which are beyond the parameters of the Cold—Start CVS—75 Federal
Test Procedure), this Executive Order shall be effectively rescinded as of the date the test results
are validated. Further, if such test results or other evidence provides the ARB with reason to
suspect that the supercharger will affect the durability of the emission control systems, Kenne
Beill shall be required to submit durability data to show that the durability of the vehicle:emission
control system is not, in fact, affected and/or that the add—on or modified part demonstrates
adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
‘APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES$S BOARD
 OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
 ALLEGED BENEFITS OF KENNE BELL, INC.‘S SUPERCHARGER.                  |
No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made after the hearing that grounds for
revocation exist.

Executive Order D—271—11, dated December 1999, is superseded and of no further force and
effect.

Executed at El Monte, California, this ;gm       day of June 2001.


                                                       FokK
                                 R. B.   Summerfield, Chief
                                 Mobile Source Operations Division


                                                                                                                                                        1   ie*   PYIS1



                                                                                    Exhibit A



                                                     KCENNE BELL
                                           6 & 8 PSI SUPERCHARGER KITS
                                                                                                             TS SERIES


                                                               NEW                                                                                                                                          CHIP
                                                              INTAKE                                                     ENGINE      PULLEY SIZE
 PART             YEAR         MODEL                                                                                               I EPS PSI                      EMU OPTIMIZER (NiECTER
                                                                                                                                                                                AUXILiar:                    or

TS1000 SERIES    1986—93      MUSTANG GT                                                                                  5.0 _            2.38        216




                                                                C NC DC DC D€ be DC bG¢ J€ b¢é 3¢ DC NC yC




                                                                                                                                                                   P ~ DC DC DC DC DC 3€ JC XC JC JC Je y
TS1000 SERIES    1986         MERCURY CABRIS                                                                              5.0              2.38        216
TS1000 SERIES    1986—93     .MUSTANG COBRA                                                                               5.0              238         216
TS1000 SERIES    1994—95     ~ MUSTANG GT                                                                                 5.0              2.75        2.50
TS1000 SERIES    1994—95       MUSTANG COBRA              _                                                               5.0              2.38        216
TS1000 SERIES    1986—91       LINCOLN                                                                                    5.0              2.38        216
TS1000 SERIES    1989.—93      T—8!RD                                                                                     5.0              2.38        216
TS1000 SERIES    1986—99       LA FORZA                                                                                   5.0 .            2.38        216
TS$1000 SERIES   1994—01       MUSTANG GT                                                                                 46               3           2.525                                                 X
TS1000 SERIES    1996—01       MUSTANG COBRA                                                                              4.6                          2.625                                                 X




                                                                                                                                     w o o us us
T©1000 SERIES    1992—96       LINCOLN                                                                                    46                           2.625                                                 X
TS1000 SERIES    1992—96       T—BIRD                                                                                     46                           2.625                                                 X
TS1000 SERIES    1992—96       CROWN VICTORIA                                                                             46                           2.625                                                 X
TS1000 SERIES    1999          COBRA                                                                                      54                       §    2.25                                                 X

TS5000 SERIES    1996—01     TRucks, suvs                                                                                 4.6             3.125
                                                               »< 54 3 >¢




. 5000 SERIES    1996—0 1:   TRUCKs, suVs                                                                                 5.4             2.15
TS5000 SERIES    1999—01     TRUCK‘S, SUVS (NAVIGATOR)                                                                    54 A4V          2.75                                                               X




                                                                                                                                                                   »< >
TS5000 SERIES    1999—01     TRUCKS, suV‘s                                                                                6.8             2.5                                                                X

TS4000 SERIES    1989—96     E&F SERIES TRUCKS & VANS                                                                     5.0             2.78§5
                                                               >




Ts3000 seaies    1989—96     E&AF SERIES TRUCKS & VAN‘S                                                                   5.8             2.625

Ts2000 seRies    1989—96     E&F SERIES TRUCKS, VANS &                                                                    7.5             2125
                             MOTORKOME
Ts2000 sERies    1996—99     EXPLORER                                                                                     5.0             2.785
                                                               PC 3 C X




Ts2000 seRies    1991—99     EXPLORER                                                                                     4.0             2.785
TS2000 SERIES    1991—99     RANGER                                                                                       4.0             2.785
TS2000 SERIES    1997—99     RANGER                                                                                       5.0             2.185

: CHRYSLER)
Ts7000 sERIEs ® 1994—01      DURANGO, DAKOTA, RAM VAN                                                                     3.9°            3.2                                                                x     x
Ts7000 SERIES* 199901        JEEP GRAND CHEROKEE, DAKOTA X                                                                4.7             3.0                                                                xX    X

TS7000 SERIES: 1994—01       DURANGO, DAKOTA, RAM VAN                                                                     5.2             2.8                                                                X     X
TS7000 SERIES" 1994—01       DURANGO, DAKOTA, RAM, RAM VAN,                                                               5.9             2.6                                                                X     X
                              GRAND CHEROKEE
~~2000 SERIES    1991—01     VIPER                                                                                        8.0.            2.2                             X                                  X     X
~£000 SERIES     1991—01     RAM                                                                                          8.0             2.2                     .®                                         x     X



           * 2001 model—year Chrysler Trucks with the following engine families, that have been
           certified to a ULEV emission standard, are excluded: 1CRXA0287H41, 1CRXAO360H41,
           1CRXA0360J41 and 1CRXAO360K41.



Document Created: 2005-09-01 12:42:24
Document Modified: 2005-09-01 12:42:24
