Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 30, 2005.
As of Tuesday, December 18th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
TS7000-4.01999-2003 4.0L Jeep WranglerThe TS7000 Series Supercharger includes the following main parts: A twin screw type supercharger with a maximum boost of 6 pounds per square inch, 2.625 inch diameter supercharger pulley, intake manifold with intercooler, supercharger by-pass valve, larger capacity fuel injectors, air intake tubing, open element air cleaner, and a reprogrammed control module. The stock radiator thermostat is retained. The stock throttle body and mass airflow sensor are retained, but relocated to the inlet housing of the supercharger.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-271-15
  • Executive Order 271-15 / D271-15
  • ARB # D-271-15
  • Executive Order No: D-271-15
  • C.A.R.B. No. D-271-15
  • Resolution D-271-15
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-271-15 PDF

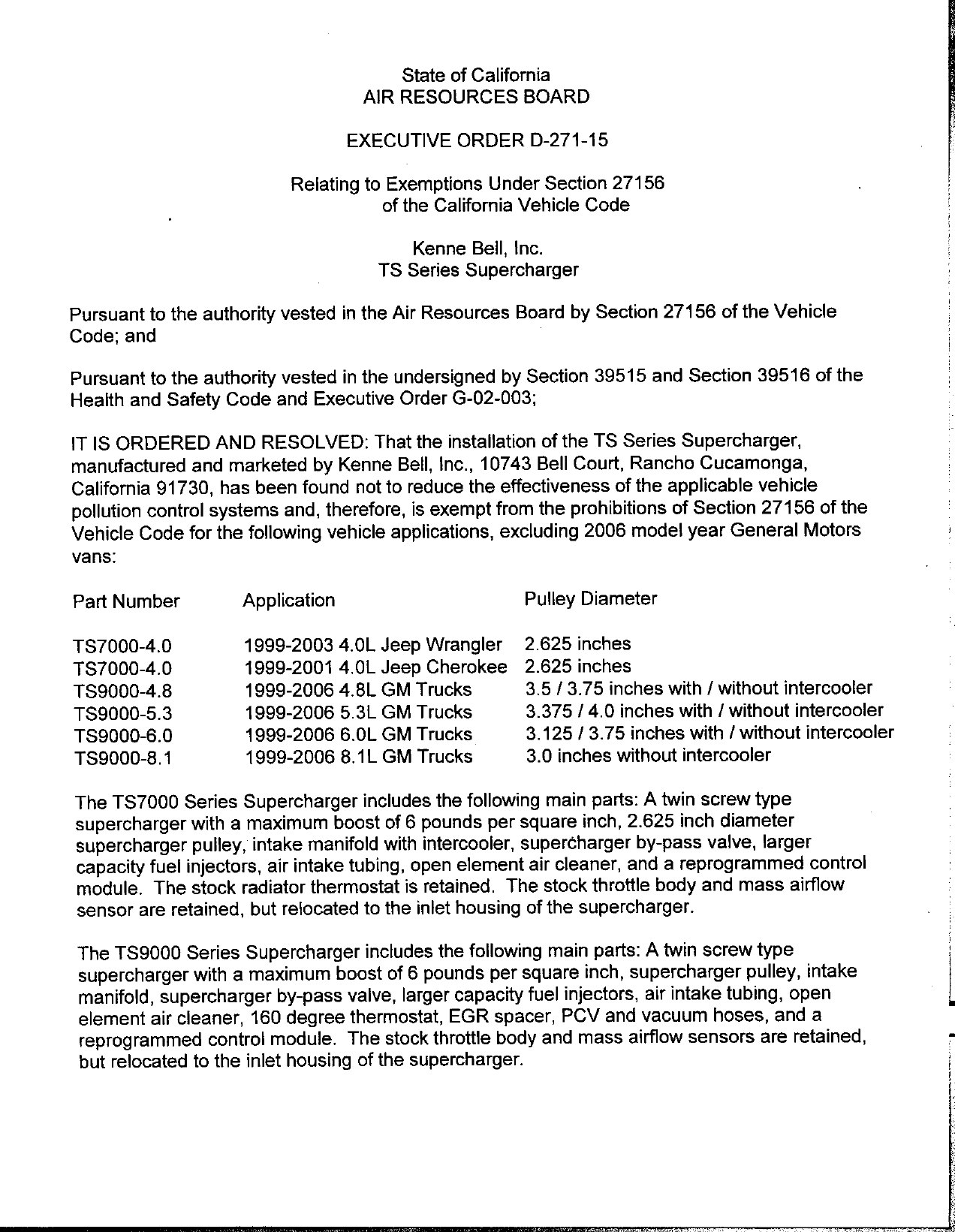

D-271-15 Document:



                                         State of California
                                    AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—271—15

                           Relating to Exemptions Under Section 27156
                                      of the California Vehicle Code

                                          Kenne Bell, Inc.
                                      TS Series Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the TS Series Supercharger,
manufactured and marketed by Kenne Bell, Inc., 10743 Bell Court, Rancho Cucamonga,
California 91730, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following vehicle applications, excluding 2006 model year General Motors
vans:

Part Number         Application                         Pulley Diameter

TS7000—4.0           1999—2003 4.0L Jeep Wrangler       2.625 inches
TS7000—4.0           1999—2001    4.0L Jeep Cherokee    2.625 inches
TS9000—4.8           1999—2006    4.8L GM Trucks        3.5 / 3.75 inches with / without intercooler
TS9000—5.3           1999—2006    5.3L GM Trucks        3.375 / 4.0 inches with / without intercooler
TS9000—6.0           1999—2006    6.0L GM Trucks        3.125 / 3.75 inches with / without intercooler
TS9000—8.1           1999—2006    8.1L GM Trucks        3.0 inches without intercooler

The TS7000 Series Supercharger includes the following main parts: A twin screw type
supercharger with a maximum boost of 6 pounds per square inch, 2.625 inch diameter
supercharger pulley, intake manifold with intercooler, supercharger by—pass vaive, larger
capacity fuel injectors, air intake tubing, open element air cleaner, and a reprogrammed control
module. The stock radiator thermostat is retained. The stock throttle body and mass airflow
sensor are retained, but relocated to the inlet housing of the supercharger.

The TS9000 Series Supercharger includes the following main parts: A twin screw type
supercharger with a maximum boost of 6 pounds per square inch, supercharger pulley, intake
manifold, supercharger by—pass vaive, larger capacity fuel injectors, air intake tubing, open
element air cleaner, 160 degree thermostat, EGR spacer, PCV and vacuum hoses, and a
reprogrammed control module. The stock throttle body and mass airflow sensors are retained,
but relocated to the inlet housing of the supercharger.


                                                  «9.


This Executive Orderis valid provided that the installation instructions for the TS Series
Supercharger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the TS Series Supercharger, as exempt by
the Air Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

This Executive Order shall not apply to any TS Series Supercharger advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the TS Series Supercharger using any identification other than that shown in this
Executive Order or marketing of the TS Series Supercharger for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the TS Series
Supercharger may have on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Orderis granted based on submitted emissions test results on a General Motors
truck and a prior evaluation conducted on a 1999 Jeep Grand Cherokee with a 4.7L engine
(D—271—13). Testing for the General Motors truck consisted of a Cold—Start CVS—75 Federal Test
Procedure, Supplemental Federal Test Procedure (USO06/SC03), and an examination of the
On—Board Diagnostic II (OBD I1) system. A 2004 Chevrolet €1500 with a 5.3 liter engine
(4GMXTO06.0187, LEV | SULEV, MDV) was used for the evaluation of the TS9000 Series
Supercharger. Results from emissions testing conducted at Automotive Testing and Development
Services, Inc., of Ontario, California, are shown below (in grams per mile with deterioration factors
applied):
                          CVS—75                             USO6/SCO3
                   NMOG CO     NOx        HCHO            NMHC+NOx     CO
Standards 50k      0.125 34    014        0.015           0.4/0.31     10.5/3.5
Device             0.099 1.9   0.05       0.001           0.08/0.03    0.7/0.4

The emission test results in the modified configuration were below the applicable certification
standards. Examination of the OBD II system showed the TS Series Supercharger does not affect
OBD II system operation.

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to meet
the standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.




                  KENNE BELL — KENNE BELL SUPERCHARGER KIT — D—271—15


                                                —3.

  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
  APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
_ OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
  ALLEGED BENEFITS OF THE TS SERIES SUPERCHARGER.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.

 Violation of any of the above conditions shall be grounds for revocation of this order. The order
 may be revoked only after a ten day written notice of intention to revoke it, during which period
 the holder of the order may request in writing a hearing to contest the proposed revocation. If a
 hearing is requested, it shall be held within ten days of receipt of the request, and the order may
 not be revoked until a determination is made, after the hearing, that grounds for revocation
 exist.
                                               w4
 Executed at El Monte, California, this   __2 ¢ day of September 2005.




                                          Lyons, Chief
                                     Mobile Source Operations Division




                     KENNE BELL, INC. — SUPERCHARGER KIT — D—271—15



Document Created: 2005-11-18 11:31:21
Document Modified: 2005-11-18 11:31:21
