Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 5, 2008.
As of Wednesday, June 19th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
See PDF1986 to 2009 Ford vehiclesThe 2005 to 2009 model year Ford Mustang TS Series Supercharger Kit consists of the following main components: Twin screw supercharger using the stock crankshaft pulley, intercooler, intake manifold, bypass valve, a 170 degree thermostat to replace the stock thermostat, 39 pound high flow injectors, mass air flow sensor, reflashed ECM, open element air filter on 2005 model year built after April 30, 2005 and 2006 model year Mustangs only, and electronic fuel pump booster. The stock air cleaner housing is retained on 2005 model year built on or before April 30, 2005, and 2007 to 2009 model year Mustangs. The breather and vacuum hoses may be replaced with an SAE30R9 rated hose. The 2007 to 2009 model year Ford 5.4L Shelby GT500 Supercharger Kit consists of the following main components: Twin screw supercharger with a 3.25 inch diameter pulley designed to replace the stock supercharger, a 180 degree thermostat to replace the stock thermostat, modified ECM calibration, Ford GT style air intake system and mass air flow sensor, 75 mm throttle body, and a conical air filter in a new air box. The stock crankshaft pulley is retained. There are no changes or modifications to any of the following: vacuum or emission related hoses, fuel injectors, or radiator thermostat. The TS Series Supercharger kit, for other Ford vehicles, includes the following main components: A twin screw type supercharger, intake manifold, and open element air filter. Additional components, as listed in Exhibit A, include an ECU chip or an optimizer, an auxiliary fuel injector, and/or a fuel management booster. The breather and vacuum hoses may be replaced with an SAE30R9 rated hose.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-271-17
  • Executive Order 271-17 / D271-17
  • ARB # D-271-17
  • Executive Order No: D-271-17
  • C.A.R.B. No. D-271-17
  • Resolution D-271-17
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-271-17 PDF

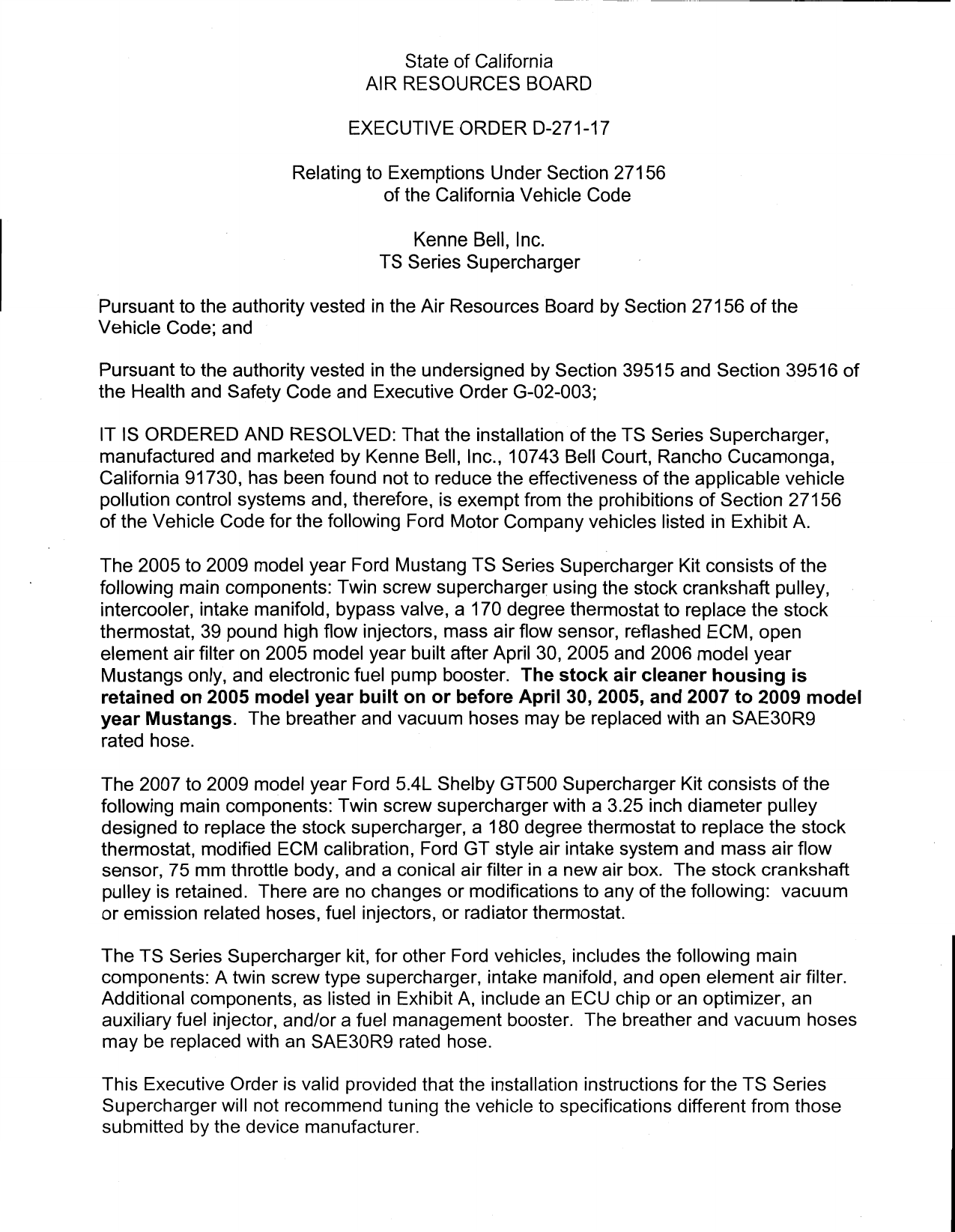

D-271-17 Document:



                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE— ORDER D—271—17

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                      Kenne Bell, Inc.
                                  TS Series Supercharger

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and _

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

T IS ORDERED AND RESOLVED: That the installation of the TS Series Supercharger,
manufactured and marketed by Kenne Bell, Inc., 10743 Bell Court, Rancho Cucamonga,
California 91730, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156
of the Vehicle Code for the following Ford Motor Company vehicles listed in Exhibit A.

The 2005 to 2009 model year Ford Mustang TS Series Supercharger Kit consists of the
following main components: Twin screw supercharger using the stock crankshaft pulley,
intercooler, intake manifold, bypass valve, a 170 degree thermostat to replace the stock
thermostat, 39 pound high flow injectors, mass air flow sensor, reflashed ECM, open
element air filter on 2005 model year built after April 30, 2005 and 2006 model year
Mustangs only, and electronic fuel pump booster. The stock air cleaner housing is
retained on 2005 model year built on or before April 30, 2005, and 2007 to 2009 model
year Mustangs. The breather and vacuum hoses may be replaced with an SAE30R9
rated hose.                       |

The 2007 to 2009 model year Ford 5.4L Shelby GT500 Supercharger Kit consists of the
following main components: Twin screw supercharger with a 3.25 inch diameter pulley
designed to replace the stock supercharger, a 180 degree thermostat to replace the stock
thermostat, modified ECM calibration, Ford GT style air intake system and mass air flow
sensor, 75 mm throttle body, and a conical air filter in a new air box. The stock crankshaft
pulley is retained. There are no changes or modifications to any of the following: vacuum
or emission related hoses, fuel injectors, or radiator thermostat.

The TS Series Supercharger kit, for other Ford vehicles, includes the following main
components: A twin screw type supercharger, intake manifold, and open element air filter.
Additional components, as listed in Exhibit A, include an ECU chip or an optimizer, an
auxiliary fuel injector, and/or a fuel management booster. The breather and vacuum hoses
may be replaced with an SAE30R9 rated hose.

This Executive Order is valid provided that the installation instructions for the TS Series
Supercharger will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.


ChanAgeS made to the design or operating conditions of the TS Series Supercharger, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TS Series Supercharger advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the TS Series Supercharger using any identification other than that shown in
this Executive Order or marketing of the TS Series Supercharger for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the TS
Series Supercharger may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on submitted emission test data generated on a
2007 model year 4.6L Ford Mustang certified to the Low Emission Vehicle II Ultra Low
Emission Vehicle (LEV 11 ULEV) emission standards and a 2007 model year 5.4L Ford
Shelby GT500 certified to the Low Emission Vehicle II Low Emission Vehicle (LEV II LEV)
emission standards, both modified with the TS Series Supercharger Kit. Test results on
the Mustang showed that emission levels, with Kenne Bell, Inc.‘s TS Series Supercharger
installed, met the applicable emission standards when tested using the Cold—Start
CVS—75 Federal Test Procedure (FTP) and the Supplemental Federal Test Procedure
(SFTP USO6/SC03) test cycles. Boost pressure was measured at 8.1 psi. for the
Mustang and 11.6 psi. for the Shelby GT500. Examination of the OBD II system showed
the TS Series Supercharger did not affect OBD II system operation. Results from
emission testing conducted at the Automotive Testing and Development Services, Inc., of
Ontario, California are listed below with deterioration factors applied.

   2007 model year Ford Mustang                CVS—75 FTP
                             NMOG              CO    NOx            HCHO
   Standards                0.040              1.7   0.05           0.008
   Device Test              0.027              1.3   0.01           0.001

                                    USO6/SC03
                                NMHC+NOx              CO
    Standards 4k                   0.14/0.20          8.0/2.7
    Device                         0.13/0.01          1.1/0.7

   2007 model year Ford Shelby GT500             CVS—75 FTP
                                   NMOG        CO     NOx           HCHO
    Standards                      0.075       3.4    0.05          0.015
    Device Test                    0.061       2.1    0.05          0.001

                                       USO6/SC03
                                NMHC+NOx         CO
    Standards 4k                  0.14/0.20      8.0/2.7
    Device                         0.03/0.04          4. 1/2.1


The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TS SERIES
SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this       5}‘1 _ day of September 2008.



                                 nnette
                                      gae
                                        Hebert,
                                    ‘Mobile Source Operatlons Division




              KENNE BELL, INC. — TS SERIES SUPERCHARGER — D—271—17


                                                        Exhibit A

                                                            NEW                                                      CHIP

                                                           INTAKE       ENGINE          PULLEY SIZE                   or

                                                                                    6        8




                                                                                                   & is
PART NO.        YEAR        MODEL                         MANIFOLD   DISPLACEMENT   esi      Psi             FMU   OPTIMIZER   INJECTORS

FORD
TS1000 SERIES   1986—93     MUSTANG GT                                   5.0        238 216




                                                             KX




                                                                                                             K
TS1000 SERIES   1986        MERCURY CABRIS                               5.0        238 216




                                                             S




                                                                                                             K
TS1000 SERIES   1986—93     MUSTANG COBRA                                5.0        238 216




                                                             K




                                                                                                             K
TS1000 SERIES   1994—95     MUSTANG GT                                   5.0        275 25




                                                             K




                                                                                                             K
TS1000 SERIES   1994—95     MUSTANG COBRA                                5.0        238 216



                                                             K




                                                                                                             K
TS1000 SERIES   1986—91     LINCOLN                                      5.0        238 216

                                                             K




                                                                                                             K
TS1000 SERIES   1989—93     T—BIRD                                       5.0        238 216
                                                             K




                                                                                                             K
TS1000 SERIES   1986—99     LA FORZA                                     5.0        238 216
                                                             K




                                                                                                             KK
TS1000 SERIES   1994—04     MUSTANG GT —                                 4.6        3    263
                                                             K




                                                                                                                      xX%
TS1000 SERIES   1996—04     MUSTANG COBRA                                4.6        3    263
                                                             K




                                                                                                             y




                                                                                                                      K
TS1000 SERIES   1992—03     LINCOLN                                      4.6        3    263
                                                             K




                                                                                                             y




                                                                                                                      K
TS1000 SERIES   1992—03     T—BIRD                                       4.6        3    263
                                                             K




                                                                                                             K0




                                                                                                                      K
TS1000 SERIES   1992—07     CROWN VICTORIA                               4.6        3    263
                                                             K




                                                                                                             K0




                                                                                                                      _X
TS1000 SERIES   1999—04     COBRA/MACH 1                                 5.4        25 2.25
                                                             K




                                                                                                             K0




                                                                                                                      _X
TS1000 SERIES _ 1994—00     MUSTANG vs                                   3.8        250003
                                                             K




                                                                                                                      KX
TS1000 SERIES
                2005—09*    MUSTANG                                      4.6        412 4
                                                             x




                                                                                                                      K
TS1000 SERIES   2001        MUSTANG BULLIT                              4.6 2V      3   263
                                                             K




                                                                                                                      _X
TS1000 SERIES   2007—09     SHELBY GT500, KR                            5.4 4V                        3.25
                                                             K




                                                                                                                      _X
TS1000 SERIES   2003—06     FORD GT                                     5.4 4V                        3.25
                                                             KX




                                                                                                                      X
TS5000 SERIES   1996—09     TRUCKS, SUV‘S                                4.6        313      263
                                                             S




                                                                                                             >




                                                                                                                      x
TS5000 SERIES   1996—09     TRUCKS, SUV‘S                                5.4        275      263
                                                             y




                                                                                                             _X




                                                                                                                      K
TS5000 SERIES   1999—03     TRUCKS, SUV‘S (NAVIGATOR)                   5.4 4V      2.75
                                                             K




                                                                                                             _X




                                                                                                                      K
TS5000 SERIES   1999—09     TRUCKS, SUV‘S                                6.8        25
                                                             K




                                                                                                             KX




                                                                                                                      K
TS5000 SERIES   2004—09     TRUCKS, SUVS                                5.4 3V      30       25
                                                             K




                                                                                                                      K



TS5000 SERIES   2004—09     TRUCKS, SUV‘S                                4.6        313      3.0
                                                             K




                                                                                                                      KX




TS4000 SERIES    1989—96    E&F SERIES TRUCKS & VANS                      5.0       2.79
                                                             y




TS3000 SERIES    1989—96    E&F SERIES TRUCKS & VANS                      5.8       2.63
                                                             y




TS2000 SERIES    1989—96    E&F SERIES TRUCKS, VANS &                     7.5       213.
                                                             K




                            MOTORHOME


TS2000 SERIES    1996—99    EXPLORER                                      5.0       2.79
                                                             _X




                                                                                                             KX




TS2000 SERIES    1991—99    EXPLORER                                      4.0       2.79
                                                             _X




                                                                                                             K




TS2000 SERIES    1991—99    RANGER                                        4.0       2.79 _
                                                             K




                                                                                                             K




TS2000 SERIES    1997—99    RANGER                                        5.0       2.79
                                                             X




                                                                                                             KX




TS8000 SERIES    200 1—09   ESCAPE/MAZDA TRIBUTE                          3.0       2.00
           * The stock air cleaner housing is retained on 2005 model year built on or before
           April 30, 2005, and 2007 to 2009 model year Mustangs.



Document Created: 2008-10-31 14:19:25
Document Modified: 2008-10-31 14:19:25
