Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 9, 1992.
As of Wednesday, October 23rd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1987-1992 General Motor light, medium, and heavy duty trucks equiped with a 5.0 L (305 CID) or 5.7 L (350 CID) TBI Engines

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-276
  • Executive Order 276 / D276
  • ARB # D-276
  • Executive Order No: D-276
  • C.A.R.B. No. D-276
  • Resolution D-276
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-276 PDF

D-276 Document:

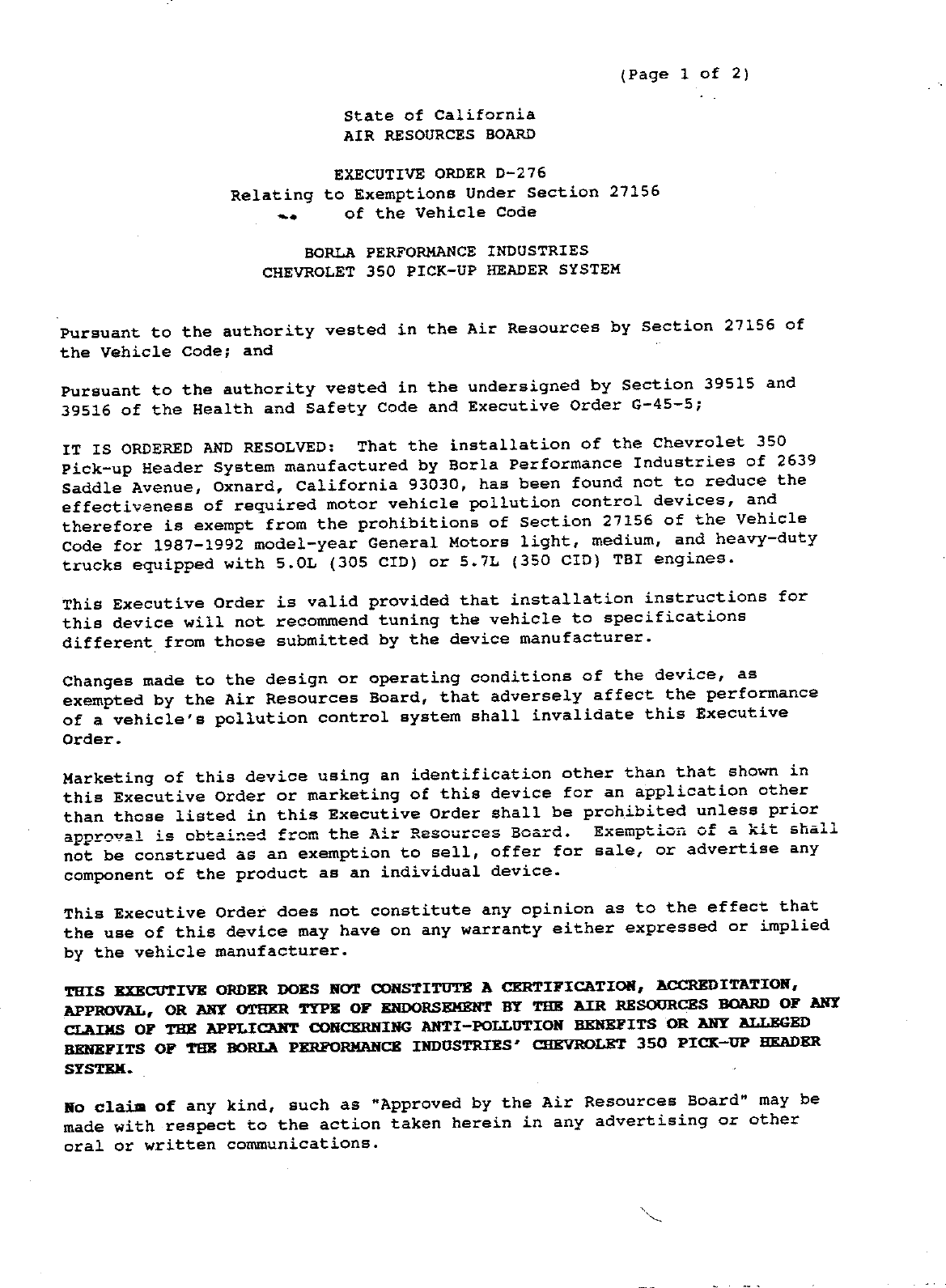

                                                             (Page 1 of 2)

                                State of California
                                AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—276
                   Relating to Exemptions Under Section 27156
                        ne    of the Vehicle Code

                          BORLA PERFORMANCE INDUSTRIES
                      CHEVROLET 350 PICK—UP HEADER SYSTEM


Pursuant to the authority vested in the Air Resources by Section 27156 of
the Vehicle Code; and                                     '

Pursuant to the authority vested in the undersigned by Section 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:  That the installation of the Chevrolet 350
Pick—up Header System manufactured by Borla Performance Industries of 2639
Saddle Avenue,   Oxnard,   California 93030,   has been found not to reduce the
effectiveness of required motor vehicle pollution control devices, and
therefore is exempt from the prohibitions of Section 27156 of the Vehicle
Code for 1987—1992 model—year General Motors light, medium, and heavy—duty
trucks equipped with 5.0L (305 CID) or 5.7L (350 CID) TBI engines.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.   Exemption of a kit shall
not be construed as an exemption to sell, offer for sale, or advertise any
component of the product as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE BORLA PERFORMANCE INDUSTRIES‘ CHEVROLET 350 PICK—UP HEADER
SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
cral or written communications.


BORLA PERFORMANCE INDUSTRIES                         EXECUTIVE ORDER D—276
CHEVROLET 350 PICK—UP HEADER SYSTEM                  (Page 2 of 2)



Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

     "43644,  (a)  No person shall install, sell offer for sale, or
     advertise or except in an application to the state board for
     certification of a device, represent, any device as a motor vehicle
     pollution control device for use on any used motor vehicle unless that
     device has been certified by the state board.> No person shall sell,
     offer for sale, advertise, or represent any motor vehicle pollution
     control device as a certified device which, in fact, is not a certified
     device.   Any violation of this subdivision is a misdemeanor."

Any apparent violation of the conditions of this Executive Order will be
submitted to the Attorney General of California for such action as he deems
advisable.

Executed at El Monte, California, this
                                          wl_
                                            day of   September,   1992.




                                         . Summerfield
                                         istant Division Chief
                                      Mobile Source Division


                      State of California
                      AIR RESOURCES BOARD




          EVALUATION OF BORLA PERFORMANCE INDUSTRIES‘
              CHEVROLET 350 PICK—UP HEADER  SYSTEM
      FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                 CALIFORNIA CODE OF REGULATIONS




                        September 1992


                            State of California
                            AIR RESOURCES BOARD




                EVALUATION OF BORLA PERFORMANCE INDUSTRIES‘
                     CHEVROLET 350 PICK—UP HEADER SYSTEM
            FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
      SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                       by
                          Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          EL Monte,   CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does the mention of trade names or commercial products constitute
endorsement or recommendation for use.)


©
                                        SUMMARY

         Borla Performance Industries of 2639 Saddle Avenue, Oxnard,     California

    93030, has requested an exemption for Borla Performance Industries‘

    Chevrolet 350 Pick—up Header System from the prohibitions of Section 27156

    of the California Vehicle Code.    The exemption is requested for installation

    on 1987—91 General Motors‘   light, medium,   and heavy—duty trucks with either

    a 5.0 or 5.7 liter throttle body injection (TBI) engines.

         Based on emission test results performed by Borla Performance

    Industries at an independent laboratory and confirmatory testing at the

    Air Resources Board‘s Haagen—Smit Laboratory, the staff concludes that Borla

    Performance Industries‘ Chevrolet 350 Pick—up Header System will not

    adversely affect exhaust emission from the vehicles for which an exemption

    is requested.

         The staff recommends that Borla Performance Industries be granted

    Executive Order D—276 allowing the installation of their Chevrolet 350 Pick—

    up Header System on those applicable 1987—92 General Motors‘ light, medium,

    and heavy—duty trucks with either a 5.0 or 5.7 liter TBI equipped engine.


                             TABLE OF CONTENTS




                                                 Page No.


SUMMARY

CONTENTS                                              i1

‘I.        INTRODUCTION

II.        CONCLUSION

III.       RECOMMENDATION

IV.        HEADER SYSTEM DESCRIPTION

           DISCUSSION OF THE HEADER SYSTEM

VI.        APPENDIX

           HEADER SYSTEM DRAWINGS

           INSTALLATION INSTRUCTIONS




                                       i1


©
                       EVALUATION OF BORLA PERFORMANCE INDUSTRIES‘
                     CHEVROLET 350 PICK—UP HEADER SYSTEM FOR EXEMPTION
         FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH
              SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS



    I.      INTRODUCTION

            Borla Performance Industries of 2639 Saddle Avenue,   Oxnard,   California

    93030, has requested an exemption for Borla Performance Industries‘

    Chevrolet 350 Pick—up Header System from the prohibitions of Section 27156

    of the California Vehicle Code.     The exemption is requested for installation

    on 1987—91 General Motors‘    light, medium,   and heavy—duty trucks with either

    a 5.0 or 5.7 liter throttle body injection (TBI) engine.

    II.     CONCLUSION

           Based on emission test results performed by Borla Performance

    Industries at an independent laboratory and confirmatory testing at the

    Air Resources Board‘s Haagen—Smit Laboratory, the staff concludes that Borla

    Performance Industries‘ Chevrolet 350 Pick—up Header System will not

    adverself affect exhaust emission from the vehicles for which an exemption

    is requested.

    III.   RECOMMENDATION

           The staff recommends that Borla Performance Industries be granted

    Executive Order D—276 allowing the installation of their Chevrolet 350 Pick—

    up Header System on 1987—1992 General Motors‘ light, medium, and heavy—duty

    trucks equipped with a 5.0 or 5.7 liter TBI equipped engine.




    IV.    CHEVROLET 350 PICK—UP HEADER SYSTEM DESCRIPTION

           The Borla Performance Industries Chevrolet 350 Pick—up Header System is

    specifically designed for installation on 1987—1992 model—year General

    Motors‘ light, medium, and heavy—duty trucks with either a 5.0 or 5.7 liter


 TBI equipped engine.     The Chevrolet 350 Pick—up Header System consists of

 exhaust manifolds and pre—catalyst piping.     As with the original equipment

manufacturer‘s (OEM) exhaust system, the function of Borla Performance

 Industries‘ Chevrolet 350 Pick—up Header System is to route exhaust gases

 from the two exhaust manifolds of the engine into a common pipe which then

 feeds to the catalytic converter ({see appendix for drawings).     Borla

° Performance Industries‘ family of Chevrolet 350 Pick—up Header System

 features tubular exhaust primary pipes of 1—5/8" outside diameters.        The

 left and right side primary tubes are 24.5 inches and 21.8 inches long

 respeétively.     All the exhaust gases are then routed into a 2—1/4" diameter

 collector tube feeding into the precatalyst piping.     The oxygen sensor is

 located in the left—side collector.     The precatalyst piping, the Y¥—pipe

 assembly, consists of 2—1/4 inch diameter tubing connecting the left and

right exhaust manifolds to a three inch diameter collector.       The collector

 connects to the catalyst inlet.    All tubes are comprised of 304 stainless

 steel.

      Positioned just before the collector, the Torque Increasing Venturis

are welded.      The Torque Increasing Venturis cause sufficient backpressure

enhancing the EGR operation.

      The Chevrolet 350 Pick—up Header System is functionally identical to

the cast iron exhaust manifolds and tubular steel collector pipes of the OEM

exhaust system.     The difference is the design dimensions of the Chevrolet

350 Pick—up Header System optimizes the exhaust gas flow characteristics.

The manufacturer claims Chevrolet 350 Pick—up Header System is designed to

improve the flow of exhaust gases from the cylinder heads to the catalytic

converter, thereby promoting improved volumetric and combustion efficiency.


     The system operates in conjunction with the OEM computer controlled

throttle body fuel injection and emission control systems already certified

with the stock engines.    The installation of the Chevrolet 350 Pick—up

Header System is done by fitting only and requires no welding, modifications

or adjustments to the emission control system.        Borla Performance Industries

supplies complete installation kits,     including bolts, flanges, washers, and

gaskets.

v.   DISCUSSION OF THE CHEVROLET 350 PICK—UP HEADER SYSTEM

     Borla Performance Industries requested an exemption for the

installation of Chevrolet 350 Pick—up Header System on 1987—1992 model—year

General Motors‘ light, medium, and heavy—duty trucks equipped with 5.0 or

5.7 liter TBI engines.    To evaluate the emission impact of the Chevrolet 350

Pick—up Header System on these vehicles, the staff required Borla

Performance Industries to test a 1990 Chevrolet 1500 light—duty truck

equipped with a 5.7 liter engine in accordance with CVS—75 Federal Test

Procedure (FTP).    Testing consisted of one CVS—75 FTP test with the header

system installed to compare emission levels against applicable emission

standards.    Table 1 shows emission test results conducted at Milton Roy

Company, Orange, California, on the 5.7 liter truck.       Table 2 shows

confirmatory emissions test results conducted at the Air Resources Board‘s

Haagen—Smit Laboratory on the same truck.


                                    Table 1

             CVS—75 Tests Conducted by Borla Performance Industries

                             (He    co      NOx) g/m

     Test Results           0.382   2.673     0.903
     Emissions Standards    0.500   9.000     1.000


                                    Table 2

                 Confirmatory CVS—75 Tests Conducted by ARB

                            (8c     co        NOx) g/m

      Test Results          O.416   3.781     0.712
      Emissions Standards   0.500   9.000     1.000




     Based on the emission test results, it appears that the Chevrolet 350

Pick—up Header System does not cause vehicle emissions to exceed emissions

standards when installed on 5.7 liter engines.        Therefore, staff concludes

that based on the vehicle that Borla Performance Industries has tested, no

emission impact would be observed on 5.0 or 5.7 liter engines when the

Chevrolet 350 Pick—up Header System is installed.

     The staff recommends that Borla Performance Industries be granted

Executive Order D—276 allowing the installation of their Chevrolet 350 Pick—

up Header System on 1987—92 General Motors‘      light, medium, and heavy—duty

trucks with a 5.0 or 5.7 liter TBI engine.


APPENDIX


                      x X 40 X 133HS]         of —/+     $379N¥        SICaSNONT yTand .0
                                                                   JAULNIS3YAT% CGZDABUNY
            "ON_18¥d                         PD —740=       oXXX   4108 ¥_J0 NOLLVZTAMbNY
             -        y¥Jp,;     vsel3I99S] .900 —/+ =     xXXX     L LOHLIN CCCE
                                                                      ATLORILS S NSYGH
            "vIN3I9W P6G—OfI—E:3L9UI.OTQ‘Q —/+ = .XXX
onzs339718 NC                                                       w6 350 M ‘SoINASNCAT
        340UVIH                          ‘     SIHONT NE ‘WId       WROL 40 AlM3IOHY 3HL
                                                                     SI NADHS_KOLLURHOANT
         NOU 4143S3G                             ‘S3INYHIT0L         TW CNY SMIAViIU SIHL
      SEU&M SWG/\/I 9 14
133HS|‘ON WILSAS kA             NOLLdINIS3E W31LSAS
                               os€ 13704A3HD
                                                             39031              1812 X ,8/§—10 H‘8


) sic5/s y as          pic@                         .                                   C
411 X 2—17/74" COLLECTOR WITH 02 SENSOR PROVISION




                                                        ’CHE\/RDLET 350
                                                        ]SYSTEM DESCRIPTION    TY   SYSTEM NO.| SHEET

                                   BIIRLA INDUSTRIES
                   Drgsmgg%m&'f%           TOLERANCES:                         DESCRIPTION
                   Tee Prtpert? or sosia   DIM. IN INCHES                      HEADER
                   TNBUSTRIES ANY USC DR
                                                                  DRN BY:LEE
                   Mache evenemnon KXXX = +/— 0.010" Date:s—10—93 P)i(ATERIAL'
                   memmmten maout ne       XXX‘     = +/— 006‘ |scaLEi=4
                   ATttesm  eAnt.  XX               _ = +/— 01                 PaART No:
                   & oasa mdosiers         ANGLES        +/— 1t   Isugpt x OF x X


e                                     .,                                                                          ;
    A2—1/4" X 49.5"
    CDLLECTIOR 23" X 6"




                                                         *CHE\/RDLET 350
                                                         ( SYSTEN DESCRIPTIDN               SYSEM NO.}SHEET

                                 BUR
                  vire cancms in c
                                       L   2   [NJ JS TR]bS                                               _
                                   TOLERANCES:                                         | tese=tp—imw      1
                  TicRbcten iaon            TM. IN INCKES                                A
                  esns M" C                                            nex avie: |T—PIPE ASSY.
                  pousae = mmenntie        KXXX               +/— 0010"leTtpic3—1g—99 MATERIAL:
                  recsures vman me XXX"                       +/— D3® |ISCALE=4
                                                              +2— 006‘                  X
                                                                                        fart ng:              ;
                  Abnortanme of a mav) xoyr
                                                    1 droat




                  0F E92A inBstrics        ANGLES             +/— it   igugerys ory|    X


 BOr/a
;/‘FDRMANL'E I N D U S T RLES




               INSTALLATION           INSTRUCTIONS FOR BORLA                PART   #:       17021
                                       ChHEVY PICK—~UP HEADCRS



                     BORILA PERFORMANCE EXHAUST SYSTEMS AND HEADERS
                     SHOULO BE INSTALLED BY QUALIFIED PERSONS OnLy.


       LIP|    YELHICLE       AND SupPORT
2.     DILSCONMECT ND           REMOYE 02       SENSOR
3.     UNKROLT EXHAUST          FLANQGES
«.     RPMHOYE GULAMD AT FRONT OF THE CATALYTIC CONVER                                  .    DO NQOT    REMOVE _
       CaIALYTIC CONYERTERL
5.     LOWLR    VEHILCLE
       RLMOVC UPPER HALE              OF FAN SHROUD
7.     RLMOYVE FAN GELT
8.     UTING    PULLER        REMOVE    POWER       STEERING       PULLEY
9.     REMOYE THE TIRE               BOLTS HOLOING POWER AIT                2INMG PUMP. THE BOLT ON
       HACK    OF    ALTERNATOR        ANNG   THE    TWOQ   NUTS    QON & XHALST   MANIFGLO
10 .   FLMOVE POWER sTEERINQ PUMP
11.    REMOVE       SPARK     PLUG    WIRES,    SPARK       PLUGS,    HEAT    RISER         amD   DIP   STICK
       REMOVE EXHAUST MANTFOLOS
       RAISE YEAICLE AND REMOGVE y—PIPE
       WORKING FROM THE TOP,. S.IP HEADERS WITH GaASKETS ILNTOG PLACE aND
       sIART ALL BOLTS
15.    L1GHTEN BOLTS FROM CENTER TOWARD CNDS
1& .   iEAVE THE LONG BOLT TN THE RRONT OF i FI HEADER LOOSE
17.    REMOVE HRACKET FROM BACK OF POWERM STEE tING PUMP AND TRIM AS PRR
          5 IRUUIIONS3 FOR HEADER Cl.EaARANCE
18.    REC INSTALL LRACKCT ON POWER STRERING PUMP
19     INSTALL POWER STEERING PuhP ON ENGINL USING SPACER PROVIOED AND
       LONG   BOLT
20 .   Rk—INGTALL PULLEY ON POWER STEERING PUMP USING BOLYT AND WASHERS
       TO   PULL    TT   ON
21.    LNY NALL GELT aAND RADIATOR sHroup
£a.    INSTALL DIP STICK, SPARK PLUGS, SPARMK PLLVG WIRES AND HEAT RISER
235.   USE 02 SENSOR EXTENSION PRMOVIDED AND INSTALL O2 SENSOR
       kROM BELOW, INSTALL Y—PIFE USING OFM GASKETS WITH THE NUTS ANC
       BOLTS SUPEFLIED
       TIGHITEN     CLAMPS     ON    Y—FIPE    AND     CONYERTEGER
       sIART ENGINE,          LET    IT WARM UP TO OPEFRATING TEMPERATURE AND
       RE— TIGHIEN       HEADEkKR    GOLTS

       WARNING!!!_        HEADER WILL BE EXTREMELY_HOT —— Do NoT Touegii:



                                                                                                        %fifis
                                                                                                            &
        2639 Saddle Avenue * Oxnard, CA + (805) 983—7300 « FAX (805) 988—0968                           ul


P/s BRacKET TRIMmMiNc
    TEMPLATE ,




         —10—



Document Created: 2005-09-01 12:44:13
Document Modified: 2005-09-01 12:44:13

| Previous E.O. D-275 | Next E.O. D-276-1 | Next E.O. D-277
