Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 10, 1993.
As of Sunday, June 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1987-1993 model-year Ford heavy-duty trucks equipped with a 460 CID multipoint fuel injected engine 1990-1992 model-year Ford Ranger and Explorer and Mazda Navaho equipped with a 4.0 L V6 engine

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-276-1
  • Executive Order 276-1 / D276-1
  • ARB # D-276-1
  • Executive Order No: D-276-1
  • C.A.R.B. No. D-276-1
  • Resolution D-276-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-276-1 PDF

D-276-1 Document:

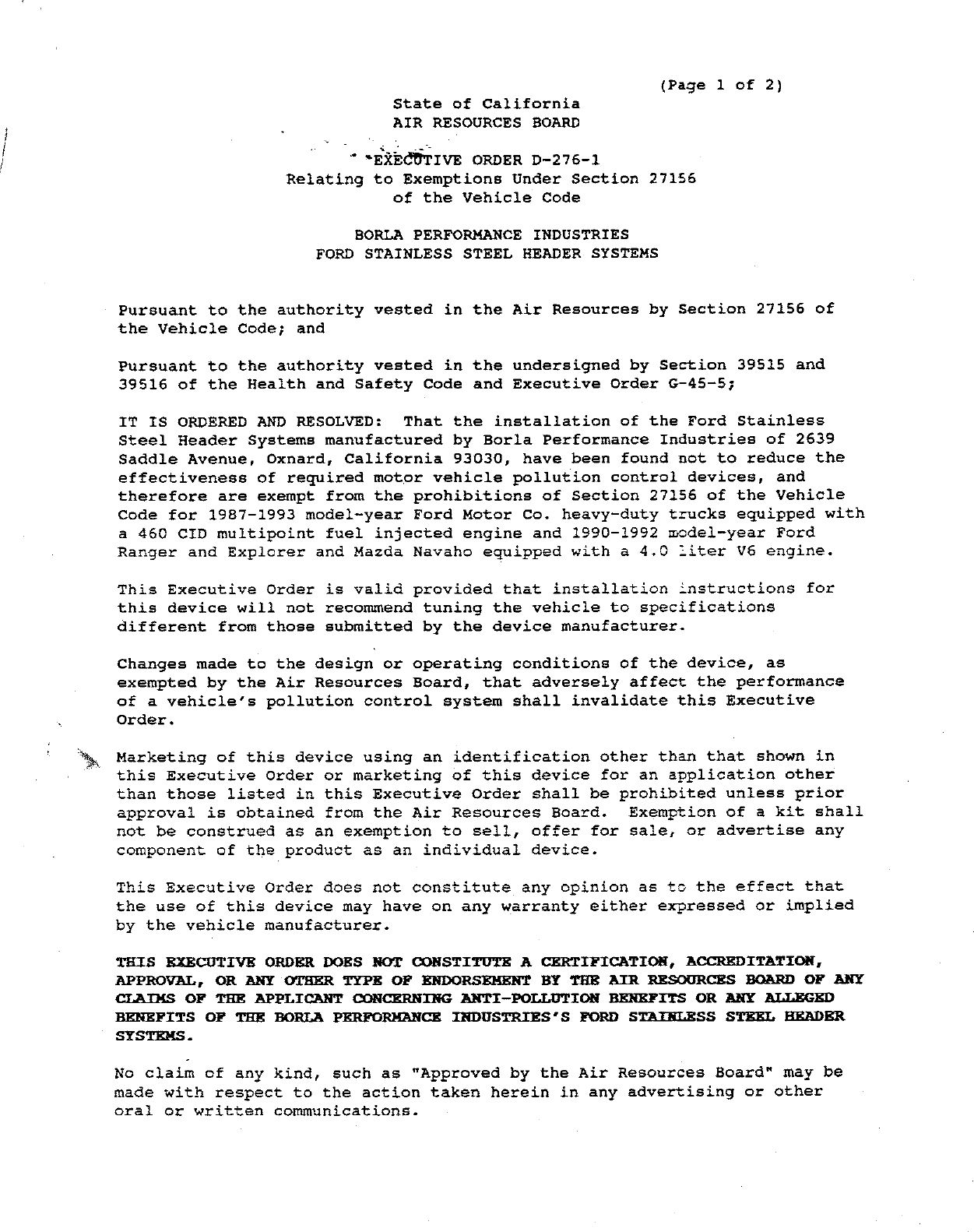

                                                             (Page 1 of 2)
                                State of California
                               AIR RESOURCES BOARD

                           * "EXECUOTIVE ORDER D—276—1
                    Relating to Exemptions Under Section 27156
                               of the Vehicle Code

                           BORLA PERFORMANCE INDUSTRIES
                       FORD STAINLESS STEEL HEADER SYSTEMS



Pursuant to the authority vested in the Air Resources by Section 27156 of
the Vehicle Code;    and

Pursuant to the authority vested in the undersigned by Section 39515 and
39516 of the Health and Safety Code and Executive Order G—45—5;

IT IS ORDERED AND RESOLVED:  That the installation of the Ford Stainless
Steel Header Systems manufactured by Borla Performance Industries of 2639
Saddle Avenue,   Oxnard,   California 93030,   have been found not to reduce the
effectiveness of required motor vehicle pollution control devices, and
therefore are exempt from the prohibitions of Section 27156 of the Vehicle
Code for 1987—1993 model—year Ford Motor Co. heavy—duty trucks equipped with
a 460 CID multipoint fuel injected engine and 1990—1992 model—year Ford
Ranger and Explorer and Mazda Navaho equipped with a 4.0 liter V6 engine.

This Executive Order is valid provided that installation instructions for
this device will not recommend tuning the vehicle to specifications
different from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the device, as
exempted by the Air Resources Board, that adversely affect the performance
of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using an identification other than that shown in
this Executive Order or marketing of this device for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.  Exemption of a kit shall
not be construed as an exemption to sell, offer for sale, or advertise any
component of the product as an individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of this device may have on any warranty either expressed or implied
by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLATMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF THE BORLA PERFORMANCE INDUSTRIES‘S FORD STAINLESS STEEL HEADER
SYSTEMS.

No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communications.


BORLA PERFORMANCE INDUSTRIES   _       \                        EXECUTIVE ORDER D—304
FORD STAINLESS STEEL HEADER SYSTEMS        |‘                   (Page 2 of 2)




Section 17500 of the Business and Professions Code makes untrue or
misleading advertising unlawful, and Section 17534 makes violation
punishable as a misdemeanor.

Section 43644 of the Health and Safety Code provides as follows:

     "43644,   (a)   No person shall install,           sell offer for sale,   or
     advertise or except in an application to the state board for
     certification of a déevice, represent, any device as a motor vehicle
     pollution control device for use on any used motor vehicle unless that
     device has been certified by the state board.   No person shall sell,
     offer for sale, advertise, or represent any motor vehicle pollution
     control device as a certified device which,             in fact,   is not a certified
     device.   Any violation of this subdivision is a misdemeanor."

The Bureau of Automotive Repair will be notified by copy of this order.

Executed at El Monte, California,   this         422    da   f February,   1993.



                                    /32                                 eS
                                                .B.   Summerfield
                                       Assfstant Division Chief
                                       Mobile Source Division


                      State of California
                      AIR RESOURCES BOARD




          EVALUATION OF BORLA PERFORMANCE INDUSTRIES‘
               FORD STAINLESS STEEL HEADER SYSTEMS
      FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                 CALIFORNIA CODE OF REGULATIONS




                        February 1993


                            State of California
                            AIR RESOURCES BOARD




                EVALUATION OF BORLA PERFORMANCE INDUSTRIES‘
                     FORD STAINLESS STEEL HEADER SYSTEMS
            FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
      SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                      by

                          Mobile Source Division
                            State of California
                            Air Resources Board
                            9528 Telstar Avenue
                          El Monte,   CA 91731—2990




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication.  Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does the mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                    SUMMARY

      Borla Performance Industries of 2639 Saddle Avenue,    Oxnard,   California

 93030, has requested an exemption for Borla Performance Industries‘ Ford

 Stainless Steel Header Systems from the prohibitions of Section 27156 of the

 California Vehicle Code.   The exemption is requested for installation on

 1987—1993 model—year Ford Motor Co. heavy—duty trucks equipped with a 460

° CID multipoint fuel injected engine and 1990—1992 model—year Ford Ranger and

 Explorer and Mazda Navaho equipped with a 4.0 liter V6 engine.

      Based on emission test results performed by Borla Performance

 Industries at an independent laboratory,     the staff concludes that Borla

 Performance Industries‘ Ford Stainless Steel Header Systems will not

 adversely affect exhaust emission from the vehicles for which an exemption

 is requested.

      The staff recommends that Borla Performance Industries be granted

 Executive Order D—276—1 allowing the installation of their Ford Stainless

 Steel Header Systems on those applicable 1987—1993 model—year Ford Motor Co.

 heavy—duty trucks equipped with a 460 CID multipoint fuel injected engine

 and 1990—1992 model—year Ford Ranger and Explorer and Mazda Navaho equipped

with a 4.0 liter V6 engine.


                             TABLE OF CONTENTS




                                                 Page No.



SUMMARY

CONTENTS                                              ii

I.         INTRODUCTION

II.        CONCLUSION

III.       RECOMMENDATION

IV.        HEADER SYSTEM DESCRIPTiON

           DISCUSSION OF THE HEADER SYSTEM

VI.        APPENDIX

           HEADER SYSTEM DRAWINGS

           INSTALLATION INSTRUCTIONS




                                       i1


                   EVALUATION OF BORLA PERFORMANCE INDUSTRIES‘
                 FORD STAINLESS STEEL HEADER SYSTEMS FOR EXEMPTION
     FROM THE PROHIBITIONS OF VEHICLE CODE SECTION 27156 IN ACCORDANCE WITH
          SECTION 2222, TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS



I.     INTRODUCTION

       Borla Performance Industries of 2639 Saddle Avenue, Oxnard,   California

93030, has requested an exemption for Borla Performance Industries‘ Ford

Stainless Steel Header Systems from the prohibitions of Section 27156 of the

California Vehicle Code.     The exemption is requested for installation on

1987—1993 model—year Ford Motor Co. heavy—duty trucks equipped with a 460

CID multipoint fuel injected engine and 1990—1992 model—year Ford Ranger and

Explorer and Mazda Navaho equipped with a 4.0 liter V6 engine.

II.     CONCLUSION

       Based on emission test results performed by Borla Performance

Industries at an independent laboratory, the staff concludes that Borla

Performance Industries‘ Ford Stainless Steel Header Systems will not

adversely affect exhaust emission from the vehicles for which an exemption

is requested.

III. RECOMMENDATION

       The staff recommends that Borla Performance Industries be granted

Executive Order D—276—1 allowing the installation of their Ford Stainless

Steel Header Systems on 1987—1993 model—year Ford Motor Co. heavy—duty

trucks equipped with a 460 CID multipoint fuel injected engine and 1990—1992

model—year Ford Ranger and Explorer and Mazda Navaho equipped with a 4.0

liter V6 engine.

IV.    FORD STAINLESS STEEL HEADER SYSTEMS DESCRIPTION

       The Borla Performance Industries Ford Stainless Steel Header Systems

are specifically designed for installation on 1987—1993 model—year Ford

                                      —1—


Motor Co.    heavy—duty trucks equipped with a 460 CID multipoint fuel injected

engine and 1990—1992 model—year Ford Ranger and Explorer and Mazda Navaho

equipped with a 4.0 liter V6 engine.     The header system consists of exhaust

manifolds and pre—catalyst piping.     As with the original equipment

manufacturer‘s (OEM) exhaust system, the function of the header system is to

route exhaust gases from the two exhaust manifolds of the engine into a

common pipe which then feeds to the catalytic converter (see appendix for

drawings).     Borla Performance Industries‘ family of Ford Stainless Steel

Header Systems feature tubular exhaust primary pipes of 1—3/4" outside

diameter for the 460 system and 1 1/2" outside diameter pipes for the 4.0

liter system.     All 460 system primary tubes on each side join to a 2—1/2"

diameter collector tube feeding into the precatalyst tubing.     The 4.0 liter

system tubes join into a 2" diameter collector tube.     The precatalyst

tubing, or ¥—pipe,    is constructed of collector sized tubing and connects to

the catalyst.     The oxygen sensor is located in the Y—pipe just before the

catalyst.    All tubes are comprised of 304 stainless steel.

     Welded just before the collector in each primary tube are the Torque

Increasing Venturis.     The manufacturer claims Torque Increasing Venturis

cause sufficient backpressure, thereby,    enhancing the EGR operation.

     The Ford Stainless Steel Header System is functionally identical to the

cast iron exhaust manifolds and tubular steel collector pipes of the OEM

exhaust system.    The difference is the design dimensions of the Ford

Stainless Steel Header System which optimizes the exhaust gas flow

characteristics.     The manufacturer claims Ford Stainless Steel Header

Systems are designed to improve the flow of exhaust gases from the cylinder

heads to the catalytic converter, thereby promoting improved volumetric and

combustion efficiency.


      The system operates in conjunction with the OEM computer controlled

 fuel injection and emission control systems already certified with the stock

 engines.     The installation of the Ford Stainless Steel Header Systems is

 done by fitting only and requires no welding, modifications or adjustments

 to the emission control system.     Borla Performance Industries supplies

 complete installation kits, including bolts, flanges, washers, and gaskets.

—v.   DISCUSSION OF THE FORD STAINLESS STEEL HEADER SYSTEMS

      Borla Performance Industries requested an exemption for the

 installation of Ford Stainless Steel Header Systems on 1987—1993 model—year

 Ford Motor Co. heavy—duty trucks equipped with a 460 CID multipoint fuel

 injected engine and 1990—1992 model—year Ford Ranger and Explorer and Mazda

 Navaho equipped with a 4.0 liter V6 engine.          To evaluate the emission impact

 of the Ford Stainless Steel Header Systems on these vehicles,            the staff

 required Borla Performance Industries to test a 1992 Ford F250 heavy—duty

 truck equipped with a 460 CID engine in accordance with CVS—75 Federal Test

 Procedure (FTP).    Testing consisted of one CVS—75 FTP with vehicle in stock

 {baseline} configuration followed by one CVS—75 FTP with the header system

 installed.    Table 1 shows emission test results conducted at Milton Roy

Company, Orange, California, on the 460 CID truck.


                                     Table 1

              CVs—75 Tests Conducted by Borla Performance Industries

                                   THC         NMOG    co     NOx   g/m

       Baseline                    0.874 0.652   9.166  7.174
       Header Installed            0.884 O.685   8.841 7.830
       Difference                 +0.010 +0.033 —0.325 +0.656


      The differences between the device emission test results and baseline

emission test results submitted by the applicant were within the allowed

limits of 10% of baseline for HC,    15% of baseline for CO and 10% of baseline

                                         —3—


for NOx as specified in the "Procedures for Exemption of Add—On and Modified

Parts."   Therefore, the installation of Borla Performance Industries‘ Ford

Stainless Steel Header System did not have an adverse effect on exhaust

emissions on the test vehicle.

     Borla Performance Industries submitted all required information and

fulfilled all requirements for exemption.


APPENDIX


                             y      * 0 x 13308        ol   —/+           S379NY                s3
                     rOn 1a=¥v€                       110 —/+                  2x x        At
                                                                               x
                                                                                       x



                                                                          ,




                                       PL3IWVIS| logp —/+




TT]
                              X
                                                                          x




                                         w3LCCLOIOB         —/+            &       «        ri    a          wio
                                                                  B l 4




                     7 I es 1 Vnd
                                      "TAG NC                                               simu 20 Mollonabee 34
       ‘WAS       a 30V 3Hx                       .                                aegons
                  NOI LateDs 44                            sqonvauuIoi     Py"awoninvedsiok
                                                        sshHont nrowig || o6sdsc
      S TeL STHLINLwW3LSAS |AJDB      NOILSINDS3C     W3LSAS
                                                                           TLE
      L33HS|‘ON
         x               x|   +[STI8IS JNEIdL—i THUi®
                              €1309 3H                       S 309 3H
                                                              LH91E
                   y3nsx1{§E4 138 »30vV3H 09+ 804


                                                      sesssseses                  P. o2




— Borja
                      BORLQ   PERFORMANCE




  PERFHBMANUEINDUSTBMS




  1)     Raise vehicle, remove 02 sensor from y pipe and unbolt y—
         pipe from converter and manifolds.
  2)     Lower vehicle.

  3}     Drain into clean container enough coolant to lower level to
         avoid spills when removing upper hose.
  4)     Remove throttle body shield and air duct from filter to
         throttle body.
  5)     Unplug wire harness on passenger side and unbolt bracket
         fxrom Air Conditioner.

  6)     On drivers side, unbolt dipstick and remove carefully.
  7)     Unbolt and remove exhaust manifolds using l0mm——6 point
         socket.  (They are very tight and good quality tools are a
         must}). The lower back bolts are more easily reached through
         the wheel well using long extensions and swivel socket after
         being loosened.

  8)     Install headers using bolts and gaskets provided.

  9)     Check for interference with hoses or wiring.
  10})   On passenger side, push starter cable bracket as far down as
         possible to avoid burning wires.
  11}    Replace dipstick, radiator hose, air duct, heat riser, plugs
         and shield.

  12)    Raise vehicle and install new y—pipe using hardware provid
         ed and reinstall o2 sensor.
  13)    Refill coolant, start engine and check for leaks.




                                           1


o 4&
  SAE     2639 Saddle Avenue * Oxnard, CA * (895) 983—7300 « FAX (805) 988—0968   &


P. 03
ses9ss096s
 PERFORMANCE
 BORLA




                                                   EXPLCRER & RANGER AAL HEADER [       17024
                                                    SYSTEM BESCRIPTIDN              Y SYSTENM No, SHEET
                                BURLA INDUS Tf?[ES
               ms,flm“fignn%            TOLERANCES:                               DESCRIPTION
               itoi
               REPRODUCTION Of THtt

                                      DIM. IN [NCHES
                                              ¥                  a
                                                                     pau 3yiee |HEADER
               meayine be mromarmn    KXXX"       = +/— 0.010‘ipatzse—3G—92 MATERIAL:
               Mss pe| 000 c +/— phér scaceise 1304 _SS
               dHemsmovsaee"C|
                                       LX*        = +/—=   Od"                           O
                                             AWoLEs o+7— i6          [sueet x Oorx|17024/R


                           X 30 X 13988       ol —/+        $3              somansnont vhkes 5o
'            e0c2e2eV
             ronN_13YVJ                     TD —/+                xX [ATafedqrating
                                                                 youy. 306 Iooeizs euremitaia




                                                          #ou
        SS   tos—L            P=r3IYISI .900 —/+                           Miotkis st hok




                                                          U
             MYTN3LYW 26—0€6—94190,010‘9 ~/+                    ts        seiet
                            330:1¢ NC                                     #1 35n ANy SatNsndN
         Adled—A                                            wig Y98618Wubaon2l
                                               S3hHoNt NTNIIQOL  Tt ony ontait sta
          NOLLdI8DS3L                             iSIINY


      SEI&M Smunl Y 1004
133HS8|‘DN W4LSAS [A          NOILdTaIJS3C( WILSAS
        ¥204t          t |soavan mo% ssoNvs 4 #3x070X3)
                                                                                                  BORLA
                                                                                                  PERFORMANCE
                                                                                                      sespssuves
                                                                                                         P . 04


es
sesossevee
PERFORMANCE
 BORLA
                                                      EXPLORER & RaNGER 40L HEADER| 1   17024
                                                      SYSTEM DESCRIPTION          TY SYSTEM NO |SHEET
                               BHRL A¥ INDUSTRIES
              Thts pramng ato acn      TOLERANCES:                                DESCRIPTION
              mhrOeravioh SHown 15                                   .
              wme rrorerty or sarmia   DIM. IN INCHES                             H E A DE R
              AermopdcriotheTe
              PRaVING Om inForiaTinn   X,XXX*
                                                               DRN BV LEC
                                                      +/~. 0O|paTEig—30—93 MATERLAL:




                                                I t
              Prantarien wiibour
              PRoHIaTTE® WiTHOUT THE   KXx"
              AUTHGRIZATIIN DP A MaY) x,y®
                                                      +/— h06‘ Iscateq=s   1—=—304 SS
              AUTHCRIZED REPRESENTIVE]                +/— DJ               PART _Nd:
              IF BarLk mbusinies       “.ES           +7— 49       |skEet yorx {17024/L            d



Document Created: 2005-09-01 12:44:00
Document Modified: 2005-09-01 12:44:00

Previous E.O. D-276 | Previous E.O. D-275 | Next E.O. D-276-2 | Next E.O. D-277
