Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 4, 1999.
As of Thursday, December 13th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
170501994/95 GM Trucks equipped with a 5.0/5.7L enginemanufactured out of T-304 stainless

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-276-6
  • Executive Order 276-6 / D276-6
  • ARB # D-276-6
  • Executive Order No: D-276-6
  • C.A.R.B. No. D-276-6
  • Resolution D-276-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-276-6 PDF

D-276-6 Document:

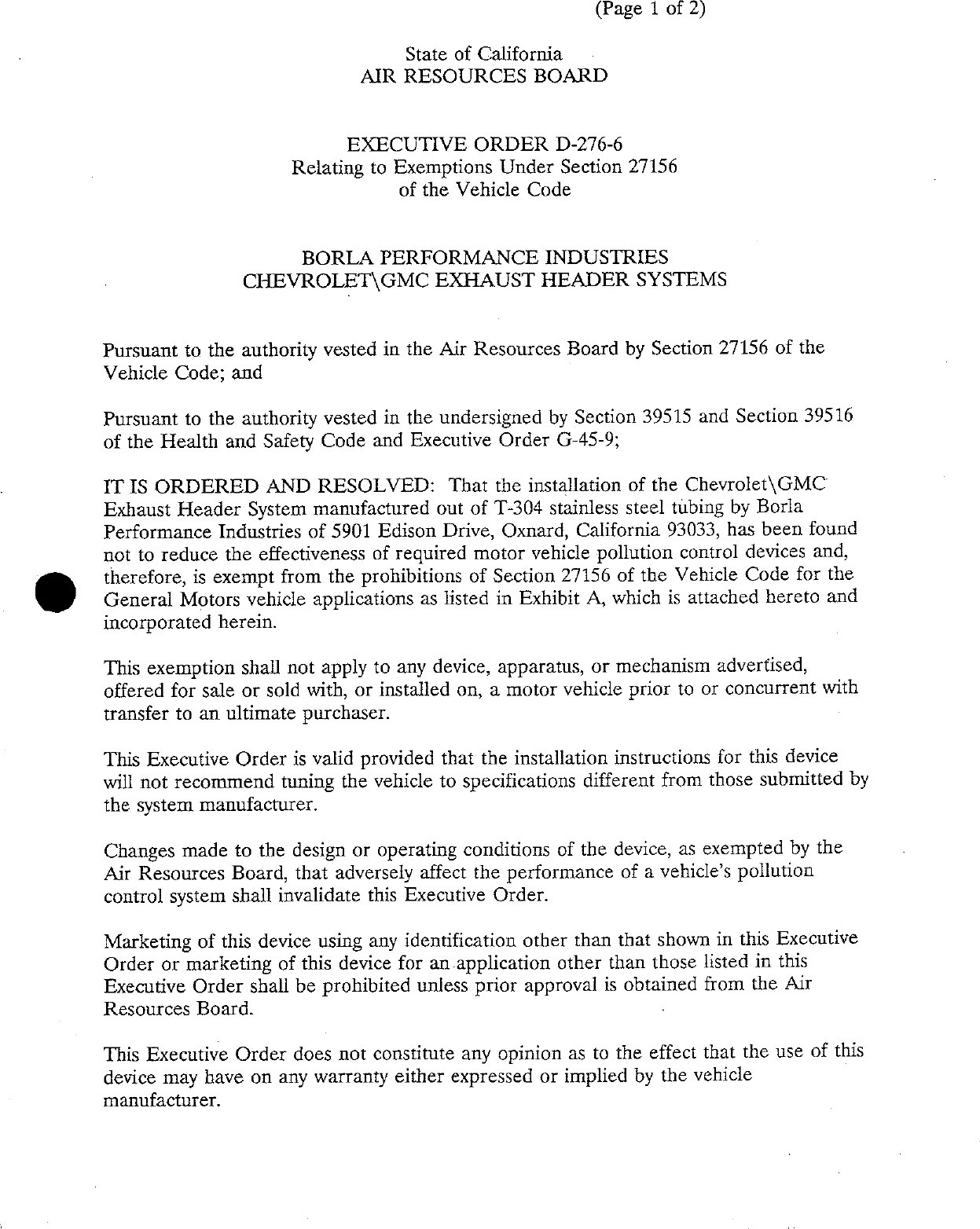

                                                           (Page 1 of 2)

                                   State of California
                               AIR RESOURCES BOARD


                             EXECUTIVE ORDER D—276—6
                       Relating to Exemptions Under Section 27156
                                     of the Vehicle Code


                     BORLA PERFORMANCE INDUSTRIES
                 CHEVROLET\GMC EXHAUST HEADER SYSTEMS


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Chevrolet\GMC
Exhaust Header System manufactured out of T—304 stainless steel tubing by Borla
Performance Industries of 5901 Edison Drive, Oxnard, California 93033, has been found
not to reduce the effectiveness of required motor vehicle pollution control devices and,
therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for the
General Motors vehicle applications as listed in Exhibit A, which is attached hereto and
incorporated herein.

This exemption shall not apply to any device, apparatus, or mechanism advertised,
offered for sale or sold with, or installed on, a motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for this device
will not recommend tuning the vehicle to specifications different from those submitted by
the system manufacturer.

Changes made to the design or operating conditions of the device, as exempted by the
Air Resources Board, that adversely affect the performance of a vehicle‘s pollution
control system shall invalidate this Executive Order,

Marketing of this device using any identification other than that shown in this Executive
Order or marketing of this device for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.

This Executive Order does not constitute any opinion as to the effect that the use of this
device may have on any warranty either expressed or implied by the vehicle
manufacturer.


BORLA PERFORMANCE INDUSTRIES                               EXECUTIVE ORDER D—276—6
CHEVROLET\GMC EXHAUST HEADERS                              (Page 2 of 2)



  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY
. THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT
  CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF
  BORLA PERFORMANCE INDUSTRIES‘ CHEVROLET/GMC EXHAUST
  HEADER SYSTEMS.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after ten day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to
contest the proposed revocation. If a hearing is requested, it shall be held within ten
days of receipt of the request and the order may not be revoked until a determination
after hearing that grounds for revocation exist.

Executed at El Monte, California, this     fi’_;   éay of August, 1997.




                                         Mobile Source Operations Division


                         LEXHIBIT A
Parts    Listing
17050    94—95     Chevy/GMC >     Sub/Tahoe/Trk       5.0/5.7.tr .
17056    94—95     Chewvy/GMC      Sub/Trk 374 ton     7ALtr      ‘
17066    93—94     Chevy/Pontiac   Camaro/trans Am     §.TLtr     >
17069    %6—97     Chevy/GMC       SubfTahoe/Trk       5.0/5.7 Ltc
17080    96—97     Chevy/GMC       Sub/Trk             TALtr
17084    96—97     Chevy/GMC       Astro/Safari        4.3 Ltr
17087    95—97     Chevy/Pontiac   Camaro/Trans Am     5.TL
17088              Chevy/GMC       SubfTrk 3/4 ton     5.7 Lir
17089    94—97.    Chevy/GMC       Caprice/Impala SS   5.7 Ltr
17090    96—97     Chevy/GMC       Sub/PU 4 wd         7.A Ltr
17091    96—97     Chevy/GMC       Van                 5.7 Ltr
17092    95—97     Chevy/GMC       $10, $15 P/U        4.3 Ltr
                                   Blazer/Jimmy
17093    96—97     Chevy/GMC       PU 1500             4.3 Ltr
17055    81—85     GMC             P1000               4.8 Lir
170786   81—85     GMC             P1000               4.8 Ltr


              State of California
              AIR RESOURCES BOARD




     EVALUATION OF BORLA PERFORMANCE INDUSTRIES
        — CHEVROLET/GMC EXHAUST HEADER SYSTEMS
FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
   SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
  TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




                    July, 1997


                            State of California
                            AIR RESOURCES BOARD




                   EVALUATION OF BORLA PERFORMANCE INDUSTRIES
                      CHEVROLET/GMC EXHAUST HEADER SYSTEMS
             FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
             CODE SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
                TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS




                                      by
                      Mobile Source Operations Division
                            9528 Telstar Avenue
                            E1 Monte, CA 91734—8001



(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                     SUMMARY



         Borla Performance Industries of 5901 Edison Drive, Oxnard,

California 93033, has applied for exemption from the prohibitions in Section

27156 of the California Vehicle Code for the Chevrolet/GMC Exhaust Header

Systems listed in the Appendix .

         Borla Performance Industries has submitted a complete application

with all the required information.     Based on the results from exhaust

emission tests performed at the Air Resources Board laboratory on a 1997

Chevrolet Suburban, the staff concludes that Borla Performance Industries‘

Chevrolet/GMC Exhausts Header Systems will not adversely affect exhaust

emissions from vehicles for which an exemption is requested.

         The staff recommends that Borla Performance Industries be granted an

exemption from the prohibitions in Vehicle Code Section 27156 and that

Executive Order D—276—6 be issued.


                                  TABLE OF CONTENTS




                                                        Page Number



SUMMARY

CONTENTS                                                    11

I.        INTRODUCTION

II.       CONCLUSION

III.      RECOMMENDATION

IV.       DEVICE DESCRIPTION

V.        DISCUSSION

APPENDIX

          INSTALLATION INSTRUCTIONS/PARTS APPLICATION




                                        11


                  EVALUATION OF BORLA PERFORMANCE INDUSTRIES
                      CHEVROLET/GMC EXHAUST HEADER SYSTEMS
             FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
                 SECTION 27156 IN ACCORDANCE WITH SECTION 2222,
                TITLE 13, OF THE CALIFORNIA CODE OF REGULATIONS


I.       INTRODUCTION
         Borla Performance Industries of 5901 Edison Drive, Oxnard,

California   93033, has applied for an exemption from the prohibitions of

Vehicle Code Section (VC) 27156 for the vehicles listed in the Appendix.

Borla Performance Industries has submitted a completed application and all the

required information, as well as exhaust emissions test data performed at the

Air Resources Board laboratory on a 1997 5.7L Chevrolet Suburban truck.



II.      CONCLUSIONS
         Based on the submitted information and the results from comparative

exhaust emissions tests performed at the Air Resources Board laboratory, the

staff has determined that Borla Performance Industries‘s Chevrolet/GMC Exhaust

Headers will not have any adverse effects on the exhaust emissions from

vehicles for which the exemption is requested.



III.     RECOMMENDATION
         The staff recommends that Borla Performance Indfistries be granted an

exemption from the prohibitions in California Vehicle Code Section 27156 for

those vehicles listed in Appendix 1 and that Executive Order D—276—6 issued.

IV.      DEVICE DESCRIPTION

         The Borla Chevrolet/GMC Exhaust Headers are designed for

installation on the vehicles listed in the Appendix.   The exhaust manifold

system operates in conjunction with the original equipment manufacturer‘s

(OEM) computer controlled fuel injected system and emission control systems.


            The purpose of modifying the exhaust system of the engine is to

improve engine performance throughout the R.P.M. range.     As with the original

equipment manufacturer‘s (OEM) exhaust system, Borla Performance Industries‘

Chevrolet/GMC Exhaust Header systems, routes exhaust gases from the engine

into the catalytic converter.     The manufacturer states that by extracting

exhaust gases more efficiently, fuel economy will also improve.

            The Chevrolet/GMC Exhaust Header systems are manufactured using

T—304 stainless steel tubing.     The Exhaust Header systems utilize Borla‘s

proprietary V—8 engine header design, with the exception of the Exhaust Header

system designed for the 4.3 liter Chevy/GMC S10/§15/Blazer/Jimmy/1500 series

light duty trucks and the 4.8 liter in—line six cylinder GMC P1000, which

utilize a tri—y design (6 into 2 into 1).     The systems include all

installation hardware and pre—catalyst tubing.     Installation instructions are

shown in the Appendix.

            Installation of Borla Performance Industries‘ Chevrolet/GMC Exhaust

Header systems does not alter the OEM location of the oxygen sensor and the

catalyst.     The tune—up specifications also are unaltered from OEM

specifications.

V.          DISCUSSION

            A 1997 Chevrolet Suburban equipped with a 5.7 liter fuel    injected

engine was used for the evaluation of the Chevrolet/G@MC Exhaust Header system.

The exhaust emission tests were performed at the Air Resources Board

laboratory.    Testing consisted of the CVS—75 Federal Test Procedure (FTP) in

the baseline (OEM) configuration followed by the CVS—75 FTP in the modified

(headers installed) configuration.    A summary of the test results are shown

below:


                              Air Resources Laboratory
                          (Based on Cold—Start CVS—75 FTP)

                  On a 1997 Chevrolet Suburban with a 5.7L Engine
                       Exhaust Emission Test Results {gm/mi)

                           Non—Methane        Carbon           Nitrogen
                           Hydrocarbons      Monoxide           Oxides
Baseline 1                   0.212             2.202             0.189
Baseline 2                   0.238             2.534             0.164
Baseline 3                   0.218             2.507             0.153

Headers 1                    0.169             2.115             0.272
Headers 2                    0.184             2.248             0.252

Baseline Average             0.223             2.414             0.169
Headers     Average          0.177             2.182             0 .262
Difference                  —0.046            —0.232            +0 .093



             The test results from the exhaust emission tests show that the

vehicles emissions with the Borla Chevrolet/GMC Exhaust headers installed

comply with the procedures for "Exemption of Add—On and Modified Parts".      The

staff concludes that the installation of the Borla Chevrolet/GMC Exhaust

Headers will not have an adverse effect on exhaust emissions on the vehicles

for which the exemption is requested.     Bbr]a Performance Industries has

submitted all the required information and fuifilled the requirements for an

exemption.


APPENDIX


APPENDIX


                     PARTS APPLICATION

Parts   Listing
17050   94—95     Chevy/GMC       Sub/Tahce/Trk       5.0/5.7Ltr .
17056   94—95     Chevy/GMC       SubZTrk 374 ton     7ALtt      C
17066   $3—94     Chevy/Pontiac   Camaro/Trans Am     §.TLt      >
17069   96—97     Chevy/GMC       Sub/Tahce/Trk       5.015.7 Ltr
17080   96—97     Chevy/GMC       Sub/Trk             7.ALtr
17084   96—97     Chevy/GMC       Astro/Safari        4.3 Ltr
17087   95—97     Chevy/Pontiac   Camaro/Trans Am     57L         C
17088             Chevy/GMC       SubfTrk 3/4 ton     5.7 Lis
17089   94—97     Chevy/GMC       Caprice/Impala SS   5.7 Ltr
17090   96—97     Chevy/GMC       Sub/PU 4 wd         74 Ltr
17091   96—97     Chevy/GMC       Van                 5.7 Lir
17092   95—97     Chevy/GMC       $10, S15 PU         4.3 Ltr
                                  Blazer/Jimmy
17093   96—97     Chevy/GMC       PU 1500             4.3 Lir
17055   81—85     GMC             P1000               4.8 Lir
17076   81—85     GMC             P1000               4.8 Lt


                            installation Instructions for Borla ® Headers

  Borla ® Performance Exhaust Systems and Headers should be installed by
  qualified persons only!!

            Lift vehicle and support
B @ N :A




            Disconnect and remove O2 sensor
            Unboit exhaust flanges
            Remove clamp at front of the catalytic converter, DOQ NOT REMOVE
            CATALYTIC CONVERTER!
            Lower vehicle
w o ~ o n




            Remove upper half of fan shroud
            Remove spark plug wires, spark plugs, heat riser and dip stick
      Remove Exhaust Manifolds
      Raise vehicle and remove Y—Pipe
   10 Working from the top, slip headers with gaskets into place and start all boits
   11. Tighten boits from center towards ends
   12. Install dip stick, spark plugs, spark plug wires and heat riser
   13. Use 02 sensor extension provided and install O2 sensor
   14. From below, install y—pipe using OEM gaskets with the nuts and boits
            supplied
   15. Tighten clamps on y—pipe and converter
   16. Start engine, let it warm up to operating temperature and re—tighten header
            boits.
  WARNINGI!!!!!! HEADER WILL BE EXTREMELY KHOT ——— DQ NOT TOUCH !!!!!



Document Created: 2005-09-01 12:44:24
Document Modified: 2005-09-01 12:44:24

Previous E.O. D-276-5 | Previous E.O. D-275 | Next E.O. D-276-7 | Next E.O. D-277
