Approval Details

Valid E.O.


This Executive Order approved the specified parts on on October 10, 1996.
As of Monday, October 14th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
92200A1987-1992 GM Trucks Small Block 5.7L-Std 4L60Crank pulley 6.00", Driven pully 2.88"

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-277-3
  • Executive Order 277-3 / D277-3
  • ARB # D-277-3
  • Executive Order No: D-277-3
  • C.A.R.B. No. D-277-3
  • Resolution D-277-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-277-3 PDF

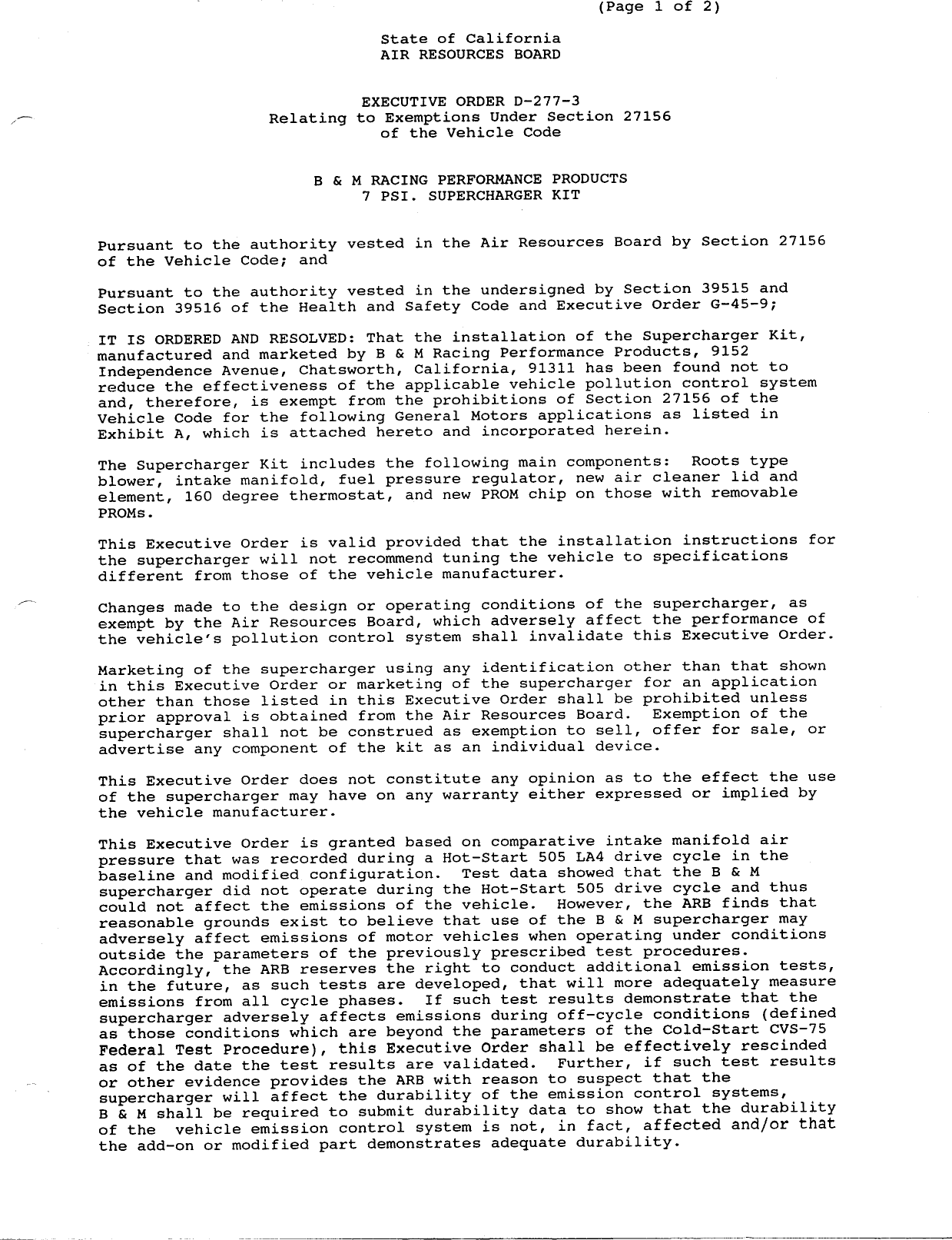

D-277-3 Document:

                                                           (Page 1 of 2)

                                  State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—277—3
                      Relating to Exemptions Under Section 27156
                                  of the Vehicle Code

                           B & M RACING PERFORMANCE PRODUCTS
                                7 PSI. SUPERCHARGER KIT

 Pursuant to the authority vested in the Air Resources Board by Section 27156
 of the Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and
 Section 39516 of the Health and Safety Code and Executive Order G—45—9;

. IT IS ORDERED AND RESOLVED: That the installation of the Supercharger Kit,
manufactured and marketed by B & M Racing Performance Products, 9152
Independence Avenue, Chatsworth, California, 91311 has been found not to
reduce the effectiveness of the applicable vehicle pollution control system
and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following General Motors applications as listed in
Exhibit A, which is attached hereto and incorporated herein.

 The Supercharger Kit includes the following main components:        Roots type
 blower,   intake manifold,   fuel pressure requlator,   new air cleaner lid and
element,   160   degree thermostat,   and new PROM chip on those with removable

This Executive Order is valid provided that the installation instructions for
the supercharger will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the supercharger, as
exempt by the Air Resources Board, which adversely affect the performance of
the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the supercharger using any identification other than that shown
in this Executive Order or marketing of the supercharger for an application
other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.  Exemption of the
supercharger shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use
of the supercharger may have on any warranty either expressed or implied by
the vehicle manufacturer.

This Executive Order is granted based on comparative intake manifold air
pressure that was recorded during a Hot—Start 505 LA4 drive cycle in the
baseline and modified confiqguration.  Test data showed that the B & M
supercharger did not operate during the Hot—Start 505 drive cycle and thus
could not affect the emissions of the vehicle.   However, the ARB finds that
reasonable grounds exist to believe that use of the B & M supercharger may
adversely affect emissions of motor vehicles when operating under conditions
outside the parameters of the previously prescribed test procedures.
Accordingly, the ARB reserves the right to conduct additional emission tests,
in the future, as such tests are developed, that will more adequately measure
emissions from all cycle phases.   If such test results demonstrate that the
supercharger adversely affects emissions during off—cycle conditions (defined
as those conditions which are beyond the parameters of the Cold—Start CVS—75
Federal Test Procedure), this Executive Order shall be effectively rescinded
as of the date the test results are validated.  Further, if such test results
or other evidence provides the ARB with reason to suspect that the
supercharger will affect the durability of the emission control systems,
B & M shall be required to submit durability data to show that the durability
of the  vehicle emission control system is not, in fact, affected and/or that
the add—on or modified part demonstrates adequate durability.

B & M Racing Performance Products                      Executive Order D—277—3
                                                        (Page 2 of 2)

In addition to the foregoing, the ARB reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that
the exempted add—on or modified part continues to meet the standards and
procedures of Title 13,   California Code of Regulations,   Section 2222,   et seq.


No claim of any kind,   such as "Approved by the Air Resources Board", may be
made with respect to the action taken herein in any advertising or other oral
or written communication.

Violation of any of the above conditions shall be grounds for revocation of
this order.  The order may be revoked only after a ten—day written notice of
intention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation.  If a hearing
is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination after hearing that grounds
for revocation exist.                         [
                           .    .       .      Ze~,
Executed at El Monte,   California,   this        day of October 1996.

                                       R\ B. Summerfield, Chief
                                       Mopile Source Operations Division

                                  Exhibit A
                              Y         &) T
5.0 L. » Std
5.0 L — Std
§5.0 L — Std
5.0 L — Std
  oL —
 .0 L. — Std
5.0 —
5.0 —
5.0 L —
  OL —
5.0 L — HD
  AL =
7. AL — 5td
  .AL  — Std
  . AL — Std
  AL —
7AL — Sta
7. 4L — Std
  AL —
  AL — Std
 .4L —
 .4L — Std
                                   Page 1
               «o6 0o on n uh o se e ool o ol ate e ue uie w uns

                                  Exhibit A

©o° vVB §10—15

                       L — TBl

                 4.3 L —
                 4.3 L — TBi
                    3 L—
                 4.3 L. — TBI
                 4.3 L — TB
                    3 L—
                   .3 L —
                 4.3 L —
                    3 L — TB
                 4.3 L —

                  .3 L —
                  .3 — TBI
                   3 L — TBH
                  .3 L — TBI
                  .3 L —
                  .3   L—
                  .3   L—
                  .3   L — TBi
                  .3   L — TBI
                  3    L—

                   3 L — TBi
                  .3 C — TBI
                       — TBI

                                 Page 2

Document Created: 2005-09-01 12:44:54
Document Modified: 2005-09-01 12:44:54

Previous E.O. D-277-2 | Previous E.O. D-276 | Next E.O. D-277-4 | Next E.O. D-278
