Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 22, 2016.
As of Sunday, July 21st, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-319-11
  • Executive Order 319-11 / D319-11
  • ARB # D-319-11
  • Executive Order No: D-319-11
  • C.A.R.B. No. D-319-11
  • Resolution D-319-11
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-319-11 PDF

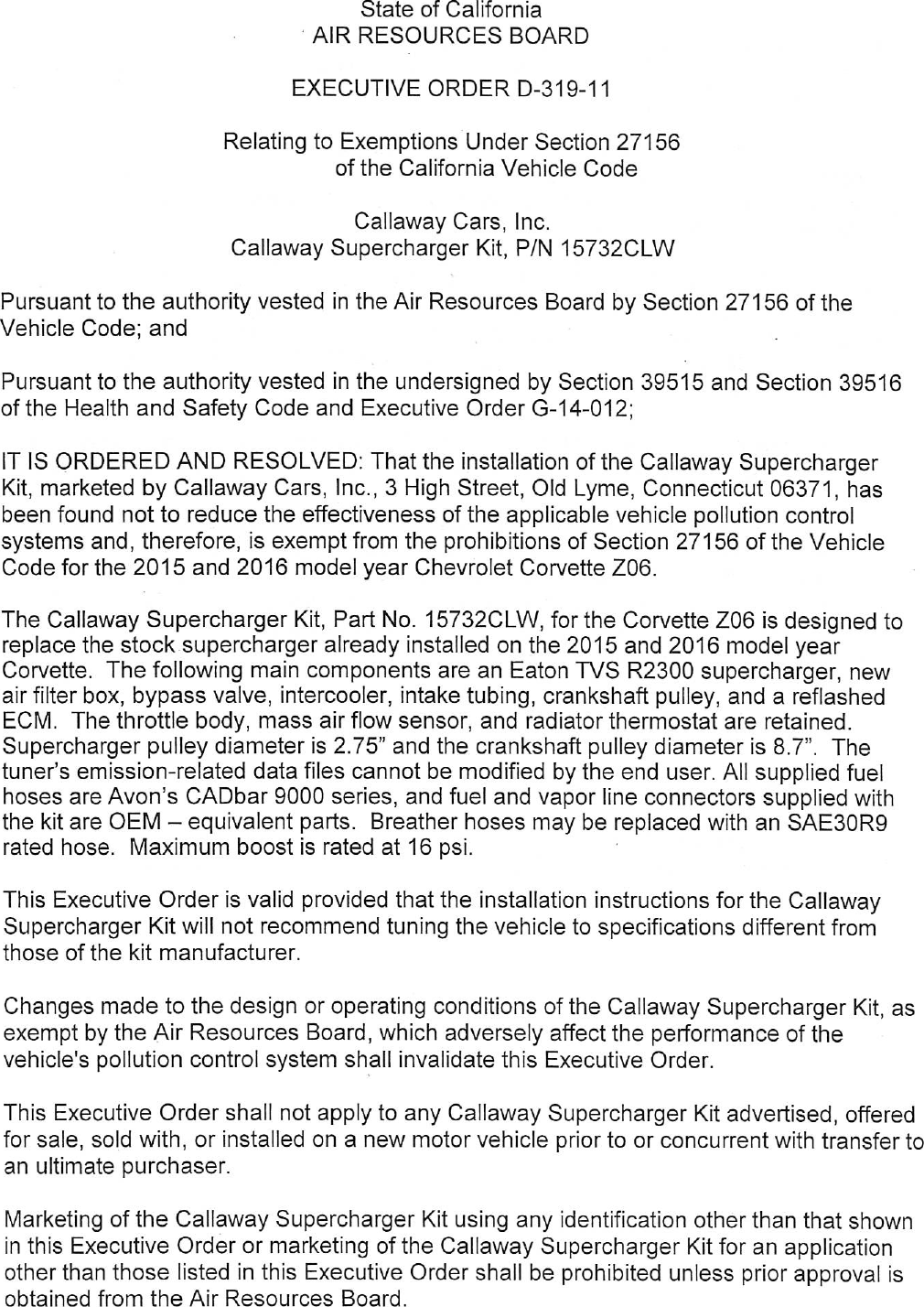

D-319-11 Document:



                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—319—11

                       Relating to Exemptions Under Section 27156
                                  of the California Vehicle Code

                                  Callaway Cars, Inc.
                       Callaway Supercharger Kit, P/N 15732CLW

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Callaway Supercharger
Kit, marketed by Callaway Cars, Inc., 3 High Street, Old Lyme, Connecticut 06371, has
been found not to reduce the effectiveness of the applicable vehicle pollution control
systems and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
Code for the 2015 and 2016 model year Chevrolet Corvette Z06.

The Callaway Supercharger Kit, Part No. 15732CLW, for the Corvette Z06 is designed to
replace the stock supercharger already installed on the 2015 and 2016 model year
Corvette. The following main components are an Eaton TVS R2300 supercharger, new
air filter box, bypass valve, intercooler, intake tubing, crankshaft pulley, and a reflashed
ECM. The throttle body, mass air flow sensor, and radiator thermostat are retained.
Supercharger pulley diameter is 2.75" and the crankshaft pulley diameter is 8.7". The
tuner‘s emission—related data files cannot be modified by the end user. All supplied fuel
hoses are Avon‘s CADbar 9000 series, and fuel and vapor line connectors supplied with
the kit are OEM — equivalent parts. Breather hoses may be replaced with an SAE30R9
rated hose. Maximum boost is rated at 16 psi.

This Executive Order is valid provided that the installation instructions for the Callaway
Supercharger Kit will not recommend tuning the vehicle to specifications different from
those of the kit manufacturer.

Changes made to the design or operating conditions of the Callaway Supercharger Kit, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Callaway Supercharger Kit advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the Callaway Supercharger Kit using any identification other than that shown
in this Executive Order or marketing of the Callaway Supercharger Kit for an application
other than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.


                                              4.

This Executive Order does not constitute any opinion as to the effect the use of the
Callaway Supercharger Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

The Air Resources Board reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE CALLAWAY
SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.
                                          &        P
Executed at El Monte, California, this   9295‘ day of April 2016.




     90&415%’
          Annette Hebert, Chief
      A      issions Compliance, Automotive Regulations and Science Division




          CALLAWAY CARS, INC. — CALLAWAY SUPERCHARGER KIT — D—319—11



Document Created: 2016-05-02 16:17:25
Document Modified: 2016-05-02 16:17:25

Previous E.O. D-319-10 | Previous E.O. D-318 | Next E.O. D-319-12 | Next E.O. D-320
