Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 25, 2000.
As of Wednesday, September 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
29489-99C1999-2001 model-year Harley-Davidson motorcycles originally equipped with the 1450cc fuel injected engineThe Screamin' Eagle Stage I Kit, P/N 29489-99C, includes the following main components: Screamin' Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration, which is downloaded by dealerships, requires the use of a scan tool.
29491-99C1999-2001 model-year Harley-Davidson motorcycles originally equipped with the 1450cc fuel injected engineThe Screamin' Eagle Stage I Kit, P/N 29491-99C, includes the following main components: Screamin' Eagle high flow air cleaner, larger bore cylinders to change bore from 3.75 to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets, and a new ECM calibration. The new ECM calibration, which is downloaded by dealerships, requires the use of a scan tool. Kit increases engine displacement from 1450 to 1550cc.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-28
  • Executive Order 338-28 / D338-28
  • ARB # D-338-28
  • Executive Order No: D-338-28
  • C.A.R.B. No. D-338-28
  • Resolution D-338-28
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-28 PDF

D-338-28 Document:



                                                                              §7

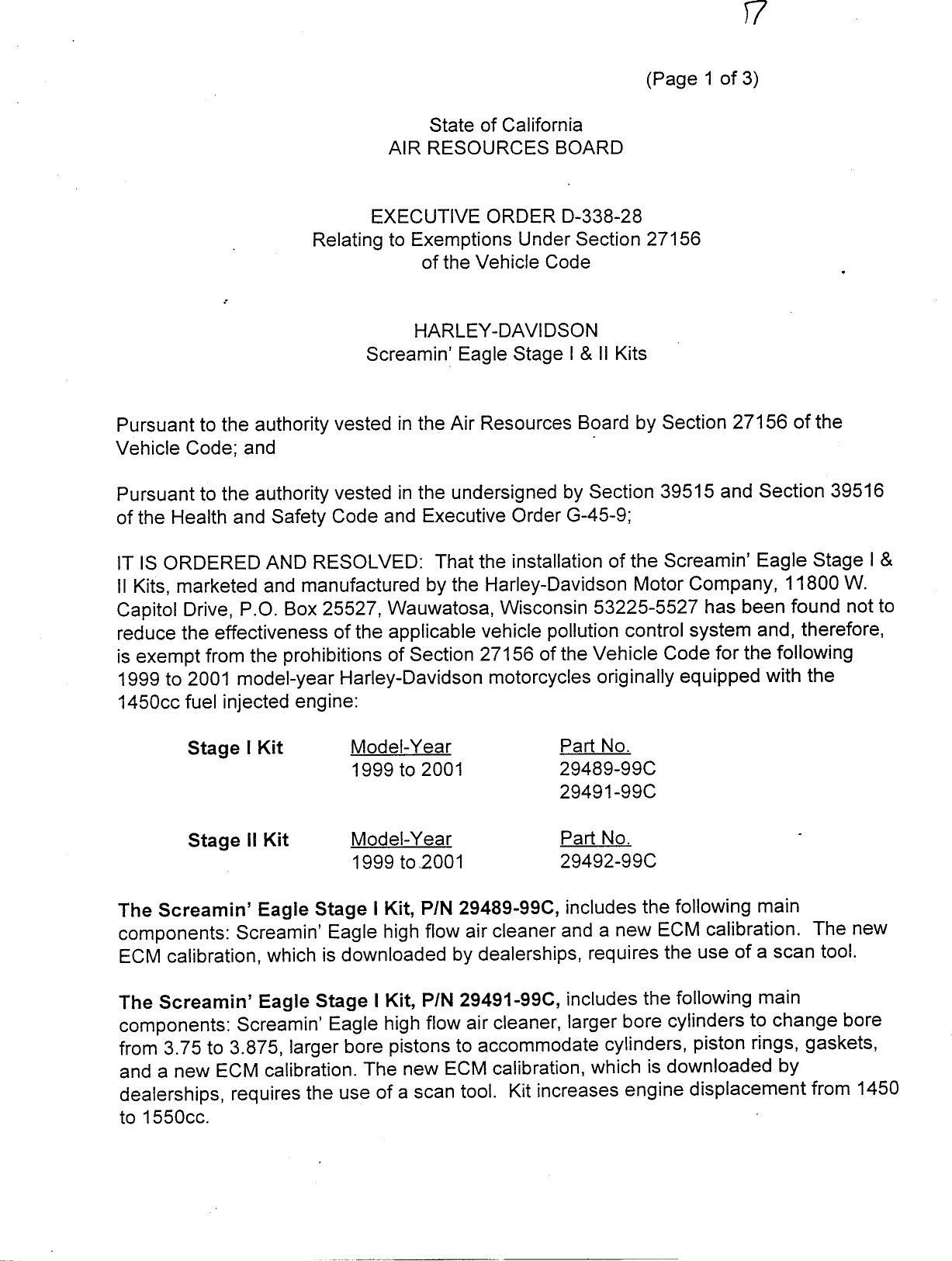

                                                                   (Page 1 of 3)

                                     State of California
                                 AIR RESOURCES BOARD



                               EXECUTIVE ORDER D—338—28
                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code


                                    HARLEY—DAVIDSON
                               Screamin‘ Eagle Stage | & 11 Kits


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and                                      |

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle Stage I &
II Kits, marketed and manufactured by the Harley—Davidson Motor Company, 11800 W.
Capitol Drive, P.O. Box 25527, Wauwatosa, Wisconsin 53225—5527 has been found not to
reduce the effectiveness of the applicable vehicle pollution control system and, therefore,
is exempt from the prohibitions of Section 27156 of the Vehicle Code for the following
1999 to 2001 model—year Harley—Davidson motorcycles originally equipped with the
1450cc fuel injected engine:

        Stage | Kit        Modelt—Year               Part No.
                           1999 to 2001              29489—99C
                                                     29491—99C

        Stage i1 Kit       Mode{—Year                Part No.
                           1999 to 2001              29492—99C

The Screamin‘ Eagle Stage | Kit, P/IN 29489—99C, includes the following main
components: Screamin‘ Eagle high flow air cleaner and a new ECM calibration. The new
ECM calibration, which is downloaded by dealerships, requires the use of a scan tool.

The Screamin‘ Eagle Stage I Kit, P/IN 29491—99C, includes the following main
components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore
from 3.75 to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets,
and a new ECM calibration. The new ECM calibration, which is downloaded by
dealerships, requires the use of a scan tool. Kit increases engine displacement from 1450
to 1550cc.                                                                —


HARLEY—DAVIDSON                                       EXECUTIVE ORDER D—338—28
Screamin‘ Eagle Stage | & 11 Kits                     (Page 2 of 3)


The Screamin‘ Eagle Stage II Kit, P/IN 29492—99C, includes the following main
components: Screamin‘ Eagle high flow air cleaner, camshafts (P/N SEH—203), larger bore
cylinders to change bore from 3.75 to 3.875, larger bore pistons to accommodate
cylinders, piston rings, gaskets, and a new ECM calibration. The new ECM calibration,
which is downloaded by dealerships, requires the use of a scan tool. Kit increases engine
displacement from 1450 to 1550cc.

This Executive Order is valid provided that the installation instructions for the Screamin‘
Eagle Stage I & II Kits will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.

This Executive Order shall not apply to any HaHey-Davidson Screamin‘ Eagle Stage | & 11
Kits advertised, offered for sale, or sold with or installed on a motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Screamin‘ Eagle Stage | & 11
Kits, as exempt by the Air Resources Board, which adversely affect the performance of
the vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order is granted based on the emissions test data from various 1999
Harley—Davidson motorcycles equipped with the 1450ccengine and modified with the
Screamin‘ Eagle Stage II Kit, P/N 29492—99B;:

                        (gm/km)
                  HC       CO
Standards         0.8     12.0

Device w/DFs

Motorcycle 1      0.6      6.6
Motorcycle 2      0.6      5.5
Motorcycle 3      0.6      4.8
Motorcycle 4      0.6      2.9

Test results showed that the Screamin‘ Eagle Stage II Kit, when installed on the
motorcycles, did not cause tailpipe emissions to exceed the applicable emission standard
during a Cold Start CVS—75 Federal Test Procedure.

Marketing of the Screamin‘ Eagle Stage | & 1| Kits using any identification other than that
shown in this Executive Order or marketing of the Screamin‘ Eagle Stage I & 11 Kits for an
application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of the Screamin‘ Eagle
Stage | & I1 Kits shall not be construed as exemption to sell, offer for sale, or advertise any
component of the kit as an individual device.


HARLEY—DAVIDSON                                      EXECUTIVE ORDER D—338—28
Screamin‘ Eagle Stage | & II Kits                    (Page 3 of 3)



This Executive Order does not constitute any opinion as to the effect the use of the
Screamin‘ Eagle Stage | & !I Kits may have on any warranty either expressed or implied
by the vehicle manufacturer.

In addition to the foregoing, the ARB reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.                                -

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF HARLEY—DAVIDSON S
SCREAMIN®‘ EAGLE STAGE I & II KITS

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination after hearing that
grounds for revocation exist.

                                              4k
Executed at El Monte, California, this &5_ day of July 2000.




                                    R. B. Simmerfield, Chief
                                    Mobile Source Operations Division



Document Created: 2005-09-01 12:41:38
Document Modified: 2005-09-01 12:41:38
