Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 22, 2001.
As of Friday, December 14th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
29773-022002 model-year Harley-Davidson motorcycles originally equipped with the 1450cc fuel injected engineThe Screamin' Eagle Stage I Kit, P/Ns 29773-02, includes the following main components: Screamin' Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration, which is downloaded by Harley-Davidson dealers, requires the use of a scan tool.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-34
  • Executive Order 338-34 / D338-34
  • ARB # D-338-34
  • Executive Order No: D-338-34
  • C.A.R.B. No. D-338-34
  • Resolution D-338-34
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-34 PDF

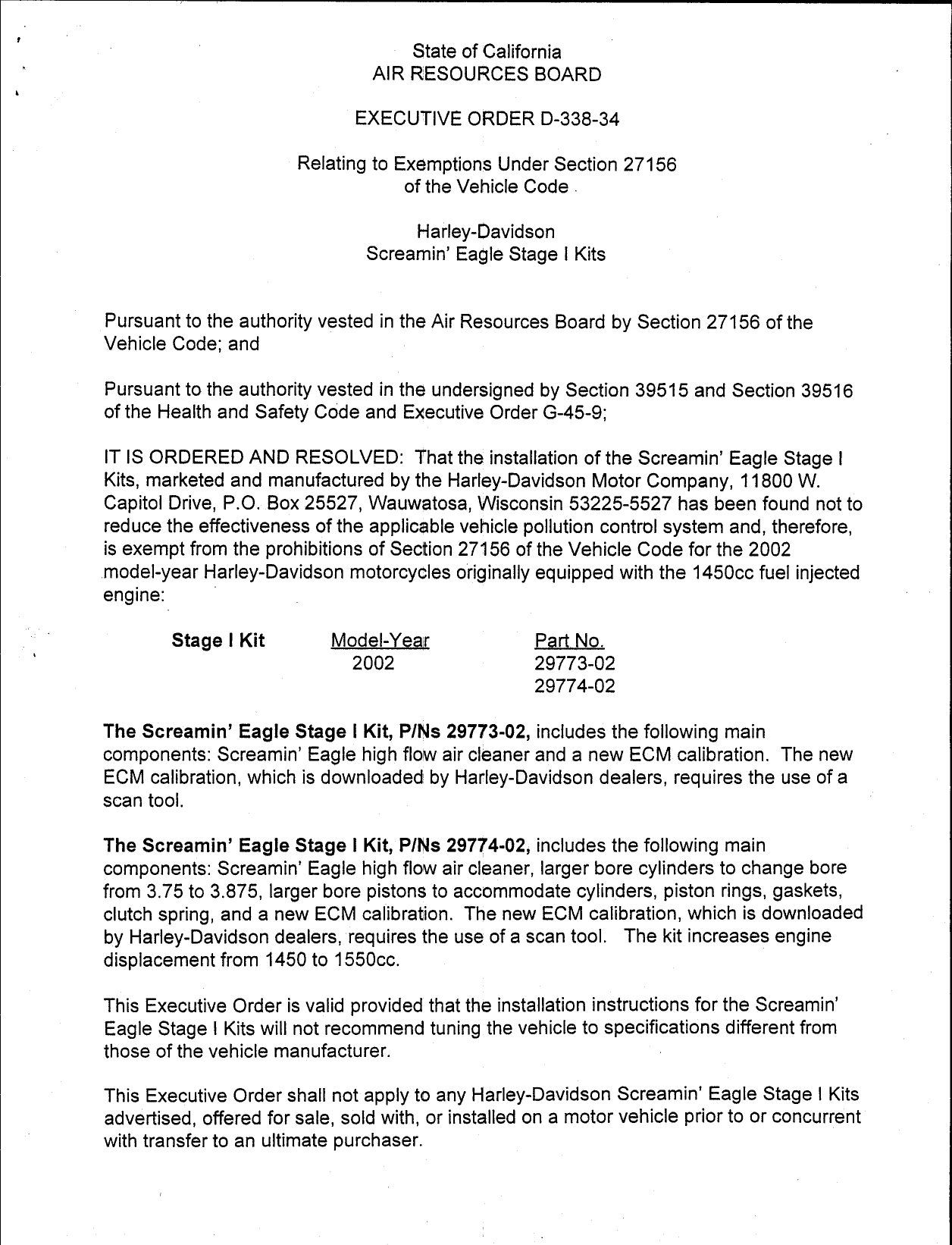

D-338-34 Document:



                                     State of California
                                 AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—338—34

                        Relating to Exemptions Under Section 27156
                                     of the Vehicle Code .

                                      Harley—Davidson
                                Screamin‘ Eagle Stage | Kits


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle Stage I
Kits, marketed and manufactured by the Harley—Davidson Motor Company, 11800 W.
Capitol Drive, P.O. Box 25527, Wauwatosa, Wisconsin 53225—5527 has been found not to
reduce the effectiveness of the applicable vehicle pollution control system and, therefore,
is exempt from the prohibitions of Section 27156 of the Vehicle Code for the 2002
model—year Harley-Davidson motorcycles originally equipped with the 1450cc fuel injected
engine:

        Stage | Kit         Model—Year               Part
                               2002                   29773—0
                                                      29774—02

The Screamin‘ Eagle Stage | Kit, P/Ns 29773—02, includes the following main
components: Screamin‘ Eagle high flow air cleaner and a new ECM calibration. The new
ECM calibration, which is downloadedby Harley—Davidson dealers, requires the use of a
scan tool.

The Screamin‘ Eagle Stage I Kit, P/Ns 29774—02, includes the following main
components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore
from 3.75 to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets,
clutch spring, and a new ECM calibration. The new ECM calibration, which is downloaded
by Harley—Davidson dealers, requires the use of a scan tool. The kit increases engine
displacement from 1450 to 1550cc.

This Executive Order is valid provided that the installation instructions for the Screamin‘
Eagle Stage ! Kits will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.                                   —

This Executive Order shall not apply to any Harley—Davidson Screamin‘ Eagle Stage | Kits
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or concurrent
with transfer to an ultimate purchaser.


                                              «2.


Changes made to the design or operating conditions of the Screamin‘ Eagle Stage | Kits,
as exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order is granted based on the submitted emissions test data used for the
2002 Harley—Davidson 15§50cc motorcgycle certification, a configuration identical to the
Screamin‘ Eagle Stage | Kit, part no. 29774—02:

                      (gm/km)
                  HC     CO
Standards         1.2   12.0
Device w/DFs      0.6      4.0

Test results showed that the Screamin‘ Eagle Stage | Kit, when installed on the
motorcycles, did not cause tailpipe emissions to exceed the applicable emission standard
during a Cold Start CVS—75 Federal Test Procedure.

Marketing of the Screamin‘ Eagle Stage | Kits using any identification other than that
shown in this Executive Order or marketing of the Screamin‘ Eagle Stage | Kits for an
application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of the Screamin‘ Eagle
Stage | Kits shall not be construed as exemption to sell, offer for sale, or advertise any
component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the
Screamin‘ Eagle Stage | Kits may have on any warranty either expressedor implied by the
vehicle manufacturer.

In addition to the foregoing, the ARB reserves the right in the future to review this
Executive Order and the exemption provided herein to assure that the exempted add—on
or modified part continues to meet the standards and procedures of Title 13, California
Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF HARLEY—DAVIDSON‘S
SCREAMIN®‘ EAGLE STAGE I KITS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.




            HARLEY—DAVIDSON—SCREAMIN® EAGLE STAGE | KITS—D—338—34


                                            —3.


Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearingto contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.
.                                            sA
Executed at El Monte, California, this 2? _ day of August 2001.




                                                  erfield, Chief
                                             urce Operations Division




           HARLEY—DAVIDSON—SCREAMIN® EAGLE STAGE | KITS—D—338—34



Document Created: 2005-09-01 12:14:15
Document Modified: 2005-09-01 12:14:15
