Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 7, 2003.
As of Monday, July 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
29773-02A2004 model-year Harley-Davidson motorcycles Touring (FLH & FLT) models originally equipped with the 1450cc fuel injected engine. Calibration/Cartridge P/N 32733-04 / 32959-04.The Screamin' Eagle Stage I Kit, P/N 29773-02A, includes the following main components: Screamin' Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration is either a cartridge or a dealer downloaded file that requires the use of a scan tool for installation.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-45
  • Executive Order 338-45 / D338-45
  • ARB # D-338-45
  • Executive Order No: D-338-45
  • C.A.R.B. No. D-338-45
  • Resolution D-338-45
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-45 PDF

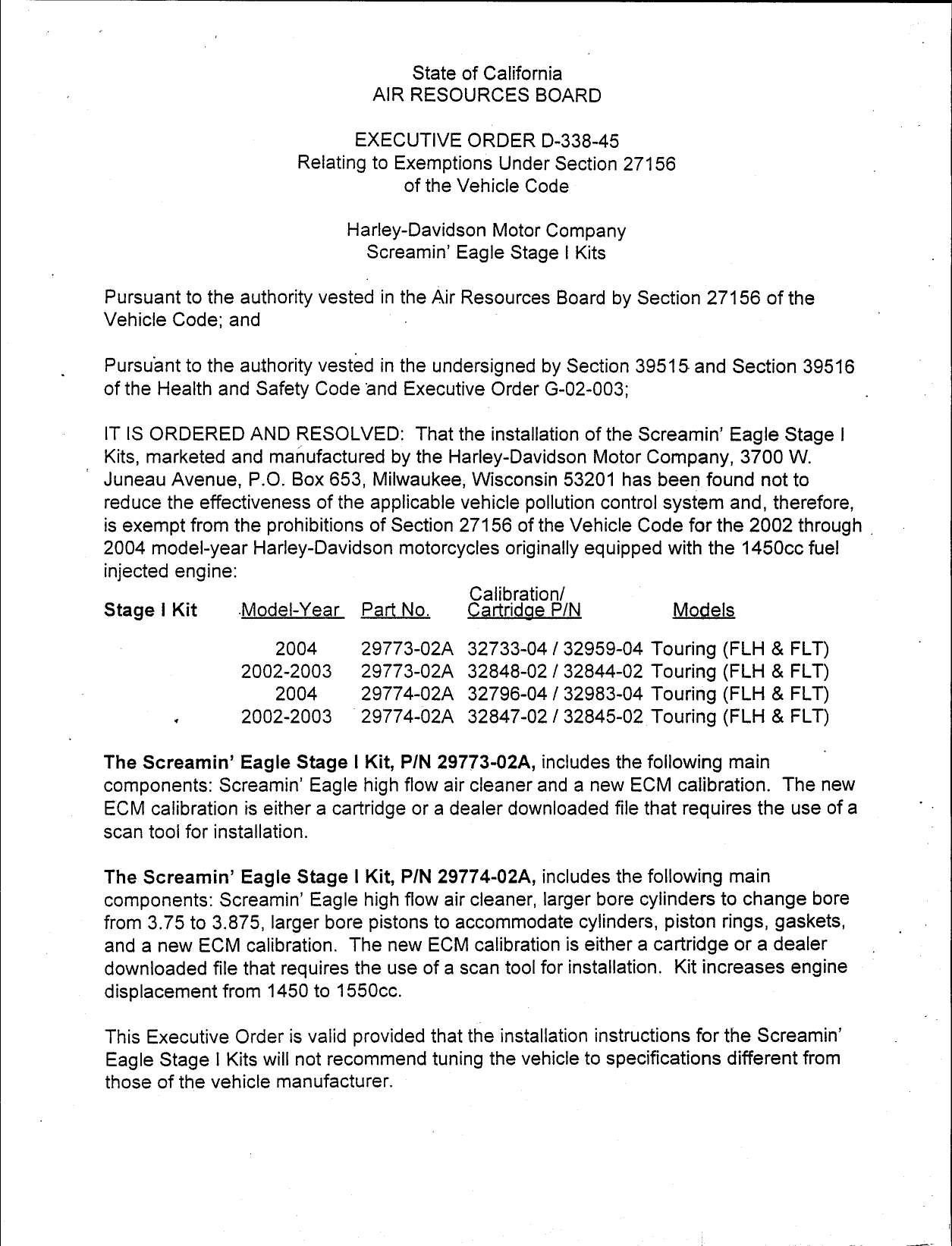

D-338-45 Document:



                                           State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—338—45
                         Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                Harley—Davidson Motor Company
                                  Screamin‘ Eagle Stage | Kits

  Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
  Vehicle Code; and                    —             '

  Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
  of the Health and Safety Code and Executive Order G—02—003;

  T IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle Stage |
  Kits, marketed and manufactured by the Harley—Davidson Motor Company, 3700 W.
_ Juneau Avenue, P.O0. Box 653, Milwaukee, Wisconsin 53201 has been found not to
  reduce the effectiveness of the applicable vehicle pollution control system and, therefore,
  is exempt from the prohibitions of Section 27156 of the Vehicle Code for the 2002 through _
  2004 model—year Harley—Davidson motorcycles originally equipped with the 1450cc fuel
  injected engine:
            .                                 Calibration/
  Stage I Kit      Model—Year Part No.        Cartridge P/N             Models

                     2004        29773—02A        32733—04 / 32959—04   Touring   (FLH   &   FLT)
                  2002—2003       29773—02A       32848—02 / 32844—02   Touring   (FLH   &   FLT)
                     2004        29774—02A        32796—04 / 32983—04   Touring   (FLH   &   FLT)
                  2002—2003     29774—02A         32847—02 / 32845—02   Touring   (FLH   &   FLT)

  The Screamin‘ Eagle Stage | Kit, P/N 29773—02A, includes the following main
  components: Screamin‘ Eagle high flow air cleaner and a new ECM calibration. The new
  ECM calibration is either a cartridge or a dealer downloaded file that requires the use of a
  scan tool for installation.

  The Screamin‘ Eagle Stage | Kit, P/N 29774—02A, includes the following main
  components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore
  from 3.75 to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets,
  and a new ECM calibration. The new ECM calibration is either a cartridge or a dealer
  downloaded file that requires the use of a scan tool for installation. Kit increases engine
  displacement from 1450 to 1550cc.

  This Executive Order is valid provided that the installation instructions for the Screamin‘
  Eagle Stage | Kits will not recommend tuning the vehicle to specifications different from
  those of the vehicle manufacturer.


                                               2.


 This Executive Order shall not apply to any Harley—Davidson Motor Company Screamin‘
 Eagle Stage | Kits advertised, offered for sale, sold with, or installed on a motor vehicle
 prior to or concurrent with transfer to an ultimate purchaser.

 Changes made to the design or operating conditions of the Screamin‘ Eagle Stage | Kits,
 as exempt by the Air Resources Board, which adversely affect the performance of the
 vehicle‘s pollution control system shall invalidate this Executive Order.

 This Executive Orderis granted based on emissions test data generated on three 2004
 model—year Harley—Davidson motorcycles equipped with the 1450cc engine and modified
 with the Screamin‘ Eagle Stagg | Kit, Part No. 29774—02A;

                         (gm/km)
                HC+NOx CO

2004 Standards 1.2          12.0

 Device w/DFs

 2004 Touring      0.7      4.0
                   1.       3.3
                   1.1      3.4

 Test results showed that the Screamin‘ Eagle Stage | Kits, when installed on the        _
 motorcycles, did not cause tailpipe emissions to exceed the applicable emission standards
 during a Cold Start CVS—75 Federal Test Procedure.

 Marketing of the Screamin‘ Eagle Stage | Kits using any identification other than that °
 shown in this Executive Order or marketing of the Screamin‘ Eagle Stage | Kits for an
 application other than those listed in this Executive Order shall be prohibited unless prior
 approval is obtained from the Air Resources Board. Exemption of the Screamin‘ Eagle
 Stage | Kits shall not be construed as exemption to sell, offer for sale, or advertise any
 component of the kit as an individual device.

 This Executive Order does not constitute any opinion as to the effect the use of the
 Screamin‘ Eagle Stage | Kits may have on any warranty either expressed or implied by the
 vehicle manufacturer.

 In addition to the foregoing, the ARB reserves the right in the future to review this
 Executive Order and the exemption provided herein to assure that the exempted add—on
 or modified part continues to meet the standards and procedures of Title 13, California
 Code of Regulations, Section 2222, et seq.




  HARLEY—DAVIDSON MOTOR COMPANY—SCREAMIN®‘ EAGLE STAGE | KITS—D—338—45


                                               —3.


  THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
  AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
  ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF HARLEY—DAVIDSON
  MOTOR COMPANY‘S SCREAMIN®‘ EAGLE STAGE I KITS.

  No claim of any kind, such as "Approved by the Air Res‘ources‘ Board", may be made with
 respect to the action taken herein in any advertising or other oral or written
  communication.                          —

  Violation of any of the above conditions shall be grounds for revocation of this order. The
  order may be revoked only after a ten—day written notice of intention to revoke the order, in
  which period the holder of the order may request in writing a hearing to contest the
  proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
  the request and the order may not be revoked until a determination is made after the
  hearing that grounds for revocation exist.

| Executed at El Monte, California, this 2 ’     day of October 2003.




                                     AIIe%yons, Chief
                                     Mobile Source Operations Division




  HARLEY—DAVIDSON MOTOR COMPANY—SCREAMIN®‘ EAGLE STAGE I KITS—D—338—45



Document Created: 2005-09-01 12:41:55
Document Modified: 2005-09-01 12:41:55
