Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 28, 2004.
As of Thursday, December 13th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
29773-02A2004 model-year Harley-Davidson motorcycles Touring (FLH & FLT) models originally equipped with the 1450cc fuel injected engine. Calibration/Cartridge P/N 32733-04 / 32959-04.The Screamin' Eagle Stage I Kit, includes the following main components: Screamin' Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration is either a cartridge or a dealer downloaded file that requires the use of a scan tool for installation.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-47
  • Executive Order 338-47 / D338-47
  • ARB # D-338-47
  • Executive Order No: D-338-47
  • C.A.R.B. No. D-338-47
  • Resolution D-338-47
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-47 PDF

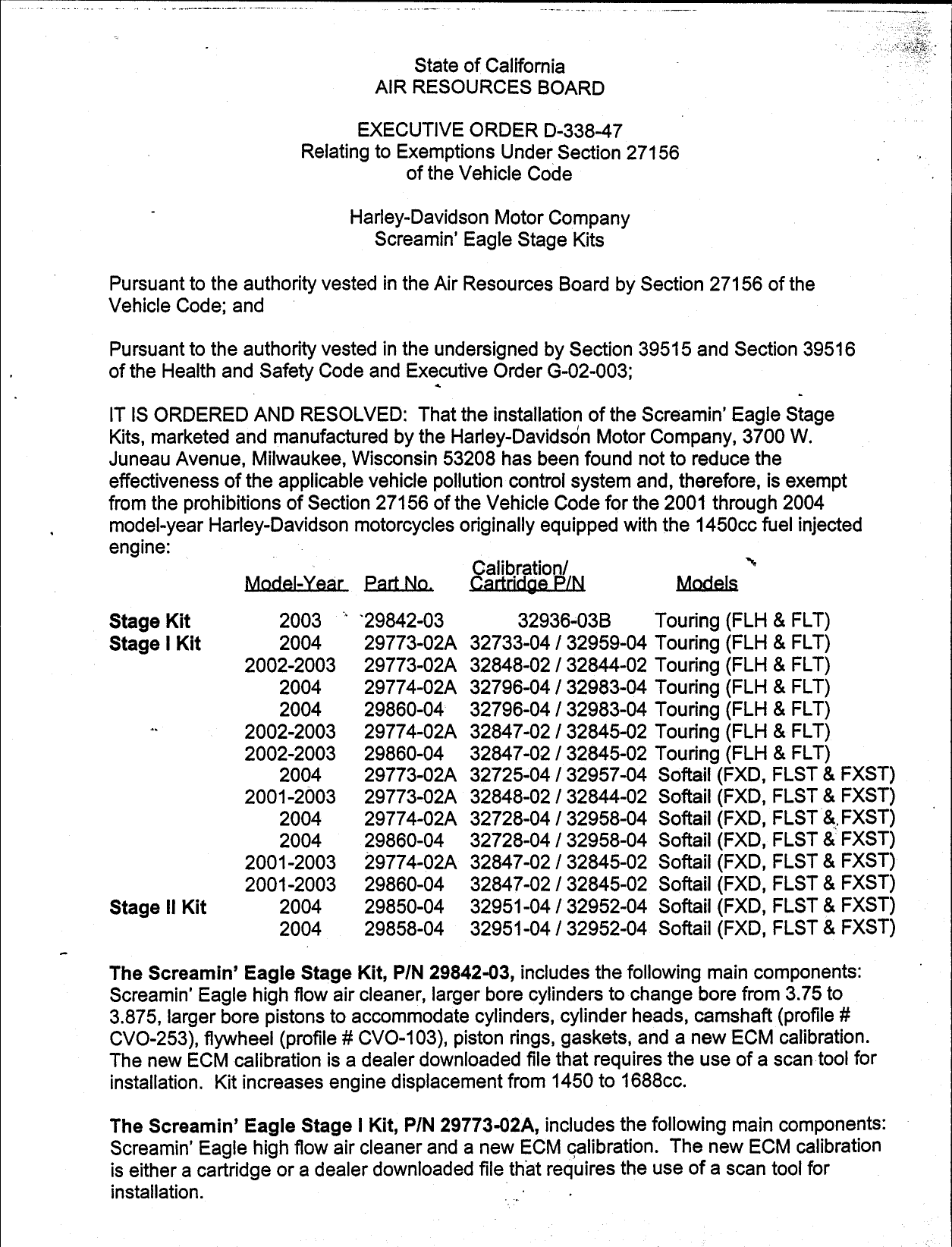

D-338-47 Document:



                                    State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—338—47
                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code

                            Harley—Davidson Motor Company
                               Screamin‘ Eagle Stage Kits

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Healith and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the mstallatlon of the Screamin‘ Eagle Stage
Kits, marketed and manufactured by the Harley—Davidson Motor Company, 3700 W.
Juneau Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce the
effectiveness of the applicable vehicle pollution control system and, therefore, is exempt
from the prohibitions of Section 27156 of the Vehicle Code for the 2001 through 2004
model—year Harley-Davndson motorcycles originally equipped with the 1450cc fuel injected
engine:                                                                     *
                                            alibration/
                Model—Year. PartNo.                                Models
Stage Kit          2003 * ©29842—03             32936—03B        Touring ( (FLH & FLT)
Stage | Kit        2004   29773—02A        32733—04 / 32959—04   Touring (FLH & FLT)
                2002—2003 29773—02A        32848—02 / 32844—02   Touring (FLH & FLT)
                   2004   29774—02A        32796—04 / 32983—04   Touring (FLH & FLT)
                   2004   29860—04         32796—04 / 32983—04   Touring (FLH & FLT)
                2002—2003 29774—02A        32847—02 / 32845—02   Touring (FLH & FLT)
                2002—2003 29860—04         32847—02 / 32845—02   Touring (FLH & FLT)
                   2004    29773—02A       32725—04 / 32957—04   Softail (FXD, FLST & FXST)
                2001—2003 29773—02A        32848—02 / 32844—02   Softail (FXD, FLST & FXST)
                   2004    29774—02A       32728—04 / 32958—04   Softail (FXD, FLST &.FXST)
                   2004    29860—04        32728—04 / 32958—04   Softail (FXD, FLST & FXST)
                2001—2003 29774—02A        32847—02 / 32845—02   Softail (FXD, FLST & FXST)
                2001—2003 29860—04         32847—02 / 32845—02   Softail (FXD, FLST & FXST)
Stage II Kit       2004    29850—04        32951—04 / 32952—04   Softail (FXD, FLST & FXST)
                   2004    29858—04        32951—04 / 32952—04   Softail (FXD, FLST & FXST)
The Screamin‘ Eagle Stage Kit, P/N 29842—03, includes the following main components:
Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore from 3.75 to
3.875, larger bore pistons to accommodate cylinders, cylinder heads, camshaft (profile #
CVO—253), flywheel (profile # CVO—103), piston rings, gaskets, and a new ECM calibration.
The new ECM calibration is a dealer downloaded file that requires the use of a scan tool for
installation. Kit increases engine displacement from 1450 to 1688cc.

The Screamin‘ Eagle Stage I Kit, P/N 29773—02A, includes the following main components:
Screamin‘ Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration
is either a cartridge or a dealer downloaded file that requires the use of a scan tool for
installation.


 The Screamin‘ Eagle Stage I Kit, P/Ns 29774—02A and 29860—04, includes the following _
 main components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore
 from 3.75 to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets, and
 a new ECM calibration. The new ECM calibration is either a cartridge or a dealer
 downloaded file that requires the use of a scan tool for installation. Kit increases engine
 displacement from 1450 to 1550cc.

 The Screamin‘ Eagle Stage II Kit, P/Ns 29850—04 and 29858—04, includes the following
 main components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore
 from 3.75 to 3.875, larger bore pistons to accommodate cylinders, camshaft (profile # SE—
 203), piston rings, gaskets, and a new ECM calibration. The new ECM calibration is either a
 cartridge or a dealer downloaded file that requires the use of a scan tool for installation. Kit
 increases engine displacement from 1450 to 1550cc.                                    —

 This Executive Order is valid provided that the installation instructions for the Screamin‘ Eagle
 Stage Kits will not recommend tuning the motorcycle to speCIfcations different from those of
 the Harley—Davidson Motor Company.

 This Executive Order shall not apply to any Harley—Davidson Motor Company Screamin‘
 Eagle Stage Kits advertised, offered for sale, sold with, or installed on a motorcycle prior to or
 concurrent with transfer to an ultimate purchaser.

  Changes made to the designor operating conditions of the Screamin‘ Eagle Stage Kits, as
  exempt by the Air Resources Board, which adversely affect the performance of the
. _motorcycle‘s pollution control system shall invalidate this Executive Order.

 This Executive Order is granted based on a prior evaluation which determined that
 Harley—Davidson Motor Company‘s Screamin‘ Eagle Stage Kits do not cause an adverse
 effect on emissions of selected motorcycles (Executive Orders D—338—45 and D—338—46).

 Marketing of the Screamin‘ Eagle Stage Kits using any identification other than that shown in
 this Executive Order or marketing of the Screamin‘ Eagle Stage Kits for an application other
 than those listed in this Executive Order shall be prohibited unless prior approval is obtained
 from the Air Resources Board. Exemption of the Screamin‘ Eagle Stage Kits shall not be
 construed as exemption to sell, offer for sale, or advertise any component of the kit as an
 individual device.

 This Executive Order does not constitute any opinion as to the effect the use of the Screamin‘
 Eagle Stage Kits may have on any warranty either expressed or implied by the Harley—
 Davidson Motor Company.

 In addition to the foregoing, the ARB reserves the right in the future to review this Executive
 Order and the exemption provided herein to assure that the exempted add—on or modified
 part continues to meet the standards and procedures of Title 13, California Code of
 Regulations, Section 2222, et seq.




   HARLEY—DAVIDSON MOTOR COMPANY — 'SC‘REAMIN’ EAGLE STAGE KITS — D—338—47


                                               —3.


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING          .
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF HARLEY—DAVIDSON
MOTOR COMPANY‘S SCREAMIN®‘ EAGLE STAGE KITS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that
grounds for revocation exist.

Executed at El Monte, California, this fi day of January 2004.




                                 ons, Chief
                         Mobile Source Operations Division




HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN® EAGLE STAGE KITS — D—338—47



Document Created: 2005-09-01 12:43:22
Document Modified: 2005-09-01 12:43:22
