Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 3, 2004.
As of Monday, December 30th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
29842-032003 Harley-Davidson Touring (all)Stage Kit w/ Calibration Cartridge# 32936-03C

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-48
  • Executive Order 338-48 / D338-48
  • ARB # D-338-48
  • Executive Order No: D-338-48
  • C.A.R.B. No. D-338-48
  • Resolution D-338-48
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-48 PDF

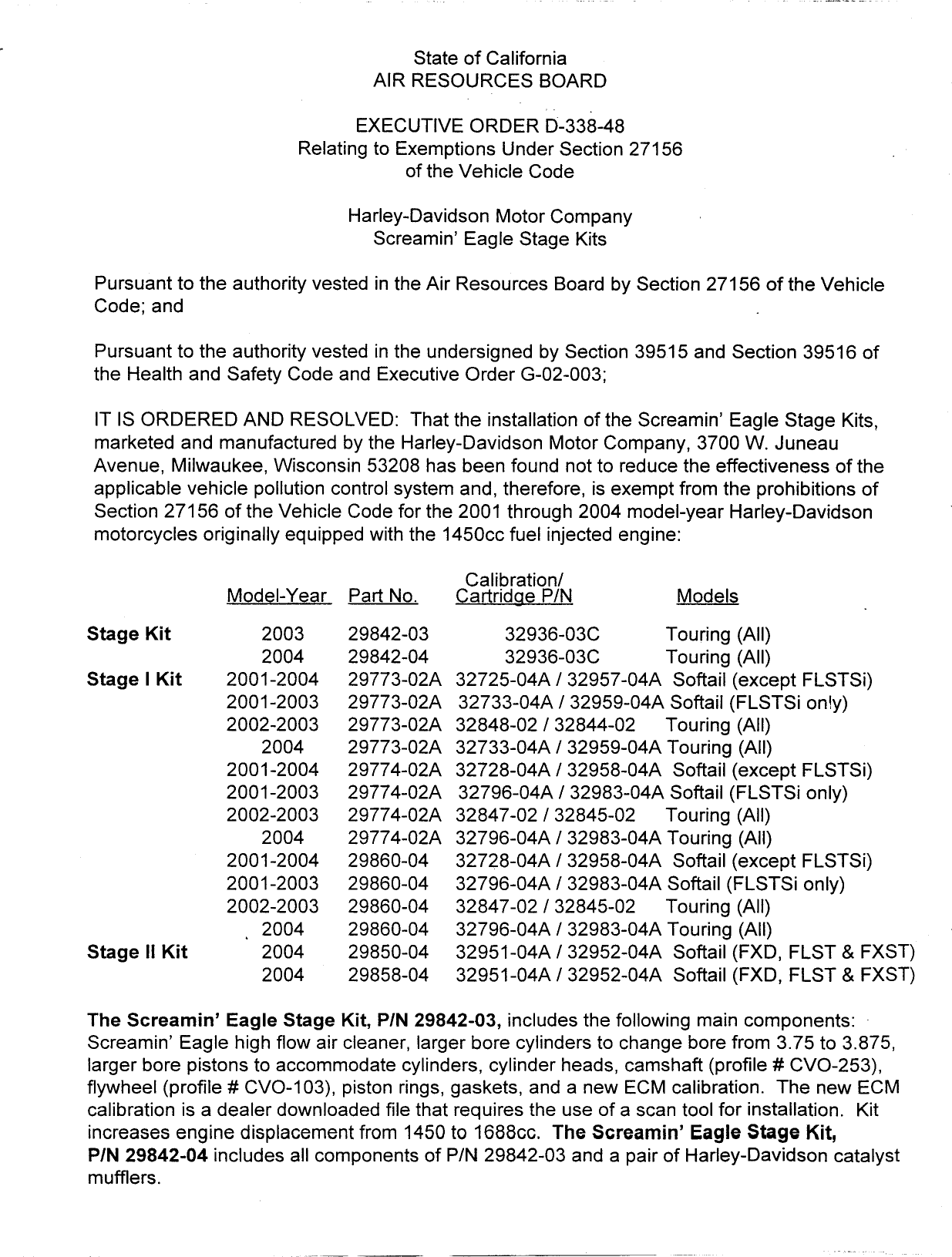

D-338-48 Document:


CARB_D-338-48

                                      State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—338—48
                         Relating to Exemptions Under Section 27156
                                      of the Vehicle Code

                               Harley—Davidson Motor Company
                                  Screamin‘ Eagle Stage Kits

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle Stage Kits,
marketed and manufactured by the Harley—Davidson Motor Company, 3700 W. Juneau
Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce the effectiveness of the
applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the 2001 through 2004 model—year Harley—Davidson
motorcycles originally equipped with the 1450cc fuel injected engine:

                                              Calibration/
                 Model—Year    Part No.      Cartridge P/N              Models

Stage Kit            2003      29842—03           32936—03C         Touring (All)
                     2004      29842—04           32936—03C         Touring (All)
Stage | Kit      2001—2004     29773—02A     32725—04A / 32957—04A Softail (except FLSTSi)
                 2001—2003     29773—02A     32733—04A / 32959—04A Softail (FLSTSi only)
                 2002—2003      29773—02A    32848—02 / 32844—02     Touring (All)
                     2004      29773—02A     32733—04A / 32959—04A Touring (All)
                 2001—2004     29774—02A     32728—04A / 32958—04A Softail (except FLSTSi)
                 2001—2003     29774—02A     32796—04A / 32983—04A Softail (FLSTSi only)
                 2002—2003      29774—02A    32847—02/32845—02       Touring (All)
                     2004      29774—02A     32796—04A / 32983—04A Touring (All)
                 2001—2004     29860—04      32728—04A / 32958—04A Softail (except FLSTSi)
                 2001—2003     29860—04       32796—04A / 32983—04A Softail (FLSTSi only)
                 2002—2003     29860—04      32847—02/32845—02       Touring (All)
                   _ 2004      29860—04      32796—04A / 32983—04A Touring (All)
Stage II Kit         2004      29850—04      32951—04A / 32952—04A Softail (FXD, FLST & FXST)
                     2004      29858—04      32951—04A / 32952—04A Softail (FXD, FLST & FXST)

The Screamin‘ Eagle Stage Kit, P/N 29842—03, includes the following main components: >
Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore from 3.75 to 3.875,
larger bore pistons to accommodate cylinders, cylinder heads, camshaft (profile # CVO—253),
flywheel (profile # CVO—103), piston rings, gaskets, and a new ECM calibration. The new ECM
calibration is a dealer downloaded file that requires the use of a scan tool for instaillation. Kit
increases engine displacement from 1450 to 16886c. The Screamin‘ Eagle Stage Kit,
P/IN 29842—04 includes all components of P/N 29842—03 and a pair of Harley—Davidson catalyst
mufflers.


                                             2.


The Screamin‘ Eagle Stage | Kit, P/N 29773—02A, includes the following main components:
Screamin‘ Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration is
either a cartridge or a dealer downloaded file that requires the use of a scan tool for installation.

The Screamin‘ Eagle Stage | Kit, P/Ns 29774—02A and 29860—04, includes the following main
components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore from 3.75
to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets, and a new ECM
calibration. The new ECM calibration is either a cartridge or a dealer downloaded file that requires
the use of a scan tool for installation. Kit increases engine displacement from 1450 to 1550cc.

The Screamin‘ Eagle Stage II Kit, P/Ns 29850—04 and 29858—04, includes the following main
components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore from 3.75
to 3.875, larger bore pistons to accommodate cylinders, camshaft (profile # SE—203), piston rings,
gaskets, and a new ECM calibration. The new ECM calibration is either a cartridge or a dealer
downloaded file that requires the use of a scan tool for installation. Kit increases engine
displacement from 1450 to 1550cc.

This Executive Order is valid provided that the installation instructions for the Screamin‘ Eagle
Stage Kits will not recommend tuning the motorcycle to specifications different from those of the
Harley—Davidson Motor Company.

This Executive Order shall not apply to any Harley—Davidson Motor Company Screamin‘ Eagle
Stage Kits advertised, offered for sale, sold with, or installed on a motorcycle prior to or concurrent
with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Screamin‘ Eagle Stage Kits, as exempt
by the Air Resources Board, which adversely affect the performance of the motorcycle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order is granted based on submitted emissions data which showed that the
installation of the Stage Kit on 2004 model year 1450 cc motorcycles, and use of the 2004
calibrations on the Screamin‘ Eagle Stage Kits for 2001 through 2003 model year 1450 cc Harley—
Davidson motorcycles do not cause an adverse effect on emissions.

Marketing of the Screamin‘ Eagle Stage Kits using any identification other than that shown in this
Executive Order or marketing of the Screamin‘ Eagle Stage Kits for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board. Exemption of the Screamin‘ Eagle Stage Kits shall not be construed as
exemption to sell, offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Screamin‘
Eagle Stage Kits may have on any warranty either expressed or implied by the Harley—Davidson
Motor Company.




    HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN®‘ EAGLE STAGE KITS — D—338—48


                                                 —3—


In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY—DAVIDSON MOTOR COMPANY‘S SCREAMIN‘ EAGLE
STAGE KITS.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and.the order may
not be revoked until a determination is made after the hearing that grounds for revocation exist.

Executed at El Monte, California, this §\> day of June 2004.




                                 ons, Chief
                         Mobile Source Operations Division




  HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN®‘ EAGLE STAGE KITS — D—338—48



Document Created: 2005-09-01 12:43:49
Document Modified: 2005-09-01 12:43:49
