Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 15, 2004.
As of Sunday, November 3rd, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
29842-032003 Harley-Davidson Touring (all)Stage Kit /w Calibration/Cartridge# 32936-03C / no cartridge

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-49
  • Executive Order 338-49 / D338-49
  • ARB # D-338-49
  • Executive Order No: D-338-49
  • C.A.R.B. No. D-338-49
  • Resolution D-338-49
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-49 PDF

D-338-49 Document:


CARB_D-338-49

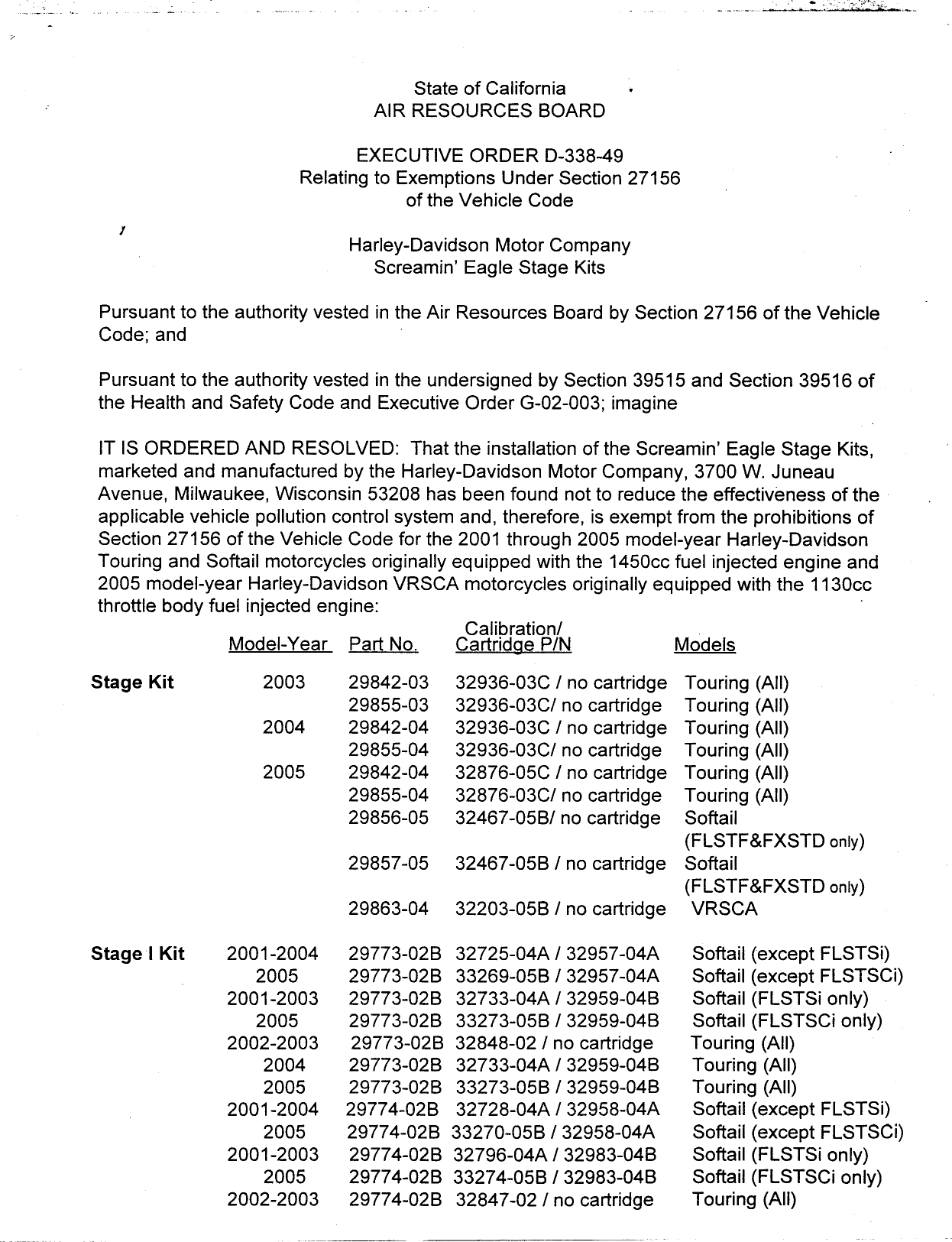

                                    State of California
                                AIR RESOURCES BOARD

                               EXECUTIVE ORDER D—338—49
                        Relating to Exemptions Under Section 27156
                                     of the Vehicle Code

                             Harley—Davidson Motor Company
                                Screamin‘ Eagle Stage Kits

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—02—003; imagine

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle Stage Kits,
marketed and manufactured by the Harley—Davidson Motor Company, 3700 W. Juneau
Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce the effectiveness of the —
applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the 2001 through 2005 model—year Harley—Davidson
Touring and Softail motorcycles originally equipped with the 1450cc fuel injected engine and
2005 model—year Harley—Davidson VRSCA motorcycles originally equipped with the 113000
throttle body fuel injected engine:
                                             Calibration/               .
                 Model—Year Part No.       Cartridge P/N              Models

Stage Kit          2003      29842—03      32936—03C / no cartridge   Touring (All)
                             29855—03     32936—03C/ no cartridge      Touring (All)
                   2004      29842—04     32936—03C / no cartridge    Touring (All)
                             29855—04     32936—03C/ no cartridge      Touring (All)
                   2005      29842—04     32876—05C / no cartridge Touring (All)
                             29855—04     32876—03C/ no cartridge     Touring (All)
                             29856—05      32467—05B/ no cartridge    Softail
                                                                   (FLSTF&FXSTD only)
                             29857—05     32467—05B / no cartridge Softail
                                                                      (FLSTF&FXSTD only)
                             29863—04     32203—05B / no cartridge     VRSCA

Stage 1 Kit    2001—2004     29773—02B    32725—04A/32957—04A         Softail (except FLSTSi)
                  2005       29773—02B    33269—05B / 32957—04A       Softail (except FLSTSCi)
               2001—2003      29773—02B   32733—04A / 32959—04B       Softail (FLSTSi only)
                  2005       29773—02B    33273—05B/32959—04B         Softail (FLSTSCi only)
               2002—2003      29773—02B   32848—02 / no cartridge     Touring (All)
                   2004      29773—02B    32733—04A/32959—04B         Touring (All)
                   2005      29773—02B    33273—05B/32959—04B         Touring (All)
               2001—2004     29774—02B    32728—04A/32958—04A         Softail (except FLSTSi)
                   2005      29774—02B    33270—05B / 32958—04A       Softail (except FLSTSCi)
               2001—2003     29774—02B    32796—04A / 32983—04B       Softail (FLSTSi only)
                   2005      29774—02B    33274—05B / 32983—04B       Softail (FLSTSCi only)
               2002—2003       29774—02B 32847—02 / no cartridge       Touring (All)


                                                         3.


Stage | Kit          2005       29774—02B    33274—05B / 32983—04B         Touring (A¥ll)
                     2004       29774—02B    32796—04A / 32983—04B         Touring (All)
                 2001—2004      29860—04A    32728—04A / 32958—04A         Softail (except FLSTSi)
                     2005       29860—04A    33270—05B / 32958—04A         Softail (except FLSTSCi)
                 2001—2003      29860—04A    32796—04A / 32983—04B         Softail (FLSTSi only)
                     2005       29860—04A    33274—05B / 32983—04B         Softail (FLSTSCi only)
                 2002—2003      29860—04A    32847—02 / no cartridge       Touring (All)
                     2004       29860—04A    32796—04A / 32983—04B         Touring (All)
                     2005       29860—04A    33274—05B / 32983—04B         Touring (All)

Stage II Kit         2004       29850—04A    32951—04A /   32952—04A       Softail (All)
                     2004       29858—04A    32951—04A /   32952—04A       Softail (All)
                     2005       29850—04A    33262—05B /   32952—04A       Softail (except FLSTSCi)
                     2005       29858—04A    33262—05B /   32952—04A       Softail (except FLSTSCi)

The Screamin‘ Eagle Stage Kit, P/Ns 29842—03 and 29855—03, includes the following main
components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore from
3.75 to 3.875, larger bore pistons to accommodate cylinders, cylinder heads, camshaft (profile #
CVO—253), flywheel (profile # CVO—103), piston rings, gaskets, and a new ECM calibration. The
new ECM calibration is a dealer downloaded file that requires the use of a scan tool for
installation. Kit increases engine displacement from 1450 to 1688cc. The Screamin‘ Eagle
Stage Kit, P/IN 29842—04, 29855—04, 29856—05, and 29857—05 includes all components of P/Ns
29842—03 and 29855—03 and a pair of Harley—Davidson catalyst mufflers.

The Screamin‘ Eagle Stage Kit, P/N 29863—04, includes the following main components: Large
bore cylinders and pistons, cylinder heads, camshaft (profile # 17431—05K), piston rings, gaskets,
and a new ECM calibration. The new ECM calibration is a dealer downloaded file that requires
the use of a scan tool for installation. Kit increases engine displacement from 1130 to 1247.cc.

The Screamin‘ Eagle Stage | Kit, P/N 29773—02B, includes the following main components:
Screamin‘ Eagle high flow air cleaner and a new ECM calibration. The new ECM calibration is
either a cartridge or a dealer downloaded file that requires the use of a scan tool for installation.

The Screamin‘ Eagle Stage I Kit, P/Ns 29774—02B and 29860—04A, includes the following main
components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore from
3.75 to 3.875, larger bore pistons to accommodate cylinders, piston rings, gaskets, and a new
ECM calibration. The new ECM calibration is either a cartridge or a dealer downloaded file that
requires the use of a scan tool for installation. Kit increases engine displacement from 1450 to
1550cc.

The Screamin‘ Eagle Stage II Kit, P/Ns 29850—04A and 29858—04A, includes the following
main components: Screamin‘ Eagle high flow air cleaner, larger bore cylinders to change bore
from 3.75 to 3.875, larger bore pistons to accommodate cylinders, camshaft (profile # SE—203),
piston rings, gaskets, and a new ECM calibration. The new ECM calibration is either a cartridge
or a dealer downloaded file that requires the use of a scan tool for installation. Kit increases
engine displacement from 1450 to 1550cc.

HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN EAGLE STAGE KITS — D—338—49


                                                 —3—


This Executive Order is valid provided that the instailation instructions for the Screamin‘ Eagle
Stage Kits will not recommend tuning the motorcycle to specifications different from those of the
Harley—Davidson Motor Company.

ThlS Executive Order shall not apply to any Harley—Davidson Motor Company Screamin‘ Eagle
Stage Kits advertised, offered for sale, sold with, or installed on a motorcycle prior to or
concurrent with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Screamin‘ Eagle Stage Kits, as
exempt by the Air Resources Board, which adversely affect the performance of the motorcycle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order is granted based on prior evaluation which determined that Harley—
Davidson Motor Company‘s Screamin‘ Eagle Stage Kits does not cause an adverse effect on
emissions of selected motorcycles (D—338—48). The same effect on emissions is expected on the
motorcycles listed in this Executive Order.

Marketing of the Screamin‘ Eagle Stage Kits using any identification other than that shown in this
Executive Order or marketing of the Screamin‘ Eagle Stage Kits for an application other than
those listed in this Executive Order shall be prohibited unless prior approval is obtained from the
Air Resources Board. Exemption of the Screamin‘ Eagle Stage Kits shall not be construed as
exemption to sell, offer for sale, or advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Screamin‘
Eagle Stage Kits may have on any warranty either expressed or implied by the Harley—Davidson
Motor Company.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY—DAVIDSON MOTOR COMPANY‘S SCREAMIN‘ EAGLE
STAGE KITS.
No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed




HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN®‘ EAGLE STAGE KITS — D—338—49


                                                 —4—


revocation. If a hearing is requested, it shall be held within ten days of receipt of the request and
the order may not be revoked until a determination is made after the hearing that grounds for _
revocation exist.                                                                                 '

Executed at El Monte, California, this Afifl/day of December 2004.
   7




                                 Alle     ons, Chief
                                 Mobile Source Operations Division




  HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN‘ EAGLE STAGE KITS — D—338—49



Document Created: 2005-09-01 12:43:19
Document Modified: 2005-09-01 12:43:19
