Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 20, 2006.
As of Saturday, August 24th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
29920-072007 Softail models FLSTF, FXSTDScreamin' Eagle Big Bore Stage-2 EFI Kit, includes the following main components: Screamin' Eagle high flow air filter using stock air filter cover, larger bore cylinders to change bore from 3.75 to 3.875 inches, larger bore pistons to accommodate cylinders, camshaft (profile # SE-255), piston rings, gaskets, catalyst mufflers, and a new ECM calibration. The new ECM calibration is a dealer downloaded file that requires the use of a scan tool for installation. Kit increases engine displacement from 1584 to 1690cc. The kit modifies the non-catalyst exhaust system to a dual catalyst exhaust system, using the catalyst mufflers of engine family 7HDXC1.80AEC.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-56
  • Executive Order 338-56 / D338-56
  • ARB # D-338-56
  • Executive Order No: D-338-56
  • C.A.R.B. No. D-338-56
  • Resolution D-338-56
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-56 PDF

D-338-56 Document:

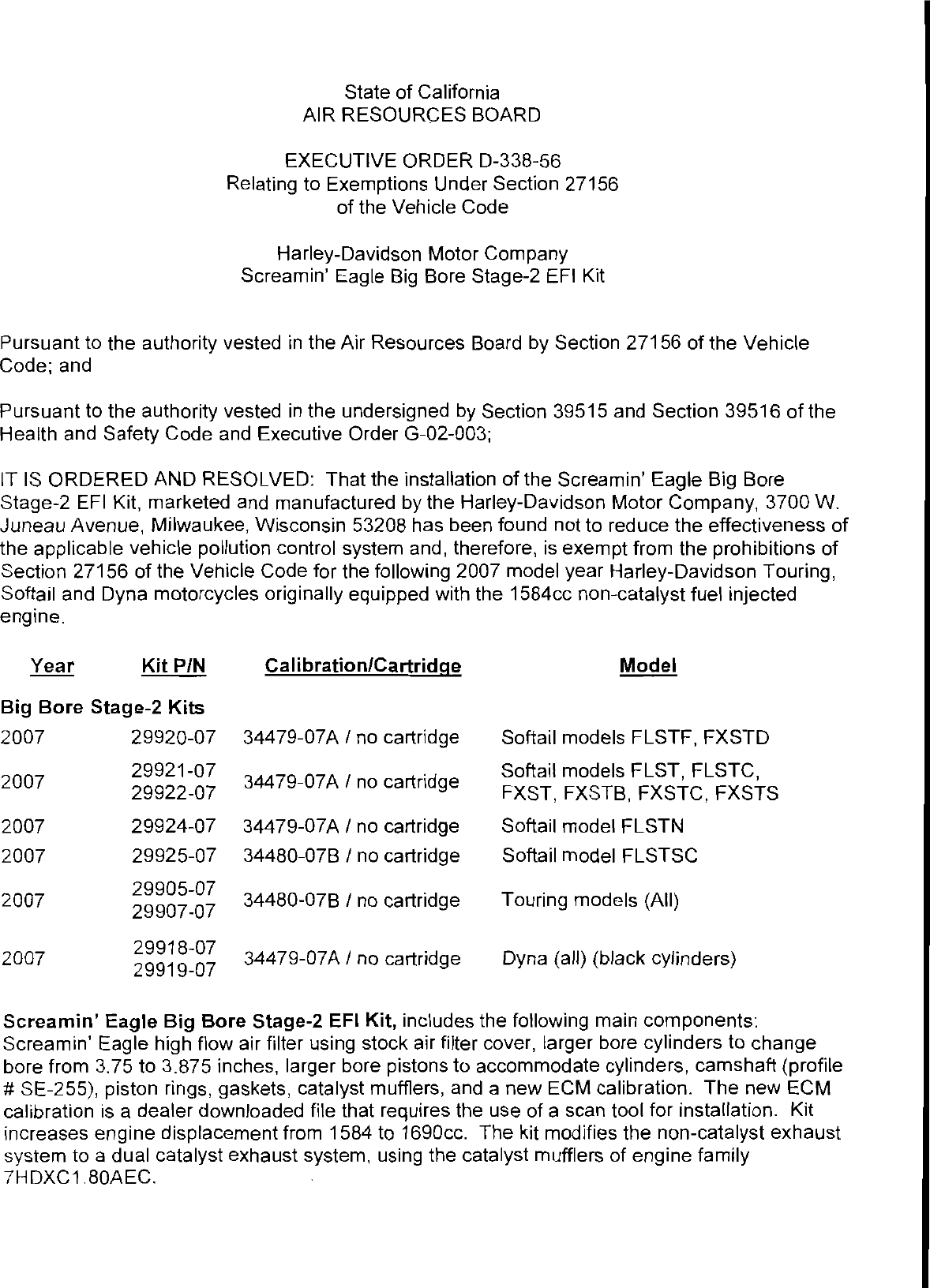

                                        State of California
                                    AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—338—56
                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                Harley—Davidson Motor Company
                            Screamin‘ Eagle Big Bore Stage—2 EFI Kit


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle Big Bore
Stage—2 EFI Kit, marketed and manufactured by the Harley—Davidson Motor Company, 3700 W.
Juneau Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce the effectiveness of
the applicable vehicle pollution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the following 2007 model year Harley—Davidson Touring,
Softail and Dyna motorcycles originally equipped with the 1584ce non—catalyst fuel injected
engine.

   Year         Kit P/N        Calibration/Cartridge                      Model

Big Bore Stage—2 Kits
2007           29920—07      34479—07A / no cartridge       Softail models FLSTF, FXSTD
               29921—07                           .         Softail models FLST, FLSTC,
2007           29922.97       34479—07A / no cartidge       Eygtpx3TB, FXSTC, FXSTS
2007           29924—07      34479—07A / no cartridge       Softail model FLSTN
2007           29925—07      34480—07B / no cartridge       Softail model FLSTSC
               29905—07                           .              .
2007           29907—07      34480—07B / no cartridge       Touring models (All)

               29918—07                               .                           .
2007           29919—07      34479—07A / no cartridge       Dyna (all) (black cylinders)


Screamin‘ Eagle Big Bore Stage—2 EFI Kit, includes the following main components:
Screamin‘ Eagle high flow air filter using stock air filter cover, larger bore cylinders to change
bore from 3.75 to 3.875 inches, larger bore pistons to accommodate cylinders, camshaft (profile
# SE—255), piston rings, gaskets, catalyst mufflers, and a new ECM calibration. The new ECM
calibration is a dealer downloaded file that requires the use of a scan tool for installation. Kit
increases engine displacement from 1584 to 1690cc. The kit modifies the non—catalyst exhaust
system to a dual catalyst exhaust system using the catalyst mufflers of engine family
7HDXC1.80AEC.


                                                12

This Executive Order is granted based on emissions testing data generated on 2007
model year Harley—Davidson Touring motorcycles modified with a Screamin‘ Eagle Big Bore
Stage—2 EFI Kit. The highest average of the three tests on two motorcycles is listed below with
deterioration factors applied:
                                                           HC+NOx       CO
                                                                   (gm/km)

2007 Standards                                                   1.2         12
Screamin‘ Eagle Big Bore Stage—2 EFI Kit                         0.6         3.9

Test results showed that the Screamin‘ Eagle Big Bore Stage—2 EFI Kit, when installed on the
motorcycles, did not cause tailpipe emissions to exceed the applicable emission standards.

This Executive Order is valid provided that the instaliation instructions for the Screamin‘ Eagle
Big Bore Stage—2 EFI Kit will not recommend tuning the motorcycle to specifications different
from those of the Harley—Davidson Motor Company.

This Executive Order shall not apply to any Harley—Davidson Motor Company Screamin‘ Eagle
Big Bore Stage—2 EFI Kit advertised, offered for sale, sold with, or installed on a motorcycle prior
to or concurrent with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Screamin‘ Eagle Big Bore Stage—2
EFI Kit, as exempt by the Air Resources Board, which adversely affect the performance of the
motorcycle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Screamin‘ Eagle Big Bore Stage—2 EFI Kit using any identification other than
that shown in this Executive Order or marketing of the Screamin‘ Eagle Big Bore Stage—2 EFI Kit
for an application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of the Screamin‘ Eagle Big Bore
Stage—2 EFI Kit shall not be construed as exemption to sell, offer for sale, or advertise any
component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Screamin‘
Eagle Big Bore Stage—2 EFI Kit may have on any warranty either expressed or implied by the
Harley—Davidson Motor Company.

in addition to the foregoing, the Air Resources Board reserves the right in the future to review
this Executive Order and the exemption provided herein to assure that the exempted add—on or
modified part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY—DAVIDSON MOTOR COMPANY‘S SCREAMIN‘ EAGLE
BIG BORE STAGE—2 EFI KIT.


HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN® EAGLE STAGE—2 KITS — D—338—56


                                               13—

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shali be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.


Executed at El Monte, California, this    Zfi day of October 2006.


                                 ie
                                Annette Hebert, Chief
                                Mobile Source Operations Division




HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN‘ EAGLE STAGE—2 KITS — D—338—56
