Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 20, 2006.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
29844-07 29845-072007 Touring ModelsScreamin' Eagle 110ÔÇÖÔÇÖ Stage EFI Kit, includes the following main components: Screamin' Eagle high flow air filter element and backplate, larger bore cylinders to change bore from 3.75 to 4.0 inches, larger bore pistons to accommodate cylinders, camshaft (profile # SE-255), piston rings, gaskets, catalyst mufflers, and a new ECM calibration. The new ECM calibration is a dealer downloaded file that requires the use of a scan tool for installation. Kit increases engine displacement from 1584 to 1800cc. The kit modifies the non-catalyst exhaust system to a dual catalyst exhaust system, using the catalyst mufflers of engine family 7HDXC1.80AEC.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-57
  • Executive Order 338-57 / D338-57
  • ARB # D-338-57
  • Executive Order No: D-338-57
  • C.A.R.B. No. D-338-57
  • Resolution D-338-57
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-57 PDF

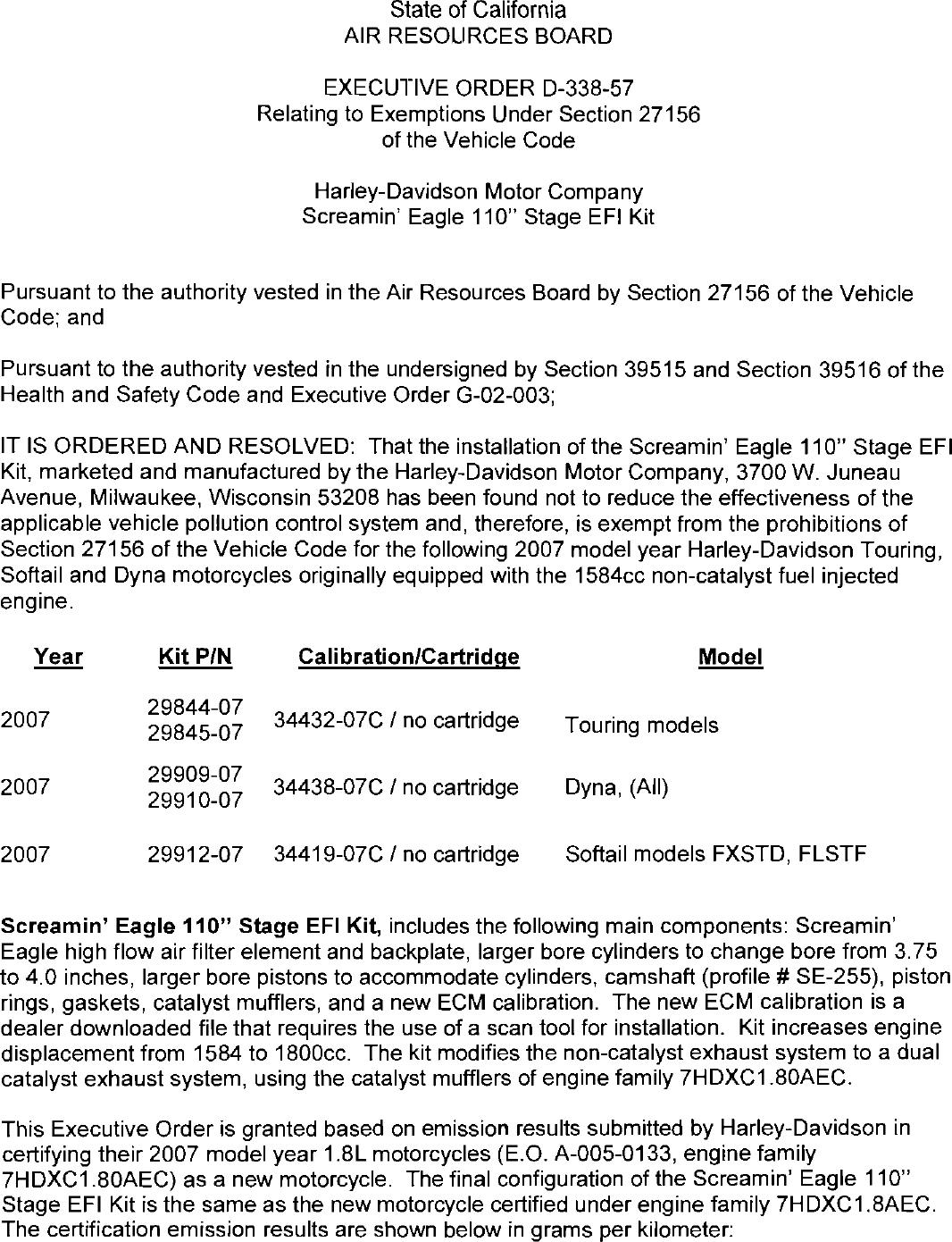

D-338-57 Document:



                                        State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—338—57
                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                Harley—Davidson Motor Company
                               Screamin‘ Eagle 110" Stage EFI Kit


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle 110" Stage EFI
Kit, marketed and manufactured by the Harley—Davidson Motor Company, 3700 W. Juneau
Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce the effectiveness of the
applicable vehicle poliution control system and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the following 2007 model year Harley—Davidson Touring,
Softail and Dyna motorcycles originally equipped with the 1584cc non—catalyst fuel injected
engine.

   Year         Kit P/N        Calibration/Cartridge                        Model

               29844—07                         .
2007           29845—07     34432—07C / no cartridge      Touring models

               29909—07                         .
2007           29910—07     34438—07C / no cartridge          Dyna, (All)


2007           29912—07     34419—07C / no cartridge          Softail models FXSTD, FLSTF


Screamin‘ Eagle 110" Stage EFI Kit, includes the following main components: Screamin‘
Eagle high flow air filter element and backplate, larger bore cylinders to change bore from 3.75
to 4.0 inches, larger bore pistons to accommodate cylinders, camshaft (profile # SE—255), piston
rings, gaskets, catalyst mufflers, and a new ECM calibration. The new ECM calibration is a
dealer downloaded file that requires the use of a scan tool for installation. Kit increases engine
displacement from 1584 to 1800cc. The kit modifies the non—catalyst exhaust system to a dual
catalyst exhaust system, using the catalyst mufflers of engine family 7HDXC1.80AEC.

This Executive Order is granted based on emission results submitted by Harley—Davidson in
certifying their 2007 model year 1.8L motorcycles (E.0. A—005—0133, engine family
7HDXC1.80AEC) as a new motorcycle. The final configuration of the Screamin‘ Eagle 110"
Stage EFI Kit is the same as the new motorcycle certified under engine family 7HDXC1.8AEC.
The certification emission results are shown below in grams per kilometer:


                                                              HC+NOx     Co
                                                                  (gm/km)

2007 Standards                                                   1.2           12
Screamin‘ Eagle 110" Stage EFI Kit                               0.7           3

The same emission test results are expected on applicable 2007 Harley Davidson motorcycles
with the Screamin Eagle 110" Stage EFI Kit installed. The certification emission test results
were below the applicable certification standards.

This Executive Order is valid provided that the installation instructions for the Screamin‘ Eagle
110" Stage EFI Kit will not recommend tuning the motorcycle to specifications different from
those of the Harley—Davidson Motor Company.

This Executive Order shall not apply to any Harley—Davidson Motor Company Screamin‘ Eagle
110" Stage EFI Kit advertised, offered for sale, sold with, or installed on a motorcycle prior to or
concurrent with transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the Screamin‘ Eagle 110" Stage EFI Kit,
as exempt by the Air Resources Board, which adversely affect the performance of the
motorcycle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Screamin‘ Eagle 110" Stage EFI Kit using any identification other than that
shown in this Executive Order or marketing of the Screamin‘ Eagle 110" Stage EFI Kit for an
application other than those listed in this Executive Order shall be prohibited unfess prior
approval is obtained from the Air Resources Board. Exemption of the Screamin‘ Eagle 110"
Stage EFI Kit shall not be construed as exemption to sell, offer for sale, or advertise any
component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Screamin‘
Eagle 110" Stage EFI Kit may have on any warranty either expressed or implied by the
Harley—Davidson Motor Company.

In addition to the foregoing, the Air Resources Board reserves the right in the future to review
this Executive Order and the exemption provided herein to assure that the exempted add—on or
modified part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY—DAVIDSON MOTOR COMPANY‘S SCREAMIN® EAGLE
110" STAGE EFI KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.


HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN® EAGLE 110‘ STAGE KITS — D—338—57


                                                13.


Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.


Executed at El Monte, California, this    2&          day of October 2006.



                                TGGes"
                                Annette Hebert, Chief
                                Mobile Source Operations Division




 HARLEY—DAVIDSON MOTOR COMPANY — SCREAMIN® EAGLE 110‘ STAGE KITS — D—338—57



Document Created: 2006-12-04 14:44:14
Document Modified: 2006-12-04 14:44:14

Previous E.O. D-338-56 | Previous E.O. D-337 | Next E.O. D-338-58 | Next E.O. D-339
