Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 5, 2007.
As of Sunday, September 22nd, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
2007 and 2008 model year Harley-Davidson Touring, Softail and Dyna motorcycles originally equipped with the 1584cc fuel injected engineScreamin' Eagle 1690cc Big Bore Stage-1 Kit (29903-07A, 29904-07A, 27539-08, 27540-08, 27535-08, and 27536-08), includes the following main components: Screamin' Eagle air filter, larger bore cylinders to change bore from 3.75 to 3.875 inches, larger bore pistons to accommodate cylinders, piston rings, gaskets, and a new ECM calibration. The new ECM calibration is a dealer downloaded file that requires the use of a scan tool for installation. Kit increases engine displacement from 1584 to 1690cc.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-61
  • Executive Order 338-61 / D338-61
  • ARB # D-338-61
  • Executive Order No: D-338-61
  • C.A.R.B. No. D-338-61
  • Resolution D-338-61
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-61 PDF

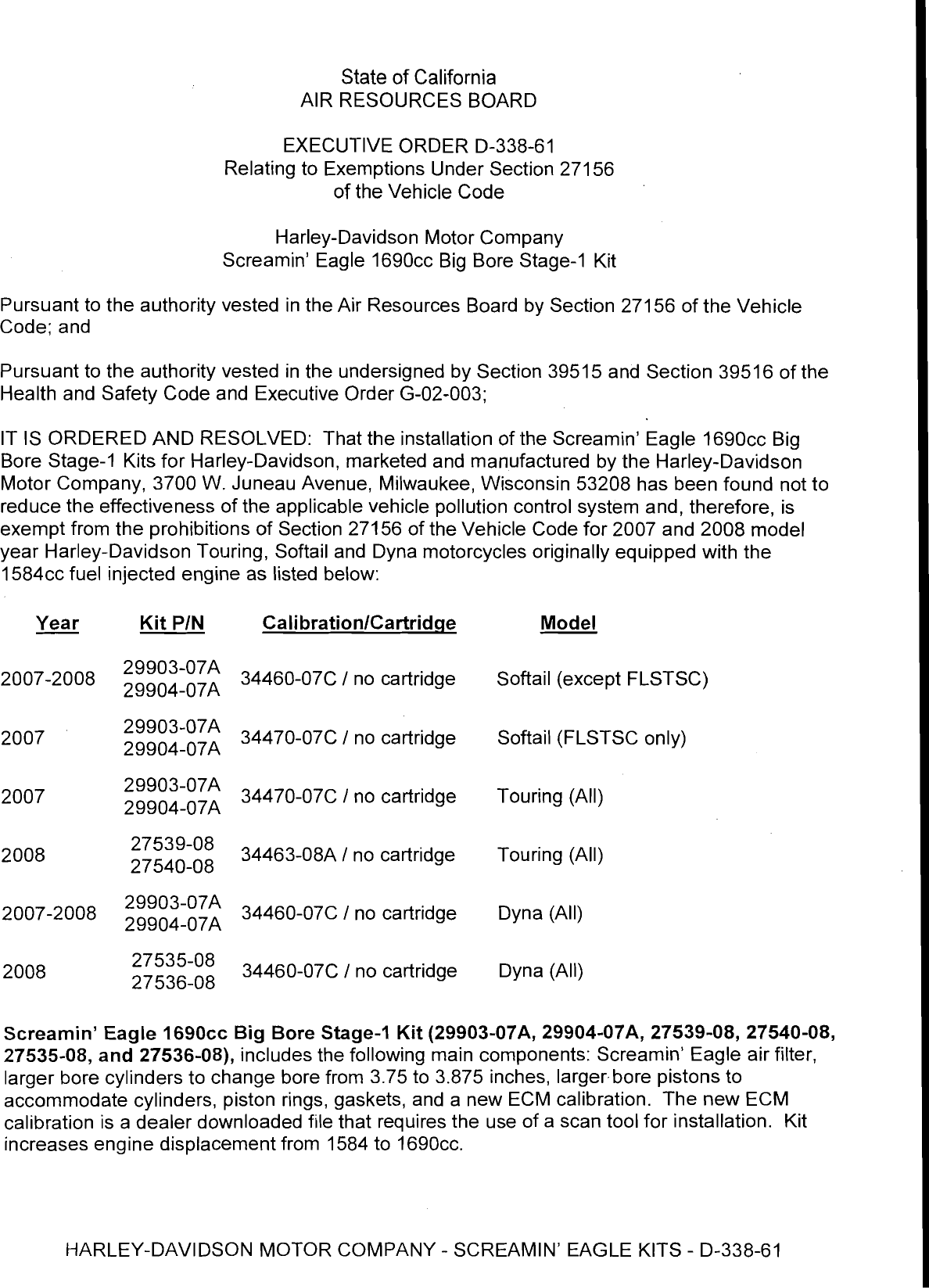

D-338-61 Document:



                                      State of California
                                  AIR RESOURCES BOARD

                                 EXECU1-IVE ORDER D-338-61
                          Relating to Exemptions Under Section 271 56
                                       of the Vehicle Code

                               Harley-Davidson Motor Company
                          Screamin' Eagle 1690cc Big Bore Stage-I Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That the installation of ,the Screamin' Eagle 1690cc Big
Bore Stage-I Kits for Harley-Davidson, marketed and manufactured by the Harley-Davidson
Motor Company, 3700 W. Juneau Avenue, Milwaukee, Wisconsin 53208 has been found not to
reduce the effectiveness of the applicable vehicle pollution control system and, therefore, is
exempt from the prohibitions of Section 27156 of the Vehicle Code for 2007 and 2008 model
year Harley-Davidson Touring, Softail and Dyna motorcycles originally equipped with the
1584cc fuel injected engine as listed below:

    Year        Kit PIN       CalibrationlCartridqe            Model


2007-2008     29903-07A
              29904-07A    34460-07C I no cartridge       Softail (except FLSTSC)


              29903-07A    34470-07C I no cartridge       Softail (FLSTSC only)
              29904-07A

              29903-07A     34470-07C / no cartridge      Touring (All)
              29904-07A

              27539-08      34463-08A 1 no cartridge      Touring (All)
              27540-08

2007-2008     29903-07A
              29904-07A     34460-07C I no cartridge      Dyna (All)


               27535-08     34460-07C I no cartridge      Dyna (All)
               27536-08

Screamin' Eagle 1690cc Big Bore Stage-I Kit (29903-07A, 29904-07A, 27539-08, 27540-08,
27535-08, and 27536-OB), includes the following main components: Screamin' Eagle air filter,
larger bore cylinders to change bore from 3.75 to 3.875 inches, larger.bore pistons to
accommodate cylinders, piston rings, gaskets, and a new ECM calibration. The new ECM
calibration is a dealer downloaded file that requires the use of a scan tool for installation. Kit
increases engine displacement from 1584 to 1690cc.




       HARLEY-DAVIDSON MOTOR COMPANY - SCREAMIN' EAGLE KITS - D-338-61


This Executive Order is granted based on emissions testing data generated on 2008
model year Harley-Davidson Dyna and Softail motorcycle modified with the Screamin' Eagle
1690cc Big Bore Stage-I Kit. The average of the three tests on two motorcycles with the kit is
listed below with deterioration factors applied:
                                                          HC+NOx       CO
                                                                (gmlkm)

2008 Standards                                                0.6         12
Dyna w l Screarnin' Eagle 1690 Big Bore Stage-I Kit           0.29        2.4
Softail w l Screamin' Eagle 1690 Big Bore Stage-I Kit         0.45        3.6

Test results showed that the Screamin' Eagle 1690 Big Bore Stage-I Kit, when installed on the
motorcycles, did not cause tailpipe emissions to exceed the applicable emission standards. The
same emission test results would be expected on applicable 2008 model year Harley-Davidson
motorcycles with the Screamin' Eagle 1690cc Big Bore Stage-I Kit installed.

This Executive Order is valid provided that the installation instructions for the Screamin' Eagle
1690cc Big Bore Stage-I Kits for Harley-Davidson will not recommend tuning the motorcycle to
specifications different from those of the Harley-Davidson Motor Company.

This Executive Order shall not apply to any Harley-Davidson Motor Company Screamin' Eagle
1690cc Big Bore Stqge-I Kits for Harley-Davidson advertised, offered for sale, sold with, or
installed on a motorcycle prior to an ultimate purchaser.

Changes made to the design or operating conditions of the Screamin' Eagle 1690cc Big Bore
Stage-I Kits for Harley-Davidson, as exempt by the Air Resources Board, which adversely
affect the performance of the motorcycle's pollution control system shall invalidate this
Executive Order.

Marketing of the Screamin' Eagle 1690cc Big Bore Stage-I Kits for Harley-Davidson using any
identification other than that shown in this Executive Order or marketing of the Screamin' Eagle
1690cc Big Bore Stage-I Kits for Harley-Davidson for an application other than those listed in
this Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the Screamin' Eagle 1690cc Big Bore Stage-I Kits for Harley-Davidson
shall not be construed as exemption to sell, offer for sale, or advertise any component of the kit
as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the Screamin'
Eagle 1690cc Big Bore Stage-I Kits for Harley-Davidson may have on any warranty either
expressed or implied by the Harley-Davidson Motor Company.

In addition to the foregoing, the Air Resources Board reserves the right in the future to review
this Executive Order and the exemption provided herein to assure that the exempted add-on or
modified part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.




       HARLEY-DAVIDSON MOTOR COMPANY - SCREANIIN' EAGLE KITS - D-338-61


-THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPI-ICANT CONCERNING ANTI-POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY-DAVIDSON MOTOR COMPANY'S SCREAMIN' EAGLE
1690CC BIG BORE STAGE-1 KlTS FOR HARLEY-DAVIDSON.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten-day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and tlie order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.


Executed at El Monte, California, this    5        day of November 2007.




                                Annette Hebert, Chief
                                Mobile Source Operations Division




        HARLEY-DAVIDSON MOTOR COMPANY - SCREANIIN' EAGLE KlTS - D-338-61
