Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 27, 2012.
As of Tuesday, December 11th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
925000112010 to 2012 model year Harley-Davidson Touring motorcycles equipped with a 1688cc engine, (FLHR, FLHX, FLHTCU, FLTRX, FLHRC, FLHTC, FLHTK, FLTRU) engine families, AHDXC1.80AED, BHDXC1.80AED, and CHDXC1.80AED.Screamin' Eagle 1690cc Big Bore Stage IV EFI Kit, P/N 92500011, includes the following main components: Screamin' Eagle CNC ported factory cylinder heads, SE-259E camshafts, 58mm throttle body with intake manifold, and a new ECM calibration. The new ECU calibration has no dealer or user adjustments. A cam drive retention kit and cam spacer kit are required for proper installation.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-66
  • Executive Order 338-66 / D338-66
  • ARB # D-338-66
  • Executive Order No: D-338-66
  • C.A.R.B. No. D-338-66
  • Resolution D-338-66
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-66 PDF

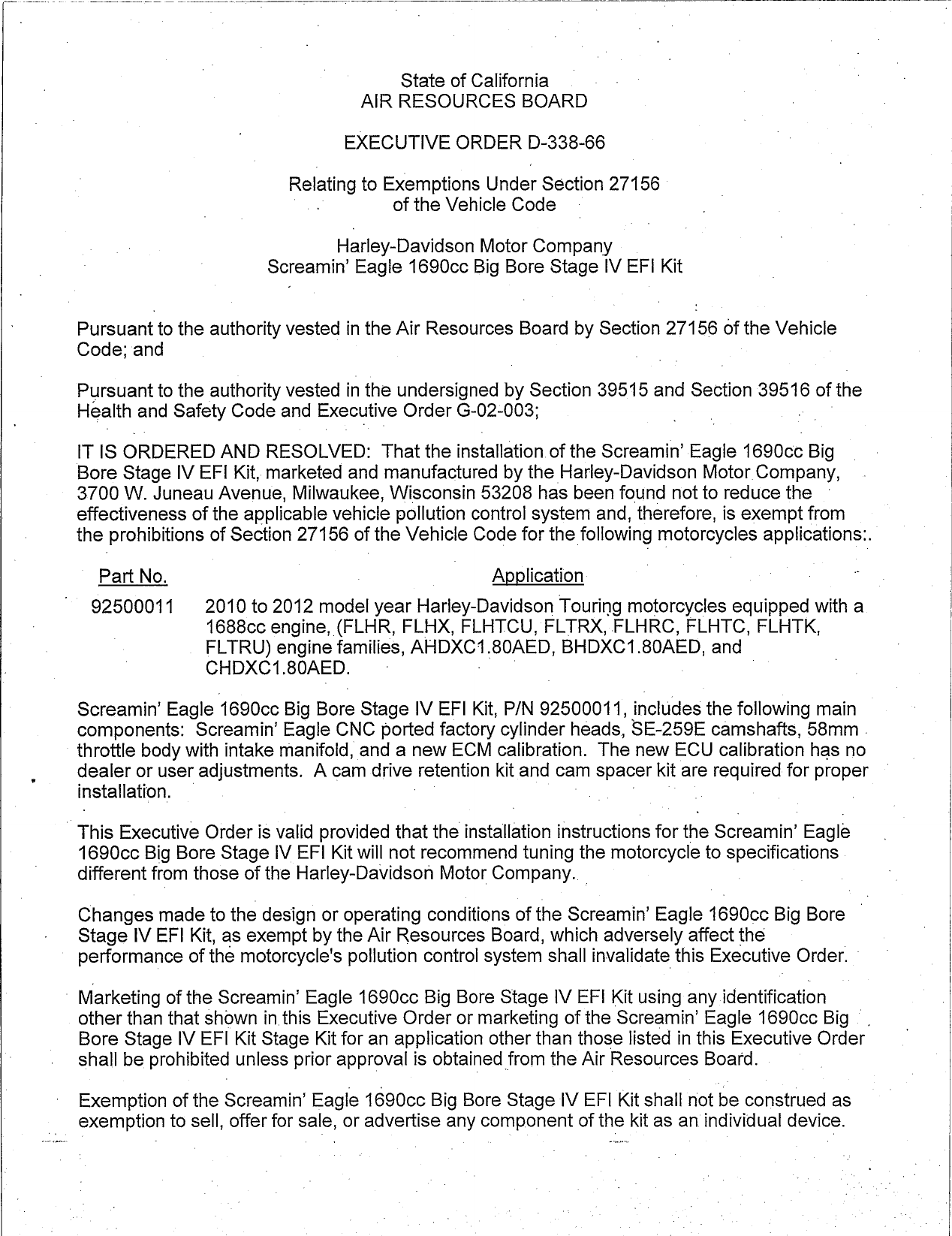

D-338-66 Document:



                                           State of California
                                        AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—338—66

                           Relatmg to Exemptions Under Section 27156
                                       of the Vehicle Code

                                 Harley—Davidson Motor Company
                         Screamin‘ Eagle 1690cc Big Bore Stage IV EFI Kit


 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
 Code; and

 Pursuant to the authority vested iin the undersigned by Section 39515 and Section 39516 of the
 Health and Safety Code and Executlve Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the lnstallatlon of the Screamin‘ Eagle 169000 Big _
 Bore Stage IV EFI Kit, marketed and manufactured by the Harley—Davidson Motor Company,
 3700 W. Juneau Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce the _
 effectiveness of the appllcable vehicle pollution control system and, therefore, is exempt from
 the prohlbltlons of Section 27156 of the Vehicle Code for the followmg motorcycles applications:.

    Part No.                        —            |    Application
   92500011      2010 to 2012 model year Harley—Davidson Touring motorcycles equipped with a
                 1688cc englne [FLHR, FLHX, FLHTCU, FLTRX, FLHRC, FLHTC, FLHTK,
                 FLTRU) engine families, AHDXC1BOAED, BHDXC1.80AED, and _
                 CHDXC1. 80AED        |

 Screamin‘ Eagle 1690cc Big Bore Stage IV EFI Kit, P/N 92500011, mcludes the following main
 components: Screamin‘ Eagle CNC ported factory cylinder heads, SE—259E camshafts, 58mm .
 throttle body with intake manifold, and a new ECM calibration. The new ECU callbratlon has no
 dealer or user adjustments. A cam drlve retentlon kit and cam spacer klt are required for proper
 mstalla’uon ‘                                                              .

This Executive Order is valld provided that theinstallation mstructlons for the Screamln Eagle
 1690cc Big Bore Stage IV EFI Kit will not recommend tuning the motorcycle to specifications
 different from those of the Harley—Davidson Motor Company.. .

 Changes made to the design or operating conditions of the Screamin‘ Eagle 1690cc Big Bore _
 Stage IV EFI Kit, as exempt by the Air Resources Board, which adversely affect the
 performance of the motorcycle‘s pollution control system shall invalidatethis Executlve Order.

' Marketlng of the Screamin‘ Eagle 1690cc Big Bore Stage IV EFI Kit using any ldentlflcatlon
  other than that shown in this Executive Order or marketing of the Screamin‘ Eagle 18690cc Big .
  Bore Stage IV EFI Kit Stage Kit for an application other than those listed in this Executive Order
  shall be prohlblted unless prior approval is obtained from the Air Resources Board.

 Exemption of the Screamin‘ Eagle 1690cc Big Bore Stage IV EFI Kit shall not be construed as
 exemption to sell, offer for sale, or advertise any component of the kit as an individual device.


                                                   2.


This Executive Order does not constitute any opinion as to the effect the use of the Screamin‘
Eagle 1690cc Big Bore Stage IV EFI Kit may have on any warranty either expressed or implied
by the Harley—Davidson Motor Company.

This Executive Order is granted based on emission test results, submitted by Harley—Davidson,
on a 2012 model year 1688cc Harley—Davidson Touring Motorcycle modified with the Screamin‘
Eagle 1690cBig Bore Stage IV EFI Kit installed. The emission test results met the applicable
emission standards when tested using the Cold—Start CVS—75 Federal Test Procedure (FTP)
test cycle. Results from emissions testing conducted at Harley—Davidson Motor Company‘s
emissions faboratory, located in Milwaukee, Wisconsin are shown below (in grams per
kilometer).

                                                                 HC+NOx         CO

Standards                                      .                   0.5     12
Device w/df                                                      . 0.238    4.332

The same emission test results are expected on applicable 2010 to 2012 model year
Harley—Davidson motorcycles with Screamin‘ Eagle 1690cc Big Bore Stage IV EFI Kit installed.

In addition to the foregoing, the Air Resources Board reserves the right in the future to review
this Executive Order and the exemption provided herein to assure that the exempted add—on or
modified part continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY—DAVIDSON MOTOR COMPANY‘S SCREAMIN®‘ EAGLE
18690CC BIG BORE STAGE IV EFI KIT.

No claim 6f any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this    Z 7           day of February 2012.



                           / Annette Hebert, Chief
                                Mobile Source Operations Division


HARLEY—DAVIDSON — SCREAMIN®‘ EAGLE 1690CC BIG BORE STAGE IV EFI KIT —D—338—66 _



Document Created: 2012-03-12 14:26:53
Document Modified: 2012-03-12 14:26:53
