Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 18, 2015.
As of Friday, October 18th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
See PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-338-82
  • Executive Order 338-82 / D338-82
  • ARB # D-338-82
  • Executive Order No: D-338-82
  • C.A.R.B. No. D-338-82
  • Resolution D-338-82
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-338-82 PDF

D-338-82 Document:

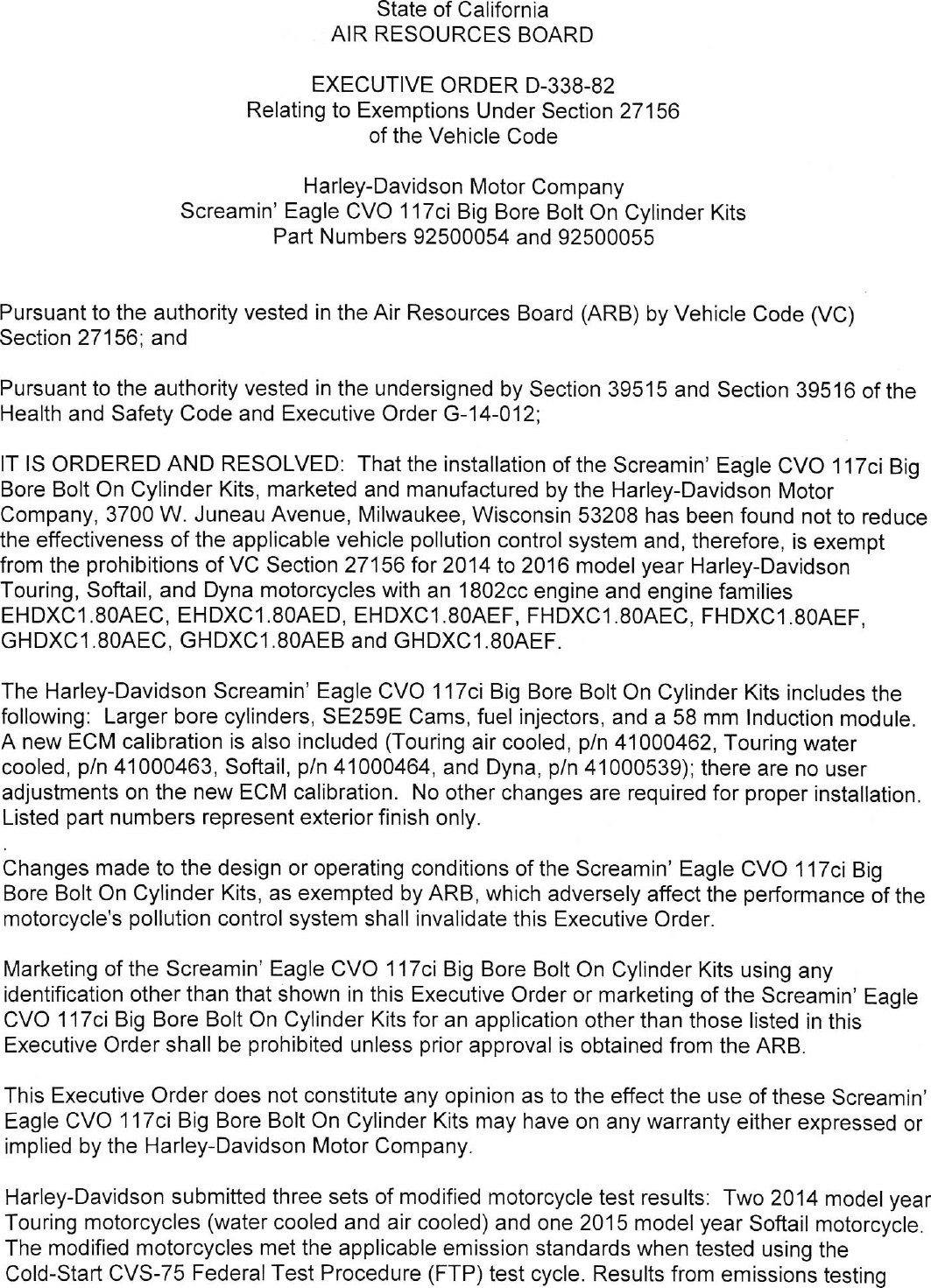

                                       State of California
                                   AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D—338—82
                          Relating to Exemptions Under Section 27156
                                       of the Vehicle Code

                                Harley—Davidson Motor Company
                   Screamin‘ Eagle CVO 117ci Big Bore Bolt On Cylinder Kits
                            Part Numbers 92500054 and 92500055


Pursuant to the authority vested in the Air Resources Board (ARB) by Vehicle Code (VC)
Section 27156; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Screamin‘ Eagle CVO 117.ci Big
Bore Bolt On Cylinder Kits, marketed and manufactured by the Harley—Davidson Motor
Company, 3700 W. Juneau Avenue, Milwaukee, Wisconsin 53208 has been found not to reduce
the effectiveness of the applicable vehicle pollution control system and, therefore, is exempt
from the prohibitions of VC Section 27156 for 2014 to 2016 model year Harley—Davidson
Touring, Softail, and Dyna motorcycles with an 1802cc engine and engine families
EHDXC1.80AEC, EHDXC1.80AED, EHDXC1.80AEF, FHDXC1.80AEC, FHDXC1.80AEF,
GHDXC1.80AEC, GHDXC1.80AEB and GHDXC1.80AEF.

The Harley—Davidson Screamin‘ Eagle CVO 117ci Big Bore Bolt On Cylinder Kits includes the
following: Larger bore cylinders, SE259E Cams, fuel injectors, and a 58 mm Induction module.
A new ECM calibration is also included (Touring air cooled, p/n 41000462, Touring water
cooled, p/n 41000463, Softail, p/n 41000464, and Dyna, p/n 41000539); there are no user
adjustments on the new ECM calibration. No other changes are required for proper installation.
Listed part numbers represent exterior finish only.

Changes made to the design or operating conditions of the Screamin‘ Eagle CVO 117ci Big
Bore Bolt On Cylinder Kits, as exempted by ARB, which adversely affect the performance of the
motorcycle‘s pollution control system shall invalidate this Executive Order.

Marketing of the Screamin‘ Eagle CVO 117.ci Big Bore Bolt On Cylinder Kits using any
identification other than that shown in this Executive Order or marketing of the Screamin‘ Eagle
CVO 117ci Big Bore Bolt On Cylinder Kits for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the ARB.

This Executive Order does not constitute any opinion as to the effect the use of these Screamin‘
Eagle CVO 117ci Big Bore Bolt On Cylinder Kits may have on any warranty either expressed or
implied by the Harley—Davidson Motor Company.

Harley—Davidson submitted three sets of modified motorcycle test results: Two 2014 model year
Touring motorcycles (water cooled and air cooled) and one 2015 model year Softail motorcycle.
The modified motorcycles met the applicable emission standards when tested using the
Cold—Start CVS—75 Federal Test Procedure (FTP) test cycle. Results from emissions testing


conducted at the Harley—Davidson Motor Company‘s emissions laboratory, located in
Milwaukee, Wisconsin, are shown below (in grams per kilometer).

    2014 1802cc Touring                                             CVS—75 FTP
                                                                HC+NOx              CO
    Standards                                                    0.7             12.0
    Air cooled modified                                          0.6              1.4
    Water cooled modified                                        0.5              1.4

    2015 1802cc Softail                                            CVS—75 FTP
                                                                HC+NOx           vol
    Standards                                                    0.8          12.0
    Modified                                                     0.7          2.6

ARB reserves the right in the future to review this Executive Order and the exemption provided
herein to assure that the exempted add—on or modified part continues to meet the standards and
procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF HARLEY—DAVIDSON MOTOR COMPANY‘S SCREAMIN®‘ EAGLE
CVO 117CI BIG BORE BOLT ON CYLINDER KITS .

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     l 3      day of December 2015.




                 Annette Hebert, Chief
                 Emissions Compliance, Automotive Regulations and Science Division




          HARLEY—DAVIDSON MOTOR COMPANY — CYLINDER KITS — D—338—82



Document Created: 2016-05-31 14:11:09
Document Modified: 2016-05-31 14:11:09
