Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 25, 2000.
As of Monday, December 17th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
App, Crank Pulley Dia., Supercharger Dia. 1993-1997 Del Sol DOHC 1.6L,5.4",4.0" 1993-1997 Del Sol SOHC 1.6L,6.16",3.8" 1994-2000 Acura GSR 1.8L,5.63,4.0" 1997/98, 2000 Acura Type R 1.8L,5.20",4.2" 1994-2000 Integra LS/RS/GS Non VTEC 1.8L,5.82",3.2" 1988-1991 Civic Si/EX, CRX Si 1.6L,5.9",3.4" 1992-1995 Civic Si/EX SOHC 1.6L,6.16",3.8" 1996-2000 Civic DX/CX/LX,6.19",4.0" 1996-1998 Civic EX 1.6L,6.19",3.8" 1999/2000 Civic EX 1.6L,6.19",3.8" 1999/2000 Civic Si DOHC 1.6L VTEC,5.40",4.0" 1997-2000 Prelude 2.2L,6.06",3.4" 1997-2000 CR-V 2.0L,6.45",3.4"The Jackson Supercharger Kit includes the following main components: Eaton supercharger, fuel pressure regulator, and an intake manifold. Vehicle certified to Ultra Low Emission Vehicle (ULEV) or lower emission standards are excluded.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-344-6
  • Executive Order 344-6 / D344-6
  • ARB # D-344-6
  • Executive Order No: D-344-6
  • C.A.R.B. No. D-344-6
  • Resolution D-344-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-344-6 PDF

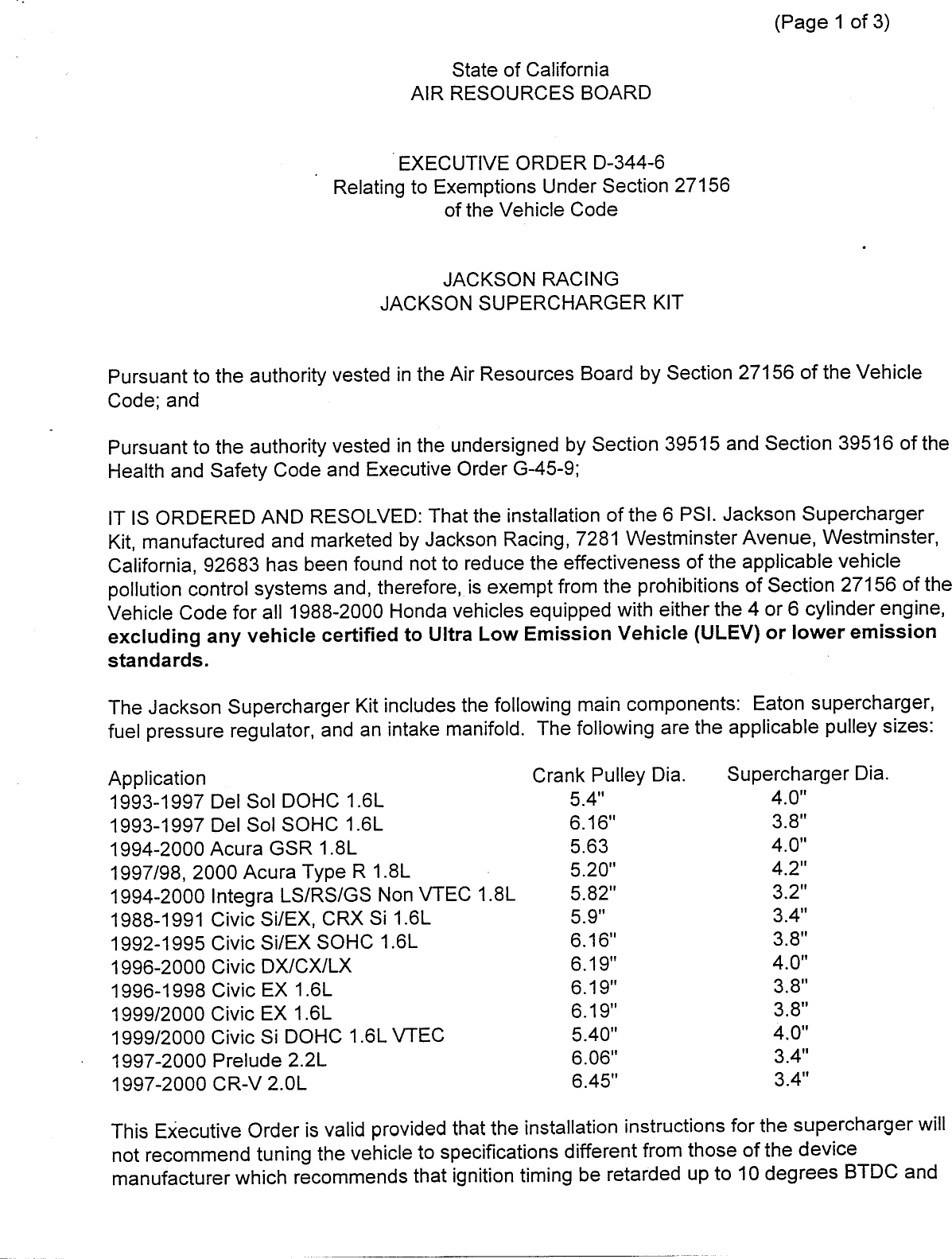

D-344-6 Document:



                                                                               (Page 1 of 3)

                                         State of California
                                     AIR RESOURCES BOARD


                         .         "EXECUTIVE ORDER D—344—6
                             Relating to Exemptions Under Section 27156
                                          of the Vehicle Code


                                      JACKSON RACING
                                 JACKSON SUPERCHARGER KIT


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the 6 PSI. Jackson Supercharger
Kit, manufactured and marketed by Jackson Racing, 7281 Westminster Avenue, Westminster,
California, 92683 has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for all 1988—2000 Honda vehicles equipped with either the 4 or 6 cylinder engine,
excluding any vehicle certified to Ultra Low Emission Vehicle (ULEV) or lower emission
standards.                                                                       -

The Jackson Supercharger Kit includes the following main components: Eaton supercharger,
fuel pressure regulator, and an intake manifold. The following are the applicable pulley sizes:

Application                              Crank Pulley Dia.               Supercharger Dia.
1993—1997 Del Sol DOHC 1.6L                  5.4"                            4.0"
1993—1997 Del Sol SOHC 1.6L                  6.16"                           3.8"
1994—2000 Acura GSR 1.8L                     5.63                            4.0"
1997/98, 2000 Acura Type R 1.8L.     -       5.20"                           4.2"
1994—2000 Integra LS/RS/GS Non VTEC 1.8L     5.82"                           3.2"
1988—1991 Civic SiUTEX, CRX Si1.6L           5.9"                            3.4"
1992—1995 Civic Si/EX SOHC 1.6L              6.16"                           3.8"
1996—2000 Civic DX/CX/LX                     6.19"                           4.0"
1996—1998 Civic EX 1.6L                      6.19"                           3.8"
1999/2000 Civic EX 1.6L                      6.19"                           3.8"
1999/2000 Civic Si DOHC 1.6L VTEC            5.40"                           4.0"
1997—2000 Prelude 2. 2L                               6.06"                   3.4"
1997—2000 CR—V 2.0L                                   6.45"                   3.4"

This Executive Order is valid provided that the installation instructions for the supercharger will
not recommend tuning the vehicle to specifications different from those of the device
manufacturer which recommends that ignition timing be retarded up to 10 degrees BTDC and


  JACKSON RACING                                                 EXECUTIVE ORDER D—344—6
  JACKSON SUPERCHARGER KIT                               ‘       (Page 2 of 3)




  Changes made to the design or operating conditions of the supercharger, as exempt by the Air
  Resources Board, which adversely affect the performance of the vehicle‘s pollution control
  system shall invalidate this Executive Order.

  This Executive Order shall not apply to any 6 PSI. Supercharger Kit advertised, offered for sale,
  or sold with or installed on, a motor vehicle prior to or concurrent with transfer to an ultimate
  purchaser.

  Marketing of the supercharger using any identification other than that shown in this Executive
  Order or marketing of the supercharger for an application other than those listed in this
  Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
  Board. Exemption of the supercharger shall not be construed as exemption to sell, offer for
 sale, or advertise any component of the kit as an individual device.

 This Executive Order does not constitute any opinion as to the effect the use of the
 supercharger may have on any warranty either expressed or implied by the vehicle
 manufacturer.

 This Executive Order is granted based on the following submitted emissions test data on a 1998
 Honda Civic certified to a Low Emission Vehicle (LEV) emission standard:

                    NMOG CO         NOx     HCHO
 Standards          0.075 3.4        0.2    0.015
 device w/ dfs      0.071 1.5       0.      0.002

 Test results showed that tailpipe emissions with the supercharger installed on the vehicle met
 the vehicle‘s applicable emission standard during Cold Start CVS—75 Federal Test Procedure.
 This Executive Order is also based on On Board Diagnostic II (OBD II) testing conducted on the
 same 1998 LEV Civic. Test data showed that the supercharger kit when installed on the vehicle
 did not affect the vehicle‘s ability to perform OBD I! monitoring.

 However, the ARB finds that reasonable grounds exist to believe that use of the Jackson
  Supercharger Kit may adversely affect emissions of motor vehicles when operating under
  conditions outside the parameters of the previously prescribed test procedures. Accordingly,
  the ARB reserves the right to conduct additional emission tests, in the future, as such tests are
  developed, that will more adequately measure emissions from all cycle phases. If such test
_ results demonstrate that the Jackson Supercharger Kit adversely affect emissions during
  off—cycle conditions (defined as those conditions which are beyond the parameters of the
  Cold—Start CVS—75 Federal Test Procedure), this Executive Order shall be effectively rescinded
  as of the date the test results are validated. Further, if such test results or other evidence
  provides the ARB with reason to suspect that the Jackson Supercharger Kit will affect the
 durability of the emission control system, Jackson Racing shall be required to submit durability
 data to show that the durability of the vehicle emission control system is not, in fact, affected
 and/or that the add—on or modified part demonstrates adequate durability.


JACKSON RACING                                                    EXECUTIVE ORDER D—344—6
JACKSON SUPERCHARGER KIT                                          (Page 3 of 3)




In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of Regulations,
Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF JACKSON RACING‘S SUPERCHARGER.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which
period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination after hearing that grounds for revocation
exist.

Executive Order D—344—5, dated January 1999, is superseded and of no further force and effect.
                           ;                 *h
Executed at El Monte, California, this   &    day of September 2000.




                                   . B. Simmerfield, Chief
                                  Mobile Source Operations Division



Document Created: 2005-09-01 12:45:01
Document Modified: 2005-09-01 12:45:01

Previous E.O. D-344-5 | Previous E.O. D-343 | Next E.O. D-344-7 | Next E.O. D-345
