Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 10, 2002.
As of Sunday, June 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2000 through 2002 Ford Focus vehiclesThe Ford Focus Supercharger Kit includes the following main components: Eaton supercharger with a 3.0" diameter pulley designed to give a maximum boost of 6 psi at redline, and a new intake manifold. The factory air filter housing is retained.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-344-9
  • Executive Order 344-9 / D344-9
  • ARB # D-344-9
  • Executive Order No: D-344-9
  • C.A.R.B. No. D-344-9
  • Resolution D-344-9
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-344-9 PDF

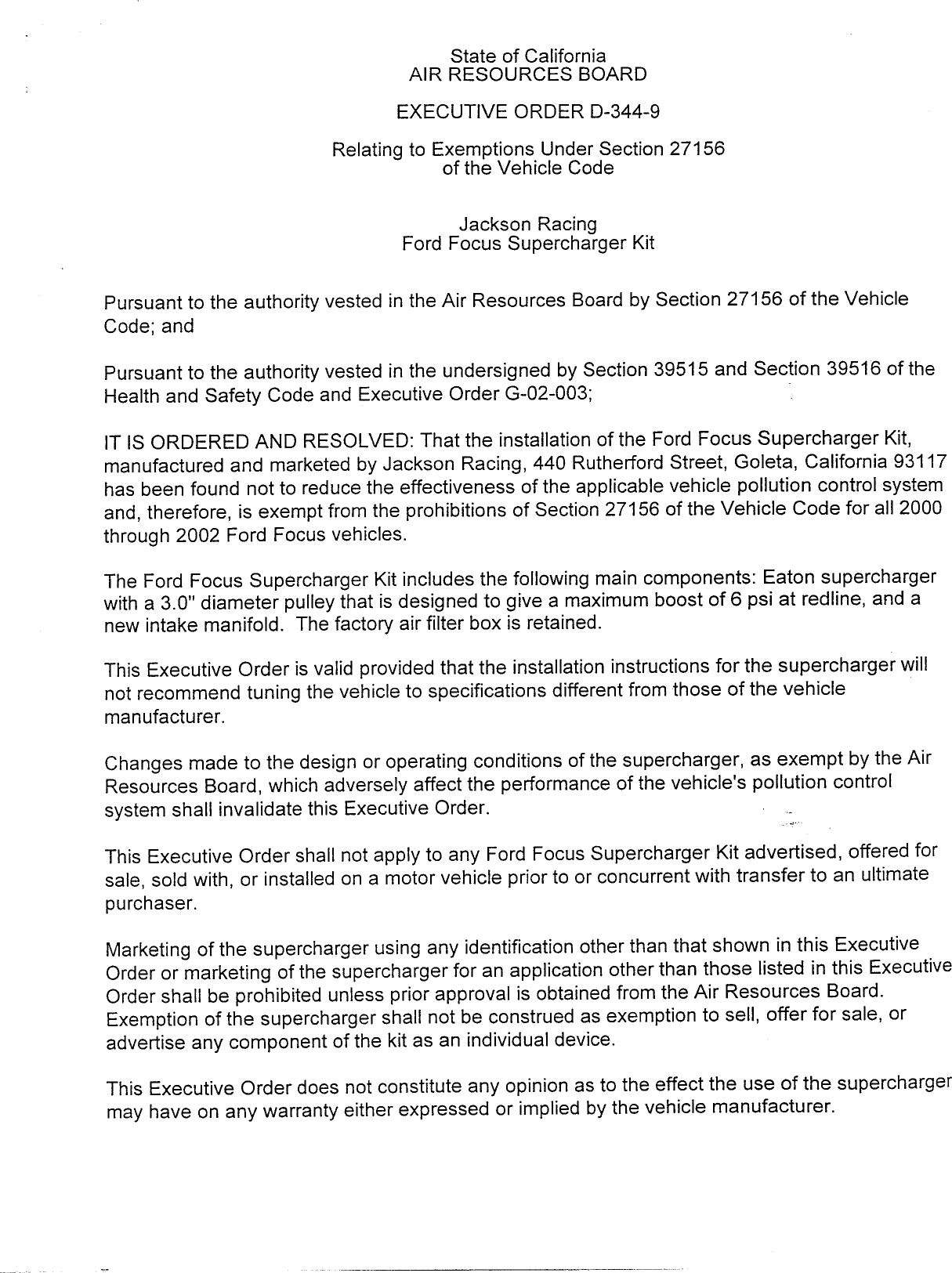

D-344-9 Document:



                                         State of California
                                     AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—344—9
                           Relating to Exemptions Under Section 27156
                                        of the Vehicle Code

                                          Jackson Racing
                                    Ford Focus Supercharger Kit


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the
Health and Safety Code and Executive Order G—02—003;                         .

IT IS ORDERED AND RESOLVED: That the installation of the Ford Focus Supercharger Kit,
manufactured and marketed by Jackson Racing, 440 Rutherford Street, Goleta, California 93117
has been found not to reduce the effectiveness of the applicable vehicle pollution control system
and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for all 2000
through 2002 Ford Focus vehicles.

The Ford Focus Supercharger Kit includes the following main components: Eaton supercharger
with a 3.0" diameter pulley that is designed to give a maximum boost of 6 psi at redline, and a
new intake manifold. The factory air filter box is retained.

This Executive Order is valid provided that the installation instructions for the superchargek will
not recommend tuning the vehicle to specifications different from those of the vehicle
manufacturer.

Changes made to the design or operating conditions of the supercharger, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution control
system shall invalidate this Executive Order.

This Executive Order shall not apply to any Ford Focus Supercharger Kit advertised, offered for
sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.

Marketing of the supercharger using any identification other than that shown in this Executive
Order or marketing of the supercharger for an application other than those listed in this Executive
Order shall be prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of the supercharger shall not be construed as exemption to sell, offer for sale, or
advertise any component of the kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the supercharger
may have on any warranty either expressed or implied by the vehicle manufacturer.


                                                  _2

This Executive Order is granted based on emissions test data generated on a 2002 Ford Focus
certified to the Ultra Low—Emission Vehicle (ULEV) emission standards. Emission levels of the
modified vehicle met the applicable emission standards over the Cold—Start CVS—75 Federal Test
Procedure (FTP) and the Supplemental Federal Test Procedure (USO6/SC03) test cycles.
Results are in grams per mile with deterioration factors added to CVS—75 results:

                             CVS—75                           USO6/SCO3

                  NMOG CO         NOx     HCHO           NMHC+NOx        CO
Standards         0.040 1.7       0.2     0.008          0.14/0.20       8.0/2.7
Device            0.034 0.6       0.04    0.001          0.06/0.01       0.6/0.1

This Executive Order is also based on an On—Board Diagnostic II (OBD 11) test conducted on the
same test vehicle. Test data showed that the supercharger when installed on the vehicle did not
affect the vehicle‘s ability to perform its OBD II monitoring.              '

In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part continues
to meet the standards and procedures of Title 13, California Code of Regulations, Section 2222, et
seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD
OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF JACKSON RACING‘S FORD FOCUS SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect
to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order
may be revoked only after a ten—day written notice of intention to revoke the order, in which period
the holder of the order may request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the request and the order may
not be revoked until a determination has been made after the hearing that grounds for revocation
exist.

Executed at El Monte, California, this   [Qfl* day of June 2002.




                                 Alle%ons, Chief
                                 Mobile Source Operations Division




                JACKSON RACING—FORD FOCUS SUPERCHARGER KIT—D—344—9



Document Created: 2005-09-01 12:44:49
Document Modified: 2005-09-01 12:44:49
