Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 26, 2004.
As of Sunday, September 15th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
1FE212-SCI1999-2004 Mustang GTstock airbox replaced; stock fuel pump replaced; stock ECM replaced; air-to-air intercoolerMax Boost: 8 psi

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-365-5
  • Executive Order 365-5 / D365-5
  • ARB # D-365-5
  • Executive Order No: D-365-5
  • C.A.R.B. No. D-365-5
  • Resolution D-365-5
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-365-5 PDF

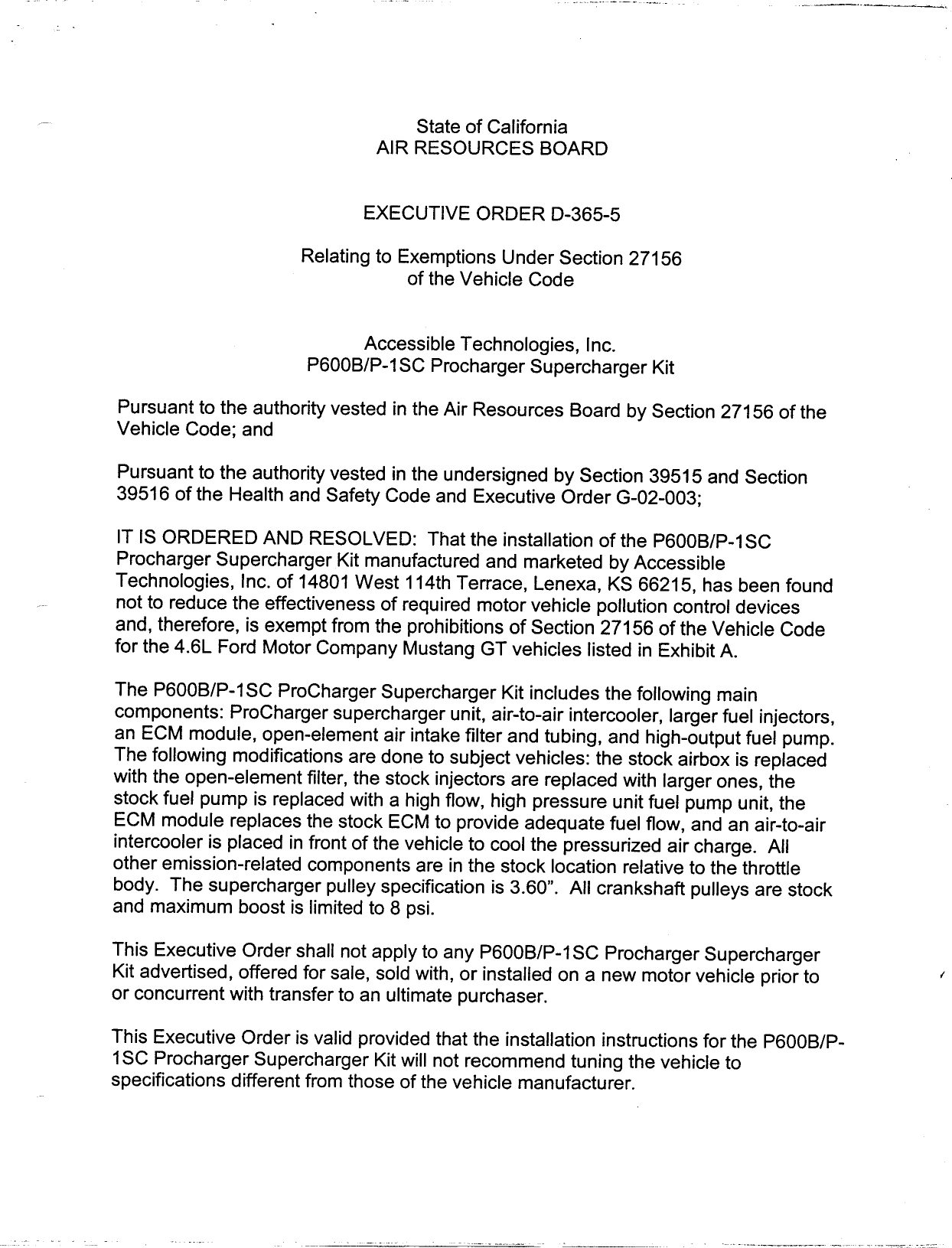

D-365-5 Document:


CARB_D-365-5

                                     State of California
                                AIR RESOURCES BOARD


                              EXECUTIVE ORDER D—365—5

                       Relating to Exemptions Under Section 27156
                                    of the Vehicle Code


                               Accessible Technologies, Inc.
                        P6OOB/P—1SC Procharger Supercharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the P6OOB/P—1SC
Procharger Supercharger Kit manufactured and marketed by Accessible
Technologies, Inc. of 14801 West 114th Terrace, Lenexa, KS 66215, has been found
not to reduce the effectiveness of required motor vehicle pollution control devices
and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code
for the 4.6L Ford Motor Company Mustang GT vehicles listed in Exhibit A.

The P600B/P—1SC ProCharger Supercharger Kit includes the following main
components: ProCharger supercharger unit, air—to—air intercooler, larger fuel injectors,
an ECM module, open—element air intake filter and tubing, and high—output fuel pump.
The following modifications are done to subject vehicles: the stock airbox is replaced
with the open—element filter, the stock injectors are replaced with larger ones, the
stock fuel pump is replaced with a high flow, high pressure unit fuel pump unit, the
ECM module replaces the stock ECM to provide adequate fuel flow, and an air—to—air
intercooler is placed in front of the vehicle to cool the pressurized air charge. All
other emission—related components are in the stock location relative to the throttle
body. The supercharger pulley specification is 3.60". All crankshaft pulleys are stock
and maximum boost is limited to 8 psi.

This Executive Order shall not apply to any P6OOB/P—1SC Procharger Supercharger
Kit advertised, offered for sale, sold with, or installed on a new motor vehicle prior to
or concurrent with transfer to an ultimate purchaser.

This Executive Order is valid provided that the installation instructions for the P6O0B/P—
185C Procharger Supercharger Kit will not recommend tuning the vehicle to
specifications different from those of the vehicle manufacturer.


                                            2.


Changes made to the design or operating conditions of the devices, as exempted by the
Air Resources Board (ARB), that adversely affect the performance of a vehicle‘s
pollution control system shall invalidate this Executive Order.

Marketing of these devices using any identification other than that shown in this
Executive Order or marketing of this device for an application other than those listed in
this Executive Order shall be prohibited unless prior approval is obtained from the ARB.

This Executive Order does not constitute any opinion as to the effect that the use of
these devices may have on any warranty either expressed or implied by the vehicle
manufacturer.

This exemption is issued based on submitted emissions test data from an independent
laboratory on a 2004 model year Ford Motor Company Mustang GT vehicle (Test Group
4FMXVO4.6VHA) certified to the Uitra Low Emission Vehicle (ULEV) and Supplemental
Federal Test Procedure (SFTP) standards:

Federal Test Procedure:

                                                  NMOG         CO        NOX
Standards (g/mi)                                  0.100        3.4       0.14
Device (g/mi) with df‘s applied                   0.074        0.9       0.05

SFTP (USO6 Cycle):

                                                  NMHC+NOX              CO
Standards (g/mi)                                     0.14               8.0
Device (g/mi)                                          0.07             3.1

SFTP (SCO03 Alternative AC2 Cycle):

                                                  NMHC+NOX             CO
Standards (g/mi)                                       0.20            2.7
Device (g/mi)                                          0.02            0.1

Test results showed that the P60O0B/P—1SC Procharger Supercharger Kit when installed
on the vehicle did not cause exhaust emissions to exceed the applicable emission
standards during the Cold Start CVS—75 Federal Test Procedure or SFTP cycles. This
Executive Order is also based on the On—Board Diagnostic !I (OBD II) testing conducted
on the same test vehicle. The P60O0B/P—1SC Procharger Supercharger Kit when
installed on the test vehicle did not affect the vehicle‘s ability to perform its OBD 11
monitoring.

In addition, the ARB reserves the right in the future to review this Executive Order and
the exemption provided herein to assure that the exempted add—on or modified part



ACCESSIBLE TECHNOLOGIES, INC —P600B/P—1SC PROCHARGER SUPERCHARGER KIT — D—365—5


                                           —3.


continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE P6OOB—P—1SC
PROCHARGER SUPERCHARGER KIT.

No claims of any kind, such as "Approved by the Air Resources Board" may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.


Executed at El Monte, California, this @‘”‘/ day of February 2004.




                                       MoBile Source Operations Division




ACCESSIBLE TECHNOLOGIES, INC —P600B/P—1SC PROCHARGER SUPERCHARGER KIT — D—365—5


                                     Exhibit A
                                   (EO# D—365—5)

                                                                  crank    Supercharger
   Vehicle Models      Displ.        Description       Part #     pulley    pulley size
                                                                  size*
1999—2004 Mustang GT   4.6L     2 core, air—to—air   1FE212—SCI   stock       3.60"
                                intercooled, 8 psi



Document Created: 2005-09-01 12:40:38
Document Modified: 2005-09-01 12:40:38
