Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 8, 1995.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModels
59-7701995 and older Harley Davidson motorcycles equipped with the 1338 cc engine, EXCEPT those equipped with a factory fuel injection system.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-368-4
  • Executive Order 368-4 / D368-4
  • ARB # D-368-4
  • Executive Order No: D-368-4
  • C.A.R.B. No. D-368-4
  • Resolution D-368-4
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-368-4 PDF

D-368-4 Document:

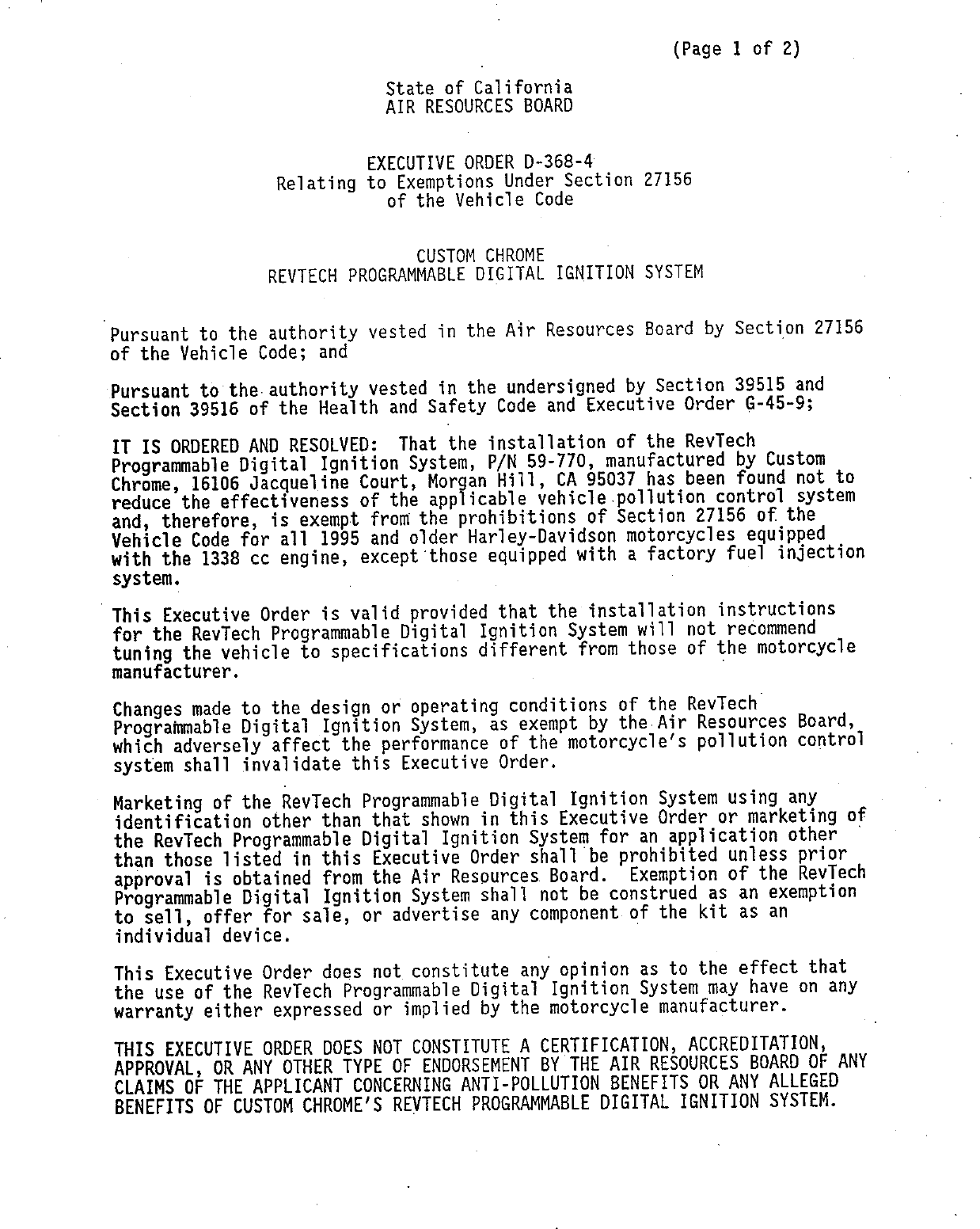

                                                            (Page 1 of 2)
                              State of California
                              AIR RESOURCES BOARD


                          EXECUTIVE ORDER D—368—4
                 Relating to Exemptions Under Section 27156
                            of the Vehicle Code


                               CUSTOM CHROME
                REVTECH PROGRAMMABLE DIGITAL IGNITION SYSTEM


'Pursuant to the authority vested in the Air Resources Board by Section 27156
 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and
Section 39516 of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED:    That the installation of the RevTech
Programmable Digital Ignition System, P/N 59—770, manufactured by Custom
Chrome, 16106 Jacqueline Court, Morgan Hill, CA 95037 has been found not to
reduce the effectiveness of the applicable vehicle pollution control system
and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for all 1995 and older Harley—Davidson motorcycles equipped
witg the 1338 cc engine, except those equipped with a factory fuel injection
system.                  .
This Executive Order is valid provided that the installation instructions
for the RevTech Programmable Digital Ignition System will not recommend
tuning the vehicle to specifications different from those of the motorcycle
manufacturer.                                                 j

Changes made to the design or operating conditions of the RevTech
Programmable Digital   Ignition System, as exempt by the. Air Resources Board,
which adversely affect the performance of the motorcycle‘s pollution control
system shall invalidate this Executive Order.

Marketing of the RevTech Programmable Digital Ignition System using any
identification other than that shown in this Executive Order or marketing of
the RevTech Programmable Digital Ignition System for an application other
than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board. Exemption of the RevTech
Programmable Digital Ignition System shall not be construed as an exemption
to sell, offer for sale, or advertise any component of the kit as an
individual device.

This Executive Order does not constitute any opinion as to the effect that
the use of the Revfech Programmable Digital Ignition System may have on any
warranty either expressed or implied by the motorcycle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF CUSTOM CHROME‘S REVTECH PROGRAMMABLE DIGITAL IGNITION SYSTEM.


 CUSTOM CHROME   >                                       EXECUTIVE ORDER D—368—4
 Ignition System     .                                    (Page 2 of 2)



No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
 oral or written communication.

 Violation of any of the above conditions shall be grounds for revocation of
 this order. The order may be revoked only after ten day written notice of
 intention to revoke the order, in which period the holder of the order may
 request in writing a hearing to contest the proposed revocation. If a
 hearing is requested, it shall be held within ten days of receipt of the
+ request and the order may not be revoked until a determination after hearing
 that grounds —for revocation exist.                z,
                                               oA
 Executed at El Monte, California, this   25        day of December 1995.




                                        . B. Sypmfierfield
                                       Assistant Division CWief
                                       Mobile Source Division


                          State of California
                          AIR RESOURCES BOARD




EVALUATION OF CUSTOM CHROME‘S REVTECH PROGRAMMABLE DIGITAL IGNITION SYSTEM
           FOR EXEMPTION FROM THE PROHIBITIONS OF VEKICLE CODE
     SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                      CALIFORNIA CODE OF REGULATIONS




                             December 1995


                            State of California
                            AIR RESOURCES BOARD




 EVALUATION OF CUSTOM CHROME‘S REVTECH PROGRAMMABLE DIGITAL IGNITION SYSTEM
            FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
      SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS




                                      by
                           Mobile Source Division
                            9528 Telstar Avenue
                            E1 Monte, CA   91731




(This report has been reviewed by the staff of the—California Air Resources
Board and approved for publication.   Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                  SUMMARY



       Custom Chrome of 16106 Jacqueline Court, Morgan Hill, California 95037

has applied for an exemption from the prohibitions in Section 27156 of the

Ca]iforn%a Vehicle Code {VC) for the RevTech Programmable Digital Ignition
System, part no. 59—770, for all 1995 and older Harley—Davidson motorcycles

equipped with the 1338 cc engine, except those equipped with a factory fuel

injection system.

       Based on submitted emissions test data, the staff concludes that the
RevTech Programmable Digital Ignition System will not adversely affect exhaust

emissions from the Harley—Davidson motorcycles for which the exemption is

requested.

       The staff recommends that Custom Chrome be granted an exemption as

requested and that Executive Order D—368—4 be issued.


                                  TABLE OF CONTENTS



                                                          Page Number



  SUMMARY                                                         i
  CONTENTS                                            '           11
  I.        INTRODUCTION                                          1
  I1.       CONCLUS ION                                           1
  III.      RECOMMENDATION                                        1
  IV.       IGNITION SYSTEM DESCRIPTION                           1
« V.        DISCUSSION OF THE IGNITION SYSTEM                 ’   3




                                          i1


     EVALUATION OF CUSTOM CHROME‘S REVTECH PROGRAMMABLE DIGITAL IGNITION SYSTEM
              FOR AN EXEMPTION FROM THE PROHIBITIONS OF VEKHICLE CODE
          SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                           CALIFORNIA CODE OF REGULATIONS
I.      ~ INTRODUCTION
         Custom Chrome of 16106 Jacqueline Court, Morgan Hill, California 95037
has applied for an exemption from the prohibitions in Section 27156 of the

California Vehicle Code (VC) for the RevTech Programmable Digital Ignition
System, part no. 59—770, for all 1995 and older Harley—Davidson motorcycles

equipped with the 1338 cc engine, except those equipped with a factory fuel

injection system.

II.‘     CONCLUS IONS
         Based on submitted emissions test data, the staff concludes that the

RevTech Programmable Digital Ignition System will not adversely affect exhaust

emissions from the Harley—Davidson motorcycles for which the exemption is

requested.

III.      RECOMMENDATION
         The staff recommends that Custom Chrome be granted an exemption for

their RevTech Programmable Digital Ignition System for all 1995 and older

Harley—Davidson motorcycles equipped with the 1338 cc engine, except those

equipped with a factory fuel injection system.      The staff also recommends that

Executive Order D—368—4 be issued.
IV.      IGNITION SYSTEM DESCRIPTION
         The RevTech Programmable DiQita] Ignition System has been specifically

designed for installation on Harley—Davidson motorcycles equipped with the
1338 cc motor.    The ignition system operates in conjunction with the original

equipment manufacturer‘s (OEM) fuel delivery system along with the emission

control system a]readyvcertified with the stock engine.     The primary purpose of
                                          —1—


the ignition system is to enhance the motorcycle‘s overal} performance by

modifying the OEM ignition timing curve.         The RevTech Programmable Digital

Ignition System also has a built—in rev. limiter and a firing mode select.

       The RevTech Programmable Digital Ignition System has been designed to
allow the Harley—Davidson owners the ability to.configure the ignition system

to match their own requirements.        With four preprogrammed timing curves

installed, the Harley—Davidson owner can adjust the ignition system to

accommodate fuel grade, air temperature, and engine hardware.         Table 1 list the

conditions that work best with each pre—programmed ignition curve.


                                        Table 1.

Advance Curve                 Description

     Curve 1                       Stock engine, cool air temperature, or high
                                   octane fuel, this curve brings up the advance
                                   earliest and to the highest final vailue.

     Curve 2                       Slightly modified engine, warmer air
                  '                temperature, regular grade fuel, this curve
                                   brings up the advance a little slower than
                                   curve 1 to prevent detonation on near stock
                                   motors.

     Curve 3                       Performance engine, high compression, poor
                                   quality fuel, hot air temperature, this curve
                                   is good for built motors that tend to detonate,
                                   advance comes in slower than curve 2 and to a
                                   lower final value.

     Curve 4                       High performance engine, high compression, poor
                                   fuel quality, hot air temperatures, this curve
                                   should only be used if your motor still
                                   detonates using curve 3, advance is brought in
                                   still slower and to a lesser final than curve
                                   3.


       In addition to the adjustable timing feature of the ignition system, it

also includes a rev. unit select and a firing mode select.        The rev. unit

select allows the rider to either maintain the factory 6000 rpm rev. limit or

switch to a 6500, 7000, or 7500 rpm rev. limit.        The firing mode select allows

the rider to choose either a dual or a single spark mode.
                                           —2—


v.       DISCUSSION OF THE IGNITION _SYSTEM
         A 1989 Harley—Davidson with a 1338 cc engine was used for the evaluation

_of the RevTech Programmable Digital Ignition System.         Emissions testing was

conducted by Compliance and Research Services, Inc. of Linden, New Jersey for

Custom Chrome, and consisted of eleven Cold Start CVS—75 emissions tests on
various modified configurations.       The ARB did not pefform emissions tesfing to

confirm the test results submitted by the applicant.          A summary of the test

results is shown below with DFs applied:

                              Exhaust Emission Test Results
                                 Exhaust Emissions (gm/km)
# of Plugs            Spark             Mode         HC                    Co

  4                Single Fire        Curve 1       0.504                 3.712
     4              Dual Fire         Curve 1       0 .648                3.967

     4             Single Fire       \Curve 2       0.582                 3.769
     2             Single Fire        Curve 2       0.811                 7.310
     4              Dual Fire         Curve 2       0.835                 3.244

     2             Single Fire        Curve 3       0.679                 4.129
     4              Dual Fire         Curve 3       0.607                 5.199

     4             Single Fire        Curve 4       0.642                 4.962
     2             Single Fire        Curve 4       0.672                 5.261
     4              Dual Fire         Curve 4       0.711                 5.882
     2             Single Fire        Curve 4       0.572                 5.261

                                 Standards          1.0                  12.0

         Results from the emissions testing conducted at Compliance and Research

Services, Inc. have demonstrated that the installation of the ignition systefi

does not cause tailpipe emissions to exceed the applicable emission standards.

fherefofie, based on the test results, the staff concludes that the installation

of Cugtom Chrome‘s RevTech Programmable Digital Ignition System, will not have

an adverse effect on those applicable motorcycles.

         Custom Chrome, Inc. has submitted all the required information and
fulfilled the requirements for an exemption.
                                             —3—



Document Created: 2005-09-01 12:42:32
Document Modified: 2005-09-01 12:42:32

Previous E.O. D-368-3 | Previous E.O. D-367 | Next E.O. D-368-5 | Next E.O. D-369
