Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on December 16, 2009.
As of Sunday, September 15th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
TFS-304000011986 and Older GM vehicles with 5.0L-6.6L V8 enginesPerimeter bolt valve covers

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-369-16
  • Executive Order 369-16 / D369-16
  • ARB # D-369-16
  • Executive Order No: D-369-16
  • C.A.R.B. No. D-369-16
  • Resolution D-369-16
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-369-16 PDF

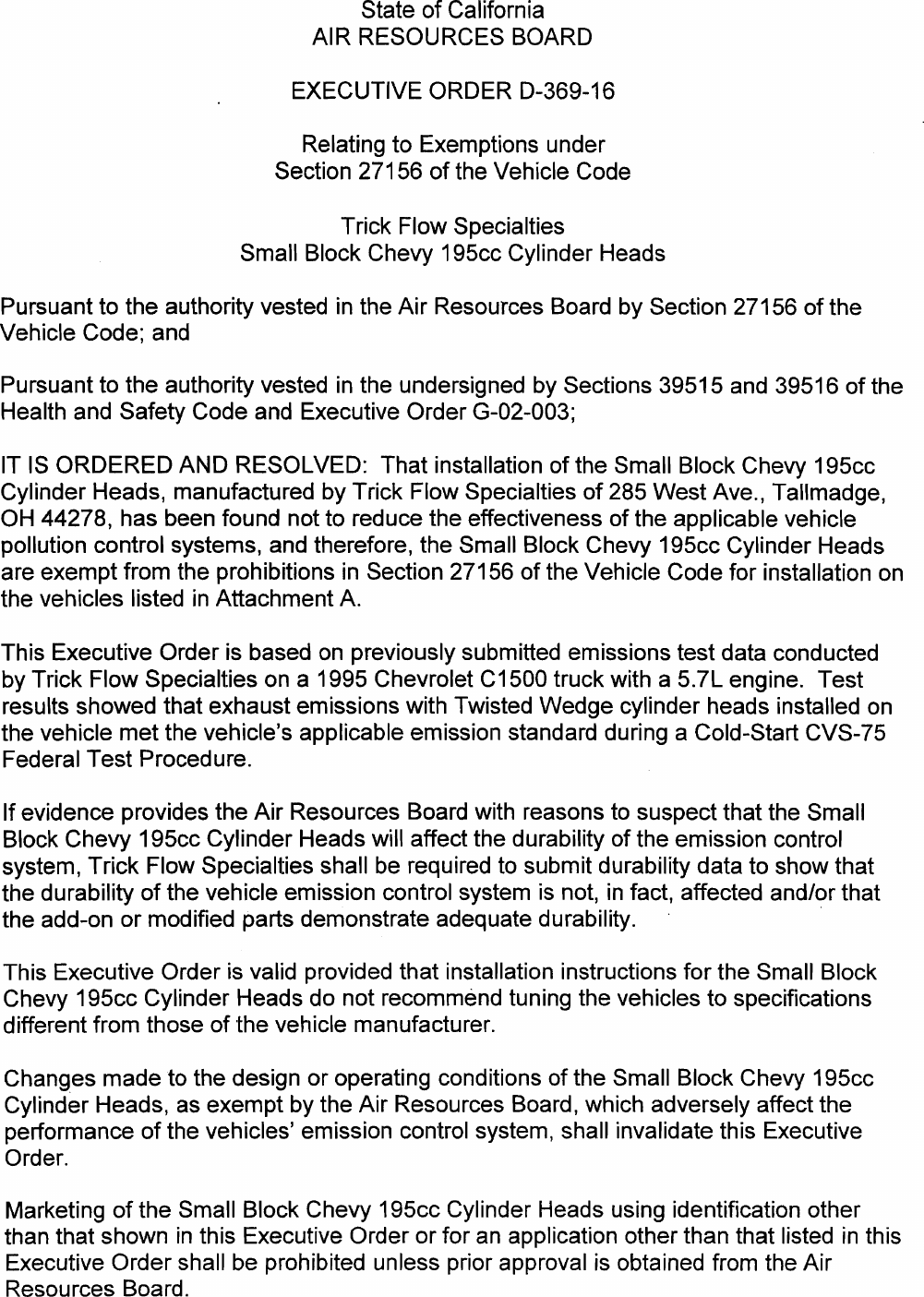

D-369-16 Document:


CARB_D-369-16

                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D-369-16

                              Relating to Exemptions under
                            Section 27156 of the Vehicle Code

                                 Trick Flow Specialties
                        Small Block Chevy 195cc Cylinder Heads

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That installation of the Small Block Chevy 195cc
Cylinder Heads, manufactured by Trick Flow Specialties of 285 West Ave., Tallmadge,
OH 44278, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems, and therefore, the Small Block Chevy 195cc Cylinder Heads
are exempt from the prohibitions in Section 27156 of the Vehicle Code for installation on
the vehicles listed in Attachment A.

This Executive Order is based on previously submitted emissions test data conducted
by Trick Flow Specialties on a 1995 Chevrolet C1500 truck with a 5.7L engine. Test
results showed that exhaust emissions with Twisted Wedge cylinder heads installed on
the vehicle met the vehicle's applicable emission standard during a Cold-Start CVS-75
Federal Test Procedure.

If evidence provides the Air Resources Board with reasons to suspect that the Small
Block Chevy 195cc Cylinder Heads will affect the durability of the emission control
system, Trick Flow Specialties shall be required to submit durability data to show that
the durability of the vehicle emission control system is not, in fact, affected andlor that
the add-on or modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the Small Block
Chevy 195cc Cylinder Heads do not recommend tuning the vehicles to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Small Block Chevy 195cc
Cylinder Heads, as exempt by the Air Resources Board, which adversely affect the
performance of the vehicles' emission control system, shall invalidate this Executive
Order.

Marketing of the Small Block Chevy 195cc Cylinder Heads using identification other
than that shown in this Executive Order or for an application other than that listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air
Resources Board.


Exemption of the Small Block Chevy 195cc Cylinder Heads shall not be construed as
exemption to sell, offer for sale, or advertise any component of the system as an
individual device.

This Executive Order shall not apply to any Small Block Chevy 195cc Cylinder Heads
advertised, offered for sale, sold with, or installed on a motor vehicle prior to or
concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Small Block Chevy 195cc Cylinder Heads may have on any warranty either expressed
or implied by the vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add-on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF TRICK FLOW
SPECIALTIES' SMALL BLOCK CHEVY 195cc CYLINDER HEADS.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this    /        day of December 2009.




                                         Annette Hebert, Chief
                                         Mobile Source Operations Division




    'TRICK FLOW SPECIALl'IES - SMALL BLOCK CHEVY 1 9 5 CYLINDER
                                                       ~ ~      HEADS - D-369-16


                                       Attachment A


                                       Trick Flow Specialties

                              Small Block Chevy 195cc Cylinder Heads

   Part Number               Model Year                          Model Specification

  TFS-30400001             1986 and Older     GM vehicles with 5.OL-6.6L V8 engine
                                              GM vehicles with 5.OL-6.6L V8 engine, with valve spring
  TFS-30400002             1986 and Older
                                              GM vehicles with 5.OL-6.6L V8 engine, with valve spring
  TFS-30400003             1986 and Older
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
  TFS-30400005               1987-1995
                                              engine
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
  TFS-30400006               1987-1995
                                              engine, with valve spring option
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
  TFS-30400007                987-1995
                                              engine, with valve spring option


TFS-30400001-M64           1986 and Older     GM vehicles with 5.OL-6.6L V8 engine
                                              GM vehicles with 5.OL-6.6L V8 engine, with valve spring
TFS-30400002-M64           1986 and Older
                                              GM vehicles with 5.OL-6.6L V8 engine, with valve spring
TFS-30400003-M64           1986 and Older
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
TFS-30400005-M64             1987-1995
                                              engine
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
TFS-30400006-M64             1987-1995
                                              engine, with valve spring option
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
TFS-30400007-M64             1987-1995
                                              engine, with valve spring option
                                              GM vehicles with 5.OL-6.6L V8 engine, with valve spring
TFS-30400012-M72           1986 and Older
                                              GM vehicles with 5.OL-6.6L V8 engine, with valve spring
TFS-30400013-M72           1986 and Older
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
TFS-30400014-M72             1987-1995
                                              engine, with valve spring option
                                              GM vehicles with 5.OL-6.6L V8 engine, excluding LT-1
TFS-30400015-M72               987-1 995      engine, with valve spring option

Note:

M64 and M72 in part nurrlber indicate a Computer Numerical Control machined cylinder head.




        TRICK FLOW SPECIALTIES - SMALL BLOCK CHEVY 1 9 5 CYLINDER
                                                         ~ ~      HEADS - D-369-16



Document Created: 2009-12-17 15:42:04
Document Modified: 2009-12-17 15:42:04
