Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 16, 2008.
As of Thursday, December 13th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
TFS-303000011986 and older GM vehicles with 4.2L-5.7L V8 engineAluminum cylinder head, 1.94" diameter intake valve, 1.50" diameter exhaust valve, 56cc chamber volume

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-369-6
  • Executive Order 369-6 / D369-6
  • ARB # D-369-6
  • Executive Order No: D-369-6
  • C.A.R.B. No. D-369-6
  • Resolution D-369-6
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-369-6 PDF

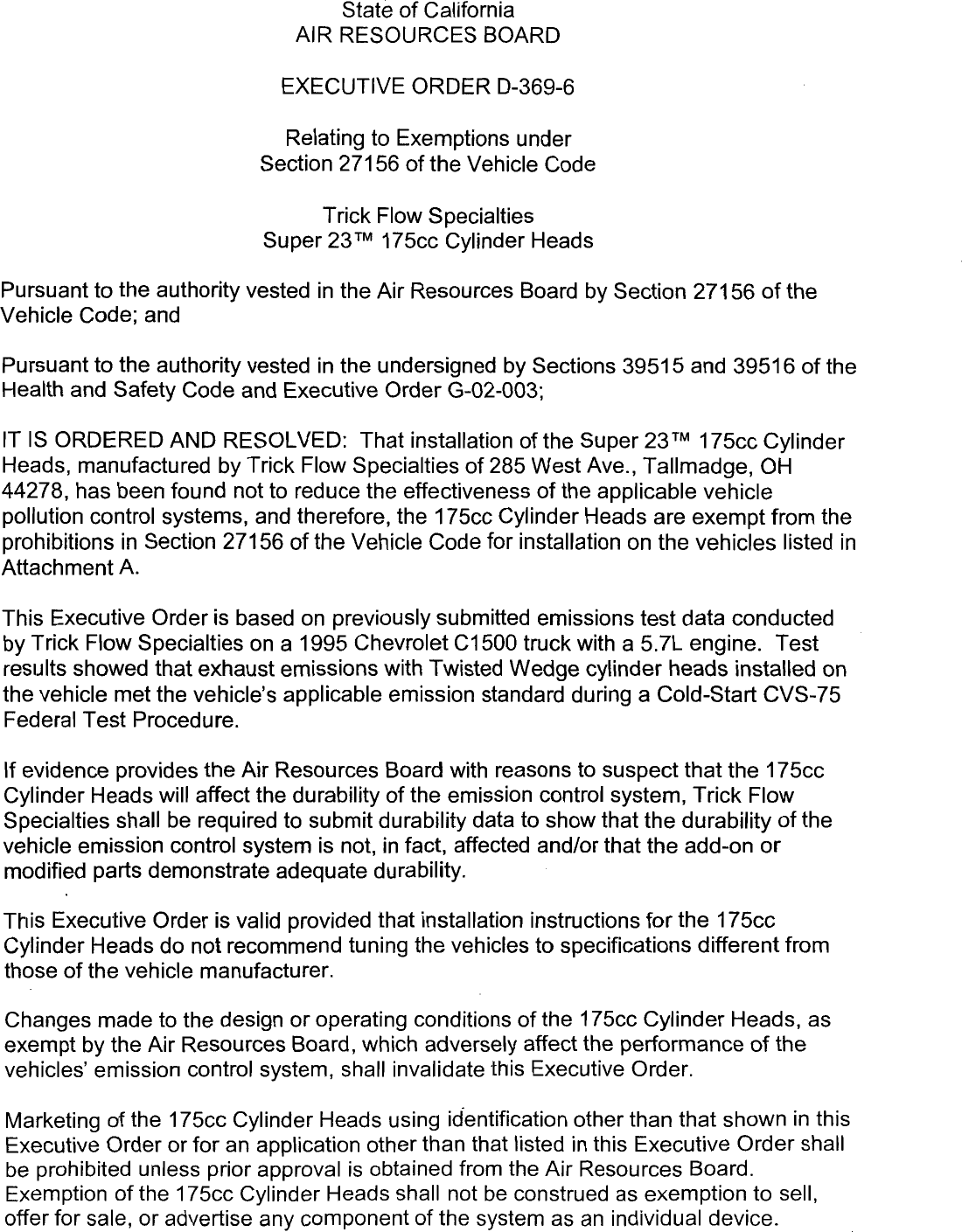

D-369-6 Document:



                                   State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—369—6

                              Relating to Exemptions under
                           Section 27156 of the Vehicle Code

                                 Trick Flow Specialties
                            Super 23175cc Cylinder Heads

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That installation of the Super 23"" 175cc Cylinder
Heads, manufactured by Trick Flow Specialties of 285 West Ave., Tallmadge, OH
44278, has been found not to reduce the effectiveness of the applicable vehicle
pollution control systems, and therefore, the 175cc Cylinder Heads are exempt from the
prohibitions in Section 27156 of the Vehicle Code for installation on the vehicles listed in
Attachment A.

This Executive Order is based on previously submitted emissions test data conducted
by Trick Flow Specialties on a 1995 Chevrolet C1500 truck with a 5.7L engine. Test
results showed that exhaust emissions with Twisted Wedge cylinder heads installed on
the vehicle met the vehicle‘s applicable emission standard during a Cold—Start CVS—75
Federal Test Procedure.

If evidence provides the Air Resources Board with reasons to suspect that the 175cc
Cylinder Heads will affect the durability of the emission control system, Trick Flow
Specialties shall be required to submit durability data to show that the durability of the
vehicle emission control system is not, in fact, affected and/or that the add—on or
modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the 175cc
Cylinder Heads do not recommend tuning the vehicles to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions of the 175cc Cylinder Heads, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicles‘ emission control system, shall invalidate this Executive Order.

Marketing of the 175cc Cylinder Heads using identification other than that shown in this
Executive Order or for an application other than that listed in this Executive Order shall
be prohibited unless prior approval is obtained from the Air Resources Board.
Exemption of the 175cc Cylinder Heads shall not be construed as exemption to sell,
offer for sale, or advertise any component of the system as an individual device.


                                             «7.

This Executive Order shall not apply to any 175cc Cylinder Heads advertised, offered
for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
175cc Cylinder Heads may have on any warranty either expressed or implied by the
vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written     _
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF TRICK FLOW
SPECIALTIES®‘ CYLINDER HEADS.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this       / é(fiéday of July 2008.



                                 C     ) — fiéu/wqw
                                         Annette Hebert, Chief
                                         Mobile Source Operations Division




    TRICK FLOW SPECIALTIES — SUPER 23 "175co CYLINDER HEADS — D—369—6


                                         Attachment A



                                         Trick Flow Specialties

                                 Super 23 175cc Cylinder Heads

   Part Number              Model Year                                Model Specification

  TFS—30300001            1986 and Older        GM vehicles with 4.2L—5.7L V8 engine
  TFS—30300002              1986—1991           Corvette with 5.0L or 5.7L V8 engine, excluding LT—1
                                                engine
                                                GM vehicles with 4.2L—5.7L V8 engine, with valve spring
  TFS—30300003            1986 and Older
                                                option
                                                GM vehicles with 4.2L—5.7L V8 engine, excluding LT—1
  TFS—30300005              1987—1995              .
                                                engine
  TFS—30300006              1987—1995           cC)BFI)\t/:(;/:hlcles with 4.2L—5.7L V8 engine, with vaive spring

  TFS—30300007              1987—1995           GM vehicles with 4.2L—5.7L V8 engine, with vaive spring
                                                option



TFS—30300001—CNC          1986 and Older        GM vehicles with 4.2L—5.7L V8 engine
                                                Corvette with 5.0L or 5.7L V8 engine, excluding LT—1
TFS—30300002—CNC             1986—1991
                                                engine
                                                GM vehicles with 4.2L—5.7L V8 engine, with valve spring
TFS—30300003—CNC          1986 and Older
                                                option
                                                GM vehicles with 4.2L—5.7L V8 engine, excluding LT—1
TFS—30300005—CNC             1987—1995          engine

TFS—30300006—CNC             1987—1995          (?‘!\/Ific:/:hicles with 4.2L—5.7L V8 engine, with valve spring

TFS—30300007—CNC             1987—1995          GM vehicles with 4.2L—5.7L V8 engine, with valve spring
                                                option

Note:

CNC:    Computer Numerical Control




           TRICK FLOW SPECIALTIES — SUPER 23175ce CYLINDER HEADS — D—369—6



Document Created: 2008-07-21 12:44:36
Document Modified: 2008-07-21 12:44:36
