Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on July 21, 2008.
As of Sunday, December 22nd, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
TFS-30400001-CNC1986 and Older GM vehicles with 5.0L-6.6L V8 enginesPerimeter bolt valve covers

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-369-7
  • Executive Order 369-7 / D369-7
  • ARB # D-369-7
  • Executive Order No: D-369-7
  • C.A.R.B. No. D-369-7
  • Resolution D-369-7
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-369-7 PDF

D-369-7 Document:


CARB_D-369-7

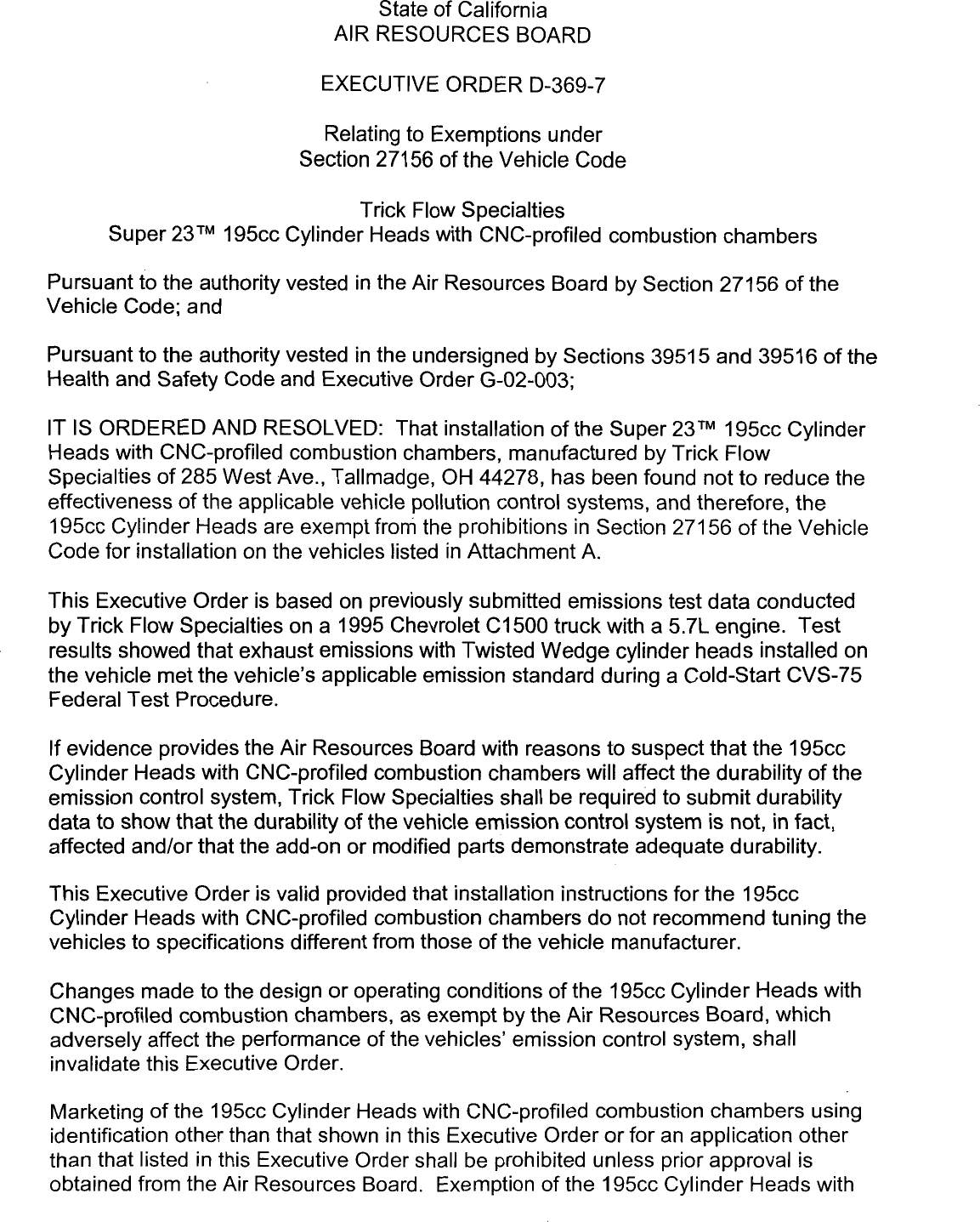

                                   State of California
                               AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—369—7

                               Relating to Exemptions under
                            Section 27156 of the Vehicle Code

                            Trick Flow Specialties
      Super 23195cc Cylinder Heads with CNC—profiled combustion chambers

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That installation of the Super 23" 195cc Cylinder
Heads with CNC—profiled combustion chambers, manufactured by Trick Flow
Specialties of 285 West Ave., Tallmadge, OH 44278, has been found not to reduce the
effectiveness of the applicable vehicle pollution control systems, and therefore, the
195cc Cylinder Heads are exempt from the prohibitions in Section 27156 of the Vehicle
Code for installation on the vehicles listed in Attachment A.

This Executive Order is based on previously submitted emissions test data conducted
by Trick Flow Specialties on a 1995 Chevrolet C1500 truck with a 5.7L engine. Test
results showed that exhaust emissions with Twisted Wedge cylinder heads installed on
the vehicle met the vehicle‘s applicable emission standard during a Cold—Start CVS—75
Federal Test Procedure.

If evidence provides the Air Resources Board with reasons to suspect that the 195cc
Cylinder Heads with CNC—profiled combustion chambers will affect the durability of the
emission control system, Trick Flow Specialties shall be required to submit durability
data to show that the durability of the vehicle emission control system is not, in fact,
affected and/or that the add—on or modified parts demonstrate adequate durability.

This Executive Order is valid provided that installation instructions for the 195cc
Cylinder Heads with CNC—profiled combustion chambers do not recommend tuning the
vehicles to specifications different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the 195cc Cylinder Heads with
CNC—profiled combustion chambers, as exempt by the Air Resources Board, which
adversely affect the performance of the vehicles‘ emission control system, shall
invalidate this Executive Order.

Marketing of the 195cc Cylinder Heads with CNC—profiled combustion chambers using
identification other than that shown in this Executive Order or for an application other
than that listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board. Exemption of the 195cc Cylinder Heads with


                                             2.

CNC—profiled combustion chambers shall not be construed as exemption to sell, offer
for sale, or advertise any component of the system as an individual device.

This Executive Order shall not apply to any 195cc Cylinder Heads with CNC—profiled
combustion chambers advertised, offered for sale, sold with, or installed on a motor
vehicle prior to or concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
195cc Cylinder Heads with CNC—profiled combustion chambers may have on any
warranty either expressed or implied by the vehicle manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the
exempted add—on or modified part continues to meet the standards and procedures of
California Code of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF TRICK FLOW
SPECIALTIES®‘ CYLINDER HEADS.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten day written notice of
intention to revoke the Executive Order, in which period the holder of the Executive
Order may request in writing a hearing to contest the proposed revocation. If a hearing
is requested, it shall be held within ten days of receipt of the request, and the Executive
Order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     Z I     day of July 2008.




                                         Annette Hebert, Chief
                                         Mobile Source Operations Division




         TRICK FLOW SPECIALTIES — SUPER 23""195cc CYLINDER HEADS
             with CNC—PROFILED COMBUSTION CHAMBERS — D—369—7


                                        Attachment A



                                        Trick Flow Specialities

             Super 23"" 195cc Cylinder Heads with CNC—Profiled Combustion Chambers

    Part Number             Model Year                            Model Specification

TFS—30400001—CNC          1986 and Older       GM vehicles with 5.0L—6.6L V8 engine
                                               GM vehicles with 5.0L—6.6L V8 engine, with valve spring
TFS—30400002—CNC          1986 and Older
                                               option
                                               GM vehicles with 5.0L—6.6L V8 engine, with valve spring
TFS—30400003—CNC          1986 and Older
                                               option
                                               GM vehicles with 5.0L—6.6L V8 engine, excluding LT—1
TFS—30400005—CNC            1987—1995          engine
                                               GM vehicles with 5.0L—6.6L V8 engine, excluding LT—1
TFS—30400006—CNC            1987—1995          engine, with valve springoption
TFS—30400007—CNC            1987—1995          GM vehicles with 5.0L—6.6L V8 engine, excluding LT—1
                                               engine, with valvespring option


                                               GM vehicles with 5.0L—6.6L V8 engine, with valve sprin
TFS—30400012—CNC          1986 and Older                                                            .
                                               option
                                               GM vehicles with 5.0L—6.6L V8 engine, with valve spring
TFS—30400013—CNC          1986 and Older
                                               option
                                               GM vehicles with 5.0L—6.6L V8 engine, excluding LT—1
TFS—30400014—CNC             1987—1995
                                               engine, with valve spring option
                                               GM vehicles with 5.0L—6.6L V8 engine, excluding LT—1
TFS—30400015—CNC             1987—1995
                                               engine, with valve spring option

Note:

CNC:    Computér Numerical Control




                  TRICK FLOW SPECIALTIES — SUPER 23" 195cc CYLINDER HEADS
                      with CNC—PROFILED COMBUSTION CHAMBERS — D—369—7



Document Created: 2008-07-23 13:07:10
Document Modified: 2008-07-23 13:07:10

Previous E.O. D-369-6 | Previous E.O. D-368 | Next E.O. D-369-8 | Next E.O. D-370
