Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on August 24, 1995.
As of Monday, June 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
1986-1988 VW Sciroccos 16V 2.0L 1985-1995 VW Jettas & Golfs 8V/16V 1.8L/2.0L 1987-1993 VW Foxes 1.8L 1990-1995 VW Passat 16V 2.0L 1990-1995 VW Corrado 1.8L, 1988-1995 VW Cabriolet 1.8L /2.0L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-375-1
  • Executive Order 375-1 / D375-1
  • ARB # D-375-1
  • Executive Order No: D-375-1
  • C.A.R.B. No. D-375-1
  • Resolution D-375-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-375-1 PDF

D-375-1 Document:

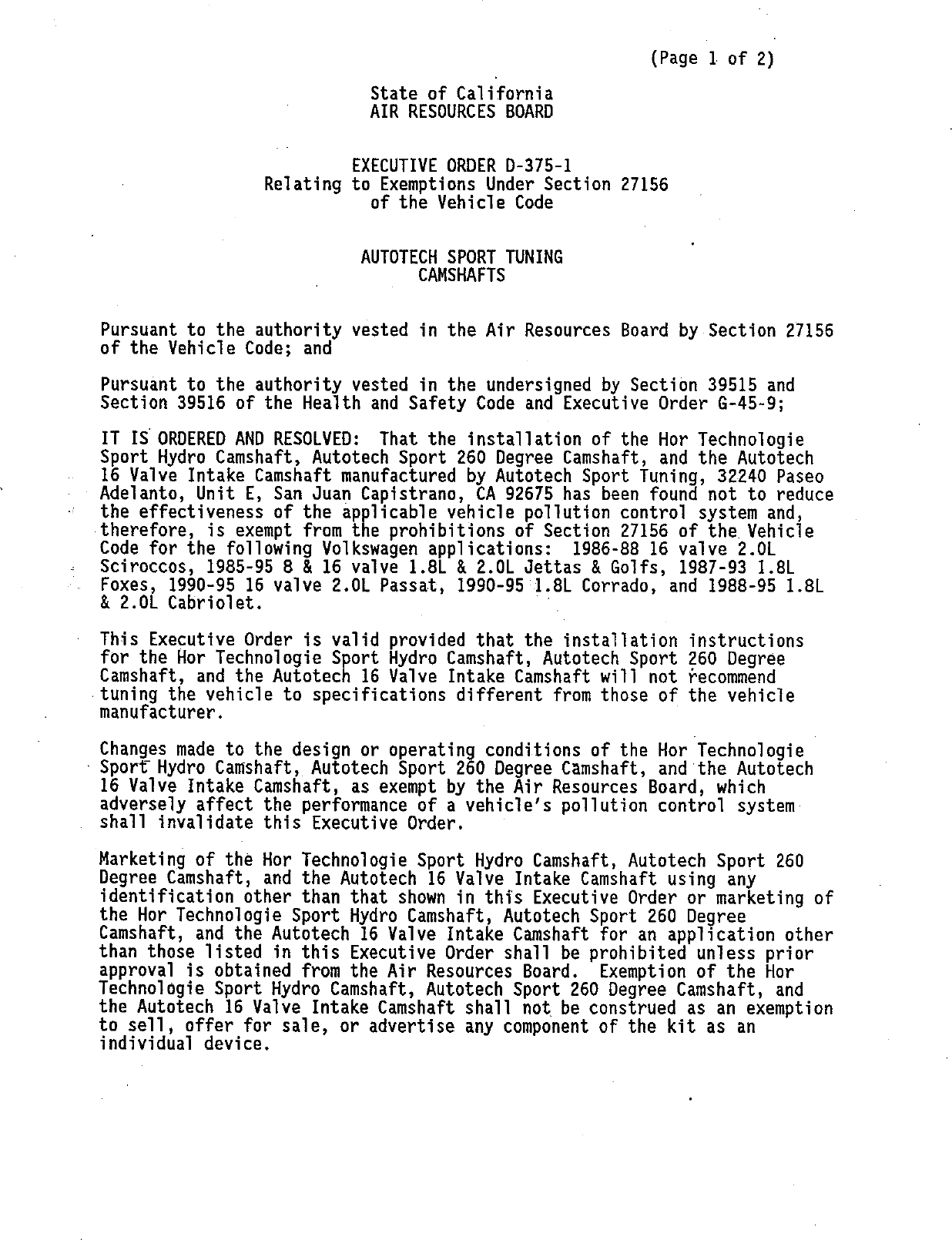

                                                             (Page 1 of 2)
                                State of Ca]ifornia
                                AIR RESOURCES BOARD


                           EXECUTIVE ORDER D—375—1
                  Relating to Exemptions Under Section 27156
                             of the Vehicle Code


                               AUTOTECKH SPORT TUNING
                                      CAMSHAFTS

 Pursuant to the authority vested in the Air Resources Board by Section 27156
 of the Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and
 Section 39516 of the Health and Safety Code and Executive Order G—45—9;

 IT IS ORDERED AND RESOLVED:     That the installation of the Hor Technologie
 Sport Hydro Camshaft, Autotech Sport 260 Degree Camshaft, and the Autotech
 16 Valve Intake Camshaft manufactured by Autotech Sport Tuning, 32240 Paseo
 Adelanto, Unit E, San Juan Capistrano, CA 92675 has been found not to reduce
 the effectiveness of the applicable vehicle pollution control system and,
 therefore, is exempt from the prohibitions of Section 27156 of the Vehicle
 Code for the following Volkswagen applications: 1986—88 16 valve 2.0L
 Sciroccos, 1985—95 8 & 16 valve 1.8L & 2.0L Jettas & Golfs, 1987—93 1.8L
 Foxes, 1990—95 16 valve 2.0L Passat, 1990—95 1.8L Corrado, and 1988—95 1.8L
 & 2.0L Cabriclet.                             O

 This Executive Order is valid provided that the installation    instructions
 for the Hor Technologie Sport Hydro Camshaft, Autotech Sport    260 Degree
 Camshaft, and the Autotech 16 Valve Intake Camshaft will not    recommend
 tuning the vehicle to specifications different from those of    the vehicle
 manufacturer.

  Changes made to the design or operating conditions of the Hor Technologie
© Sport Hydro Camshaft, Autotech Sport 260 Degree Camshaft, and the Autotech
  16 Valve Intake Camshaft, as exempt by the Air Resources Board, which
  adversely affect the performance of a vehicle‘s pollution control system
  shall invalidate this Executive Order.

 Marketing of the Hor Technologie Sport Hydro Camshaft, Autotech Sport 260
 Degree Camshaft, and the Autotech 16 Valve Intake Camshaft using any
 identification other than that shown in this Executive Order or marketing of
 the Hor Technologie Sport Hydro Camshaft, Autotech Sport 260 Degree
 Camshaft, and the Autotech 16 Valve Intake Camshaft for an application other
 than those listed in this Executive Order shall be prohibited unless prior
 approval is obtained from the Air Resources Board. Exemption of the Hor
 Technologie Sport Hydro Camshaft, Autotech Sport 260 Degree Camshaft, and
 the Autotech 16 Valve Intake Camshaft shall not be construed as an exemption
 to sell, offer for sale, or advertise any component of the kit as an
 individual device.


AUTOTECH SPORT TUNING                 —           EXECUTIVE ORDER D—375—1
CAMSHAFTS                                         (Page 2 of 2)



This Executive Order does not constitute any opinion as to the effect that
the use of the Hor Technologie Sport Hydro Camshaft, Autotech Sport 260
Degree Camshaft, and the Autotech 16 Valve Intake Camshaft may have on any
warranty either expressed or implied by the vehicle manufacturer.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR.ANY ALLEGED
BENEFITS OF AUTOTECH SPORT TUNING‘S HOR TECHNOLOGIE SPORT HYDRO CAMSHAFT,
éxgsfiggTAutotech SPORT 260 DEGREE CAMSHAFT, and the Autotech 16 VALVE INTAKE

No claim of any kind, such as "Approved by the Air Resources Board" may be
made with respect to the action taken herein in any advertising or other
oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of
this order. The order may be revoked only after ten day written notice of
intention to revoke the order, in which period the holder of the order may
request in writing a hearing to contest the proposed revocation. If a
hearing is requested, it shall be held within ten days of receipt of the
request and the order may not be revoked until a determination after hearing
that grounds for revocation exist.

Executed at El Monte, California, this c?§f7£63y of   August 1995.




                                           ant Division Chief‘
                                     Mobile Source Division


                     State of California
                     AIR RESOURCES BOARD




        EVALUATION OF AUTOTECH SPORT TUNING‘S CAMSHAFTS
      FOR_EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                 CALIFORNIA CODE OF REGULATIONS




                         August 1995


                           State of California
                           AIR RESOURCES BOARD




              EVALUATION OF AUTOTECH SPORT TUNING‘S CAMSHAFTS
            FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
      SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIACODE OF REGULATIONS




                                     by
                           Mobile Source Division
                            9528 Telstar Avenue
                            El Monte, CA   91731




(This report has been reviewed by the staff of the California Air Resources
Board and approved for publication. Approval does not signify that the
contents necessarily reflect the views and policies of the Air Resources
Board, nor does mention of trade names or commercial products constitute
endorsement or recommendation for use.)


                                     SUMMARY


      Autotech Sport Tuning of 32240 Paseo Adelanto, Unit E, San Juan

Capistrano, California 92675 has applied for an exemption from the prohibitions

in Section 27156 of the California Vehicle Code (VC) for the Hor Technologie
Sport Hydro Camshaft, Autotech Sport 260 Degree Camshaft, and the Autotech 16

Valve Intake Camshaft designed for the following Volkswagen applications:

1986—88 16 valve 2.0L Sciroccos, 1985—95 8 & 16 valve 1.8L & 2.0L Jettas &
Golfs; 1987—93 1.8L Foxes, 1990—95 16 valve 2.0L Passat, 1990—95 1.8L Corrado,

and 1988—95 1.8L & 2.0L Cabriolet.
       Based on comparative emissions testing of the Hor Technologie Sport

Hydro Camshaft, the staff concludes that the Hor Technologie Sport Hydro
Camshaft, Autotech Sport 260 Degree Camshaft, and the Autotech 16 Valve Intake

Camshaft will not adversely affect exhaust emissions from vehicles for which

the exemption is requested.

      The staff recommends that Autotech Sport Tuning be granted an exemption

as requested and that Executive Order D—375—1 be issued.


                                 TABLE OF CONTENTS


                                                     Page Number



SUMMARY
CONTENTS
I.        INTRODUCTION




                                                            4
II.       CONCLUSION
III.      RECOMMENDATION




                                                            o
IV.       CAMSHAFT DESCRIPTION




                                                            N
v.        DISCUSSION OF THE CAMSHAFTS




                                                            t




                                        11


                EVALUATION OF AUTOTECH SPORT TUNING‘S CAMSHAFTS
            FOR AN EXEMPTION FROM THE PROHIBITIONS OF VEHICLE* CODE
        SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                       CALIFORNIA CODE OF REGULATIONS

I.     INTRODUCTION
       Autotech Sport Tuning of 32240 Paseo Adelanto, Unit E, San Juan

Capistrano, California 92675 has applied for an exemption from the prohibitions

in Section 27156 of the Ca]ifornia_Vehic]e Code {VC) for the Hor Technologie

Sport Hydro Camshaft, Autotech Sport 260 Degree Camshaft, and the Autotech 16

Valve Intake Camshaft designed for the following Volkswagen applications:

1986—88 16 valve 2.0L Sciroccos, 1985—95 8 & 16 valve 1.8L & 2.0L Jettas &
Golfs, 1987—93 1.8L Foxes, 1990—95 16 vaive 2.0L Passat, 1990—95 1.8L Corrado,

and 1988—95 1.8L & 2.0L Cabriolet.
II.    CONCLUSIONS
       Based on comparative emissions testing of the Hor Technologie Sport

Hydro Camshaft, the staff concludes that Autotech Sport Tuning‘s Hor

Technologie Sport Hydro Camshaft, Autotech Sport 260 Degree Camshaft, and the

Autotech 16 Valve Intake Camshaft will not adversely affect exhaust emissions

from the vehicles for which the exemption is requested.

III.   RECOMMENDATION                       .
       The staff recommends that Autotech Sport Tuning be granted an exemption
for their Hor Technologie Sport Hydro Camshaft, Autotech Sport 260 Degree
Camshaft, and the Autotech 16 Valve Intake Camshaft for the following

Volkswagen applications:   1986—88 16 valve 2.0L Sciroccos, 1985—95 8 & 16 valve

1.8L & 2.0L Jettas & Golfs, 1987—93 1.8L Foxes, 1990—95 16 valve 2.0L Passat,

1990—95 1.8L Corrado, and 1988—95 1.8L & 2.0L Cabriolet. ,The'staff also

recommends that Executive Order D—375—1 be issued.


IV. °   CAMSHAFT DESCRIPTION
        The Hor Technologie Sport Hydro Camshaft, Autotech Sport 260 Degree

Camshaft, and the Autotech 16 Valve Intake Camshaft have been specifically
designed for installation on those model/model—year vehicles listed.     The

camshafts operatevin conjunction with the original equipment manufacturer (OEM)

computer controlled feedback fuel injection systems along with the emission

control systems already certified with the stock engines.     The purpose of using
the camshafts is to increase the overall engine performance by modifying the

valve characteristics, such as increasing the valve lift and duration.

        The three camshafts vary in their characteristics, each designed for

different levels of performance.     The Hor Technologie Sport Hydro Camshaft,

designed for 8 valve engines, has the following characteristics (numbers in

parentheses represent the OEM specifications):     Lift 0.449" (0.402"), Duration

270° at 0.004" lift (260° at 0.004" lift}, Intake Timing — Open at 19° BTD¢
(18° BTDC) Close at 61° ABDC (58° ABDC)}, Exhaust Timing — Open at 59° BBDC (58°
BBDC) Close at 17° ATDC (18° ATDC), and Lobe Center at 112° (110°).     The
Autotech Sport 260° Camshaft, designed for 8 valve engines, has the following

characteristics (numbers in parentheses represent the OEM specifications):

Lift 0.420" (0.402"), Duration 260° at 0.004" lTift (260° at 0.004" lift),
Intake Timing — Open at 20° BTDC (18° BTDC) Close at 60° ABDC (58° ABDC),
Exhaust Timing — Open at 60° BBDC (58° BBDC) Close at 20° ATDC (18" ATDC), and
Lobe Center at 110° (110°).    The Autotech 16 Vaive Intake Camshaft, designed

for 16 valive engines, has the following characteristics (numbérs in parentheses
represent the OEM specifications):     Lift 0.378" (0.355"), Duration 260° at
0.004" 1ift‘(256° at 0.004" lift), Intake Timing — Open at 13° BTD¢ (8° BTDC)
Close at 57° ABDC (52° ABDC), and Lobe Center at 112° (112°).     The manufacturer
claims that these modifications from stock specifications allow the engines
greater volumetric efficiency.


v.        DISCUSSION OF THE CAMSHAFTS
          ‘The Autotech Sport Tuning‘s Hor Technologie Sport Hydro Camshaft,
 260 Degree Camshaft, and 16 Valve Intake Camshaft are designed for installation

 on the following Volkswagen applications:           1986—88 16 valve 2.0L Sciroccos,

 1985—95 8 & 16 valve 1.8L & 2.0L Jettas & Golfs, 1987—93 1.8L Foxes, 1990—95 16
 valve 2.0L Passat, 1990—95 1.8L Corrado, and 1988—95 1.8L & 2.0L Cabriolet.

          A 1995 Volkswagen Golf with a 2.0L fuel injected engine was selected as

 the test vehicle for the evaluation of the camshafts.           The GolTf with the 2.0L
. engine was selected due to its popularity.          It is also applicable to the Hor

 Technologie Sport Hydro camshaft, the most modified camshaft.' The

 dynamometer‘s inertia weight and horsepower settings were 3000—ibs and 6.3—hp

 respectively.     The emissions tests conducted by Automobile Club of Southern

 California for Autotech consisfed of one Cold Start CVS—75 emission test in the
 baseline configuration and one Cold Start CVS—75 emission test in the modified

 (Hor Technologie Sport Hydro Camshaft installed) configuration.           The ARB did

 not perform emissions testing to confirm the test results submitted by the

 applicant.    A summary of the test results is shown below:
                                Exhaust Emission Test Results

 Test                          Exhaust Emissions (gm/mi) .

 Mode                    HG                    cCO                  NOx
 Baseline               0.16         '        1.66                  0.13
 Device                 0.18                  1.93                  0.11
 Difference            +0.02                 +0.27                 —0.02


          Results from the emission test conducted at Automobile Club of Southern

 California show the vehicle emissions with the Hor Technologie Sport Hydro

 Camshaft installed are within the allowable increase of 10 percent or 0.1
                                             —3—


gm/mile HC, 15 percent or 1.0 gm/mile CO and 10 percent 0.1 gm/mile NOx above

the baseline as specified undér the "Procedures for Exemption of Add—On or
Modified Parts."   Therefore, based on the test results, the staff concludes

that the installation of Autotech‘s Hor Technologie Sport Hydro Camshaft, 260

Degree Camshaft, and 16 Valve Intake Camshaft will not have an adverseeffect
on 1986—88 16 valve 2.0L Sciroccos, 1985—95 8 & 16 valve 1.8L & 2.0L Jettas &

Golfs, 1987—93 1.8L Foxes, 1990—95 16 valve 2.0L Passat, 1990—95 1.8L Corrado,

and 1988—95 1.8L & 2.0L Cabriolet.
       Autotech has submitted all the required information and fulfilled the

requirements for an exemption.



Document Created: 2005-09-01 12:44:17
Document Modified: 2005-09-01 12:44:17

Previous E.O. D-375 | Previous E.O. D-374 | Next E.O. D-375-2 | Next E.O. D-376
