Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 6, 1998.
As of Friday, October 4th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
10.109.418KVW Scirocco 16V 1986-88, Golf 16V 1987-92, Jetta 16V 1987-92, and Passat 16V 1990-94The Autotech Sport 16V Camshaft is designed with the following specifications: Lift @ 0.050" intake 0.4" exhaust 0.429", duration @ 0.050" intake 210 degrees, exhaust 220 degrees, and lobe center at 114 degrees.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-375-4
  • Executive Order 375-4 / D375-4
  • ARB # D-375-4
  • Executive Order No: D-375-4
  • C.A.R.B. No. D-375-4
  • Resolution D-375-4
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-375-4 PDF

D-375-4 Document:


CARB_D-375-4

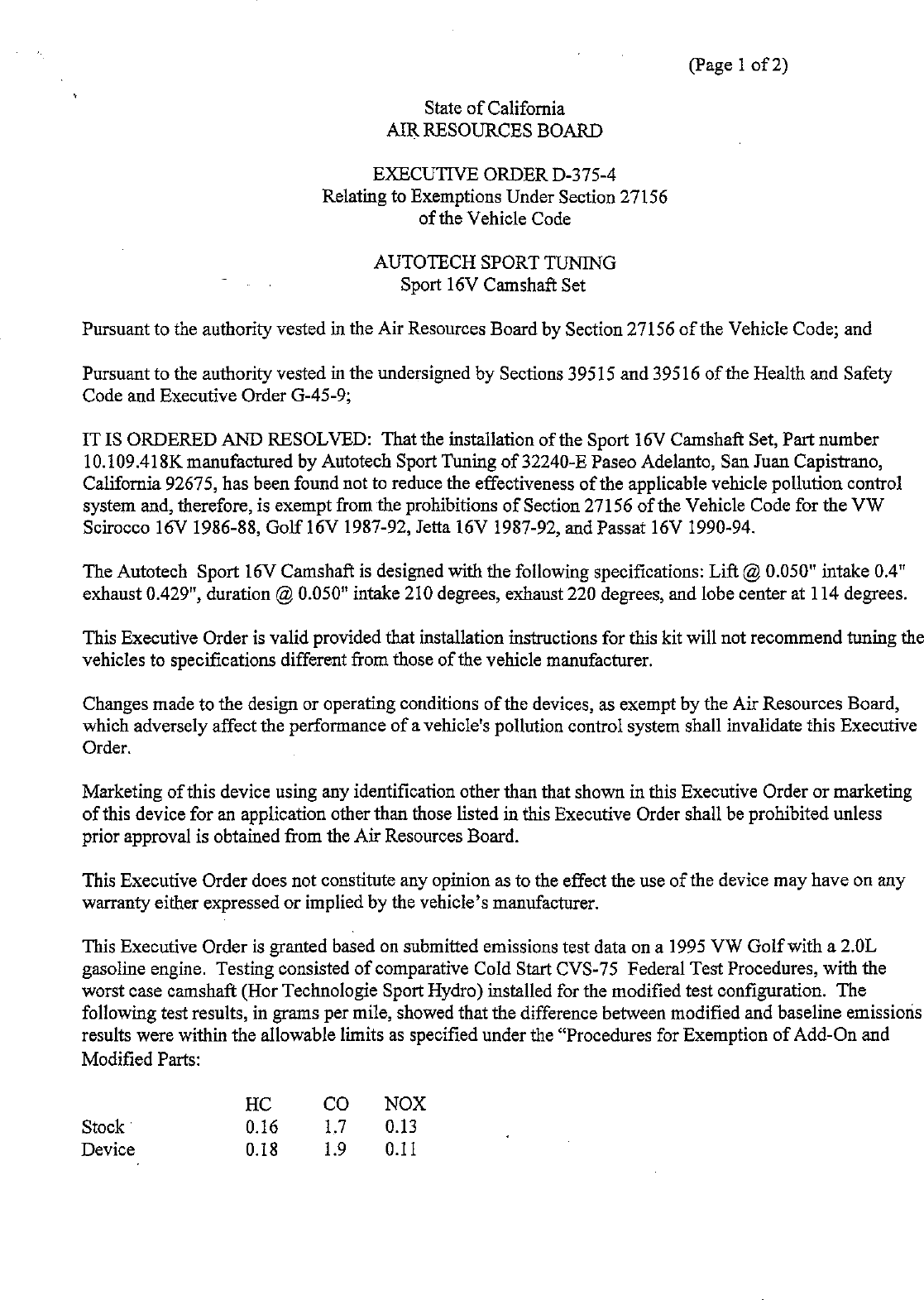

                                                                                  (Page 1 of 2)

                                               State of California
                                         AIR RESOURCES BOARD

                                       EXECUTIIVE ORDER D—375—4
                                Relating to Exemptions Under Section 27156
                                               of the Vehicle Code

                                       AUTOTECH SPORT TUNING
                  ~                        Sport 16V Camshaft Set

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and Safety
Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Sport 16V Camshaft Set, Part number
10.109.418K manufactured by Autotech Sport Tuning of 32240—E Paseo Adelanto, San Juan Capistrano,
California 92675, has been found not to reduce the effectiveness of the applicable vehicle pollution control
system and, therefore, is exempt from the prohibitions of Section 27156 of the Vehicle Code for the VW
Scirocco 16V 1986—88, Golf 16V 1987—92, Jetta 16V 1987—92, and Passat 16V 1990—94.

The Autotech Sport 16V Camshaft is designed with the following specifications: Lift @ 0.050" intake 0.4"
exhaust 0.429", duration @ 0.050" intake 210 degrees, exhaust 220 degrees, and lobe center at 114 degrees.

This Executive Order is valid provided that installation instructions for this kit will not recommend tuning the
vehicles to specificationsdifferent from those ofthe vehicle manufacturer.

Changes made to the design or operating conditions of the devices, as exempt by the Air Resources Board,
which adversely affect the performance of a vehicle‘s pollution control system shall invalidate this Executive
Order.

Marketing of this device using any identification other than that shown in this Executive Order or marketing
of this device for an application other than those listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the device may have on any
warranty either expressed or implied by the vehicle‘s manufacturer.

This Executive Order is granted based on submitted emissions test data on a 1995 VW Golf with a 2.0L
gasoline engine. Testing consisted of comparative Cold Start CVS—75 Federal Test Procedures, with the
worst case camshaft (Hor Technologie Sport Hydro) installed for the modified test configuration. The
following test results, in grams per mile, showed that the difference between modified and baseline emissions
results were within the allowable limits as specified under the "Procedures for Exemption of Add—On and
Modified Parts:

                      HC        CO      NOX
Stock                 0.16      1.7     0.13
Device                0.18      1.9     0.11


AUTOTECH SPORT TUNING                                                   EXECUTIVE ORDER D—375—4
Sport 16V Camshaft Set                                                  (Page 2 of 2)




THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED
BENEFITS OF AUTOTECH SPORT TUNING‘S SPORT 16V CAMSHAFT SET.

No claim of any kind, such as "Approved by the Air Resources Board," may be made with respect to the
action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
revoked only after ten days written notice ofintention to revoke the order, in which period the holder of the
order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it will be
held within ten days of receipt of the request and the order may not be revoked until a determination after
hearing that grounds for revocation exist.
                                              /
Executed at El Monte, California, this é"‘ day of        upober 1998.




                                        RB. Summerfield, Chief
                                        Mobile Source Operations Division



Document Created: 2005-09-01 12:42:12
Document Modified: 2005-09-01 12:42:12
