Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on September 17, 2003.
As of Friday, November 29th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2003 Cummins 5.9 liter ISB and 10.8 liter ISM diesel enginesThis exemption is only valid provided the engines meet the following operating conditions: (1) the engine exhaust temperature is greater than or equal to 260 degrees Celsius for 40-50 percent of the typical duty cycle, (2) the NOx to PM ratio is at least 8, and (3) the engine is operated using diesel with a maximum sulfur content of 50 ppmw.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-393-10
  • Executive Order 393-10 / D393-10
  • ARB # D-393-10
  • Executive Order No: D-393-10
  • C.A.R.B. No. D-393-10
  • Resolution D-393-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-393-10 PDF

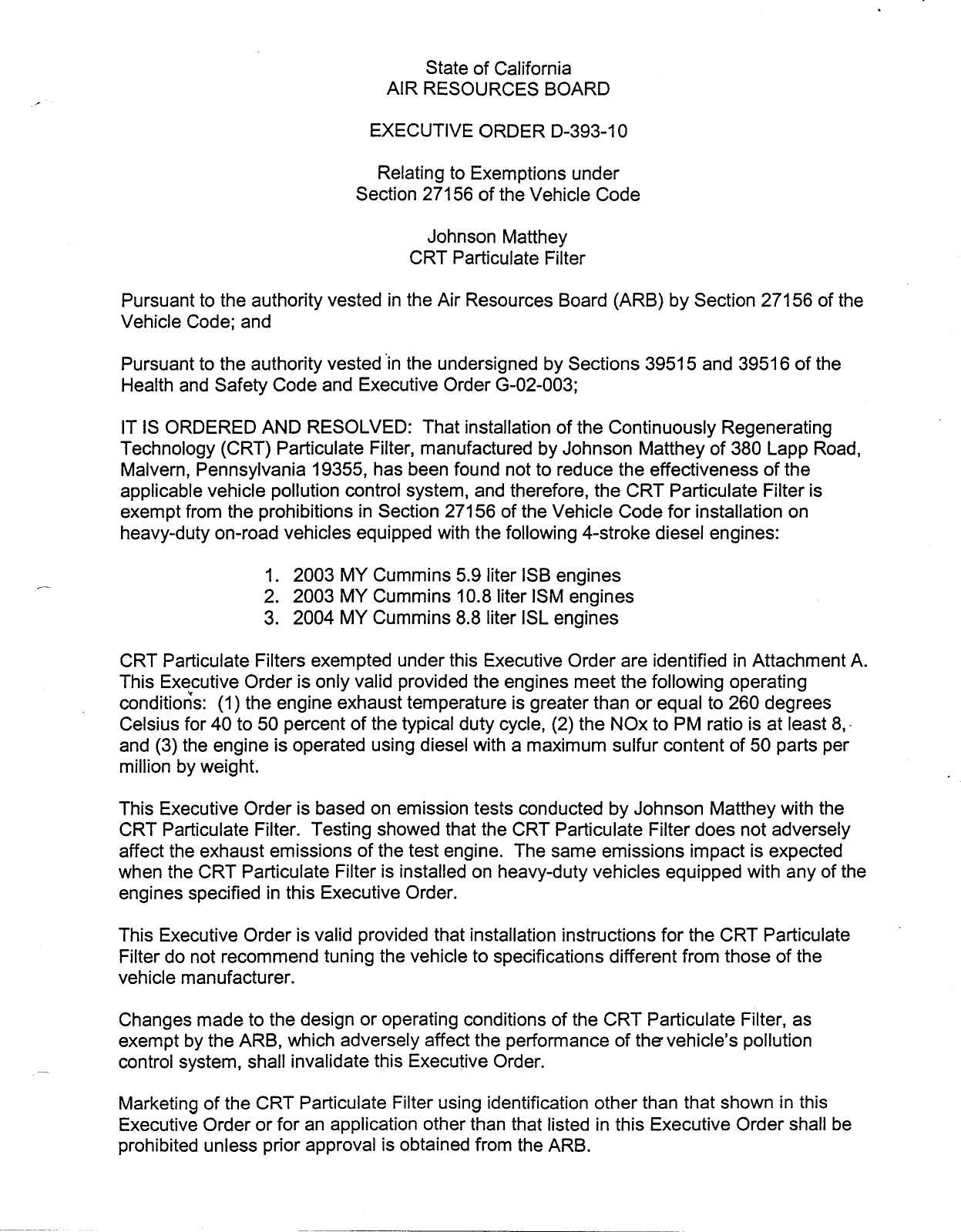

D-393-10 Document:

CARB_D-393-10

State of California AIR RESOURCES BOARD EXECUTIVE ORDER D—393—10 Relating to Exemptions under Section 27156 of the Vehicle Code Johnson Matthey CRT Particulate Filter Pursuant to the authority vested in the Air Resources Board (ARB) by Section 27156 of the Vehicle Code; and Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the Health and Safety Code and Executive Order G—02—003; IT IS ORDERED AND RESOLVED: That installation of the Continuously Regenerating Technology (CRT) Particulate Filter, manufactured by Johnson Matthey of 380 Lapp Road, Malvern, Pennsylvania 19355, has been found not to reduce the effectiveness of the applicable vehicle pollution control system, and therefore, the CRT Particulate Filter is exempt from the prohibitions in Section 27156 of the Vehicle Code for installation on heavy—duty on—road vehicles equipped with the following 4—stroke diesel engines: 1. 2003 MY Cummins 5.9 liter 1SB engines 2. 2003 MY Cummins 10.8 liter ISM engines 3. 2004 MY Cummins 8.8 liter ISL engines CRT Particulate Filters exempted under this Executive Order are identified in Attachment A. This Executive Order is only valid provided the engines meet the following operating conditions: (1) the engine exhaust temperature is greater than or equal to 260 degrees Celsius for 40 to 50 percent of the typical duty cycle, (2) the NOx to PM ratio is at least 8,— and (3) the engine is operated using diesel with a maximum sulfur content of 50 parts per million by weight. This Executive Order is based on emission tests conducted by Johnson Matthey with the CRT Particulate Filter. Testing showed that the CRT Particulate Filter does not adversely affect the exhaust emissions of the test engine. The same emissions impact is expected when the CRT Particulate Filter is installed on heavy—duty vehicles equipped with any of the engines specified in this Executive Order. This Executive Order is valid provided that installation instructions for the CRT Particulate Filter do not recommend tuning the vehicle to specifications different from those of the vehicle manufacturer. Changes made to the design or operating conditions of the CRT Particulate Filter, as exempt by the ARB, which adversely affect the performance of the vehicle‘s pollution control system, shall invalidate this Executive Order. Marketing of the CRT Particulate Filter using identification other than that shown in this Executive Order or for an application other than that listed in this Executive Order shall be prohibited unless prior approval is obtained from the ARB.

«7. This Executive Order shall not apply to any CRT Particulate Filter advertised, offered for sale, sold with, or installed on a motor vehicle prior to or concurrent with transfer to an ultimate purchaser. This Executive Order does not constitute any opinion as to the effect the use of the CRT Particulate Filter may have on any warranty either expressed or implied by the vehicle manufacturer. No claim of any kind, such as "Approved by the Air Resources Board," may be made with respect to the action taken herein in any advertising or other oral or written communication. In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order and the exemption provided herein to assure that the exempted add—on or modified part continues to meet the standards and procedures of California Code of Regulations, Title 13, Section 2222, et seq. THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF JOHNSON MATTHEY‘S CRT PARTICULATE FILTER. Violation of any of the above conditions shall be grounds for revocation of this Executive Order. The Executive Order may be revoked only after a ten—day written notice of intention to revoke the Executive Order, in which period the holder of the Executive Order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of the request, and the Executive Order may not be revoked until a determination is made after a hearing that grounds for revocation exist. Executed at El Monte, California, this __/ 77” day of September 2003. Allel%éyons, Chief Mobile Source Operations Division JOHNSON MATTHEY — CRT PARTICULATE FILTER — D—393—10

Attachment A Table 1 y Engine HP Engine MY 2003—2004 150—230 CRT 1234 DW 230—330 CRT 1234 DW 330—425 CRT 1234 JT 425—660 CRT 1234 IT Note: Table 1 identifies a matrix of CRT Particulate Filter part numbers based on exhaust inlet/outlet configuration, catalyst substrate, and filter element for the engine horsepower ranges. The catalyst and filter substrate volume/density combinations specified above are the minimum catalyst and filter sizes Johnson Matthey will use on a given engine. Johnson Matthey may use a larger catalyst and/or filter for a given engine/vehicle combination. JOHNSON MATTHEY — CRT PARTICULATE FILTER — D—393—10


Document Created: 2005-09-01 12:40:39
Document Modified: 2005-09-01 12:40:39

Previous E.O. D-393-9 | Previous E.O. D-392 | Next E.O. D-393-11 | Next E.O. D-394
