Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 9, 2007.
As of Wednesday, June 26th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
R070000122004 through 2008 5.4 liter Ford F-150 and Lincoln Mark LT trucksThe ROUSHcharger Kit for the Ford trucks (p/n R07000012) includes a roots type axial flow supercharger assembly, intercooler, intake manifold, high flow fuel injectors, recalibrated stock mass air flow sensor, new closed element air box with intake air tubing, and a new fuel calibration modified to operate with the supercharger. The Roush Industries ROUSHcharger Kit utilizes a 82 mm diameter supercharger pulley, and the crankshaft pulley diameter is 189 mm. Maximum boost produced by the supercharger is 7.6 pounds per square inch.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-418-12
  • Executive Order 418-12 / D418-12
  • ARB # D-418-12
  • Executive Order No: D-418-12
  • C.A.R.B. No. D-418-12
  • Resolution D-418-12
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-418-12 PDF

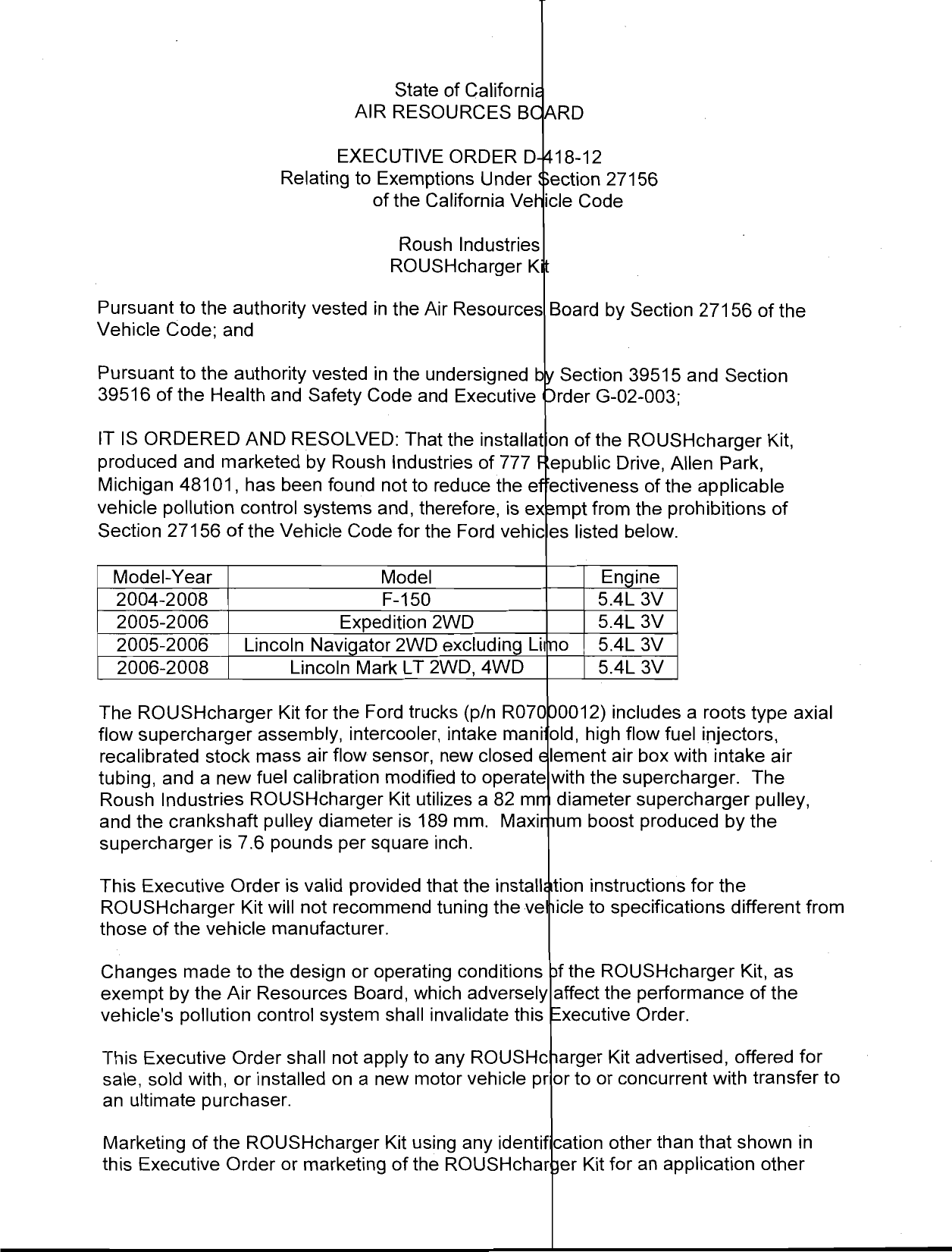

D-418-12 Document:



                                     State of California
                               AIR RESOURCES BOARD

                             EXECUTIVE ORDER D—418—12
                      Relating to Exemptions Under Section 27156
                                 of the California Verfcle Code

                                     Roush Industries
                                     ROUSHcharger Kit

Pursuant to the authority vested in the Air Resources| Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installatJon of the ROUSHcharger Kit,
produced and marketed by Roush Industries of 777 Republic Drive, Allen Park,
Michigan 48101, has been found not to reduce the effectiveness of the applicable
vehicle pollution control systems and, therefore, is exempt from the prohibitions of
Section 27156 of the Vehicle Code for the Ford vehicles listed below.

  Model—Year                       Model                      Engine
  2004—2008                        F—150                      5.AL 3V
  2005—2006                   Expedition 2WD                  5.AL 3V
  2005—2006       Lincoln Navigator 2WD excluding Limo        5.4L 3V
  2006—2008             Lincoln Mark LT 2WD, 4WD              5.AL 3V

The ROUSHcharger Kit for the Ford trucks (p/n RO7000012) includes a roots type axial
flow supercharger assembly, intercooler, intake manifold, high flow fuel injectors,
recalibrated stock mass air flow sensor, new closed glement air box with intake air
tubing, and a new fuel calibration modified to operate|with the supercharger. The
Roush Industries ROUSHcharger Kit utilizes a 82 mm diameter supercharger pulley,
and the crankshaft pulley diameter is 189 mm. Maximum boost produced by the
supercharger is 7.6 pounds per square inch.

This Executive Order is valid provided that the installation instructions for the
ROUSHcharger Kit will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes made to the design or operating conditions bf the ROUSHcharger Kit, as
exempt by the Air Resources Board, which adversely|affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any ROUSHcharger Kit advertised, offered for
sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the ROUSHcharger Kit using any identification other than that shown in
this Executive Order or marketing of the ROUSHcharger Kit for an application other


                                             7.


than those listed in this Executive Order shall be pro pibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinior} as to the effect the use of the
ROUSHcharger Kit units may have on any warranty ¢ pither expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on emission t Est results submitted by Roush
Industries in certifying their Stage 3 supercharged F— 150 (E.0. A—344—0010, engine
family 8RHTO5.4R17, LEV 1 ULEV, MDV) as a small volume new vehicle. The final
configuration of the 5.4L Ford F—150 or Lincoln Mark LT truck equipped with
ROUSHcharger is the same as the Roush Industries Stage 3 supercharged F—150. The
certification emission results are shown below in grams per mile:

F—150

Emission Levels      NMOG           cCO      NOx        HCHO
Useful Life w/ df    0.040         0.8      0.03        n/a

Emission Standards
Useful Life        0.070           2.1      0.04        0.011

  USO6                         NMHC+NOx (Composite)
Emission Level                     0.08
Standards Useful Life              2.09

  USO6                              CO
Emission Level                      1.4
Standards Useful Life              19.3

  SCO3                              Co
Emission Level                      1.2
Standards Useful Life               6.4

The certification emission test results submitted for n w vehicle certification have been
accepted as representative of emissions in the modif ed configuration. The certification
emission test results were below the applicable certif cation standards. Examination of
the OBD II system was not performed since Roush in dustries has demonstrated OBD !I1
compliance during certification of the Stage 3 superc! harged F—150.

The Air Resources Board reserves the right in the fut uire to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of T itle 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUT E A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TN PE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF TH E APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED B ENEFITS OF ROUSH
INDUSTRIES‘ ROUSHCHARGER KIT.


          ROUSH INDUSTRIES — ROUSHCHA RGER                       KIT — D—418—12
                                                        [


                                             —3—


No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertiging or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written.notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this      0{ 2     day of October 2007.




                            L'/éggnnet’[e Hebert, Chief
                                 Mobile Source Operations Division




           ROUSH INDUSTRIES — ROUSHCHARGER KIT — D—418—12



Document Created: 2007-10-12 14:52:06
Document Modified: 2007-10-12 14:52:06

Previous E.O. D-418-11 | Previous E.O. D-417 | Next E.O. D-418-13 | Next E.O. D-419
