Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 13, 2011.
As of Sunday, December 9th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
1311-TVSCAL-BA2011 model year Ford 5.0L Mustang, with engine family BFMXV05.4VEKThe Roushcharger Kit for the Ford Mustang TVS2300 (part number 1311-TVSCAL-BA) includes a roots type axial flow supercharger assembly, intercooler, air cleaner lid with hydrocarbon paper, intake manifold, high flow fuel injectors, recalibrated stock mass air flow sensor, and a new fuel calibration modified to operate with the supercharger. The Roush Industries Roushcharger Kit utilizes a 90 mm diameter pulley. Maximum boost produced by the supercharger would be 10.0 pounds per square inch. The stock air filter lower housing, crankshaft pulley, and radiator thermostat are retained.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-418-19
  • Executive Order 418-19 / D418-19
  • ARB # D-418-19
  • Executive Order No: D-418-19
  • C.A.R.B. No. D-418-19
  • Resolution D-418-19
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-418-19 PDF

D-418-19 Document:

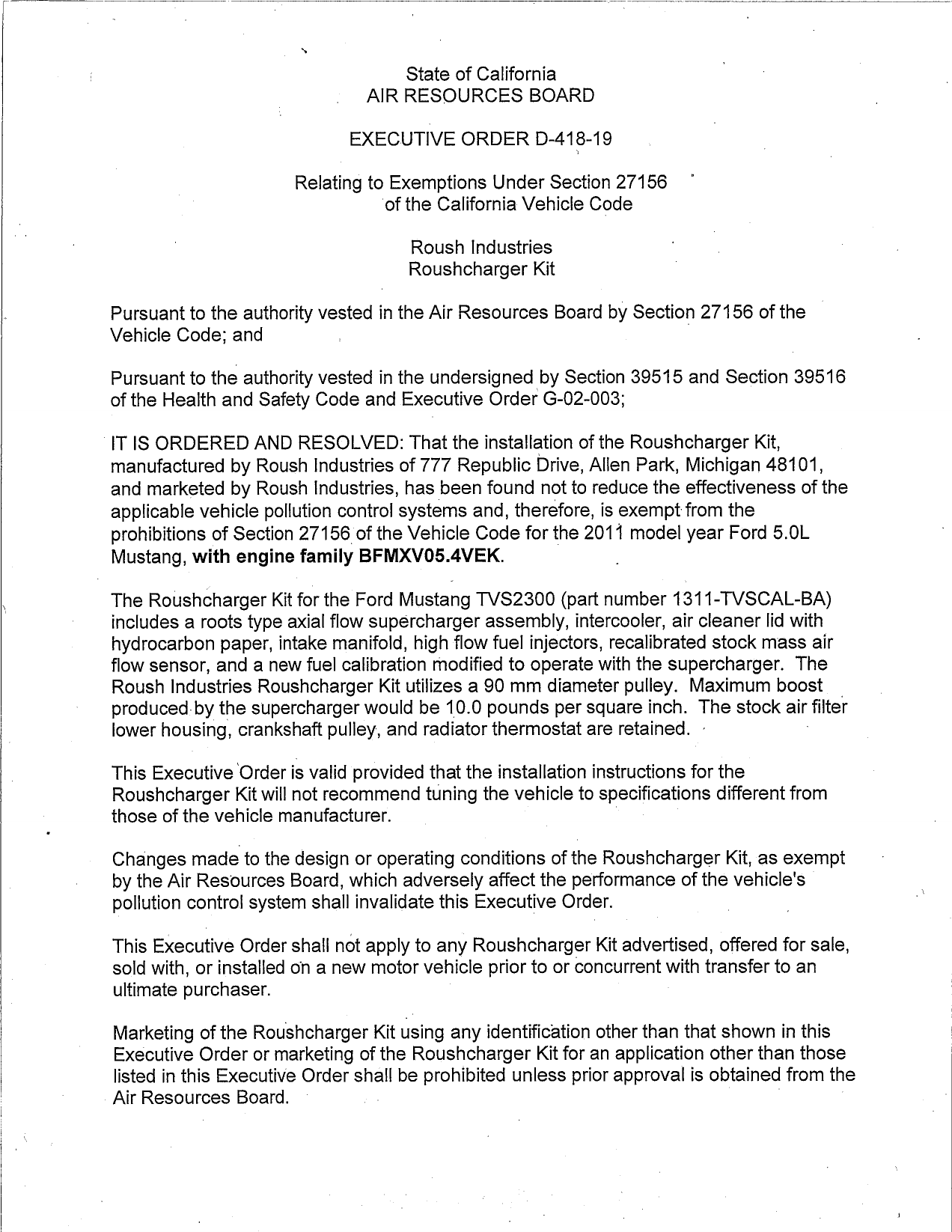

                                     State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—418—19
                        Relating to Exemptions Under Section 27156
                                  ‘of the California Vehicle Code

                                      Roush Industries
                                      Roushcharger Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the ’
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—02—003;

IT IS ORDERED AND RESOLVED: That the installation of the Roushcharger Kit,
 manufactured by Roush Industries of 777 Republic Drive, Allen Park, Michigan 48101,
and marketed by Roush Industries, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156of the Vehicle Code for the 2011 model year Ford 5.0L
Mustang, with engine family BFMXVO5.4VEK.

The RoUshéharger Kit for the Ford Mustang TVS2300 (part number 131 1—TVSCAL—BA)
includes a roots type axial flow supercharger assembly, intercooler, air cleaner lid with
hydrocarbon paper, intake manifold, high flow fuel injectors, recalibrated stock mass air
flow sensor, and a new fuel calibration modified to operate with the supercharger. The
Roush Industries Roushcharger Kit utilizes a 90 mm diameter pulley. Maximum boost
produced: by the supercharger would be 10.0 pounds per square inch. The stock airfllter
lower housmg, crankshaft pulley, and radiator thermostat are retained.

This Executive Order is valid provided that the installation instructions for the
Roushcharger Kit will not recommend tuning the vehicle to specifications different from
those of the vehicle manufacturer.

Changes madeto the design or operating conditions of the Roushcharger Kit, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle‘s
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Roushcharger Kit advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent WIth transfer to an
 ultimate purchaser.

 Marketing of the Roushcharger Kit using any identification other than that shown in this
 Executive Order or marketing of the Roushcharger Kit for an application other than those
 listed in this Executive Order shall be prohibited unless prior approval is obtalned from the
Air Resources Board.


This Executive Order does not constitute any opinion as to the effect the use of the
Roushcharger Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on previously submitted emission test data
generated by Roush Industries in certifying their Stage 3 supercharged Mustang (engine
family ARIIVO4.8VDM, LEV II ULEV, PC). The final configuration of the Roushcharger is
the same as the Stage 3. The certification emission results are shown below in grams
per mile:                                                 '

Mustang

Useful Life          NMOG          CO        NOx     HCHO
Emission Level       0.049         0.8       0.03     n/a
(w. DF applied)

     STD              0.070        2.1        0.04   0.011

  USO6/SCO3        NMHC+NOx    CO
Emission Leve!     0.06/0.06 4.5/2.3

     STD           0.14/0.20      8.0/2.7

The certification emission test results submitted for new vehicle certification have been
accepted as representative of emissions in the modified configuration. The certification
emission test results were below the applicable certification standards. Examination of
the OBD i1 system was not performed since Roush Industries has demonstrated OBD 11
compliance during certification of the Stage 3 supercharged Mustang. Therefore, based
on the test results, the staff concludes that the Roush Industries‘ Roushcharger Kit meets
the criteria for exempting general criteria parts.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

_ THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
  ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
  AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
  ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ROUSH INDUSTRIES®
  ROUSHCHARGER KIH.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.




                ROUSH INDUSTRIES — ROUSHCHARGER KIT —D—418—19


                                            —3.


Violation of any of the above conditions shall be grounds for revocation of this order. The
order maybe revoked only after a ten—day written notice of intention to revoke the order,
in which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt
of the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this    /3&      day of April 2011.                   2




                            E%Annette Hebert, Chief _
                               Mobile Source Operations Division




            __ROUSH INDUSTRIES — ROUSHCHARGER KIT —D—418—19



Document Created: 2011-06-07 10:31:54
Document Modified: 2011-06-07 10:31:54

Previous E.O. D-418-18 | Previous E.O. D-417 | Next E.O. D-418-20 | Next E.O. D-419
