Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on June 9, 2017.
As of Wednesday, June 19th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
see pdf

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-418-28
  • Executive Order 418-28 / D418-28
  • ARB # D-418-28
  • Executive Order No: D-418-28
  • C.A.R.B. No. D-418-28
  • Resolution D-418-28
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-418-28 PDF

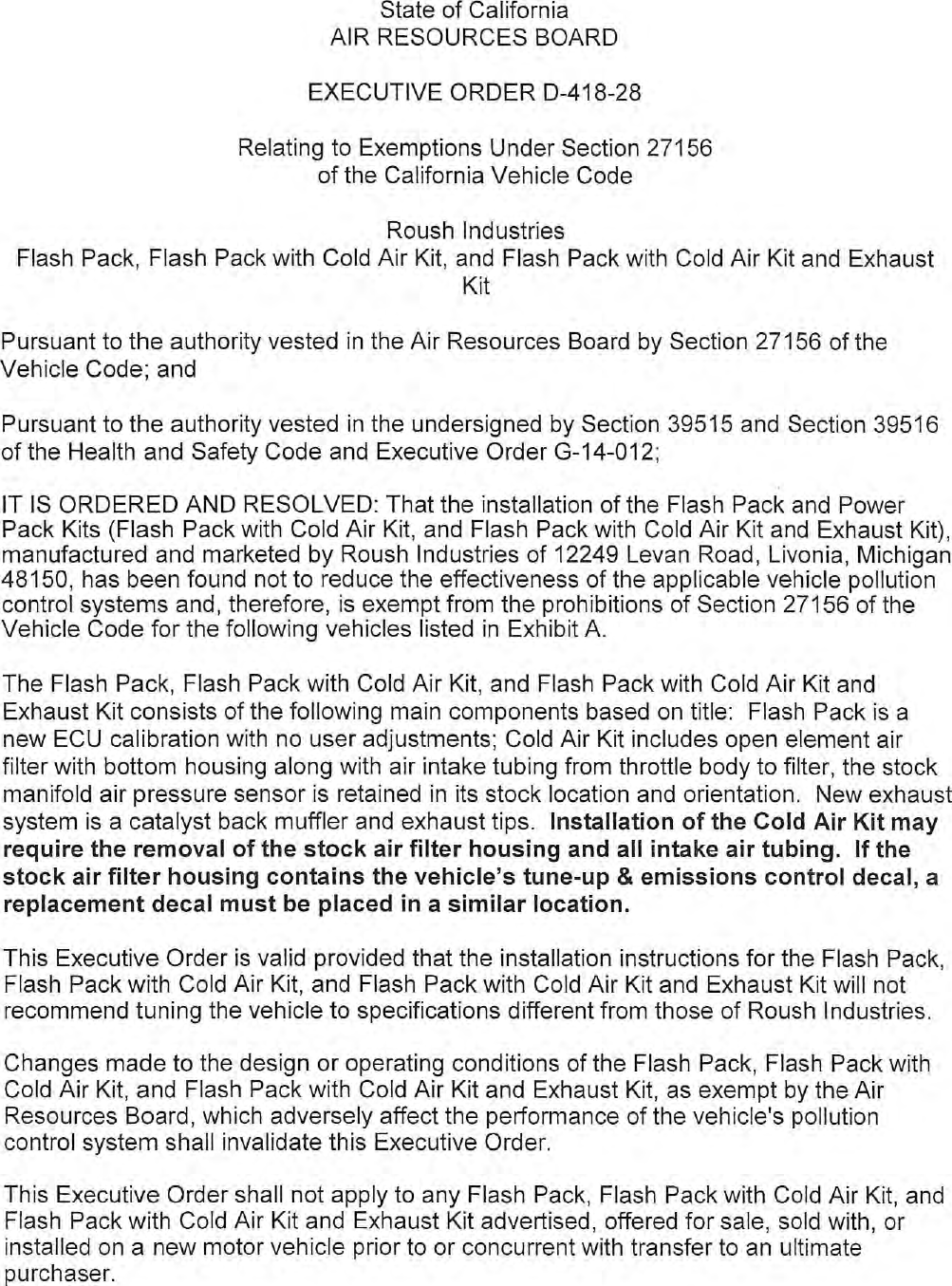

D-418-28 Document:



                                    State of California
                                AIR RESOURCES BOARD

                              EXECUTIVE ORDER D—418—28

                       Relating to Exemptions Under Section 27156
                               of the California Vehicle Code

                                   Roush Industries
 Flash Pack, Flash Pack with Cold Air Kit, and Flash Pack with Cold Air Kit and Exhaust
                                              Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516
of the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the Flash Pack and Power
Pack Kits (Flash Pack with Cold Air Kit, and Flash Pack with Cold Air Kit and Exhaust Kit),
manufactured and marketed by Roush Industries of 12249 Levan Road, Livonia, Michigan
48150, has been found not to reduce the effectiveness of the applicable vehicle pollution
control systems and, therefore, is exempt from the prohibitions of Section 27156 of the
Vehicle Code for the following vehicles listed in Exhibit A.

The Flash Pack, Flash Pack with Cold Air Kit, and Flash Pack with Cold Air Kit and
Exhaust Kit consists of the following main components based on title: Flash Pack is a
new ECU calibration with no user adjustments; Cold Air Kit includes open element air
filter with bottom housing along with air intake tubing from throttle body to filter, the stock
manifold air pressure sensor is retained in its stock location and orientation. New exhaust
system is a catalyst back muffler and exhaust tips. Installation of the Cold Air Kit may
require the removal of the stock air filter housing and all intake air tubing. If the
stock air filter housing contains the vehicle‘s tune—up & emissions control decal, a
replacement decal must be placed in a similar location.

This Executive Order is valid provided that the installation instructions for the Flash Pack,
Flash Pack with Cold Air Kit, and Flash Pack with Cold Air Kit and Exhaust Kit will not
recommend tuning the vehicle to specifications different from those of Roush Industries.

Changes made to the design or operating conditions of the Flash Pack, Flash Pack with
Cold Air Kit, and Flash Pack with Cold Air Kit and Exhaust Kit, as exempt by the Air
Resources Board, which adversely affect the performance of the vehicle‘s pollution
control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Flash Pack, Flash Pack with Cold Air Kit, and
Flash Pack with Cold Air Kit and Exhaust Kit advertised, offered for sale, sold with, or
installed on a new motor vehicle prior to or concurrent with transfer to an ultimate
purchaser.


Marketing of the Flash Pack, Flash Pack with Cold Air Kit, and Flash Pack with Cold Air
Kit and Exhaust Kit using any identification other than that shown in this Executive Order
or marketing of the Flash Pack, Flash Pack with Cold Air Kit, and Flash Pack with Cold Air
Kit and Exhaust Kit for an application other than those listed in this Executive Order shall
be prohibited unless prior approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the Flash
Pack, Flash Pack with Cold Air Kit, and Flash Pack with Cold Air Kit and Exhaust Kit may
have on any warranty either expressed or implied by the vehicle manufacturer.

This exemption is issued based on submitted emissions test data, from the SEMA
Garage, Diamond Bar, California, on a 2015 model year Ford 2.3L Turbo Mustang
certified to the LEV 3 ULEV 70 emission standards, modified with the worst case kit,
Flash Pack with Cold Air Kit and Exhaust Kit, and tested using the Cold—Start CVS—75
Federal Test Procedure (FTP) test cycle and the Supplemental Federal Test Procedure
(SFTP USO6/SC03 (AC2 test + 20%)) test cycle.

Useful Life FTP     NMOG+NOx               Co           HCHO
Emission Level
(w/ df applied,
2 test avg)             0.051              0.4          0.002

     Standards          0.070              1:7.         0.004

Useful Life SFTP            NMOG+NOx              co
Emission Level
(Composite w/ df)               0.045             0.5

     Standards                  0.090 (BIN) 4.2

Horsepower gain was measured at 62hp.

Test results showed that the worst case configuration did not cause exhaust emissions to
exceed the applicable emission standards during the FTP and SFTP. This Executive
Order is also based on the On—Board Diagnostic II (OBD 1I) testing conducted on the
same test vehicle. The Flash Pack with Cold Air Kit and Exhaust Kit when installed on
the test vehicle did not affect the vehicle‘s ability to perform its OBD II monitoring. Similar
results would be expected from the other kits listed.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.




    ROUSH INDUSTRIES — FLASH PACK, FLASH PACK WITH COLD AIR KIT, AND
        FLASH PACK WITH COLD AIR KIT AND EXHAUST KIT — D—418—28


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ROUSH INDUSTRIES®
FLASH PACK, FLASH PACK WITH COLD AIR KIT, AND FLASH PACK WITH COLD AIR
KIT AND EXHAUST KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order,
in which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt
of the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this      CI      day of June 2017.




             Annette Hebert, Chief
              Emissions Compliance, Automotive Regulations and Science Division




    ROUSH INDUSTRIES — FLASH PACK, FLASH PACK WITH COLD AIR KIT, AND
        FLASH PACK WITH COLD AIR KIT AND EXHAUST KIT — D—418—28




                                        Exhibit A




           Flash Pack                    421989

   Power Pack Level I(Tune + CAK)        421900                       23 Ecoboost

Power Pack Level2 (Tune + CAK + Exh)     421991


     Flash Pack (Calibration Only)       421995             Mustang

   Power Pack Level 1 (Tune +CAK)        421999                          37L

Power Pack Level 2 (Tune+ CAK + Exh)     422000

     Flash Pack (Calibration Only)       421995                           50L


     Flash Pack (Calibration Only)       422002
                                                  2015—17
   Power Pack Level 1 (Tune + CAK)       422003                           35L

Power Pack Level 2 (Tune+ CAK + Exh)     422004


     Flash Pack (Calibration Only)       422002


   Power Pack Level 1 (Tune+ CAK)        422006              F150     3.5L Ecoboost

Power Pack Level 2 (Tune+ CAK + Exh)     422007

     Flash Pack (Calibration Only)       422002


   Power Pack Level 1 (Tune+ CAK)        422009                           50L


Power Pack Level 2 (Tune + CAK + Exh)    422010




             ROUSH INDUSTRIES — PERFORMANCE KIT — D—418—28





Document Created: 2017-07-18 08:37:43
Document Modified: 2017-07-18 08:37:43
