Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 15, 2005.
As of Wednesday, July 17th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsRemarks
R07000001Roush Industries 5.4L Ford F-150 Supercharger KitUses a 92mm dia. pulley & crankshaft pulley dia. of 189mm. Max boost: 7.5 PSI @ 4500 RPM

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-418-3
  • Executive Order 418-3 / D418-3
  • ARB # D-418-3
  • Executive Order No: D-418-3
  • C.A.R.B. No. D-418-3
  • Resolution D-418-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-418-3 PDF

D-418-3 Document:

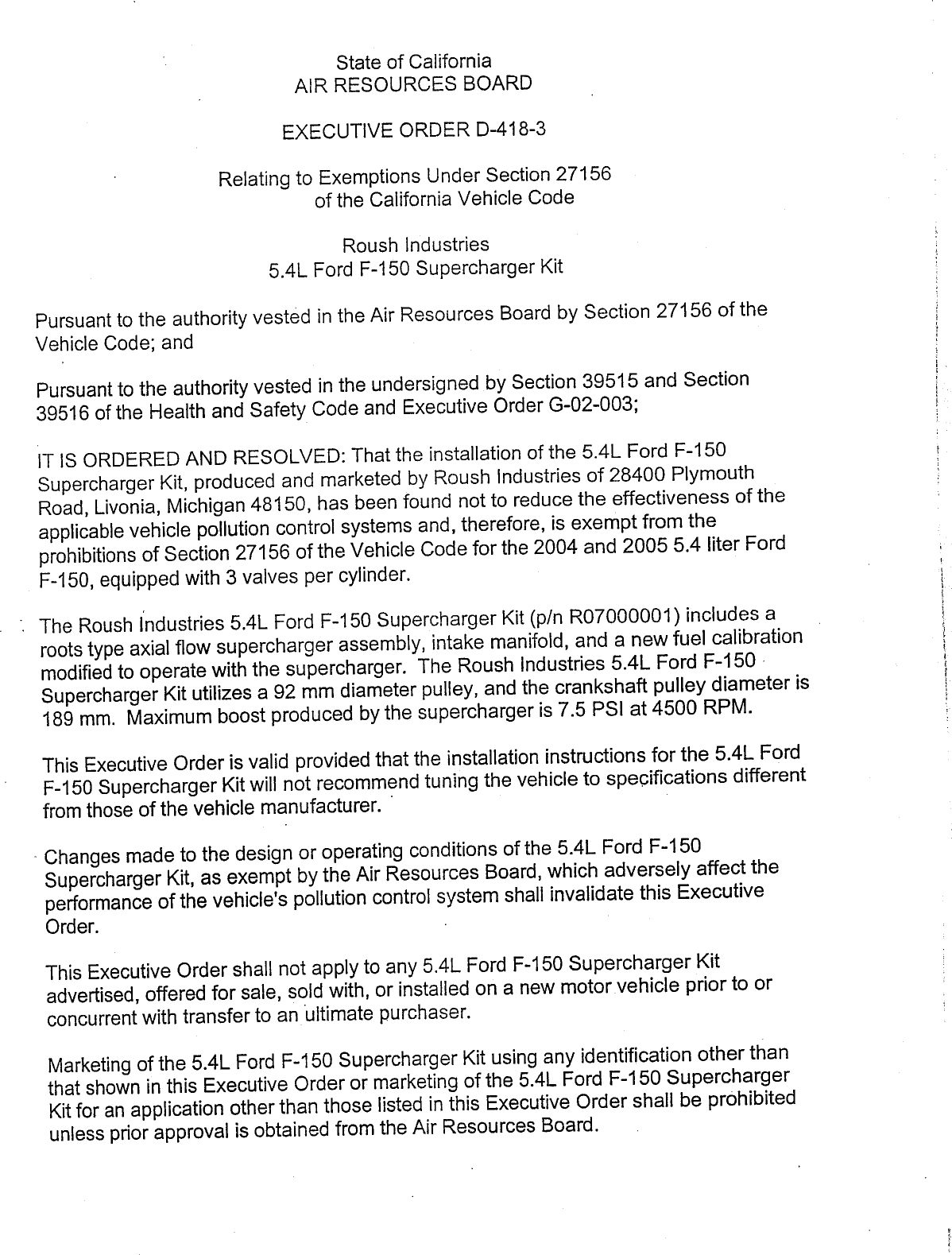

                                      State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—418—3

                        Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                      Roush Industries
                              5.4L Ford F—150 Supercharger Kit

  Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
  Vehicle Code; and

  Pursuant to the authority vested in the undersigned by Section 39515 and Section
  39516 of the Health and Safety Code and Executive Order G—02—003;

  IT IS ORDERED AND RESOLVED: That the installation of the 5.4L Ford F—150
  Supercharger Kit, produced and marketed by Roush Industries of 28400 Plymouth
  Road, Livonia, Michigan 48150, has been found not to reduce the effectiveness of the
  applicable vehicle pollution control systems and, therefore, is exempt from the
  prohibitions of Section 27156 of the Vehicle Code for the 2004 and 2005 5.4 liter Ford
  F—150, equipped with 3 valves per cylinder.

\_The Roush Industries 5.4L Ford F—150 Supercharger Kit (p/n RO7O00001) includes a
  roots type axial flow supercharger assembly, intake manifold, and a new fuel calibration _
  modified to operate with the supercharger. The Roush Industries 5.4L Ford F—150 —
  Supercharger Kit utilizes a 92 mm diameter pulley, and the crankshaft pulley diameter is
  189 mm. Maximum boost produced by the supercharger is 7.5 PSI at 4500 RPM.

  This Executive Order is valid provided that the installation instructions for the 5.4L Ford
  F—150 Supercharger Kit will not recommend tuning the vehicle to specxflcatlons different
  from those of the vehicle manufacturer

 — Changes made to the design or operating conditions of the 5.4L Ford F—150
   Supercharger Kit, as exempt by the Air Resources Board, which adversely affect the
   performance of the vehicle‘s pollution control system shall invalidate this Executive
   Order.

  This Executive Order shall not apply to any 5.4L Ford F—150 Supercharger Kit
  advertised, offered for sale, sold with, or installed on a new motor vehicle prior to or
  concurrent with transfer to an ultimate purchaser.

  Marketing of the 5.4L Ford F—150 Supercharger Kit using any identification other than
  that shown in this Executive Order or marketing of the 5.4L Ford F—150 Supercharger
  Kit for an application other than those listed in this Executive Order shall be prohibited
  unless prior approval is obtained from the Air Resources Board.


                                              —3—


This Executive Order does not constitute any opinion as to the effect the use of the 5.4L
Ford F—150 Supercharger Kit units may have on any warranty either expressed or
implied by the vehicle manufacturer.                     .

This Executive Order is granted based on emission test results in the modified
configuration using the Cold—Start CVS—75 Federal Test Procedure, Supplemental
Federal Test Procedure (USO6 and SCO03), and an examination of the On—Board
Diagnostic I1 (OBD 11) system. A 2005 Ford F—150 with a 5.4 liter engine
(SFMXTO5 4R4P, LEV—I{ LEV) was used for the evaluation of the 5.4L Ford F—150
Supercharger Kit. Results ffom emissions testing conducted by Roush Industries are
shown below (in grams per mile):

FTP                    50k         NMOG        CO            NOx     HCHO
                 Emission Level    0.0860     0.964          0.012   0.001
                 {DF applied)
                       STD         0.075      3.4            0.05    0.015

                      120k        NMOG         CO            NOx     HCHO
                 Emission Level    0.066      1.153          0.036   0.001
                 (DF applied)
                       STD         0.090      4.2            0.07    0.018

USO6                              NMHC + NOx           CO
                Emission Level        0.010            9.05
                       STD            0.6             11.8

$sCo3                          NMHC + NOx              CO
(AC2)           Emission Level    0.0033              0.6
                      STD         0.44                4.0

The emission test results in the modified configuration were below the applicable
certification standards. Examination of the OBD 1I system showed the 5.4L Ford F—150
Supercharger Kit does not affect OBD If operation.

If evidence provides the Air Resources Board with reason to suspect that the 5.4L Ford
F—150 Supercharger Kit will affect the durability of emission control systems, Roush
Industries shall be required to submit durability data to show that the durability of vehicle
emission control systems are not, in fact, affected and/or that the add—on or modified
part demonstrates adequate durability.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING

            ROUSH INDUSTRIES — 5.4L FORD F—150 SUPERCHARGER KIT — D—418—3


                                            —3—


ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ROUSH
INDUSTRIES®‘ 5.4L FORD F—150 SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made
with respect to the action taken herein in any advertising or other oral or written
communication.

Violation of any of the above conditions shall be grounds for revocation of this order.
The order may be revoked only after a ten—day written notice of intention to revoke the
order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination is made
after the hearing that grounds for revocation exist.

Executed at El Monte, California, this   (5’¢        day of March 2005.



                                 a fi%f\w

                            "/"~Alien Lyons, Chief
                                Mobile Source Operations Division




            ROUSH INDUSTRIES — 5.4L FORD F—150 SUPERCHARGER KIT — D—418—3



Document Created: 2005-09-01 12:43:23
Document Modified: 2005-09-01 12:43:23
