Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 25, 2006.
As of Monday, December 10th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModificationRemarks
1994-2002 Caterpillar 3116, 3126, 3176, 3306, 3406, C10, C12, C15, and C16 heavy-duty diesel enginesThis exemption does not apply to any engines originally equipped with an aftertreatment emission control system such as a catalytic converter.This exemption is only valid when the engine exhaust temperature is between 280 and 325 degrees Celsius for at least 25 percent of the typical duty cycle. The engines can be operated on standard California diesel, ultra-low sulfur diesel, or PuriNOx fuel based on standard California diesel or ULSD.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-420-10
  • Executive Order 420-10 / D420-10
  • ARB # D-420-10
  • Executive Order No: D-420-10
  • C.A.R.B. No. D-420-10
  • Resolution D-420-10
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-420-10 PDF

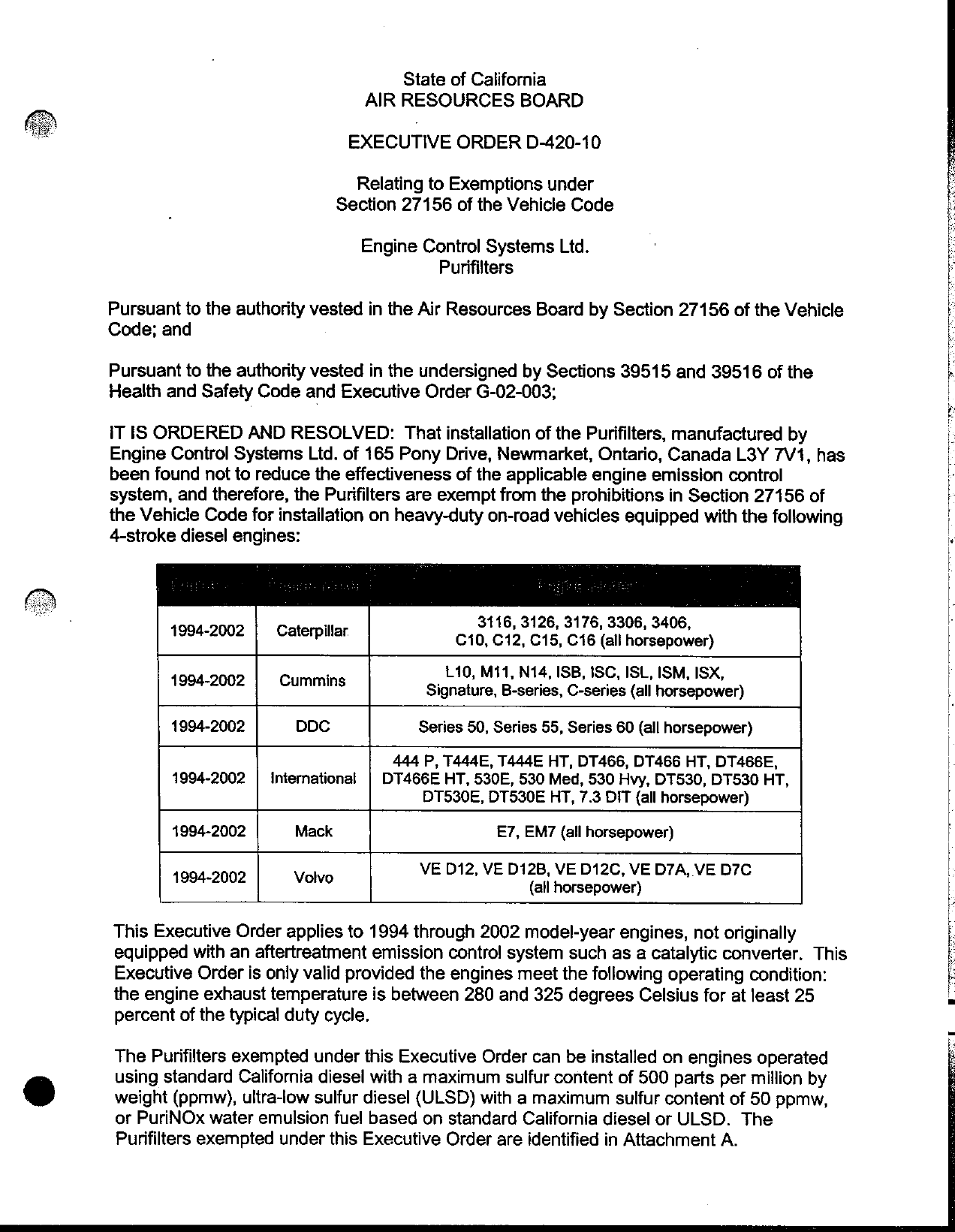

D-420-10 Document:



                                        State of California
                                    AIR RESOURCES BOARD

                                  EXECUTIVE ORDER D—420—10

                                   Relating to Exemptions under
                                 Section 27156 of the Vehicle Code

                                    Engine Control Systems Ltd.
                                             Purifilters

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
Health and Safety Code and Executive Order G—02—003;




                                                                                               ~rone
IT IS ORDERED AND RESOLVED: That installation of the Purifilters, manufactured by
Engine Control Systems Ltd. of 165 Pony Drive, Newmarket, Ontario, Canada L3Y 7V1, has
been found not to reduce the effectiveness of the applicable engine emission control
system, and therefore, the Purifilters are exempt from the prohibitions in Section 27156 of
the Vehicle Code for instailation on heavy—duty on—road vehicles equipped with the following
4—stroke diesel engines:



                                                   3116, 3126, 3176, 3306, 3406,
       1994—2002      Caterpillar               C10, C12, C15, C16 (all horsepower)
                             4                L10, M11, N14, ISB, 1SC, ISL, ISM, ISX,
       1994—2002     Cummins                Signature, B—series, C—series (all horsepower)

        1994—2002       DDC                Series 50, Series 55, Series 60 (all horsepower)

                                       444 P, T444E, T444E HT, DT466, DT466 HT, DT4GGE,
        1994—2002   International     DT4G6GE HT, 530E, 530 Med, 530 Hvy, DT530, DT530 HT,
                                           DT530E, DT530E HT, 7.3 DIT (all horsepower)

        1994—2002       Mack                          E7, EM7 (all horsepower)

        1994—2002       Volvo              VE D12, VE D12B, VE D12C, VE D7A, VE DC
                                                         (all horsepower)

This Executive Order applies to 1994 through 2002 model—year engines, not originally
 equipped with an aftertreatment emission control system such as a catalytic converter. This
Executive Order is only valid provided the engines meet the following operating condition:
the engine exhaust temperature is between 280 and 325 degrees Celsius for at least 25
percent of the typical duty cycle.

 The Purifilters exempted under this Executive Order can be installed on engines operated
 using standard California diesel with a maximum sulfur content of 500 parts per million by
 weight (ppmw), ultra—low sulfur diesel (ULSD) with a maximum sulfur content of 50 ppmw,
 or PuriNOx water emulsion fuel based on standard California diesel or ULSD. The
 Purifilters exempted under this Executive Order are identified in Attachment A.


                                               «2.

This Executive Order is based on emission tests conducted by Engine Control Systems Ltd.
with the Purifilter. Test data showed no adverse impact on engine emissions. The same
emissions impact is expected when the Purifilters are installed on any of the engines listed
above.

This Executive Orderis valid provided that installation instructions for the Purifilters do not
recommend tuning the engines to specifications different from those of the engine
manufacturer.

Changes made to the design or operating conditions of the Purifilters, as exempted by the
Air Resources Board, which adversely affect the performance of the engine‘s pollution
control system, shall invalidate this Executive Order.

Marketing of the Purifilters using identification other than that shown in this Executive Order
or for an application other than that listed in this Executive Order shall be prohibited unless
prior approval is obtained from the Air Resources Board.

This Executive Order shall not apply to any Purifilters advertised, offered for sale, sold with,
or instalied on a motor vehicle prior to or concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the
Purifilters may have on any warranty either expressed or implied by the engine
manufacturer.

No claim of any kind, such as "Approved by the Air Resources Board," may be made with
respect to the action taken herein in any advertising or other oral or written communication.

In addition to the foregoing, the Air Resources Board reserves the right in the future to
review this Executive Order and the exemption provided herein to assure that the exempted
add—on or modified part continues to meet the standards and procedures of California Code
of Regulations, Title 13, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ENGINE CONTROL
SYSTEMS LTD.‘S PURIFILTERS.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of intention
to revoke the Executive Order, in which period the holder of the Executive Order may
request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request, and the Executive Order may not be
revoked until a determination is made after a hearing that grounds for revocation exist.




                ENGINE CONTROL SYSTEMS LTD. — PURIFiLTERS — D—420—10


                                             —3—
Executive Order D—420—5, dated August 7, 2003, is hereby superseded and is of no further
force and effect.

Executed at El Monte, California, this   &         day of January 2006.


                               D. Aevren..
                               g%,_Auan Lyons, Chief
                                    Mobile Source Operations Division




              ENGINE CONTROL SYSTEMS LTD. —— PURIFILTERS — D—420—10


t


                                 Attachment A




                                              SC10H & SC10L
                                              SC13H & SC13L
                                              SC17H & SC17L
                       A113OOX                SC20H & SC20L
                                               Dual SC13H/L
                                               Dual SC17H/L
                                               Dual SC20H/L

Note:    Purifitter Part Number
         Pre—fix A11 designates the Purifilter. OOX designates a design and
         corresponding bill of materials.

         Purifiter Model
         SC10H/L: SC denotes silicon carbide substrate; 10 is the filter volume in liters;
         H denotes high catalyst loading; L denotes low catalyst loading.




        ENGINE CONTROL SYSTEMS LTD. — PURIFILTERS — D—420—10



Document Created: 2006-02-15 08:14:02
Document Modified: 2006-02-15 08:14:02
