Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on February 10, 2003.
As of Saturday, October 12th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1996-2002 model-year 3.9, 5.9, and 8.3 liter Case off-road compression-ignition engines. This exemption is limited to engines subject to California's Tier-1 exhaust emisison standards. This exemption is also limited to engines used in port equipment such as yard tractor, lift truck, top pick, side pick, and a gantry crane.The AZ Purifier and AZ Purimuffler can be installed on engines operated using standard California diesel, ultra-low sulfur diesel, or PuriNOx water emulsion fuel based on either standard California diesel or ultra-low sulfur diesel.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-420U-1
  • Executive Order 420U-1 / D420U-1
  • ARB # D-420U-1
  • Executive Order No: D-420U-1
  • C.A.R.B. No. D-420U-1
  • Resolution D-420U-1
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-420U-1 PDF

D-420U-1 Document:


CARB_D-420U-1

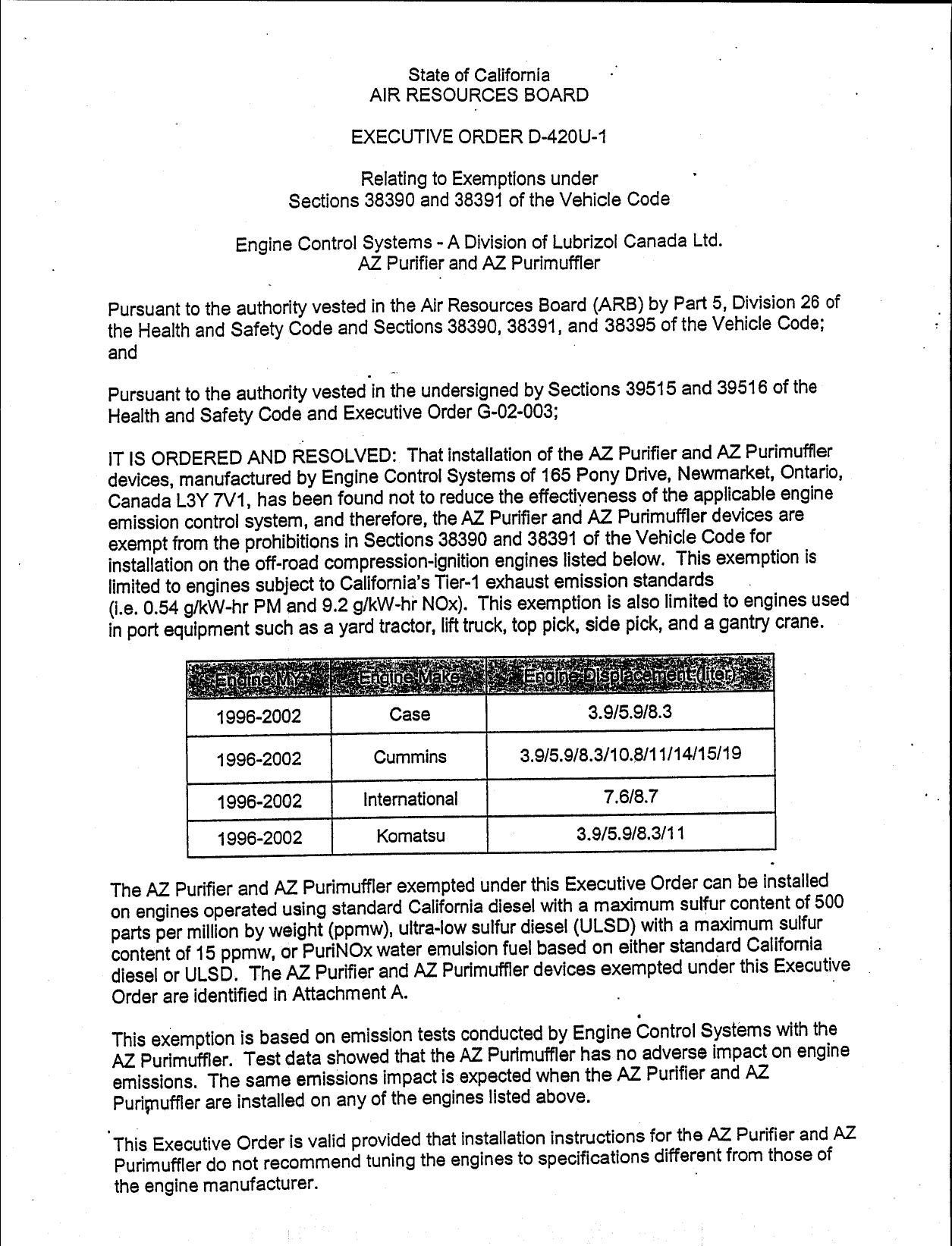

                                         State of California
                                    AIR RESOURCES BOARD
                                 EXECUTIVE ORDER D—420U—1

                                  Relating to Exemptions under
                         Sections 38390 and 38391 of the Vehicle Code

                  Engine Control Systems — A Division of Lubrizol Canada Ltd.
                                AZ Purifie( and AZ Purimuffler

 Pursuant to the authority vested in the Air Resources Board (ARB) by Part 5, Division 26 of
 the Health and Safety Code and Sections 38390, 38391, and 38395 of the Vehicle Code;
 and

 Pursuant to the authority vested in the undersigned by Sections 39515 and 39516 of the
 Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That installation of the AZ Purifier and AZ Purimuffler
 devices, manufactured by Engine Control Systems of 165 Pony Drive, Newmarket, Ontario,
 Canada L3Y 7V1, has been found not to reduce the effectiveness of the applicable engine
 emission control system, and therefore, the AZ Purifier and AZ Purimuffler devices are
 exempt from the prohibitions in Sections 38390 and 38391 of the Vehicle Code for
 installation on the off—road compression—ignition engines listed below. This exemption is
 limited to engines subjfect to California‘s Tier—1 exhaust emission standards        .
 (i.e. 0.54 g/ikW—hr PM and 9.2 g/kW—hr NOx). This exemption is also limited to engines used
 in port equipment such as a yard tractor, lift truck, top pick, side pick, and a gantry crane.



               1996—2002 |           ae           |       0 3.9/5.9/8.3

               1996—2002           Cummins            3.9/5.9/8.3/10.8/11/14/15/18

               1996—2002          International                   7.6/8.7                            |
               1996—2002           Komatsu                     3.9/5.9/8.3/11                        [

The AZ Purifier and AZ Purimuffler exempted under this Executive Order can be installed
on engines operated using standard California diesel with a maximum sulfur content of 500
parts per million by weight (ppmw), ultra—low sulfur diesel (ULSD) with a maximum sulfur
content of 15 ppmw, or PuriNOx water emulsion fuel based on either standard California
diesel or ULSD. The AZ Purifier and AZ Purimuffier devices exempted under this Executuve
Order are identified in Attachment A.

This exemption is based on emission tests conducted by Engine Control Systems with the
AZ Purimufflier. Test data showed that the AZ Purimuffler has no adverse impact on engine
emissions. The same emissions impact is expected when the AZ Purifier and AZ
Purimuffier are installed on any of the engines listed above.

'Thl.S Executive Order is valid provided that installation instructions for the AZ Purifier and AZ
 Purimuffler do not recommend tuning the engines to specifications dlfferent from those of
 the engine manufacturer.


                                                «3.

 Changes made to the design or operating conditions of the AZ Purifier or AZ Purimuffier, as
exempted by the ARB, which adversely affect the performance of the engine‘s pollution
control system, shall invalidate this Executive Order.

Marketing of the AZ Purifier and AZ Purimuffler using identification other‘than that shown in
this Executive Order or for an application other than that listed in this Executive Order shall
be prohibited unless prior approval is obtained from the ARB.

This Executive Order shall not apply to any AZ Purifier or AZ Purimuffler advertised, offered
for sale, sold with, or installed on an off—road engine, vehicle, or equipment prior to or
concurrent with transfer to an ultimate purchaser.

This Executive Order does not constitute any opinion as to the effect the use of the AZ
Purifier and AZ Purimuffler may have on any warranty either expressed or implied by the
engine manufacturer.
                                      —



No claim of any kind, such as "Approved by the Air Resources Board," may be made with
respect to the action taken herein in any advertising or other oral or written communication.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive
Order and the exemption provided herein to assure that the exempted add—on or modified
part continues to meet the standards and procedures of California Code of Regulations,
Title 13, Section 2474, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—
POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF ENGINE CONTROL
SYSTEMS‘ AZ PURIFIER AND AZ PURIMUFFLER DEVICES.

Violation of any of the above conditions shall be grounds for revocation of this Executive
Order. The Executive Order may be revoked only after a ten—day written notice of intention
to revoke the Executive Order, in which period the holder of the Executive Order may
request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request, and the Executive Order may not be
revoked until a determination is made after a hearing that grounds for revocation exist.

Executed at El Monte, California, this     /Ofl'l      day of February 2003.




                                     . Allééyons, Chief
                                         Mobile Source Operations Division




       ENGINE CONTROL SYSTEMS — A DIVISION OF LUBRIZOL CANADA LTD.
                AZ PURIFIER AND AZ PURIMUFFLER — D—420U—1


                                Attachment A




                                               AZ27

                                               AZ28

                                               AZ29
                    MBC—XXXX
                                               AZ30
                    A173OCCX

                    AMB—XCOCX                  AZ31

                                               AZ33

                                               AZ34

                                               AZ36


Note:   ECS Part Number
        Pre—fixes A16, A17, and A18 designate converter design format:
        (1) A16 designates the Purifier format (converter only).
        (2) A17 designates the Purimuffler format (converter and mufffler).
        (3) A18 designates the Purimuffler format (converter and muffler, UL
             approved spark arresting).
        Catalyst Model
        AZ designates catalyst formulation.
        Numbers 27 through 36 designate catalyst size.
        For custom direct fit applications, the part number will describe the
        converter design format and application, i.e. AZ Purimuffler forABC
        Trucking with Cummins B engine.




ENGINE CONTROL SYSTEMS — A DIVISION OF LUBRIZOL CANADA LTD.
         AZ PURIFIER AND AZ PURIMUFFLER — D—420U—1



Document Created: 2005-09-01 12:43:46
Document Modified: 2005-09-01 12:43:46

Previous E.O. D-420U | Previous E.O. D-419 | Next E.O. D-420U-2 | Next E.O. D-421
