Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 27, 1999.
As of Wednesday, August 21st, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
1995 to 1999 Toyota trucks that are equipped with a 3.4L engineThe 6 PSI. Supercharger Kit includes the following main components: Eaton M-62 supercharger, intake manifold, fuel regulator, and all the necessary hardware needed to connect to the stock air filter housing and throttle-body using the stock tubing. No changes are made to the stock ignition system. The kit includes a 2.215" diameter supercharger pulley and uses the stock crankshaft pulley

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-3
  • Executive Order 425-3 / D425-3
  • ARB # D-425-3
  • Executive Order No: D-425-3
  • C.A.R.B. No. D-425-3
  • Resolution D-425-3
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-3 PDF

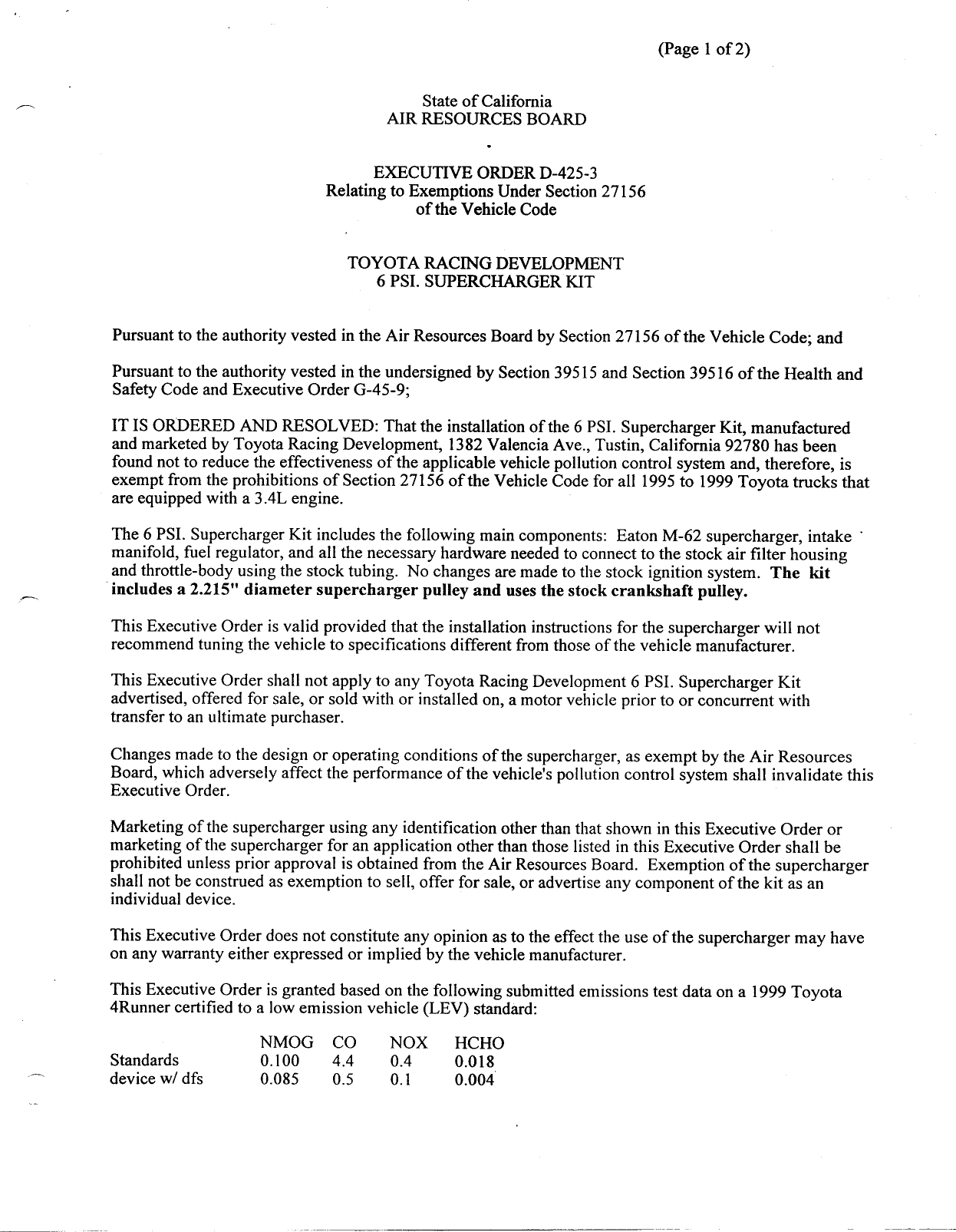

D-425-3 Document:



                                                                                (Page 1 of 2)


                                            State of California
                                        AIR RESOURCES BOARD


                                     EXECUTIVE ORDER D—425—3
                               Relating to Exemptions Under Section 27156
                                            of the Vehicle Code


                                     TOYOTA RACING DEVELOPMENT
                                       6 PSI. SUPERCHARGER KIT


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of the Health and
Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the 6 PSI. Supercharger Kit, manufactured
and marketed by Toyota Racing Development, 1382 Valencia Ave., Tustin, California 92780 has been
found not to reduce the effectiveness of the applicable vehicle pollution control system and, therefore, is
exempt from the prohibitions of Section 27156 of the Vehicle Code for all 1995 to 1999 Toyota trucks that
are equipped with a 3.4L engine.

 The 6 PSI. Supercharger Kit includes the following main components: Eaton M—62 supercharger, intake °
 manifold, fuel regulator, and all the necessary hardware needed to connect to the stock air filter housing
 and throttle—body using the stock tubing. No changes are made to the stock ignition system. The kit
\includes a 2.215" diameter supercharger pulley and uses the stock crankshaft pulley.

This Executive Order is valid provided that the installation instructions for the supercharger will not
recommend tuning the vehicle to specifications different from those of the vehicle manufacturer.

This Executive Order shall not apply to any Toyota Racing Development 6 PSI. Supercharger Kit
advertised, offered for sale, or sold with or installed on, a motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

Changes made to the design or operating conditions of the supercharger, as exempt by the Air Resources
Board, which adversely affect the performance of the vehicle‘s pollution control system shall invalidate this
Executive Order.

Marketing of the supercharger using any identification other than that shown in this Executive Order or
marketing of the supercharger for an application other than those listed in this Executive Order shall be
prohibited unless prior approval is obtained from the Air Resources Board. Exemption of the supercharger
shall not be construed as exemption to sell, offer for sale, or advertise any component of the kit as an
individual device.

This Executive Order does not constitute any opinion as to the effect the use of the supercharger may have
on any warranty either expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on the following submitted emissions test data on a 1999 Toyota
4Runner certified to a low emission vehicle (LEV) standard:

                      NMOG      CO       NOX       HCHO
Standards             0.100     4.4      0.4      0.018
device w/ dfs         0.085     0.5      0.1      0.004


TOYOTA RACING DEVELOPMENT                                      EXECUTIVE ORDER D—425—3
6 PSI. SUPERCHARGER KIT                                        (Page 2 of 2)




Test results showed that tailpipe emissions with the Supercharger Kit installed on the vehicle met the
vehicle‘s applicable emission standard during Cold Start CVS—75 Federal Test Procedure. This Executive
Order is also based on On Board Diagnostic II (OBD II) testing conducted on the same 1999 4Runner
truck. Test data showed that the Supercharger Kit when installed on the vehicle did not affect the
vehicle‘s ability to perform its OBD II monitoring.

This Executive Order is granted based on submitted emissions test data which showed that the Toyota
Racing Development‘s 6 PSI. Supercharger Kit did not adversely affect tailpipe emissions during the Cold
Start CVS—75 Federal Test Procedure. However, the ARB finds that reasonable grounds exist to believe
that use of the Toyota Racing Development‘s Supercharger Kit may adversely affect emissions of motor
vehicles when operating under conditions outside the parameters of the previously prescribed test
procedures. Accordingly, the ARB reserves the right to conduct additional emission tests, in the future, as
such tests are developed, that will more adequately measure emissions from all cycle phases. If such test
results demonstrate that the supercharger adversely affects emissions during off—cycle conditions (defined
as those conditions which are beyond the parameters of the Cold—Start CVS—75 Federal Test Procedure),
this Executive Order shall be effectively rescinded as of the date the test results are validated. Further, if
such test results or other evidence provides the ARB with reason to suspect that the supercharger will
affect the durability of the emission control systems, Toyota Racing Development shall be required to
submit durability data to show that the durability of the vehicle emission control system is not, in fact,
affected and/or that the add—on or modified part demonstrates adequate durability.

In addition to the foregoing, the ARB reserves the right in the future to review this Executive Order and _
the exemption provided herein to assure that the exempted add—on or modified part continues to meet the
standards and procedures of Title 13, California Code of Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION, ACCREDITATION,
APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR RESOURCES BOARD OF
ANY CLAIMS OF THE APPLICANT CONCERNING ANTI—POLLUTION BENEFITS OR ANY
ALLEGED BENEFITS OF TOYOTA RACING DEVELOPMENT‘S SUPERCHARGER KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with respect to the
action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The order may be
revoked only after a ten—day written notice of intention to revoke the order, in which period the holder of
the order may request in writing a hearing to contest the proposed revocation. If a hearing is requested, it
shall be held within ten days of receipt of the request and the order may not be revoked until a
determination after hearing that grounds for revocation exist.

Executive Order D—425—2, dated February 1998, is superseded and of no further force and effect.
                                                L
Executed at E1 Monte, California, this    22 t day of J      ry 1999.




                                         R. B. Summerfield, Chief
                                         Mobile Source Operations Division



Document Created: 2005-09-01 12:41:07
Document Modified: 2005-09-01 12:41:07

Previous E.O. D-425-2 | Previous E.O. D-424 | Next E.O. D-425-4 | Next E.O. D-426
