Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 11, 2009.
As of Monday, September 16th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
PTR03-521002008 to 2010 2.4L Scion xBThe TRD Cold Air Intake includes a modified air filter housing with a Camry hydrocarbon trap that is permanently heat staked to the lid of the housing, and air intake tubing from the new air filter housing to the stock throttlebody. No other modifications are required for installation other than the replacement of the stock air filter housing and intake tubing with the TRD Cold Air Intake.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-30
  • Executive Order 425-30 / D425-30
  • ARB # D-425-30
  • Executive Order No: D-425-30
  • C.A.R.B. No. D-425-30
  • Resolution D-425-30
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-30 PDF

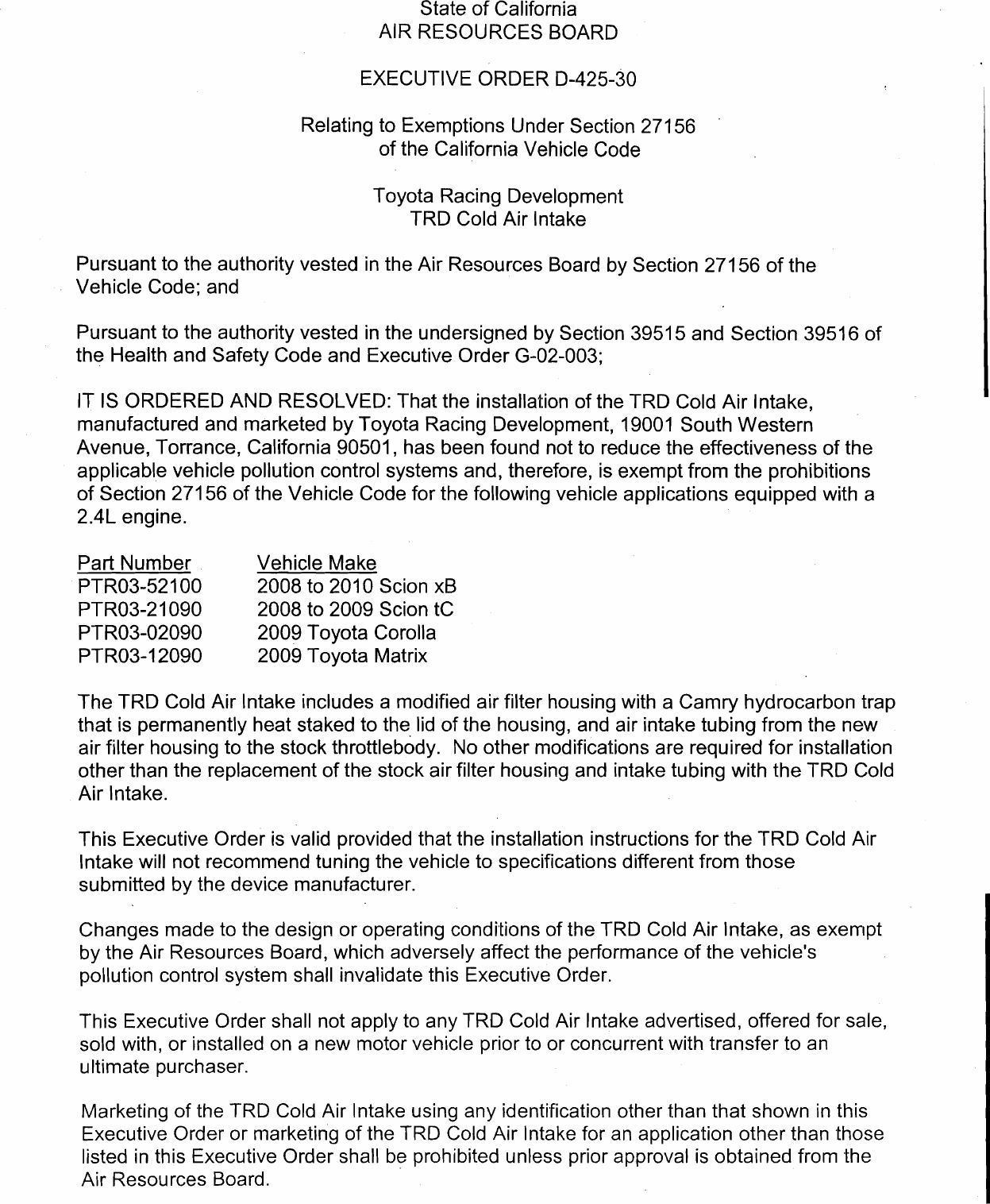

D-425-30 Document:



                                        State of California
                                    AIR RESOURCES BOARD

                                 EXECUTIVE ORDER D-425-30

                          Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                   Toyota Racing Development
                                      TRD Cold Air lntake

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That the installation of the TRD Cold Air Intake,
manufactured and marketed by Toyota Racing Development, 19001 South Western
Avenue, Torrance, California 90501, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the prohibitions
of Section 27156 of the Vehicle Code for the following vehicle applications equipped with a
2.4L engine.

Part Number          Vehicle Make
PTR03-52100          2008 to 2010 Scion xB
PTR03-2I090          2008 to 2009 Scion tC
PTR03-02090          2009 Toyota Corolla
PTR03-12090          2009 Toyota Matrix

The TRD Cold Air lntake includes a modified air filter housing with a Carnry hydrocarbon trap
that is permanently heat staked to the lid of the housing, and air intake tubing from the new
air filter housing to the stock throttlebody. No other modifications are required for installation
other than the replacement of the stock air filter housing and intake tubing with the TRD Cold
Air Intake.

This Executive Order is valid provided that the installation instructions for the TRD Cold Air
lntake will not recommend tuning the vehicle to specifications different from those
submitted by the device manufacturer.

Changes made to the design or operating conditions of the TRD Cold Air Intake, as exempt
by the Air Resources Board, which adversely affect the performance of the vehicle's
pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TRD Cold Air lntake advertised, offered for sale,
sold with, or installed on a new motor vehicle prior to or concurrent with transfer to an
ultimate purchaser.

Marketing of the TRD Cold Air lntake using any identification other than that shown in this
Executive Order or marketing of the TRD Cold Air lntake for an application other than those
listed in this Executive Order shall be prohibited unless prior approval is obtained from the
Air Resources Board.


This Executive Order does not constitute any opinion as to the effect the use of the TRD
Cold Air Intake may have on any warranty either expressed or implied by the vehicle
manufacturer.

This Executive Order is granted based on prior submitted emission test results in the
modified configuration using the Cold-Start CVS-75 Federal Test Procedure, Supplemental
Federal Test Procedure (US06), and an examination of the On-Board Diagnostic II
(OBD II) system. A 2008 model year Toyota xB with a 2.4 liter engine (8TYXV02.4BE6,
LEV II ULEV) was used for the evaluation of the TRD Cold Air Intake. Results from
emissions testing conducted at Quantum Technologies, Lake Forest, California, are shown
below (in grams per mile with deterioration factors applied):

                            CVS-75                                US06
                      NMOG CO NOx HCHO                     NMHC+NOx           CO
Standards, 50k        0.040   1.7 0.05 0.008                 0.14             8.0
Device Test           0.029   0.3 0.02 0.000                 0.03             2.1

The emission test results in the modified configuration were below the applicable
certification standards. Examination of the OBD II system showed the TRD Cold Air Intake
does not affect OBD II system operation.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add-on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONS-TITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TRD COLD AIR
INTAKE.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten-day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this      /       day of March 2009.



                                Annette Hebert, Chief
                                Mobile Source Operations Division


       TOYOTA RACING DEVELOPMENT - TRD COLD AIR INTAKE - D-425-30



Document Created: 2009-04-16 15:42:02
Document Modified: 2009-04-16 15:42:02
