Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on January 19, 2012.
As of Friday, October 11th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModificationRemarks
See PDFSee PDFSee PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-44
  • Executive Order 425-44 / D425-44
  • ARB # D-425-44
  • Executive Order No: D-425-44
  • C.A.R.B. No. D-425-44
  • Resolution D-425-44
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-44 PDF

D-425-44 Document:


CARB_D-425-44

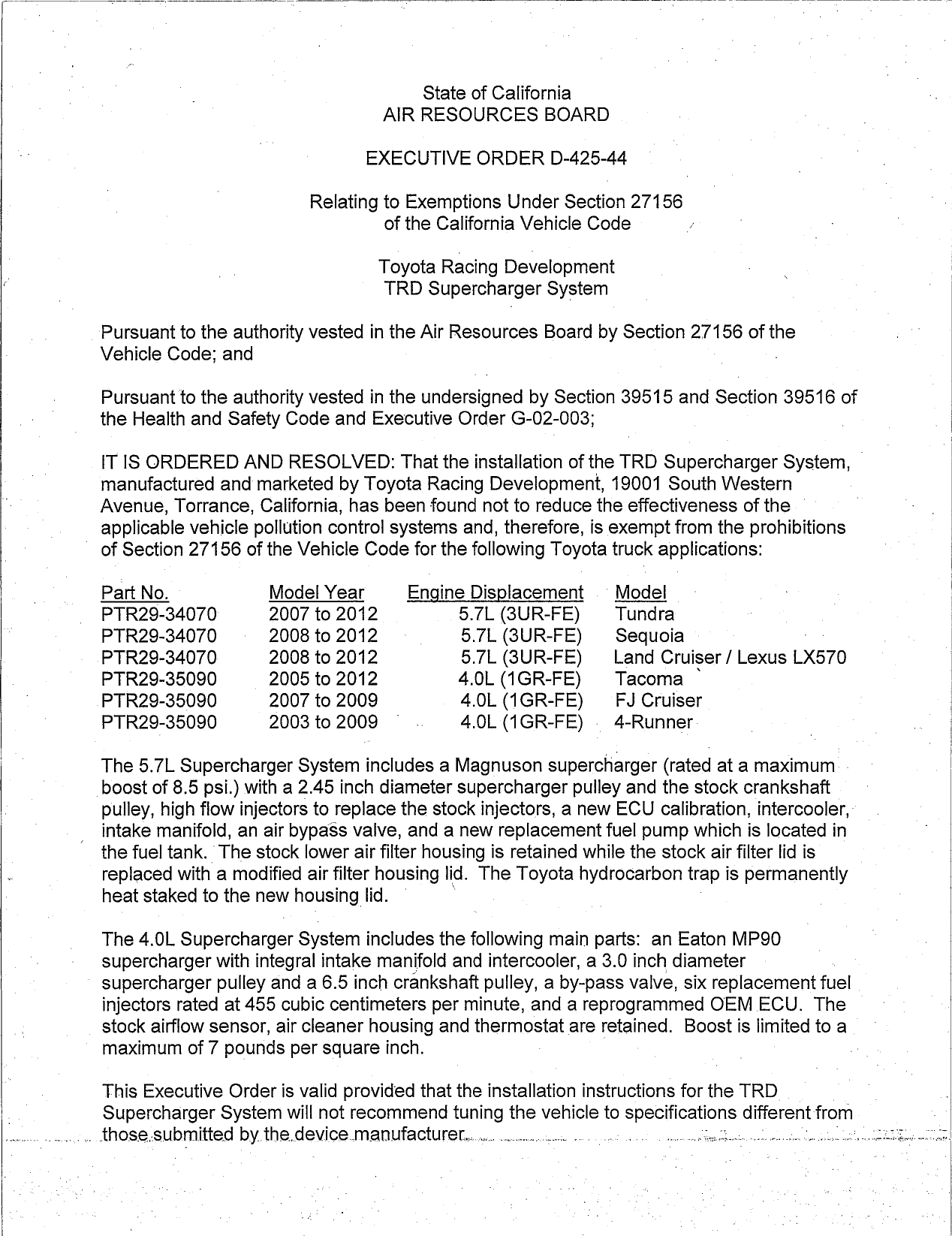

                                                State of California
                                      AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D—425—44

                            Relating to Exemptions Under Section 27156
                                      of the California Vehicle Code

                                      Toyota Récing DeVelopment
                                       TRD Supercharger System

 Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
 Vehicle Code; and

 Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
 the Health and Safety Code and Executive Order G—02—003;

 IT IS ORDERED AND RESOLVED: That the installation of the TRD Supercharger System,
 manufactured andmarketed by Toyota Racing Development, 19001 South Western
 Avenue, Torrance, California, has been found not to reduce the effectiveness of the
  applicable vehicle pollution control systems and, therefore, is exempt from the prohibitions
_ of Section 27156 of the Vehicle Code for the following Toyota truck applications:

 Part No.              Model Year           Engine Displacement       . Model
 PTR29—34070           2007 to 2012              5.7L (GUR—FE)          Tundra
 PTR29—34070       _   2008 to 2012        > _    5.7L (3UR—FE)         Sequoia
  PTR29—34070          2008 to 2012                 5.7L (3UR—FE)     Land Cruiser / Lexus LX57O
  PTR29—35090          2005 to 2012                 4.0L (1GR—FE)   Tacoma —
  PTR29—35090          2007 to 2009                 4.0L (1GR—FE)   FJ Cruiser
  PTR29—35090          2003 to 2009    _    .       4.0L (1GR—FE) — 4—Runner:

  The 5.7L Supercharger System includes a Magnuson supercharger (rated at a maximum
 _boost of 8.5 psi.) with a 2.45 inch diameter supercharger pulley and the stock crankshaft
  pulley, high flow injectors to replace the stock injectors, a new ECU calibration, intercooler,
  intake manifold, an air bypass valve, and a new replacement fuel pump which is located in
  the fuel tank. The stock lower air filter housing is retained while the stock air filter lid is
  replaced with a modified air filter housing hd The Toyota hydrocarbon trapis permanently
  heat staked to the new housrng lid.

 The 4.0L Supercharger System includes the following main parts: an Eaton MP9O
 supercharger with integral intake manifold and intercooler, a 3.0 inch diameter
 supercharger pulley and a 6.5 inch crankshaft pulley, a by—pass valve, six replacement fuel
  injectors rated at 455 cubic centimeters per minute, and a reprogrammed OEM ECU. The
  stock airflow sensor, air cleaner housing and thermostat are retained. Boost is limited to a
  maximum of 7 pounds per square inch.

  This Executive Order is valid provided that the installation instructions for the TRD
   Supercharger System will not recommend tunlngthe vehicle to specrfrcatlons dlfferentfrom
.. those.submitted by.the.devicemanufacturer...  oooe


 Changes made to the design or operating conditions of the TRD Supercharger System, as
 exempt by the Air Resources Board, which adversely affect the performance of the
 vehicle‘s pollution control system shall invalidate this Executive Order.

 This Executive Order shall not apply to any TRD Supercharger System advertised, offered
 for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
 an ultimate purchaser.

 Marketing of the TRD Supercharger System using any identification other than that shown
  in this Executive Order or marketing of the TRD Supercharger System for an application
  other than those listed in this Executive Order shall be prohibited unless prior approval is
  obtained from the Air Resources Board.

 This Executive Order does not constitute any opinion as to the effect the use of the TRD
 Supercharger Systemmay have on any warranty either expressed or implied by the
 vehicle manufacturer.

  This Executive Order is granted based on previously submitted emission test data from
  Toyota Racing Development (D—425—20, D—425—24, and D—425—27) on a 2006 model year
  Toyota Tacoma with a 4.0 liter engine (6TYXTO4.ONEM, LEV II LEV, LDT), a 2008 model
  year Toyota Tundra with a 5.7 liter engine (8TYXTO5.7BEX, LEV It ULEV), and a 2007
  model year Scion tC with a 2.4 liter engine (ZTYXVO2.4BEA, LEV II ULEV, PC). The
  emission test results with the TRD Supercharger System installed were below the
  applicable certification emission standards. Examination of the OBD II system, showed no
_ effect on the vehicles‘ OBD II system operation. The same emission and OBD II test
 results would be expected with the TRD Supercharger System installed on the requested
 vehicles.                   —

 The Air Resources Board reserves the right in the future to review this Executive Order
 and the exemption provided herein to assure that the exempted add—on or modified part
 continues to meet the standards and procedures of Title 13, California Code of
 Regulations, Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
 AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TRD
 SUPERCHARGER SYSTEM.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made with
 respect to the action taken herein in any advertising or other oral or written communication.




     TOYOTA RACING DEVELOPMENT — TRD SUPERCHARGER SYSTEM — D—425—44


Violation of any of the aboveconditions shall be ‘grounds for revocation df this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of |
the request and the order may not be revoked until a déetermination is: made after the
hearing that grounds for revocation exist.                                          —

Executed at El Monte, California, this      / C? | day of January 2012.




                                      Annette Hebért, Chief              o
                                      Mobile Source Ope_rations Division




~ _TOYOTARACINGDEVELOPMENT— TRDSUPERCHARGER SYSTEM— D425—44>__
