Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 21, 2012.
As of Sunday, December 22nd, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
See PDFSee PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-46
  • Executive Order 425-46 / D425-46
  • ARB # D-425-46
  • Executive Order No: D-425-46
  • C.A.R.B. No. D-425-46
  • Resolution D-425-46
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-46 PDF

D-425-46 Document:

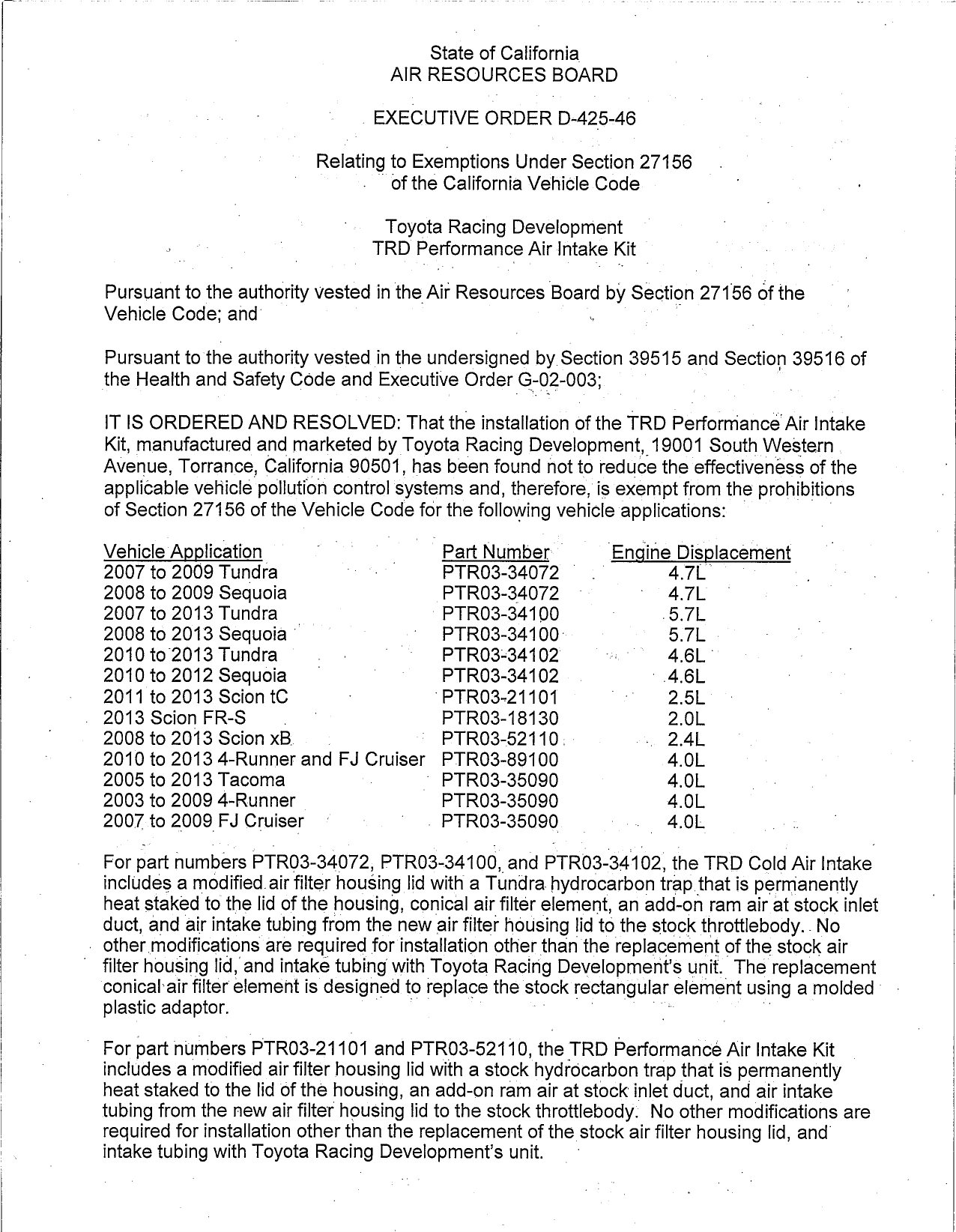

CARB_D-425-46

                                                             State of California
                                                        AlIR RESOURCES BOARD

                                               . EXECUTIVE ORDER D—425—46

                              Relatlng to Exemptlons Under Sectlon 27156
                                                       _ of the California Vehicle Code

                                                    Toyota Racing Development
                                                   TRD Performance Air lntake Kit

   Pursuant to the authority vested in theAir Resources Board by Sec’non 27156 of the
   Vehicle Code; and:                                       s

   Pursuant to the authority vested in the undersigned by. Section 39515 and Section 39516 of
   the Health and Safety Code and Executive Order G—02003;           ‘

   IT IS ORDERED AND RESOLVED: That the installation of the TRD Performance Air Intake
   Kit, manufactured and marketed by Toyota Racing Development, 19001 South Western
   Avenue, Torrance, California 90501, has been found not to reduce the effectiveness of the
   applicable vehicle pollution control systems and, therefore, is exempt from the prohibitions
   of Section 27156 of the Vehicle Code for the foIIowmg vehicle applications:

    Vehicle Application           P        e                    Part Number          ‘Engine Dlsglacement
    2007 to 2009 Tundra                    ts                   PTRO3—34072      _ .            4.7L
    2008 to 2009 Sequoia                                        PTRO3—34072       _         ~_ 4.7L
    2007 to 2013 Tundra _                                      —PTRO3—34100           -        5.7L
    2008 to 2013 Sequola °                                   _ PTRO3—34100—                     5.7L >
    2010 to 2013 Tundra               2s                ~o _    PTRO3—34102          un 0_     4,6LC
    2010 to 2012 Sequoia              _                C s      PTRO3—34102       _           ~4.6L
_   2011 to 2013 Scion tC                  ©                   ~PTRO3—21101           Cl        25L
  . 2013 Scion FR—S      .    _                                 PTRO3—18130                     2.0L
    2008 to 2013 Scion xB.                                      PTRO3—52110 ;   >          <. 24L
   2010 to 2013 4—Runner and FJ Crwser PTRO3—89100                                        4.OL
   2005 to 2013 Tacoma                             -          : _PTRO3—35090             4.OL
   2003 to 2009 4—Runner                                         PTRO3—35090             4.OL
   2007 to 2009 FJ Cruiser            .        _          —    . PTRO3—35090     _   > . 4.0L

    For part numbers PTRQ3—34072, PTRO3—34100, and PTRO3—34102, the TRD Cold Air Intake
    includes a modified air filter housmg lid with a Tundra hydrocarbon trap that is permanently
    heat staked tothe lid of the housing, conical air filtér element, an add—on ram air at stock inlet
    duct, and air intake tubing from the new air filter housing lid to the stock throttlebody. . No
  — other,modlflcatlons are required for installation other thanthe replacement of the stock air
 _ filter housmg lid, and intake tubingwith Toyota Racing Development‘s unit. The replacement
    conicalair filter element is designed to replace the stock rectangularelement usmg a molded :
    plastic adaptor.

  ~ For part numbers PTRO3—21101 and PTRO3—52110, the TRD Performancé Air Intake Kit _
    includes a modified air filter housing lid with a stock hydrocarbon trap that is permanently
   heat staked to the lid of the housing, an add—on ram air at stockinlet duct, and air intake
   tubing from the new air filter housing lid to the stock throttlebody: No other modifications are
   required for installation other than the replacement of the stock air filter housing lid, and
   intake tubing with Toyota Racing Development‘s unit.


                                               yA


For part number PTRO3—18130, the TRD Performance Air Intake includes a modified uppér
and lower air box case, modified air inlet coupler (dirty side of filter); red rubber coupler
between air box and throttlebody, and a TRD fiat panel air filter. No other modifications are
required for installation. Stock mass air flow sensor is retained and installed in its stock
location. There is no hydrocarbon trap used for this vehicle application.

For part numbers PTRO3—89100 and PTRO3—35090, the TRD Performance Air Intake
includes a modified upper. and lower airbox with a Tundra hydrocarbon trap that is
permanently heat staked to the upper airbox lid, an add—on ram air at stock inlet duct, and
air intake tubing from the new air filter housing lid to the stock thro’rtlebody No other
modifications are required for installation. Stock mass air flow sensor is retained and
mstalled in its stock location.

This Executive Order is valid provided that the installation instructions for the TRD
Performance Air Intake Kit will not recommend tuning the vehicle to specifications different
from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the TRD Performance Air Intake Kit,
as exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TRD Performance Air Intake Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.

Marketing of the TRD Performance Air Intake Kit using any identification other thanthat
shown in this Executive Order or marketing of the TRD Performance Air Intake Kit for an
application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the TRD
Performance Air Intake Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on previously submitted emission test data from
Toyota Racing Development (D—425—21 and D—425—22) on a 2008 model year Toyota xB
with a 2.4 liter engine (8TYXVO2.4BEB) and a 2007 model year Toyota Tundra with a 5.7
literengine (7ZTYXTO5.7BEV), both certified to the Low Emission Vehicle If Ultra Low
Emission Vehicle (LEV II ULEV) emission standards. The emission test results with the
TRD Cold Air Intake installed were below the applicable certification emission standards.
Examination of the OBD II system, showed no effecton the vehicles‘ OBD II system
operation. The same emission and OBD II test results would be expected with the TRD
Performance Air Intake Kit installed on the requested vehicles.      —

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemptionprovided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.



TOYOTA RACING DEVELOPMENT — TRD PERFORMANCE AIR INTAKE KIT — D—425—46


                                               —3.


THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,  \
ACCREDITATION, APPROVAL, OR ANY.OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TRD
PERFORMANCE AIR INTAKE KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or wrltten communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
 order may be revoked only after a ten—day written notice of intention to revoke the order, in
 which period the holder of the order may request in writing a hearing to contest the
 proposed revocation.: If a hearing is requested, it shall be held within ten days of receipt of
 the request and the order may not be revoked until a determination is made after the
 hearing that grounds for revocation exist.                                         .

Executed at El Monte, California, this      02/’&/ day of November 2012.


                                     « %ww,fl—w/ |
                                 Annette Hebert, Chief
                                   obile Source Operations Division




TOYOTA RACING DEVELOPMENT — TRD PERFORMANCE AIR INTAKE KIT — D—425—46
