Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on November 21, 2012.
As of Wednesday, December 19th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

Part NumberModelsModification
See PDFSee PDFSee PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-47
  • Executive Order 425-47 / D425-47
  • ARB # D-425-47
  • Executive Order No: D-425-47
  • C.A.R.B. No. D-425-47
  • Resolution D-425-47
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-47 PDF

D-425-47 Document:

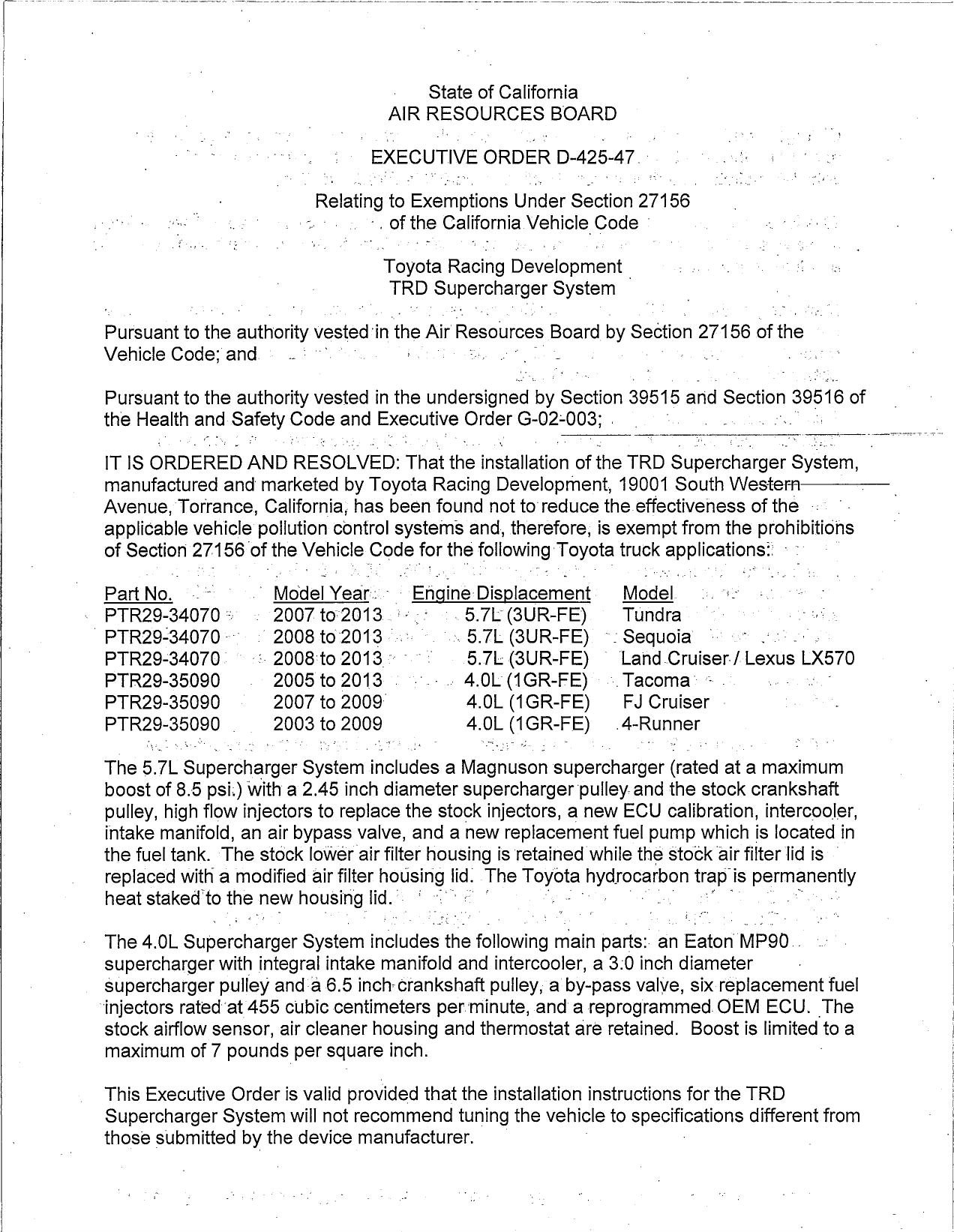

                                        —  State of California
                                       AIR RESOURCES BOARD

                                   EXECUTIVE ORDER D42547

                           | Relatrng to Exemptlons Under Sectron 27156
                            —        . of the California Vehicle Code

                                       .Toyota Racing De.vevlopment
                                        TRD Supercharger System

  Pursuantto the authorlty vested in the Alr Resources Boardby Sectlon 27156 ofthe ao
 Vehicle Code; and.          |     .             h .                             _        on

 Pursuant to the authority vested in the undersrgned bySeotron 39515 and Sectron 39516 of
 the Health and Safety Code and Executlve Order G—02—003           '     e

 IT IS ORDERED AND RESOLVED That the rnstallat|on of the TRD SuperchargerSystem |
 manufactured and marketed by Toyota Racing Development, 19001 South Western
 Avenue, Torrance, California; has been found not to reduce the effectiveness of the
 applicable vehicle pollution control systems and, therefore, is exempt from the prohibitions
 of Section 27156 of the Vehrcle Code for the followrngToyota truck appllcatrons sn s

 PartNo                ModeIYear         Enqme Dlsplacement          Model
_ PTR29—34070 x > 2007 to2013 c« >      =.5.7Ek(3UR—FE)   Tundra
 ~PTR29—34070 —_—© 2008 to 2013 /~= ~. . 5.7L (@UR—FE) ~: Sequoia     hoh oze
  PTR29—34070° > > 2008:t0 2013 » >      5.71 (@UR—FE) — Land.Crurser/ Lexus LX57O
  PTR29—35090       2005 to 2013       « 4.0L (1GR—FE) . Tacoma®         —
  PTR29—35090       2007 to 2009         4.0L (1GR—FE)    FJ Crurser-
  PTR2935090 .      2003 to 2009         4.0L (1GRFE) . A—Runner

  The 57L Supercharger System lncludes a Magnuson supercharger (rated at a maximum
  boost of 8.5 psi.) with a 2.45 inch diameter supercharger pulley. and the stock crankshaft
  pulley, high flow injectors to replace the stock injectors, a new ECU calibration, intercooler,
  intake manifold, an air bypass valve, and a new replacement fuel pump which is located in
  the fuel tank. The stock lower air filter housing is retained while the stock air filter lid is —
  replaced with a modified air filter housmg Ild The Toyota hydrocarbon traprs permanently
  heat staked‘to the new housmg hd ‘                        :           2s               10.

  The 4.0L Supercharger System rncludes thefollowmg      main parts anEaton MP90
  supercharger with integral intake manifold and intercooler, a 3:0 inch diameter
  supercharger pulley and a 6.5 inch—crankshaft pulley, a by—pass valve, six replacement fuel
 "Injfectors ratedat455 cubic centimeters per.minute, and a reprogrammed. OEM ECU. The
  stock airflow sensor, air cleaner housing and thermostat are retained. Boost is limitedto a
  maximum of 7 pounds per square inch.

  This Executive Order is valid ‘provrded that the installation instructions for the TRD
  Supercharger System will not recommend tuning the vehrcle to specrflcatlons different from
  those submitted by the device manufacturer.


Changes made to the design or operating conditions of the TRD Supercharger System, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TRD Supercharger System advertised, offered
for sale, sold with, or installed on a new motor vehicle prior to or concurrent with transfer to
an ultimate purchaser.

Marketing of the TRD Supercharger System using any identification other than that shown
in this Executive Order or marketing of the TRD Supercharger System for an application
other than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.                                            O

This Executive Order does not constitute any opinion as to the effect the use of the TRD
Supercharger System may have on any warranty either expressed or implied by the
vehicle manufacturer.                                                                 '

This Executive Order is granted based on previously submitted emission test data from
Toyota Racing Development (D—425—20, D—425—24, and D—425—27) on a 2006 model year
Toyota Tacoma with a 4.0 liter engine (6TYXTO4.0NEM, LEV II LEV, LDT), a 2008 model
year Toyota Tundra with a 5.7 liter engine (8TYXTO5.7BEX, LEV II ULEV), and a 2007
model year Scion tC with a 2.4 liter engine (7ZTYXVO2.4BEA, LEV II ULEV, PC). The
emission test results with the TRD Supercharger System installed were below the >
applicable certification emission standards. Examination of the OBD II system, showed no
effect on the vehicles‘ OBD II system operation. The same emission and OBD II test
results would be expected with the TRD Supercharger System installed on the requested
vehicles.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TRD
SUPERCHARGER SYSTEM.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.




   TOYOTA RACING DEVELOPMENT — TRD SUPERCHARGER SYSTEM — D—425—47


  Violation of any of the above conditions shall be grounds for revocation of this order. The
  order may be revoked only after a ten—day written notice of intention to revoke the order, in
  which period the holder of the order may request in writing a hearing to contest the _
. proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
  the request and the order may not be revoked until a determination is made after the
  hearing that grounds for revocation exist.

 Executed at El Monte, California, this gZZ           day of November 2012.



                                          W
                                       Apnnette Hebert, Chief
                                       Mobile Source Operations Division




     TOYOTA RACING DEVELOPMENT — TRD SUPERCHARGER SYSTEM — D—425—47





Document Created: 2013-03-14 17:34:03
Document Modified: 2013-03-14 17:34:03
