Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on October 17, 2014.
As of Monday, August 19th, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Part Number
See PDF

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-425-51
  • Executive Order 425-51 / D425-51
  • ARB # D-425-51
  • Executive Order No: D-425-51
  • C.A.R.B. No. D-425-51
  • Resolution D-425-51
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-425-51 PDF

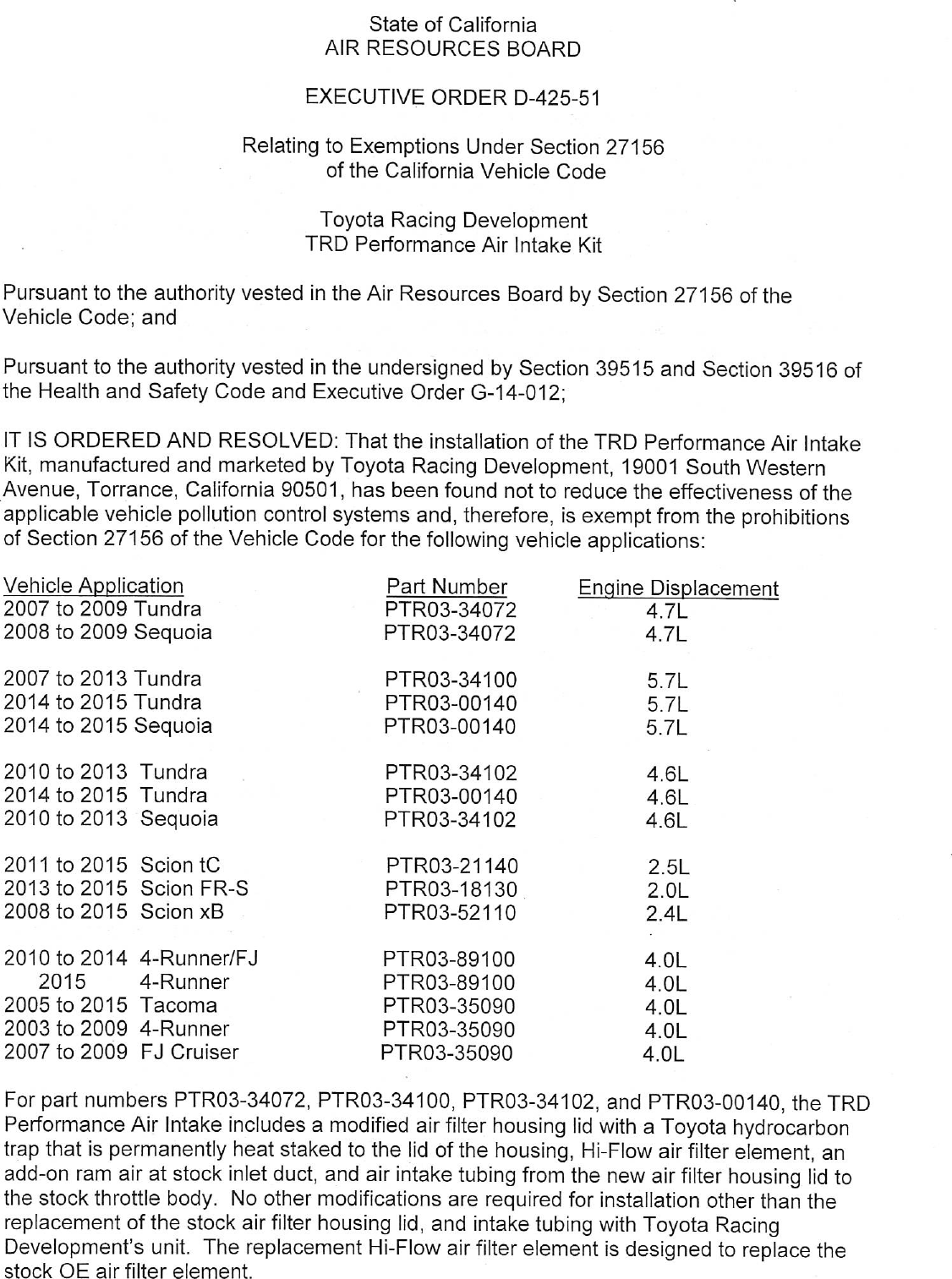

D-425-51 Document:



                                      State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D—425—51

                          Relating to Exemptions Under Section 27156
                                   of the California Vehicle Code

                                  Toyota Racing Development
                                TRD Performance Air Intake Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G—14—012;

IT IS ORDERED AND RESOLVED: That the installation of the TRD Performance Air Intake
Kit, manufactured and marketed by Toyota Racing Development, 19001 South Western
Avenue, Torrance, California 90501, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the prohibitions
of Section 27156 of the Vehicle Code for the following vehicle applications:

Vehicle Application                      Part Number           Engine Displacement
2007 to 2009 Tundra                      PTRO3—34072                 4.7L
2008 to 2009 Sequoia                     PTRO3—34072                 4.7L

2007 to 2013 Tundra                       PTRO3—34100                  5.7L
2014 to 2015 Tundra                       PTRO3—00140                  5.7L
2014 to 2015 Sequoia                      PTRO3—00140                  57L

2010 to 2013 Tundra                       PTRO3—34102                  4.6L
2014 to 2015 Tundra                       PTRO3—00140                  4.6L
2010 to 2013 Sequoia                      PTRO3—34102                  4.6L

2011 to 2015 Scion tC                     PTRO3—21140                  2.5L
2013 to 2015 Scion FR—S                   PTRO3—18130                  2.OL
2008 to 2015 Scion xB                     PTRO3—52110                  24L

2010 to 2014   4—Runner/FJ               PTRO3—89100                  4.OL
   2015        4—Runner                  PTRO3—89100                  4.0L
2005 to 2015   Tacoma                    PTRO3—35090                  4.0L
2003 to 2009   4—Runner                  PTRO3—35090                  4.0L
2007 to 2009   FJ Cruiser                PTRO3—35090                  4.0L

For part numbers PTRO3—34072, PTRO3—34100, PTRO3—34102, and PTRO3—00140, the TRD
Performance Air Intake includes a modified air filter housing lid with a Toyota hydrocarbon
trap that is permanently heat staked to the lid of the housing, Hi—Flow air filter element, an
add—on ram air at stock inlet duct, and air intake tubing from the new air filter housing lid to
the stock throttle body. No other modifications are required for installation other than the
replacement of the stock air filter housing lid, and intake tubing with Toyota Racing
Development‘s unit. The replacement Hi—Flow air filter element is designed to replace the
stock OE air filter element.


                                                .I.


For part numbers PTRO3—21101, PTRO3—21140, and PTRO3—52110, the TRD Performance
Air Intake includes a modified air filter housing lid with a Toyota hydrocarbon trap that is
permanently heat staked to the lid of the housing, a Hi—Flow air filter element, an add—on ram
air at stock inlet duct, and air intake tubing from the new air filter housing lid to the stock
throttle body. No other modifications are required for installation other than the replacement
of the stock air filter housing lid, and intake tubing with Toyota Racing Development‘s unit.
The replacement Hi—Flow air filter element is designed to replace the stock OE air filter
element.

For part number PTRO3—18130, the TRD Performance Air Intake includes a modified upper
and lower air box case, red rubber coupler between air box and throttle body, and a Hi—Flow
air filter element. No other modifications are required for installation. Stock mass air flow
sensor is retained and installed in its stock location. There is no hydrocarbon trap used for
this vehicle application.

For part numbers PTRO3—89100 and PTRO3—35090, the TRD Performance Air Intake
includes a modified upper and lower air box with a Toyota hydrocarbon trap that is
permanently heat staked to the upper air box lid, Hi—Flow air filter element, an add—on ram
air at stock inlet duct, and air intake tubing from the new air filter housing lid to the stock
throttle body. No other modifications are required for installation. Stock mass air flow
sensor is retained.

This Executive Order is valid provided that the installation instructions for the TRD
Performance Air Intake Kit will not recommend tuning the vehicle to specifications different
from those submitted by the device manufacturer.

Changes made to the design or operating conditions of the TRD Performance Air Intake Kit,
as exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any TRD Performance Air Intake Kit advertised,
offered for sale, sold with, or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.


This Executive Order does not constitute any opinion as to the effect the use of the TRD
Performance Air Intake Kit may have on any warranty either expressed or implied by the
vehicle manufacturer.

This Executive Order is granted based on previously submitted emission test data from
Toyota Racing Development (D—425—21 and D—425—22) on a 2008 model year Toyota xB
with a 2.4 liter engine (8TYXVO2.4BEB) and a 2007 model year Toyota Tundra with a 5.7
liter engine (7TYXTO5.7BEV), both certified to the Low Emission Vehicle II Ultra Low
Emission Vehicle (LEV II ULEV) emission standards. The emission test results with the
TRD Cold Air Intake installed were below the applicable certification emission standards.
Examination of the OBD II system, showed no effect on the vehicles‘ OBD II system
operation. The same emission and OBD II test results would be expected with the TRD
Performance Air Intake Kit installed on the requested vehicles.




TOYOTA RACING DEVELOPMENT — TRD PERFORMANCE AIR INTAKE KIT — D—425—51


                                             3.


Marketing of the TRD Performance Air Intake Kit using any identification other than that
shown in this Executive Order or marketing of the TRD Performance Air Intake Kit for an
application other than those listed in this Executive Order shall be prohibited unless prior
approval is obtained from the Air Resources Board.

The Air Resources Board reserves the right in the future to review this Executive Order
and the exemption provided herein to assure that the exempted add—on or modified part
continues to meet the standards and procedures of Title 13, California Code of
Regulations, Section 2222, et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF THE TRD
PERFORMANCE AIR INTAKE KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the
proposed revocation. If a hearing is requested, it shall be held within ten days of receipt of
the request and the order may not be revoked until a determination is made after the
hearing that grounds for revocation exist.

Executed at El Monte, California, this
                                          |7J ? 4%day of October 2014.

                Mlunt
     L)Annette Hebert, Chief
            Emissions Compliance, Automotive Regulations and Science Division




TOYOTA RACING DEVELOPMENT — TRD PERFORMANCE AIR INTAKE KIT — D—425—51





Document Created: 2015-02-18 18:04:26
Document Modified: 2015-02-18 18:04:26
