Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 15, 2009.
As of Friday, December 14th, 2018 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsModification
2007 and 2008 model year Harley-Davidson Touring, Softail, and Dyna motorcycle models equipped with a 110 cubic inch engine.The 110 Cubic Inch Stage 2 Map Kit includes the following main components: New ECU calibration (p/n 110-2CA), a Harley-Davidson Screamin Eagle Air Filter Kit (p/n 29440-990 / 29441-99A), Harley-Davidson Screamin Eagle 251 Camshaft Kit (p/n 25466-00), and a Harley-Davidson Piston Kit (p/n 22502-08). The new ECU calibration is downloaded to the motorcycleÔÇÖs ECU and can only be installed by a dealer. The new ECU calibration has no dealer or user adjustments.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-427-11
  • Executive Order 427-11 / D427-11
  • ARB # D-427-11
  • Executive Order No: D-427-11
  • C.A.R.B. No. D-427-11
  • Resolution D-427-11
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-427-11 PDF

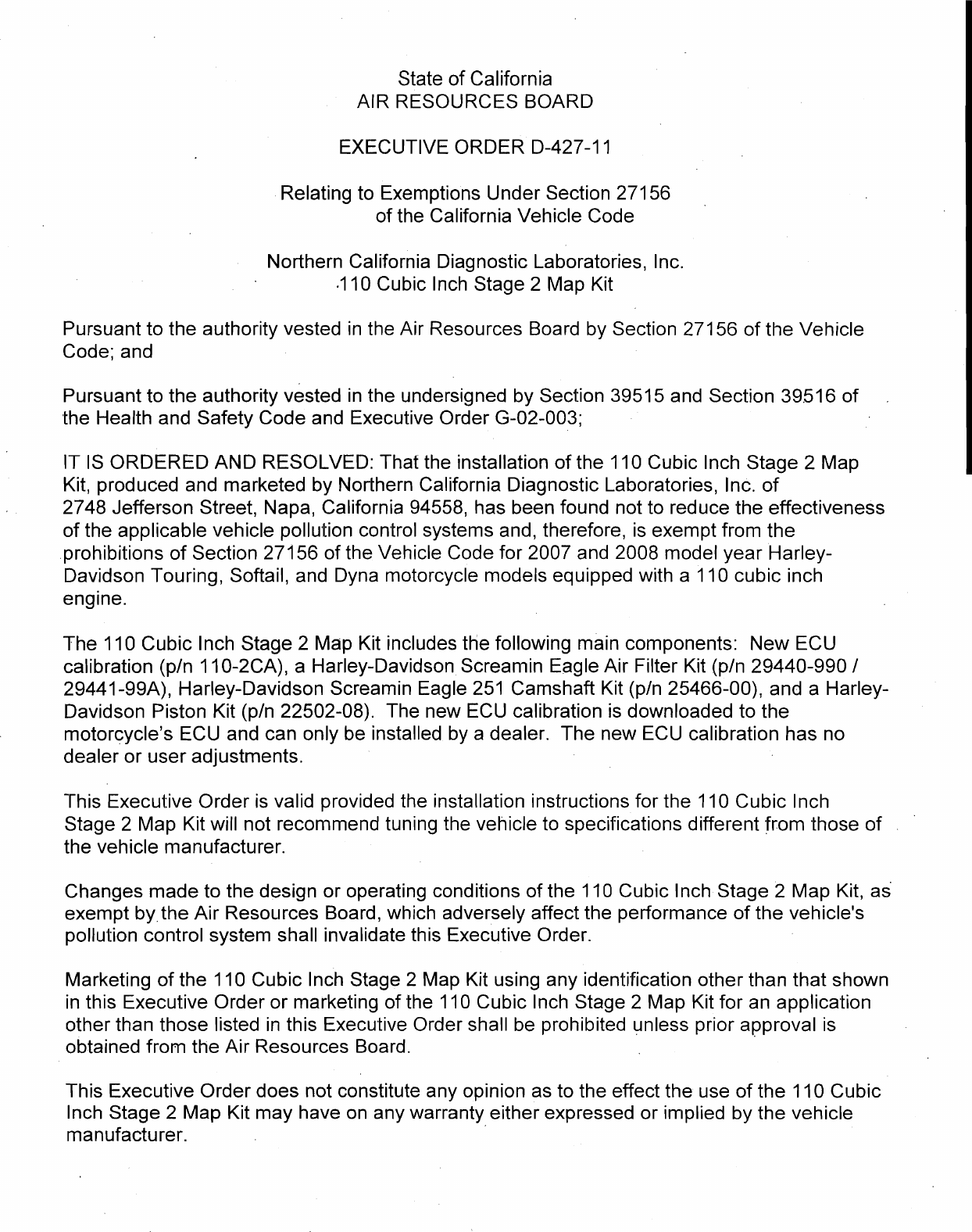

D-427-11 Document:



                                      State of California
                                  AIR RESOURCES BOARD

                                EXECUTIVE ORDER D-427-11

                         Relating to Exemptions Under Section 271 56
                                    of the California Vehicle Code

                       Northern California Diagnostic Laboratories, Inc.
                              .I10 Cubic lnch Stage 2 Map Kit

Pursuant to the authority vested in the Air Resources Board by Section 271 56 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Health and Safety Code and Executive Order G-02-003;

IT IS ORDERED AND RESOLVED: That the installation of the 110 Cubic lnch Stage 2 Map
Kit, produced and marketed by Northern California Diagnostic Laboratories, Inc. of
2748 Jefferson Street, Napa, California 94558, has been found not to reduce the effectiveness
of the applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for 2007 and 2008 model year Harley-
Davidson Touring, Softail, and Dyna motorcycle models equipped with a 110 cubic inch
engine.

The 110 Cubic lnch Stage 2 Map Kit includes the following main components: New ECU
calibration (pln 110-2CA), a Harley-Davidson Screaniin Eagle Air Filter Kit (pln 29440-990 I
29441-99A), Harley-Davidson Screamin Eagle 251 Camshaft Kit (pln 25466-OO), and a Harley-
Davidson Piston Kit (pln 22502-08). The new ECU calibration is downloaded to the
motorcycle's ECU and can only be installed by a dealer. The new ECU calibration has no
dealer or user adjustments.

This Executive Order is valid provided the installation instructions for the 110 Cubic lnch
Stage 2 Map Kit will not recommend tuning the vehicle to specifications different from those of
the vehicle nianufacturer.

Changes made to the design or operating conditions of the 110 Cubic Inch Stage 2 Map Kit, as
exempt by,the Air Resources Board, which adversely affect the performance of the vehicle's
pollution control system shall invalidate this Executive Order.

Marketing of the 110 Cubic lnch Stage 2 Map Kit using any identification other than that shown
in this Executive Order or marketing of the 110 Cubic lnch Stage 2 Map Kit for an application
other than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board.

This Executive Order does not constitute any opinion as to the effect the use of the 110 Cubic
lnch Stage 2 Map Kit may have on any warranty either expressed or implied by the vehicle
manufacturer.


This Executive Order is granted based on submitted emission test data generated on a
2008 model year Harley-Davidson Touring model with engine family 8HDXC1.68AED. Test
results showed that emission levels, with the 110 Cubic Inch Stage 2 Map Kit installed, met the
applicable emission standards when tested using the Cold-Start CVS-75 Federal Test
Procedure (FTP). Results from emission testing conducted at Northern California Diagnostic
Laboratories, Inc., located in Napa, California, are shown below in grams per kilometer, with
deterioration factors (df) applied.

                             CVS-75 FTP
                          HC+NOx CO
   Standards               1.4      12
   Device w/ df           0.8       3.4

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add-on or modified part continues to
meet the standards and procedures of Title .I
                                            3, California Code of Regulations, Section 2222,
et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI-POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF NORTHERN CALIFORNIA
DIAGNOSTIC LABORATORIES, INC.'S 110 CUBIC INCH STAGE 2 MAP KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten-day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this     /Sday of April 2009.

                                Annette Hebert, Chief
                                Mobile Source Operations Division




                  NCDL, INC. - I 1 0 CUBIC INCH STAGE 2 MAP KIT - D-427-1 I



Document Created: 2009-04-16 15:59:19
Document Modified: 2009-04-16 15:59:19
