Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on March 30, 2010.
As of Friday, December 6th, 2024 this Executive Order has not been overturned or superceeded.

Approved Parts

ModelsRemarks
1999 to 2006 model year Harley-Davidson Touring, Softail, and Dyna motorcycle models with an 88ci cubic inch displacement engine.The 88ci Stage 1 Map Kit includes a new ECU calibration and a new Harley-Davidson Screamin Eagle Air Filter. The new ECU calibration is downloaded to the motorcycleÔÇÖs ECU and can only be installed by a dealer. The new ECU calibration has no dealer or user adjustments. The NCDL 95ci Performance Kit includes a new ECU calibration, a Harley-Davidson Screamin Eagle Air Filter, camshaft, Cycle Shack Baffles or Screamin Eagle Catalyst Mufflers, and a new cylinder and piston kit. The new ECU calibration is downloaded to the motorcycleÔÇÖs ECU and can only be installed by a dealer. The new ECU calibration has no dealer or user adjustments.

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-427-14
  • Executive Order 427-14 / D427-14
  • ARB # D-427-14
  • Executive Order No: D-427-14
  • C.A.R.B. No. D-427-14
  • Resolution D-427-14
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-427-14 PDF

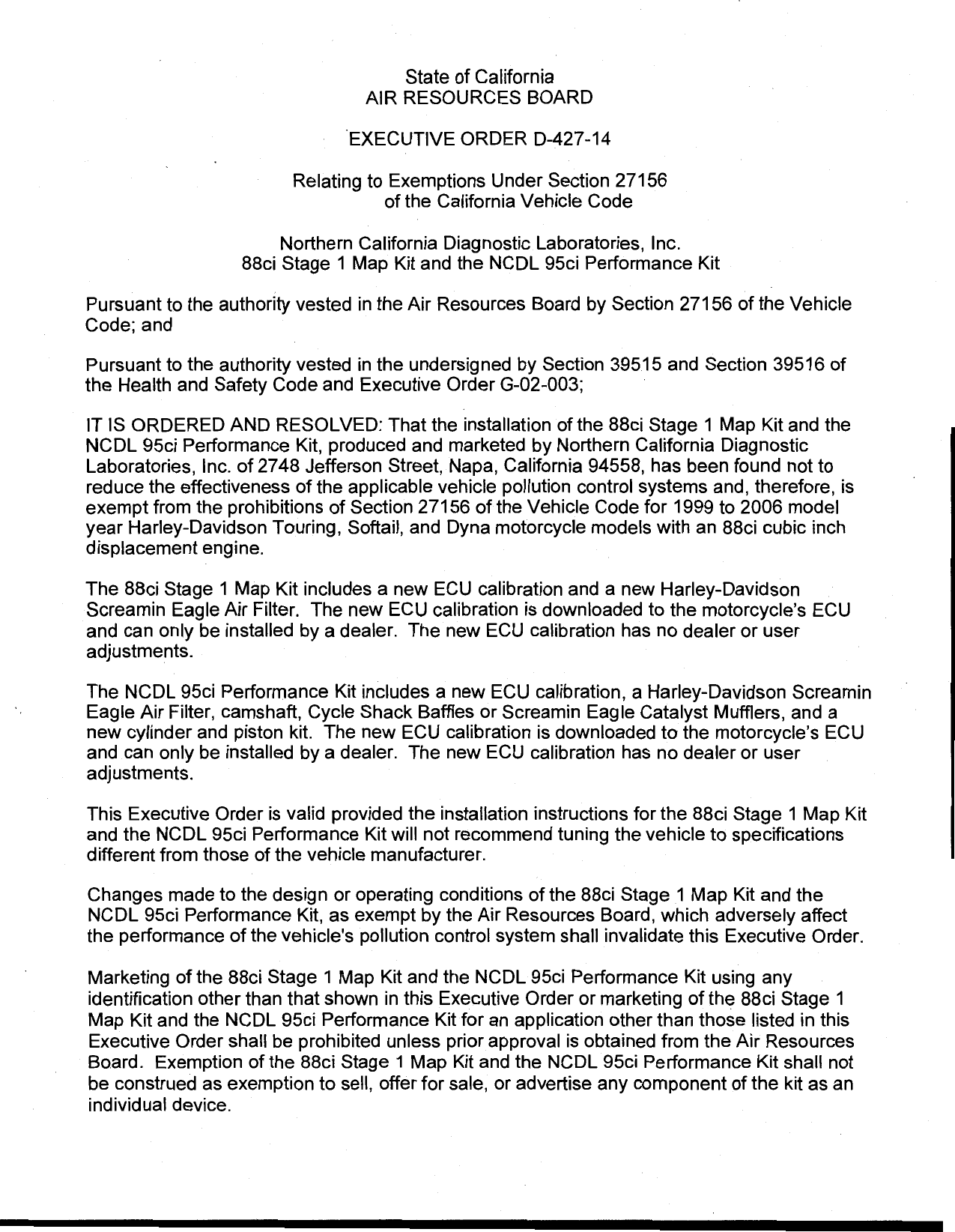

D-427-14 Document:


CARB_D-427-14

                                      State of California
                                  AIR RESOURCES BOARD

                                'EXECUTIVE ORDER D—427—14

                         Relating to Exemptions Under Section 27156
                                    of the California Vehicle Code

                        Northern California Diagnostic Laboratories, Inc.
                   88ci Stage 1 Map Kit and the NCDL 95ci Performance Kit

Pursuant to the authority vested in the Air Resources Board by Section 27156 of the Vehicle
Code; and

Pursuant to the authority vested in the undersigned by Section 39515 and Section 39516 of
the Healith and Safety Code and Executive Order G—02—003;            '

IT IS ORDERED AND RESOLVED: That the installation of the 88ci Stage 1 Map Kit and the
NCDL 95ci Performance Kit, produced and marketed by Northern California Diagnostic
Laboratories, Inc. of 2748 Jefferson Street, Napa, California 94558, has been found not to
reduce the effectiveness of the applicable vehicle pollution control systems and, therefore, is
exempt from the prohibitions of Section 27156 of the Vehicle Code for 1999 to 2006 model
year Harley—Davidson Touring, Softail, and Dyna motorcycle models with an 88ci cubic inch
displacement engine.

The 88ci Stage 1 Map Kit includes a new ECU calibration and a new Harley—Davidson
Screamin Eagle Air Filter. The new ECU calibration is downloaded to the motorcycle‘s ECU
and can only be installed by a dealer. The new ECU calibration has no dealer or user
adjustments.

The NCDL 95ci Performance Kit includes a new ECU calibration, a Harley—Davidson Screamin
Eagle Air Filter, camshaft, Cycle Shack Baffies or Screamin Eagle Catalyst Mufflers, and a
new cylinder and piston kit. The new ECU calibration is downloaded to the motorcycle‘s ECU
and can only be installed by a dealer. The new ECU calibration has no dealer or user
adjustments.

This Executive Order is valid provided the instaliation instructions for the 88ci Stage 1 Map Kit
and the NCDL 95ci Performance Kit will not recommend tuning the vehicle to specifications
different from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the 88ci Stage 1 Map Kit and the
NCDL 95ci Performance Kit, as exempt by the Air Resources Board, which adversely affect
the performance of the vehicle‘s pollution control system shall invalidate this Executive Order.

Marketing of the 88ci Stage 1 Map Kit and the NCDL 95ci Performance Kit using any
identification other than that shown in this Executive Order or marketing of the 88ci Stage 1
Map Kit and the NCDL 95ci Performance Kit for an application other than those listed in this
Executive Order shall be prohibited unless prior approval is obtained from the Air Resources
Board. Exemption of the 88ci Stage 1 Map Kit and the NCDL 95ci Performance Kit shall not
be construed as exemption to sell, offer for sale, or advertise any component of the kit as an
individual device.


This Executive Order does not constitute any opinion as to the effect the use of the 88ci
Stage 1 Map Kit and the NCDL 95ci Performance Kit may have on any warranty either
expressed or implied by the vehicle manufacturer.

This Executive Order is granted based on submitted emission test data generatedon a
2006 model year Harley—Davidson Touring model with engine family 6HDXC1.55AEC and the
88ci engine. Test results showed that emission levels, with the NCDL 95ci Performance Kit
installed, met the applicable emission standards when tested using the Cold—Start CVS—75
Federal Test Procedure (FTP). Results from emission testing conducted at Northern California
Diagnostic Laboratories, Inc., located in Napa, California, are shown below in grams per
kilometer, with deterioration factors (df) applied.

                             CVS—75 FTP
              —            HC+NOx CO
   Standards                1.2          12
   Device w/ df             0.5          5.6

The Air Resources Board reserves the right in the future to review this Executive Order and the
exemption provided herein to assure that the exempted add—on or modified part continues to
meet the standards and procedures of Title 13, California Code of Regulations, Section 2222,
et seq.

THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE AIR
RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF NORTHERN CALIFORNIA
DIAGNOSTIC LABORATORIES, INC.‘S 88CI STAGE 1 MAP KIT AND THE NCDL 95CI
PERFORMANCE KIT.

No claim of any kind, such as "Approved by the Air Resources Board", may be made with
respect to the action taken herein in any advertising or other oral or written communication.

Violation of any of the above conditions shall be grounds for revocation of this order. The
order may be revoked only after a ten—day written notice of intention to revoke the order, in
which period the holder of the order may request in writing a hearing to contest the proposed
revocation. If a hearing is requested, it shall be held within ten days of receipt of the request
and the order may not be revoked until a determination is made after the hearing that grounds
for revocation exist.

Executed at El Monte, California, this         ifi A* day of March 2010.




                             A
                             ; nnette Hebert,
                                       Chlef
                             oblle Source Operations Division



 NCDL, INC. — 88CI STAGE 1 MAP KIT AND THE NCDL 95CI PERFORMANCE KIT—D—427—14



Document Created: 2010-12-06 10:54:47
Document Modified: 2010-12-06 10:54:47
