Approval Details

Valid E.O.

Validity

This Executive Order approved the specified parts on on April 5, 2001.
As of Monday, October 21st, 2019 this Executive Order has not been overturned or superceeded.

Approved Parts

Models
Acura Integra 4Cyl 1.8L

This Executive Order may be listed as:
  • C.A.R.B.E.O. D-427-2
  • Executive Order 427-2 / D427-2
  • ARB # D-427-2
  • Executive Order No: D-427-2
  • C.A.R.B. No. D-427-2
  • Resolution D-427-2
For Free CARB Executive Order Status verification, email an image of the device Executive Order label as well as the Year/Make/Model and Test Group # of the vehicle to [email protected]

Download: Executive Order D-427-2 PDF

D-427-2 Document:

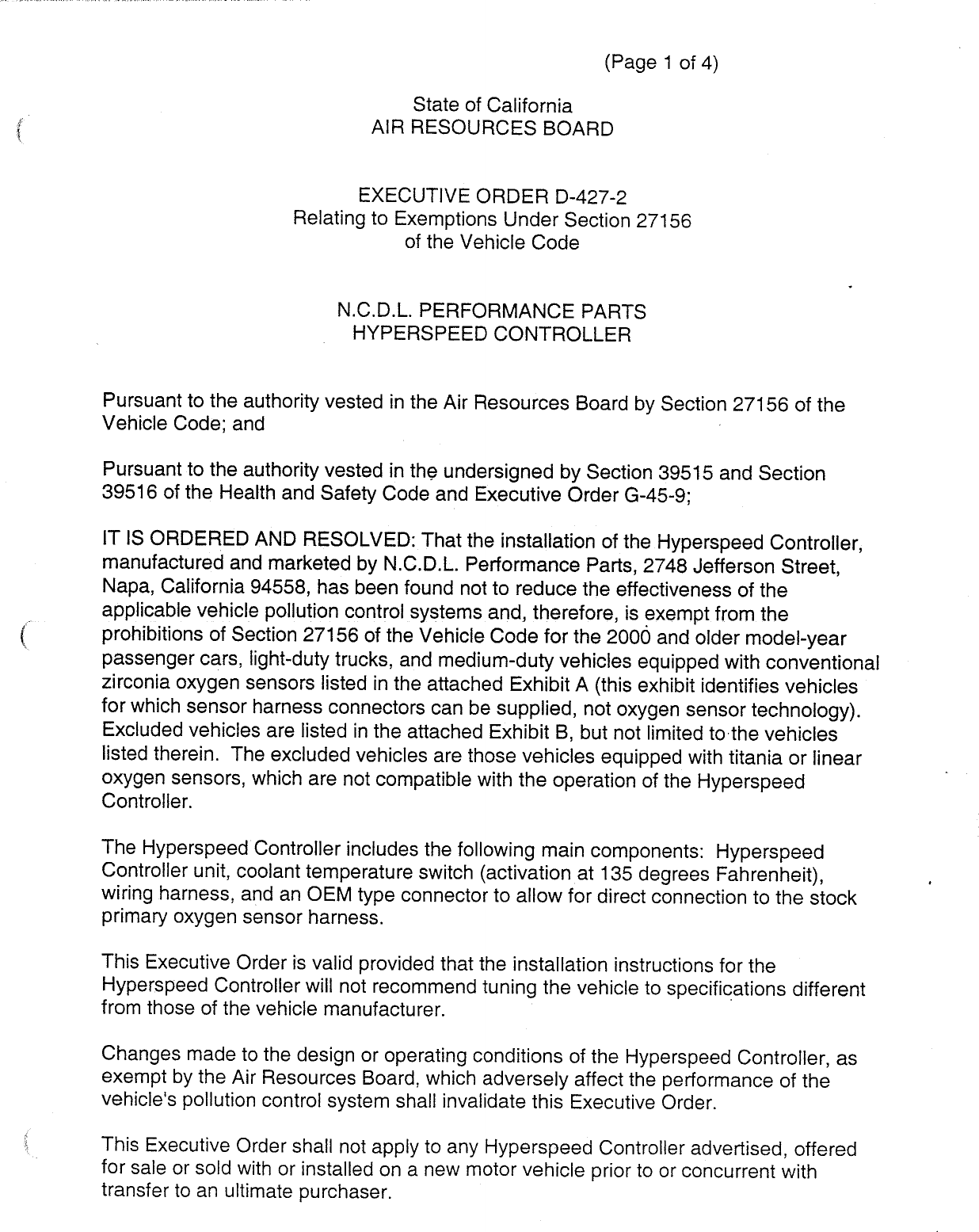

                                                         (Page 1 of 4)

                                  State of California
                              AIR RESOURCES BOARD



                            EXECUTIVE ORDER D—427—2
                     Relating to Exemptions Under Section 27156
                                  of the Vehicle Code


                           N.C.D.L. PERFORMANCE PARTS
                             HYPERSPEED CONTROLLER


Pursuant to the authority vested in the Air Resources Board by Section 27156 of the
Vehicle Code; and                                                    |

Pursuant to the authority vested in the undersigned by Section 39515 and Section
39516 of the Health and Safety Code and Executive Order G—45—9;

IT IS ORDERED AND RESOLVED: That the installation of the Hyperspeed Controller,
manufactured and marketed by N.C.D.L. Performance Parts, 2748 Jefferson Street,
Napa, California 94558, has been found not to reduce the effectiveness of the
applicable vehicle pollution control systems and, therefore, is exempt from the
prohibitions of Section 27156 of the Vehicle Code for the 2000 and older model—year
passenger cars, light—duty trucks, and medium—duty vehicles equipped with conventional
zirconia oxygen sensors listed in the attached Exhibit A (this exhibit identifies vehicles
for which sensor harness connectors can be supplied, not oxygen sensor technology).
Excluded vehicles are listed in the attached Exhibit B, but not limited to the vehicles
listed therein. The excluded vehicles are those vehicles equipped with titania or linear
oxygen sensors, which are not compatible with the operation of the Hyperspeed
Controlier.

The Hyperspeed Controller includes the following main components: Hyperspeed
Controller unit, coolant temperature switch (activation at 135 degrees Fahrenheit),
wiring harness, and an OEM type connector to allow for direct connection to the stock
primary oxygen sensor harness.

This Executive Order is valid provided that the installation instructions for the
Hyperspeed Controller will not recommend tuning the vehicle to specifications different
from those of the vehicle manufacturer.

Changes made to the design or operating conditions of the Hyperspeed Controller, as
exempt by the Air Resources Board, which adversely affect the performance of the
vehicle‘s pollution control system shall invalidate this Executive Order.

This Executive Order shall not apply to any Hyperspeed Controller advertised, offered
for sale or sold with or installed on a new motor vehicle prior to or concurrent with
transfer to an ultimate purchaser.


N.C.D.L. PERFORMANCE PARTS                                EXECUTIVE ORDER D—427—2
HYPERSPEED CONTROLLER                                     (Page 2 of 4)


Marketing of the Hyperspeed Controller using any identification other than that shown in
this Executive Order or marketing of the Hyperspeed Controller for an application other
than those listed in this Executive Order shall be prohibited unless prior approval is
obtained from the Air Resources Board. Exemption of the Hyperspeed Controller shall
not be construed as exemption to sell, offer for sale or advertise any component of the
kit as an individual device.

This Executive Order does not constitute any opinion as to the effect the use of the
Hyperspeed Controlier may have on any warranty either expressed or implied by the
 vehicle manufacturer.

This Executive Order is granted based on emission results submitted by N.C.D.L.
Performance Parts. Testing was performed on four vehicles: 2000 Chrysler Neon, 2000
Ford Expedition, 2000 Toyota Corolla, and 2000 Volkswagen Jetta. Results from
emissions testing conducted at N.C.D.L. are shown below (in grams per mile):


Expedition             50k       NMOG          CO        NOx     HCHO
(MDV3, LEV)      Emission Level 0.127          1.7      0.173    0.0027
                 (w. DF applied)
                        STD         0.195       5.0      1.1      0.022

                       100k         NMOG        CO      NOx       HCHO
                 Emission Level     0.161      3.1      0.243    0.0027
                 (w. DF applied)
                        STD         0.280       7.3      1.5      0.032


                                    NMOG        CO       NOx      HCHO
Neon             Baseline           0.0636      1.012    0.035    0.0013
 (PC, ULEV}      Modified           0.0693      0.949    0.16     0.0014
                 Change            +0.006      —0.063   +0.125   +0.0001

Corolla          Baseline           0.0897      0.679    0.067    0.0008
 (PC, LEV)       Modified           0.0744     0.786    0.070     0.0007
                 Change            —0.015      +0.108   +0.003    —0.0001

Jetta            Baseline           0.0874 _    0.827    0.082     0.0017
 (PC, LEV)       Modified           0.0784      0.651    0.090    0.0016
                 Change            —0.009      —0.176   +0.008    —0.0001

The emission test results in the modified configuration for the Ford Expedition met the
 applicable emission standards with the deterioration factors applied. The emission test
 results in the modified—configuration for all three passenger cars were below the
 altowable timit of 0.01 grams per mile or 10 percent of the baseline emission levels,


 N.C.D.L. PERFORMANCE PARTS                                EXECUTIVE ORDER D—427—2
 HYPERSPEED CONTROLLER                                     (Page 3 of 4)


 except for the oxides of nitrogen (NOx) emissions of the Chrysler Neon which increased
 significantly. However, the baseline NOx level of this vehicle was very low in
 comparison with the applicable standards, and the modified NOx emission levels
 continued to comply with the applicable emission standards ({with the deterioration
 factors applied). Examination of the On—Board Diagnostic II (OBD I!I) systems with the
 Hyperspeed Controller installed showed normal operation of the OBD 11 systems.
 Therefore, based on the test results, the staff concludes that the Hyperspeed Controlier
 meets the criteria for exempting general criteria parts. However, the ARB finds that
 reasonable grounds exist to believe that use of the Hyperspeed Controller may
—adversely affect emissions of motor vehicles when operating under conditions outside
 the parameters of the CVS—75 Federal Test Procedure. Accordingly, the ARB reserves
 the right to conduct additional emission tests, in the future, as such tests are developed,
 that will more adequately measure emissions from all cycle phases. If such test results
 demonstrate that the Hyperspeed Controller adversely affects emissions during
 off—cycle conditions (defined as those conditions which are beyond the parameters of
 the Cold—Start CVS—75 Federal Test Procedure), this Executive Order shall be
 effectively rescinded as of the date the test results are validated. Further, if such test
 results or other evidence provides the ARB with reason to suspect that the Hyperspeed
 Controller will affect the durability of the emission control system, N.C.D.L. Performance
 Parts shall be required to submit durability data to show that the durability of the vehicle
 emission control system is not, in fact, affected or that the add—on or modified part
 demonstrates adequate durability.

 Although testing was performed on a 2000 Toyota Coroila, and a 2000 Volkswagen
 Jetta, all TLEV, LEV, ULEV, and SULEV certified 1997—2000 Toyota/Lexus and 1998—
 2000 Volkswagen vehicles shall be excluded from this Executive Order because of the
 high incidence of linear oxygen sensors used by those manufacturers.

 In addition to the foregoing, the ARB reserves the right in the future to review this
 Executive Order and the exemption provided herein to assure that the exempted add—on
 or modified part continues to meet the standards and procedures of Title 13, California
 Code of Regulations, Section 2222, et seq.

 THIS EXECUTIVE ORDER DOES NOT CONSTITUTE A CERTIFICATION,
 ACCREDITATION, APPROVAL, OR ANY OTHER TYPE OF ENDORSEMENT BY THE
 AIR RESOURCES BOARD OF ANY CLAIMS OF THE APPLICANT CONCERNING
 ANTI—POLLUTION BENEFITS OR ANY ALLEGED BENEFITS OF N.C.D.L.
 PERFORMANCE PARTS‘S HYPERSPEED CONTROLLER.

 No claim of any kind, such as "Approved by the Air Resources Board", may be made
 with respect to the action taken herein in any advertising or other oral or written
 communication.

 Violation of any of the above conditions shall be grounds for revocation of this order.
 The order may be revoked only after a ten—day written notice of intention to revoke the


N.C.D.L. PERFORMANCE PARTS                                   EXECUTIVE ORDER D—427—2
HYPERSPEED CONTROLLER                                        (Page 4 of 4)


order, in which period the holder of the order may request in writing a hearing to contest
the proposed revocation. If a hearing is requested, it shall be held within ten days of
receipt of the request and the order may not be revoked until a determination after
hearing that grounds for revocation exist.
                                               +4
Executed at El Monte, California, this   __4        day of April 2001.




                               (R. B. Simmerfield, Chief
                                Mobile Source Operations Division


                                             State of California
                                        AIR RESOURCES BOARD
w0itie.




                        EVALUATION OF N.C.D.L. PERFORMANCE PARTS®
                                 HYPERSPEED CONTROLLER
                  FOR EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
              SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                             CALIFORNIA CODE OF REGULATIONS




                                                 April 2001




                                                      by
                                     Mobile Source Operations Division
                                           9528 Telstar Avenue
                                             El Monte, CA 91731




          (This report has been reviewed by the staff of the California Air Resources Board and
          approved for publication. Approval does not signify that the contents necessarily reflect
          the views and policies of the Air Resources Board, nor does mention of trade names or
          commercial products constitute endorsement or recommendation for use.)


                                       SUMMARY



            N.C.D.L. Performance Parts of 2748 Jefferson Street, Napa, California

94558, has applied for an exemption from the prohibitions in Section 27156 of the

California Vehicle Code (VC) for the Hyperspeed Controller designed for 2000 and older

| model—year passenger cars, light—duty trucks, and medium—duty vehicles equipped with

conventional zirconia oxygen sensors !isted in the attached Exhibit A (this exhibit

identifies vehicles for which sensor harness connectors can be supplied, not oxygen

sensor technology). Excluded vehicles are listed in the attached Exhibit B, but not

 limited to the vehicles listed therein. The excluded vehicles are those vehicles equipped

with titania or linear oxygen sensors, which are not compatible with the operation of the

 Hyperspeed Controller.

            Based on comparison of emissions in the modified configuration with the

 baseline or the applicable standards and an examination of the On—Board Diagnostic II

 (OBD II) system with the Hyperspeed Controller installed, the staff concludes that the

 Hyperspeed Controller will not adversely affect exhaust emissions from vehicles for

 which the exemption is requested.

            The staff recommends that N.C.D.L. Performance Parts be granted an

 exemption as requested and that Executive Order D—427—2 be issued.


                      TABLE OF CONTENTS



                                               Page Number




SUMMARY                                             i

CONTENTS                                            i

1.   INTRODUCTION                                   1

I1. CONCLUSION                                      1

HII. RECOMMENDATION                                 1

IV. HYPERSPEED CONTROLLER DESCRIPTION              2

V.   DISCUSSION OF THE HYPERSPEED CONTROLLER        3


                 EVALUATION OF N.C.D.L. PERFORMANCE PARTS®
                        HYPERSPEED CONTROLLER
       FOR AN EXEMPTION FROM THE PROHIBITIONS OF VEHICLE CODE
     SECTION 27156 IN ACCORDANCE WITH SECTION 2222, TITLE 13, OF THE
                    CALIFORNIA CODE OF REGULATIONS


I.   INTRODUCTION

           N.C.D.L. Performance Parts, Inc., of 2748 Jefferson Street, Napa, California

94558, has applied for an exemption from the prohibitions in Section 27156 of the

California Vehicle Code (VC) for the Hyperspeed Controller designed for 2000 and older

model—year passenger cars, light—duty trucks, and medium—duty vehicles equipped with

conventional zirconia oxygen sensors listed in the attached Exhibit A (this exhibit

identifies vehicles for which sensor harness connectors can be supplied, not oxygen

sensor technology). Excluded vehicles are listed in the attached Exhibit B, but not

limited to the vehicles listed therein. The excluded vehicles are those vehicles equipped

with titania or linear oxygen sensors, which are not compatible with the operation of the

Hyperspeed Controller.

II. CONCLUSIONS

           Based on emission testing, and an examination of the On—Board Diagnostic II

(OBD I!) system with the Hyperspeed Controller installed, the staff concludes that the

Hyperspeed Controller will not adversely affect exhaust emissions from the vehicles for

which the exemption is requested.

lI. RECOMMENDATION

           The staff recommends that N.C.D.L. Performance Parts be granted an

exemption for their Hyperspeed Controller for installation on 2000 and older model—year

passenger cars, light—duty trucks, and medium—duty vehicles equipped with conventional


zirconia oxygen sensors listed in the attached Exhibit A (this exhibit identifies vehicles

for which sensor harness connectors can be supplied, not oxygen sensor technology}).

Excluded vehicles are listed in the attached Exhibit B, but not limited to the vehicles

listed therein. The excluded vehicles are those vehicles equipped with titania or linear

oxygen sensors, which are not compatible with the Hyperspeed Controller.                  |

IV. HYPERSPEED CONTROLLER DESCRIPTION

           The N.C.D.L. Performance Parts Hyperspeed Controller has been

specifically designed for installation on the 2000 and older model—year passenger cars,

light—duty trucks, and medium—duty vehicles equipped with conventional zirconia oxygen

sensors.

           The intent of installing the Hyperspeed Controller is to increase power output

at particular engine loads and throttle openings. The Hyperspeed Controlier modifies

the oxygen sensor signal being sent to the engine control module starting at a set

minimum engine RPM. The modified oxygen sensor signal is interpreted as a lean

condition, and the engine control module responds by adjusting the fuel trim, injecting

additional fuel. The extra fuel is then available to produce more power. For four

cylinder engines, the minimum enable speed is 2,200 RPM, and for engines with five or

more cylinders, the minimum enable speed is 1,750 RPM. The Hyperspeed Controller

is supplied with a thermostatic switch that activates the device once the vehicle has

reached normal operating temperatures. The thermostatic switch is installed as close to

the engine thermostat as possible in order to reach activation temperature as quickly

and accurately as possible. The thermostatic switch activates when coolant

temperatures have reached 135 degrees Fahrenheit. The Hyperspeed Controller can be


 adjusted for both enrichment level and enable RPM in order to maintain fuel economy

 during low load conditions that exist above the minimum enable speeds for the

 Hyperspeed Controller. The four cylinder and five or more cylinder Hyperspeed

 Controller are differentiated by their harness connectors which are not interchangeable.

              The installation of the Hyperspeed Controller requires connection to a |

—switched positive 12 volts, chassis ground, RPM pick—up wire, and the tapping of the

 oxygen sensor signal. The Hyperspeed Controller is supplied with OEM type

 connectors that allow foolproof connection to the stock oxygen sensor wiring harness.

 Consumer purdhase of the Hyperspeed Controller involves specifying vehicle

 information so that the proper oxygen sensor harness connector can be supplied by

 NCDL Performance Parts. At no time should the consumer be splicing into the stock

 oxygen sensor harness in order to install the Hyperspeed Controller.

 V.         DISCUSSION OF THE HYPERSPEED CONTROLLER

                 This Executive Order is granted based on emission results submitted by

 N.C.D.L. To satisfy the wide scope of vehicle applications for this Executive Order,

 testing was performed on four vehicles: 2000 Chrysler Neon, 2000 Ford Expedition,

 2000 Toyota Corolla, and 2000 Volkswagen Jetta. Results from emissions testing

 conducted at N.C.D.L. are shown below (in grams per mile):


Expedition             50k      NMOG          CO       NOx        HCHO
(MDV3, LEV)      Emission Level 0.127         1.668    0.173      0.0027
                 {w. DF applied)
                        STD         0.195     5.0       1.1       0.022

                      100k       NMOG         CO       NOx        HCHO
                 Emission Level 0.161        3.098     0.243      0.0027
                 (w. DF applied)
                        STD         0.280     7.3       1.5       0.0382


                                    NMOG      CO        NOx       HCHO
Neon             Baseline           0.0636    1.012     0.035     0.0013
(PC, ULEV)       Modified           0.0693     0.949    0.16      0.0014
                 Change            +0.006    —0.063    +0.125     +0.0001

Corolla          Baseline           0.0897     0.679    0.067     0.0008
(PC, LEV)        Modified           0.0744    0.786     0.070     0.0007 .
                 Change            —0.015     +0.108   +0.003     —0.0001

Jetta            Baseline           0.0874    0.827     0.082     0.0017
(PC, LEV)        Modified           0.0784    0.651     0.090     0.0016
                 Change            —0.009    —0.176     +0.008    —0.0001

        The emission test results in the modified configuration for the Ford Expedition

met the applicable emission standards with the deterioration factors applied. The

emission test results in the modified configuration for all three passenger cars were

below the allowable limit of 0.01 grams per mile or 10 percent of the baseline emission

levels, except for the oxides of nitrogen (NOx) emissions of the Chrysler Neon which

increased significantly. However, the baseline NOx level of this vehicle was very low in

comparison with the applicable standards, and the modified NOx emission levels

continued to comply with the applicable emission standards (with the deterioration

factors applied). Examination of the On—Board Diagnostic II (OBD 11) systems with the

Hyperspeed Controller installed showed normal operation of the OBD 11 systems.


on the test results, the staff concludes that the Hyperspeed Controller meets the criteria

for the exemption of general criteria parts.                |

       Although testing was performed on a 2000 Toyota Corolla, and a 2000

Volkswagen Jetta, all TLEV, LEV, ULEV, and SULEV certified 1997—2000 Toyota/Lexus

and 1998—2000 Volkswagen vehicles shall be excluded from this Executive Order           |

\because of the high incidence of linear oxygen sensors used by these manufacturers.

       The ARB finds that reasonable grounds exist to believe that use of the

Hyperspeed Controller may adversely affect emissions of motor vehicles when

operating under conditions outside the parameters of the previously prescribed test

procedure. Accordingly, the ARB reserves the right to conduct additional emission tests

in the future, as such tests are developed. Also, the excluded vehicles shall not be

limited to the vehicles listed in Exhibit B. If for any reason the Hyperspeed Controlier is

shown to be incompatible with vehicles not named in Exhibit B, N.C.D.L. Performance

 Parts shall notify the ARB and revise the list of excluded vehicles so that sales of the

 Hyperspeed Controller do not cause improper function of the emission control systems

of the vehicles on which it is installed.

            N.C.D.L. Performance Parts has submitted all the required information and

fulfilled the requirements for an exemption.


                                                 Exhibit A




    #9:     VEHICLE NAMES, MODEL YEARS, ENGINE DISPLACEMENTS & SYSTEMS THAT
            ARE COMPATIBLE WITH THE DEVICE, AND FOR WHICH EXEMPTION IS
            REQUESTED.

     ACURA
         Integra                     4 Cyl 1.8L
         Vigor                       5 Cyl 2.5L.
         Legend                      V6 3.2L
         NSX                         VC 2.5L, 3.0L, 3.2L
        TL                           5 Cyl 2.5L, V6 3.2L
         NSX—T          |            V6 3.0L
         RL                          VC 3.5L.
         CL                          4 Cy| 2.2L, 2.3L, V6 3.O0L

    . ALFA ROMEO
           Spider                     4 Cyl 2.OL
           164                        V6 3.0L

_    AUDI                                |
C           90              |         Vé28L
            100                       VC 2.8L.
            Cabriclet                 V6 2.8L
            S4                   _    5 Oyl 2.2L
            Quattro                   V8 4.2L
            A6                        V6 2.8L
            S6                ~       5 Cyl 2.2L
            A4                        V6 2.8L
            A8                        V8 3.7L, 4.2L
            A4 Avant Quattro AWD      V6 2.8L
            S$4 Quattro AWD           V6 Turbo 2.7L
            A6 Avant Quattro AWD      V6 2.8L
            A6 Quattro AWD            V6 Turbo 2.7L, V8 4.2L
            AS Quattro AWD            VB 4. 2L
            TT                 |      4 CyI Turbo 1.8L.

      BMW
            3 Series            4 Cyl 1.8L, 1.9L, 6 Cyl 2.5L, 2.8L
                                                 Page 1 of 14


    5 Series          6 CyI 2.5L, 2.8L, V8 3.0L, 4.0L, 4.4L
    7 Series          V8 4.0L, 44L, V12 5.0 L, 5.4L
    8 Series          V8 4.0L, 4.4L, V12 5.0L, 5.4L, 5.6L.
    M3                6 Cyl 3.0L, 3.2L
    23                4 CyI 1.9L, 6 Cyl 2.8L, 3.2L
    MS5               V8 5.0L
BUICK
    Skylark           4 Cy| 2.3L, 2.4L, V6 31L
    Century           V6 31L
    Regal             V6 3.1L, 3.8L, V6 Supercharged 3.8L
    Lesabre           V6 3.8L.
    Park Ave          V6 3.8L, V6 Supercharged 3.8L
    Roadmaster        V8 5.7L
    Riviera           V6 3.8L, V6 Supercharged 3.8L.

CADILLAC
    Eldorado          V8 4.6L
    Seville           V8 4.6L.
    DeVille           V8 4.6L, 4.9L
    Fleetwood         V8 5.7L
    Catera            V6 3.0L

CHEVROLET
    Cavalier          4 CyI 2.2L, 2.3L, 2.4L, V6 31L
    Corsica           4 CyI 2.2L
    Beretta           4 Cy| 2.2L, 4 CyI Quad 4 2.3L, V6 31L
    Lumina            V6 31L
    Camaro            V6 3.1L, 3.4L, 3.8L, V8 5.7L
    Caprice Classic   V8 4.3L
    Corvette          V8 5.7L
     Impala SS        V8 5.7L
     Impala           V6 3.4L, 3.8L
     Monte Carlo      V6 3.1L, 3.4L, 3.8L
     Malibu           V6 31L
     Metro            3 Cyl 1.0L, 4 Cyl 1.3L
        Prizm         4 Cy] 1.8L

                                      Page 2 of 14


CHRYSLER
    LeBaron      4 Cyl 2.0L; V6 3.0L
    Concords     V6 3.3L.
    New Yorker   V6 3.5L
    LHS          V6 3.5L.
    Sebring      4 Cyl 2.0L, V6 2.5L
    Cirrus       4 Cyl 2.0L, 2.4L; V6 2.5L
    300M         V6 3.5L.

DAEWOO
  _ Lanos        4 Cyl 1.6L
    Nubira       4 Cyl 2.0L
    Leganza      4 Cyl 2.2L
DODGE
     Colt        4 Cyl 1.5L
     Shadow      4 Cy| 2.2L, 2.5L.
     Daytona     4 Cyl 2.5L, V6 3.0L, 4 Cyl Turbo 2.2L
    —Spirit      4 Cyl 2.5L.            >
     Intrepid    V6 2.7L, 3.2L, 3.3L
     Dynasty —   V6 3.0L, 3.3L
    Monaco       V6 3.O0L
    Stealth      V6 3.0L, V6 Turbo 3.0L
    Viper        V10 8.O0L.
    Neon         4 Cyl 2.OL
    Avenger      4 CyI 2.0L, V6 2.5L.
    Stratus      4 Cyl 2.0L, 2.4L, V6 2.5L

EAGLE
    Medallion    4 Cyl 2.2L
    Summit       4 Cyl 1.5L, 1.8L, 24L
    Vision       V6 3.3L, 3.5L
    Talon        4 Cyl 1.8L, 2.0L, 4 CyI Turbo 2.0L
     Premier     V6é 3.0L
FERRARI
                 All V8: All 10

                                  Page 3 of 14


FORD
       Festiva.          4 Cyl 1.3L
       Escort            4 Cyl 1.8L, 1.9L.
       Tempo             4 Cyl 2.3L
       Mustang           4 Cy] 2.3L;4 Cyl Turbo, 2.3L; V8 3.8L, V8 4.6L, 5.0L
       Probe             4 Cyl 2.0L; V6 2.5L
       Taurus            4 Cyl 2.5L; V6 3.0L, 3.2L; V8 3.4L
       Thunderbird       4 Cyl Turbo, 2.3L; V6 3.8L; V6 Supercharged 3.8L.
       Crown Victoria    V8 4.6L, 5.0L, 5.8L.
       Aspire            4 CyI 1.3L
   _ Contour             4 Cyl 2.0L; V6 2.5L
     Focus              4 Cyl 2.0L; 4 Cyl 16V 2.0L
     LTD                 V6 3.8L
     EXP                 4 CyI 1.9L; (1988.5) 4 Cyl 1.9L
GEO
       Metro             3 CyI 1.0L; 4 CyI 1.3L
       Prizm             4 Cyl 1.6L, 1.8L
       Storm             4 CyI 1.6L, 1.8L
HONDA
       Civic             4 Cy] 1.5L, 1.6L.
       Civic del Sol     4 CyI 1.5L, 1.6L
       Accord            4 Cyl 2.2L, 2.3L
       Prelude           4 CyI 2.2L, 2.3L
HYUNDAI
       Accent            4 Cyl 1.5L.
       Excel             4 Cyl 1.5L.
       Scoupe            4 Cyl 1.5L; 4 Cy!l Turbo 1.5L
       Elantra           4 Cyl 1.6L, 1.8L
       Sonata            4 Cyl 2.0L, 2.4L; V6 2.5L, 3.0L.
       Tiburon           4 Cyl 1.8L, 2.0L

INFINIT
      G20                4 CyI 2.0L
      J30                V6 3.0L
      45                 VB 4 AL, 4.5L
                                             Page 4 of 14


      130           V6 3.0L

JAGUAR
    XJ6             6 Cyl 4.0L
    XJS             6 Cyl 4.0L; V12 6.0L
    XJ              V12 6.0L
    XJ12            V12 6.0L
    XJR             6 Cyl Supercharged 4.0L
    XK8             V8 4.0L
    XJ8             V8 4.0L
    S—Type          V6 3.0L; V8 4.0L

KIA
      Sephia        4 Cyl 1.6L, 1.8L

LEXUS
     ES 300         V6 3.0L
     GS 300         6 Cyl 3.0L
     SC 300         6 Cyl 3.0L
     SC 400         V8 4.0L
     LS 400         V8 4.0L
    GS 400          V8 4.0L
LINCOLN
      Town Car      V8 4.6L
      Continental   V6 3.8L; V8 4.6L
      Mark VIII     V8 4.6L
      LS            V6 3.0L; V8 3.9L

MAZDA
      323           4 Cyl 1.6L
      MX—3          4 Cyl 1.6L; V6 1.8L
      Protégé       4 Cyl 1.5L, 1.8L.
      626           4 Cyl 2.0L; V6 2.5L
      MX—6          4 Cy| 2.0L; V6 2.5L
      Miata         4 Cyl 1.6L, 1.8L
      RX—7          Rotary Turbo 1.3L
      929           V6 3.0L.
                                       Page 5 of 14


     Millenia         V6 2.3L, 2.5L; V6 Supercharged 2.3L


MERCEDEZ—BENZ
                      4 Cyl 2.2L; 4 Cyl Supercharged 2.3L
                      6 Cyl 2.8L, 3.2L, 3.6L.
                      V8 4.2L, 5.0L.
                      V12 6.0L
                      V6 2.8L, 3.2L

MERCURY
     Tracer           4 Cyl 1.8L, 1.9L
     Capri            4 Cyl 1.6L, 4 Cyl Turbo 1.6L
     Topaz            4 Cyl 2.3L
     Sable            V6 3.0L
     Cougar           V6 2.5L., V8 4.6L
     Grand Marquis    V8 4.6L
     Mystique         4 Cyl 2.0L, V6 2.5L.

MITSUBISHI
     Precis           4   Cyl   1.5L
     Mirage           4   Cyl   1.5L,   1.8L.
     Expo             4   Cyl   1.8L,   24L          _
     Eclipse          4   Cyl   1.8L,   2.0L, 2.4L, 4 Cyl Turbo 2.0L, V6 3.0L
     Galant           4   Cyl   2.4L,   V6 3.0L.
     3000 GT           V6 3.0L, V6 Turbo 3.0L
     Diamante          V6 3.0L, 3.5L.

NISSAN
     Sentra            4 CyI , 1.8L, 2.0L
     2408X             4 Cy] 24L
     Altima            4 CyI 24L
     Maxima            V6 3.0L
     300ZX V6/Turbo    V6 3.0L
     2008X             4 Cy] 1.6L, 2.0L
OLDSMOBILE
     Achieva           4 Cy| 2.4L
                                            Page 6 of 14


       Ciera                     V6 31L
        Cutlass Supreme          V6 3.1L
        Cutlass Cruiser          V6 31L
        Eighty Eight             V6 3.8L.
        Ninety Eight             V6 3.8L.
       Regency                   VC 3.8L.
        Intrigue                 V6 3.5L.

PLYMOUTH
       Colt                      4 Cyl 1 .5L, 1.8L.
       Colt Vista                4 Cyl 1.8L, 24L
       Sundance                  V6 3.0L
       Laser                     4 Cyl 1.8L, 2.0L; 4 Cyl. Turbo, 2.OL
       Acclaim                   4 Cyl 2.5L
       Neon                      4 Cyl 2.OL
       Breeze                    4 Cy| 2.0L, 24L

PONTIAC
     Sunfire                     4 Cyl 2.2L, 24L
     Grand Am                    4 Cyl 2.4L; V6 3.AL
     Firebird                    V6 3.8L; V8 5.7L
       Grand Prix                V6 3.8L; V6 Supercharged, 3.8L.
       Bonneville                V6 3.8L.

PORSCHE
    968                          4 Cyl 3.0L
       911 Carrera 2             6 Cyl 3.6L
       911 Carrera 4 AWD         6 Cyl 3.6L
       911 Turbo                 6 Cy] 3.6L
       928 GTS                   V8 54L
       911 Carrera               6 Cyl 34L
       Boxster                   6 Cyl 2.7L, 3.2L
SAAB
       900                 4 Cy| 2.3L; 4 Cyl. Turbo, 2.O0L
       9000                4 Cyl. LPTurbo, 2.3L; 4 Cyl. Turbo, 2.3L; V6 3.0L
       9—3                 4 Cyl. Turbo, 2.0L; 4 Cyl. HO Turbo, 2.0L, 2.3L
       9—5                 4 Cyl. Turbo, 2.3L; V6 Turbo, 3.0L; 4 Cyl. HO Turbo, 2.3L.
                                            Page 7 of 14


SATURN
    Saturn             4 Cyl 1.9L
    Saturn L Series    4 Cyl 2.2L; V6 3.0L
SUBARU
    Justy              3   Cyl 1. 2L
    Loyale AWD         4   Cyl 1.8L
    Impreza            4   Cyl 1.8L
    Impreza AWD        4   Cyl 1.8L, 2.2L, 2.5L
    Legacy             4   Cyl 2.2L
    Legacy AWD         4 Cyl 2.2L, 2.5L; 4 Cyl Turbo, 2.2L
    SVX                6 Cyl 3.3L

SUZUKI
     Swift             4 Cyl 1.3L
     Esteem            4 CyI 1.6L, 1.8L
TOYOTA
    Tercel             4 Cyl 1.5L
     Paseo             4 Cyl 1.5L
    —Corolla          <4 Cyl 1.8L
     Camry             4 Cyl 2.2L
     MR2               4 Cyl 2.2L; 4 Cyl Turbo, 2.0L
     Celica            4 Cyl 1.8L.
     Supra             6 Cyl 3.0L; 6 Cyl Turbo, 3.OL
     Avalon            V6 3.0L.
     Solara            4 Cyl 2.2L; V6 3.0L
     Echo              4 Cyl 1.5L.

VOLKSWAGEN
    Golf I!!           4 Cyl 2.0L
    Jetta I!I          4 Cyl 2.0L; V6 2.8L
    Passat             4 Cyl 2.0L; V6 2.8L
    Corrado            V6 2.8L.
    GTI                V6 2.8L; 4 Cyl 2.QL
     Cabrio            4 Cyl 2.O0L
     Golf GTI VR6      V6 2.8L
     New Bestle        4 Cy| 2.0L; 4 Cyl Turbo, 1.8L
                                  Page8 of 14


      New Golf                4 Cy| 2.0L
      New GTI                 4 Cyl 2.0L; V6 2.8L
    — New Jetta               4 Cyl 2.0L
      New Jetta VR6           V6 2.8L
      New Cabrio .            4 Cyl 2.8L
VOLVO
    850                       5   Cyl 2.4L;   5 Cyl Turbo, 2.3L.
    940                       4   Cyl 2.3L;   4 Cyl Turbo, 2.3L.
    960                       6   Cyl 2.9L
   90 Series                  6   Cyl 2.9L
    70 Series                 5   Cyl 2.4L;   5 Cyl Turbo, 2.3L, 24L
    80Series                  6   Cyl 2.9L;   6 Cyl 2.8L
    40 Series                 4 Cyl Turbo, 1.9L

YUGO
                              4 Cyl 1 1L, 1.3L

ACURA TRUCKS
    SLX 4WD                   V6 3.0L, 3.2L, 375L —

BMW TRUCKS
    X5 AWD                    V8 4AL

CADILLAC TRUCKS
     Escalade AWD             V8 4.6L

CHEVROLET/GMC TRUCKS
    EL Camino/Caballero       V6 4.3L
    S10 Blazer/Jimmy 4WD      V6 4.3L
       Blazer/Yukon 4WD       V8 5.7L, 45477 AL
       Suburban               V8 45477 AL
       Lumina                 V6 3.8L
       Astro/Safari           V6 3.8L
       Sportvan/Rally Wagon   V6 4.3L; V8 45477 AL
       G—SeriesVandura        V6 3.8L; V8 5.0L, 5.7L, 45477 AL
       S$10/Sonoma Pickup     4 Cy| 2.5L; V6 4.3L; V6 High Output 4.3L
       Regular Cab Pickup     V6 4.3L; V8 5.7L, 45477AL

                                   Page 9 of 14


     Extended Cab Pickup             V6 4.3L; V8 5.7L, 45477.4L
     Crew Cab Pickup                 V8 45477AL
     Cab Chassis        |            V8 45477.4L
     Express/Savana                  V6 4.3L; V8 45477AL
     G—Series/Savana Cargo Van       V6 3.8L, 4.3L; V8 5.0L, 5.7L, 454/7.4L
     Venture                         V6 3.8L, 4.3L
     Tracker 4WD —                   4 CyI 2.5L
     Envoy                           V6 3.8L, 4.3L
     Sitverado/Sierra Regular Cab V6 4.3L; V8 5.3L, 6.0L
     Silverado/Sierra Extended Cab V6 4.3L; V8 5.3L, 6.0L
   _ Yukon Denali 4WD                V8 5.3L, 6.0L.
     Silverado/Sigerra Cab Chassis   V8 5.3L, 6.0L.
     Tahoe/Yukon 4WD                 V8 5.3L, 6.0L

CHRYSLER VANS
    Town & Country                   V6 3.8L, 4.3L

DODGE/PLYMOUTH TRUCKS
    Caravan CV                       4 CyI 2.5L; V6 3.0L
    Caravan Voyager                  4 Cyl 2.5L; V6 3.0L, 3.8L.
     Ram Wagon                       V6 3.9L; V8 5.9L
     Ram Van                         V6 3.9L; VB 5.2L, 5.9L
     Dakota Pickup                   4 Cyl 2.5L; V6 3.9L; V8 5.2L, 5.91
     Dakota Pickup                   6 Cyl 4.9L; 4 Cyl 2.5L; V8 5.2L, 5.91
     Dakota Cab Chassis              V6 3.9L; V8 5.2L
     Regular Cab Pickup              V6 3.9L; V8 5.9L; V10 8.0L
     Cab Chassis                     V10 8.0L
     Club Cab Pickup                 V8 5.9L; V10 8.0L
     Durango                         V6 3.9L; V8 5.9L
     Quad Cab Pickup                 V8 5.9L; V10 8.0L
     Grand Caravan                   V6 3.9L
FORD TRUCKS
     Explorer 4WD                    V6 4.0L; V8 5.0L
     Bronco 4WD                      V8 5.8L
     Aerostar                        V6 4.0L
     Club Wagon                      V8 46077 5L.
     Econoline                       V6 4.2L;6 Cyl 4.9L;V8 5.0L,5.4L,5.8L,460/7.5L;V10 6.8L.

                                       Page 10 of 14


      Econoline Van            V6 4.0L; V8 4.6L, 5.4L; 10 6.8L.
      Ranger Pickup            4 CyI 2.0L; V6 3.0L, 4.0L.
      Courier Pickup           4 Cyl 2.0L
      RegularCab Pickup        6 Cyl 4.9L; V8 5.8L, 460/7.5L; V8 Supercharged
      Super Cab Pickup         6 Cyl 4.9L; V8 5.8L, 460/77.5L.
      Crew Cab Pickup          V8 460/7.5L
      Cab Chassis              6 Cyl 4.9L; V8 460/7.5L
      Expedition 4WD           V8 5AL
      Windstar                 V6    3.0L
    _ Super Duty Regular Cab    V8   5.8L;   V10 6.8L
    _ Super Duty Super Cab      V8   5.8L;   V10 6.8L.
      Super Duty Crew Cab       V8   5.8L;   V10 6.8L.
      Super Duty Cab Chassis    V8   5.8L;   V10 6.8L.
      Excursion 4WD             V8   5.8L;   V10 6.8L.

GMC — See CHEVROLET TRUCKS

GEO TRUCKS
     Tracker 4WD               4 Cyl 1.3L, 1.6L, 1.8L

HONDA                                                    ,
      Passport                 4 Cyl 1.5L, 1.6L., 2.2L, 2.3L
      Passport 4WD             V6 3.0L
      Odyssey                  4 Cyl 1.5L, 1.6L, 2.2L, 2.3L.
      CR—V 4WD                 4 CyI 1.5L, 1.6L, 2.2L, 2.3L

~INFINITETRUCKS
      QX4 4WD                  V6 3.0L

 [SUZU TRUCKS
      Pickup                   4 Cyl2.3L; V6 31L
      Trooper 4WD              4 Cyl 2.2L, 2.8L; V6 3.1L
      Amigo                    4 Cy! 2.3L
      Rodeo 4WD                4 Cyl 2.6L

 JEEP TRUCKS
      CJ 4WD                    6 Cyl 4.0L; 4 Cyl 151, 2.5L; V8 5.2L
      Cherokee 4WD              6 Cyl 4.0L; V6 2.8L;V8 5.2L

                                     Page 11 of 14


     Cherokes 4WD          4 Cyl 2.5L; V6 2.8L
     Pickup 4WD            V8 5.2L; 6 Cyl 4.2L
     Comanche Pickup 4WD   4 Cyl 2.5L; V6 2.8L.
     Wrangler4WD           4 Cyl 2.5L; 6 Cyl 4.2L
     CJ7Z 4WD              6 CyI 4.0L, 4.2L; 4 CyI 2.5L
     Grand Cherokee 4WD    6 CyI 4.0L, 4.2L:; V8 5.21
     Grand Cherokee 4WD    V8 5.2L; 6 Cyl 4.0L
LAND ROVER
     Range Rover 4WD       V8
   ~ Defender 110 4WD      V8

LEXUS
     LX 450 4WD            6 CyI 3.0L
     LX 470 4WD            V8 4.0L
     RX 300 4WD            V6 3.0L
LINCOLN TRUCKS
    Navigator 4WD          V8 4.6L

MAZDA TRUCKS
    MPV Van                4 Cyl 1.6L, 1.8L, 2.0L; V6 2.5L,3.0L
    MPV Van 4WD            V6 2.5L,3.0L
    Navajo 4WD             V6 2.5L,3.0L
    B2000 Pickup           4 Cyl 1.6L, 1.8L, 2.0L
    B2000 Sundowner        4 Cy] 1.6L, 1.8L, 2.0L
    B2200 Pickup           4 CyI 1.6L, 1.8L, 2.0L
    B2300 Pickup           4 CyI 1.6L, 1.8L, 2.0L
    B2600 Pickup           4 Cyl 1.6L, 1.8L, 2.0L
    B2600 Pickup 4WD       4 Cyl 1.6L, 1.8L, 2.0L
    B2600i Pickup          4 CyI 1.6L, 1.8L, 2.0L
    826001 Pickup 4WD      4 Cyl 1.6L, 1.8L, 2.0L
    B3000 Pickup           V6 2.5L,3.0L
    B3000 Pickup 4WD       V6 2.5L,3.0L
    B4000 Pickup           V6 2.5L,3.0L
    B4000 Pickup 4WD       V6 2.5L,3.0L


                             Page 12 of 14


MERCEDES—BENZ
    M — Class 4WD        V6 3.2L
    M — Class 4WD        V8 4.2L, 5.0L

MERCURY TRUCKS
     Villager            V6 4.0L
     Mountainger AWD     V6 4.0L; V8 4.6L

MITSUBISHI TRUCKS
     Montero 4WD         V6 3.0L, 3.5L
 * Montero Sport 2WD     4 Cyl 2.4L; V6
     Montero Sport 4WD   V6 3.0L, 3.5L
     Mighty Max Pickup   4 Cyl 24L
NISSAN
     Pathfinder 4WD      V6 3.0L
     Quest               V6 3.0L
     Pickup              4 Cyl 24L
     Pickup              V6 3.0L
     Pickup 4WD          V6 3.0L
     Frontier Pickup     4 CyI 2.4L; V6 3.0L, 3.3L _
     Xterra 4WD          V6 3.0L; 4 Cyl 24L
OLDSMOBILE TRUCKS
     Silhoustte          V6 3.8L.
     Bravada AWD         V6 3.8L

PONTIAC VANS
     Trans Sport         V6 3.8L.
     Montana             V6 3.8L.

SUBARUTRUCKS
   | Forester AWD        4 Cyl 2.2L, 2.5L

SUZUKI TRUCKS
     Samural 4WD         4 Cyl 1.6L
     Sidekick            4 Cyl 1.6L
     Sidekick 4WD        4 Cyl 1.6L
                                    Page 13 of 14


      xX—90 4WD           4 Cyl 1.6L
      Vitara              4 Cyl 1.6L
      Vitara 4WD          4 Cyl 1.6L.
      Grand Vitara        V6 3.0L
      Grand Vitara 4WD    V6 3.0L
TOYOTA TRUCKS
      Rav4 4WD            4 Cyl 2.7L
      Cab Chassis         4 Cyl 2.7L; V6 3.4L
      4Runner 4WD         4 Cyl 2.7L; V6 3.0L, 3.4L
  _   Land Cruiser 4WD    4 Cyl 2.7L
      Land Cruiser AWD    6 Cyl 3.4L; V8 4.2L, 5.0L, S.2L.
      Previa              4 Cyl 2.7L; 4 Cyl Supercharged
      Pickup              4 CyIl 2.7L; V6 3.0L, 34L
      T100 Pickup         4 Cyl 2.7L; V6 3.4L
      Tacoma Pickup       4 Cy] 2.7L; V6 3.0L, 34L
      Tacoma Pickup 4WD   V6 3.0L, 34L
      Sienna              V6 3.0L, 3.AL
      Tundra              V6 3.0L, 34L

      Tundra 4WD          V8 4.2L, 5.0L, 5.21
VOLKSWAGEN VANS
      Vanagon             4 Cyl 2.0L
      Eurovan             V6 2.8L




                                   Page 14 of 14


                                EXHIBIT B




   LIST OF HYPERSPEED‘S EXCLUDED VEHICLES
 USING TITANIUM (TiO2) AND/OR LINEAR OXYGEN
                         SENSOR SYSTEMS

MAKE             MODEL              ENGINE SIZE            YEARS

SUBARU
    3—door, 4—door, and wagon                 1.8          88—89
       Loyale                                 1.8          90—94
       XT, XT6                            1.8,2.7        88—91
       All                          TLEV,LEV,ULEV, SULEV 98—2000

SAAB
       900                               2.0,2.1,2.3.2.5 90—94
       All                          TLEV,LEV,ULEV, SULEV 98—2000


YOLVO
       240                               2.3               89—93
       740                               2.3               89—92
       760                               2.8               88—90
       780                               2.8               87—90
       940                               2.3               91—95
       850                               2.0,2.5           93—current
       All                          TLEV,LEV,ULEV, SULEV   98—2000



NISSAN
     Altima                                   24           95—2000
     200SX                                    3.0          87—88
                                              1.6,2.0      95—97
       2408X                                  24           94—95
       300ZX                                  3.0          86—89
       D—21 Pickup                            3.0          86—93
       Pathfinder                             3.0          87—93
       Maxima                                 3.0          89—96
       Quest                                  3.0          93—97
       Pulsar                             1.6              87
       Sentra                             1.6              87—88,95—97
       Stanza                            2.0               86
       All                          TLEV,LEV,ULEV, SULEV   98—2000

HYUNDAI
    All                             TLEV,LEV.ULEV, SULEV 98—2000



                                     1 of 3


                           EXHIBIT B




MERCEDES
    All                        TLEV,LEV,ULEV, SULEV 98—2000

MERCURY
     Villager                          3.0               93—97

HONDA
     Civic 3Door, VX, HX             1.5,1.6        92—2000
     Accord 4 cyl                   2.3             98—2000
     All                       TLEV,LEV,ULEV, SULEV 98—2000

ACURA
    CL                              2.3             98—2000
    All                        TLEV,LEV,ULEV, SULEV 98—2000

INFINITY
     M3O0                           3.0                  90—92
     130                            3.0                  96—2000
     G20                            2.0                  94—2000
     All                       TLEV,LEV,ULEV, SULEV      98—2000

LAND ROVER
     Defender                          3.9,4.0           93—97
     Discovery                         3.9               94—97
     Range Rover                       3.9,4.0,4.2,4.6   87—97

JAGUAR
    Vanden Plas                     4.0             92—97
     XJ6,12,XJR,XJS                 4.0,6.0         92—97
     All                       TLEV,LEV,ULEV, SULEV 98—2000

TOYOTA
    All                        TLEV,LEV,ULEV, SULEV 97—2000
     Pickup                         3.0             90—93
     Land Cruiser                   4.5             93—95

LEXUS
     An                        TLEV,LEV,ULEV, SULEV 97—2000


YOLKSWAGEN
    All                        TLEV,LEV,ULEV, SULEV 98—2000




                             2 of 3


                                EXHIBIT B




JEEP
       Cheerokee, Commanche, Wagoneer        2.5,4.0         87—88
       ALL                                   2.5             88
       ALL                                   4.0             89—90

EAGLE
       Premire                               2.5             88—89
       Premire                               3.0             88—90

DODGE
       Monaco                                3.0             89—90

BMW
       All                              TLEV,LEV,ULEV, SULEV 98—2000




                                    3 of 3



Document Created: 2005-09-01 12:41:17
Document Modified: 2005-09-01 12:41:17

Previous E.O. D-427-1 | Previous E.O. D-426 | Next E.O. D-427-3 | Next E.O. D-428
